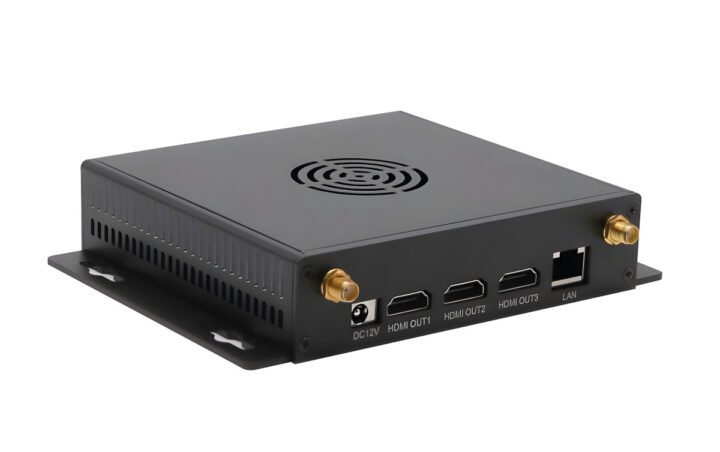

Mekotronics R58-N100 is an Intel Processor N100 mini PC whose main differentiating feature is its metal enclosure with four holes suitable for direct wall mounting.

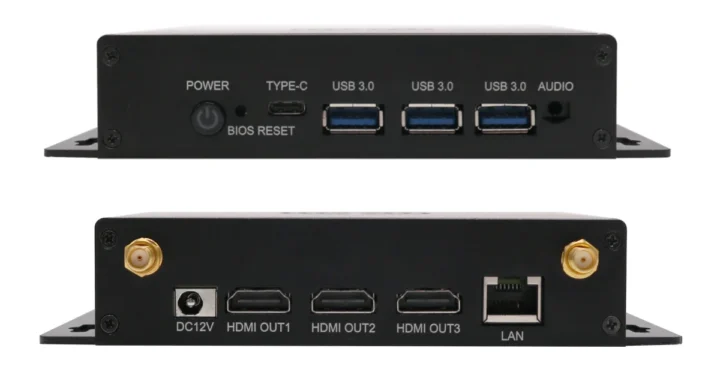

The computer supports DDR5 SO-DIMM memory and M.2 MVMe SSD storage. It also features three 4K-capable HDMI video outputs, gigabit Ethernet, WiFi 6, three USB 3.0 ports, a USB Type-C port, and a 3.5mm audio jack.
Mekotronics R58-N100 specifications:
- SoC – Intel Processor N100
- CPU – Quad-core Alder Lake-N processor @ up to 3.4 GHz (Turbo)
- GPU – 24EU Intel HD graphics @ 750 MHz
- Cache – 6MB cache
- TDP – 6W
- System Memory – 8GB or 16GB DDR5
- Storage – 128GB, 256GB, or 512GB M.2 MVMe SSD
- Video Output – 3x HDMI 2.0 ports up to 4Kp60; up to at least 3x independent displays supported
- Audio – 3.5mm headphone+mic jack, digital audio output via HDMI
- Connectivity
- Gigabit Ethernet RJ45 ports
- Dual-band 802.11b/g/n/ac/ax WiFi 6 and Bluetooth 5.1 with two external antennas
- USB
- 3x USB 3.2 ports
- 1x USB Type-C port (no other details provided so features like speed, DisplayPort Alt Mode and USB PD are unclear).
- Misc
- Power button with LED
- RTC with a backup battery
- BIOS Reset pinhole
- Four mounting holes
- Power Supply – 12V/3A via DC jack
- Dimensions – 150 x 110 x 30mm
- Weight – TBD
Most VESA-compatible Intel N100 mini PCs are already wall-mountable but may require extra accessories if a VESA mount is not part of the kit. You could mount the R58-N100 on the wall by just drilling four holes and securing it with wall anchors and screws. But the design is versatile and suitable for mounting on a chassis, under a desk, or in other configurations. It looks particularly well-suited for digital signage or applications requiring multiple displays without demanding high performance.
Mekotronics offers the R58-N100 mini PC with either Windows (11?) or an unspecified Linux distribution for the mini PC. The wall-mountable mini PC is listed on Made-in-China for $128 (MOQ: 100) I assume in 8GB DDR5 and 128GB SSD configuration, and you may find more details about the R58-N100 on its product page.
