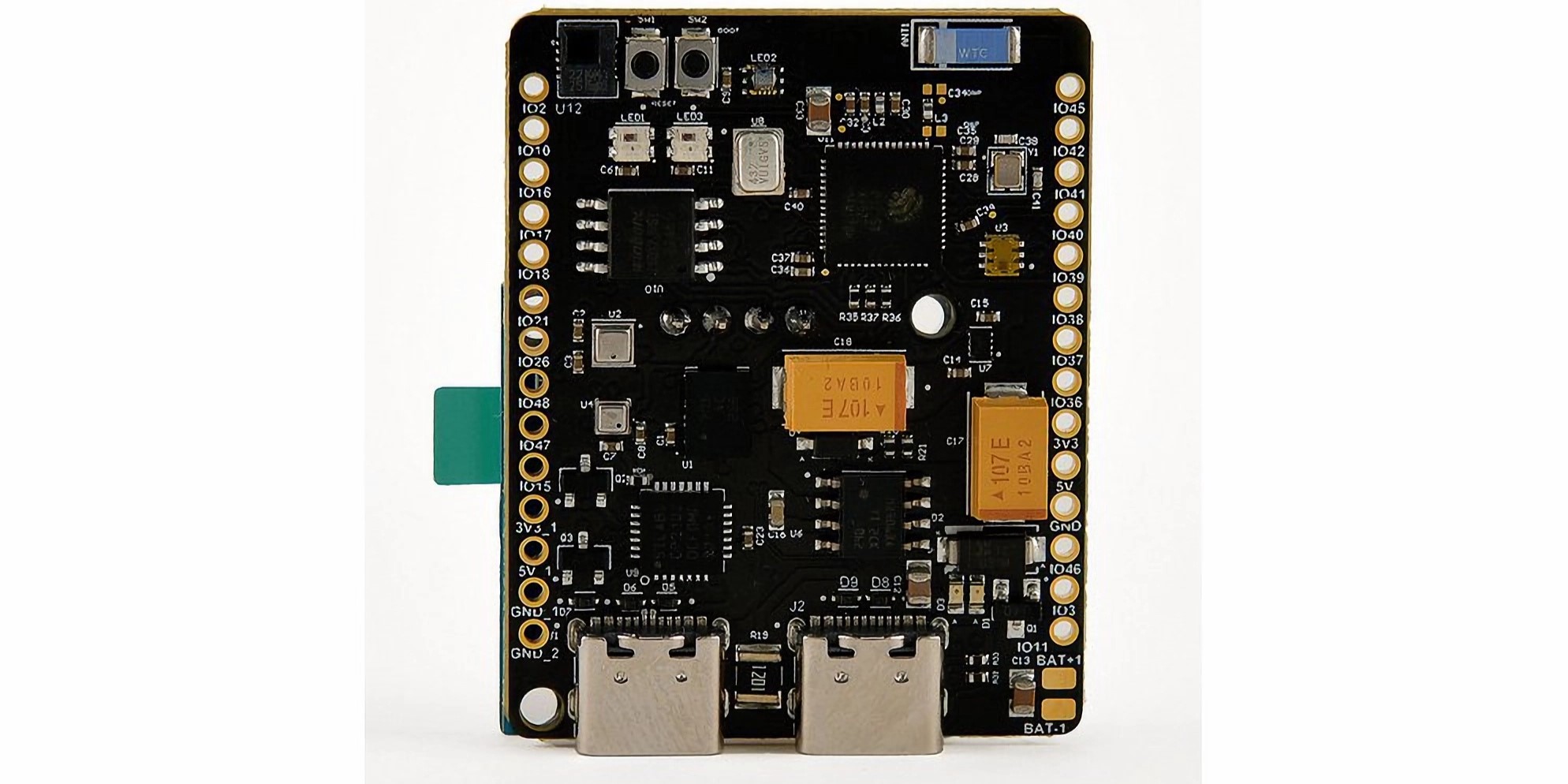

The Sensy32 Board is a compact sensor platform powered by Espressif’s flagship ESP32-S3 WiFi and Bluetooth microcontroller. The development board brings different monitoring devices together on the same PCB for easier integration into IoT ecosystems.
It is a multipurpose device with several sensors bundled to measure and monitor ultraviolet light intensity, altitude, pressure, orientation, humidity, temperature, motion, and human presence. It includes a 9-degree-of-freedom inertial measurement unit (IMU) for 3D space orientation, while the built-in MEMS microphone can be used for audio input in voice detection and noise measurement applications.
The onboard ESP32-S3 microcontroller powers the array of features and also offers Wi-Fi and Bluetooth Low Energy connectivity. The Sensy32 ESP32-S3 sensor platform also integrates an LCD screen for immediate feedback and real-time monitoring.
We have covered other ESP32-based environment sensors such as the Qsen-07 multi-sensor board, AirGradient ONE, MoreSense MS-06, and Studio LUFF’s Air Quality Sensor.

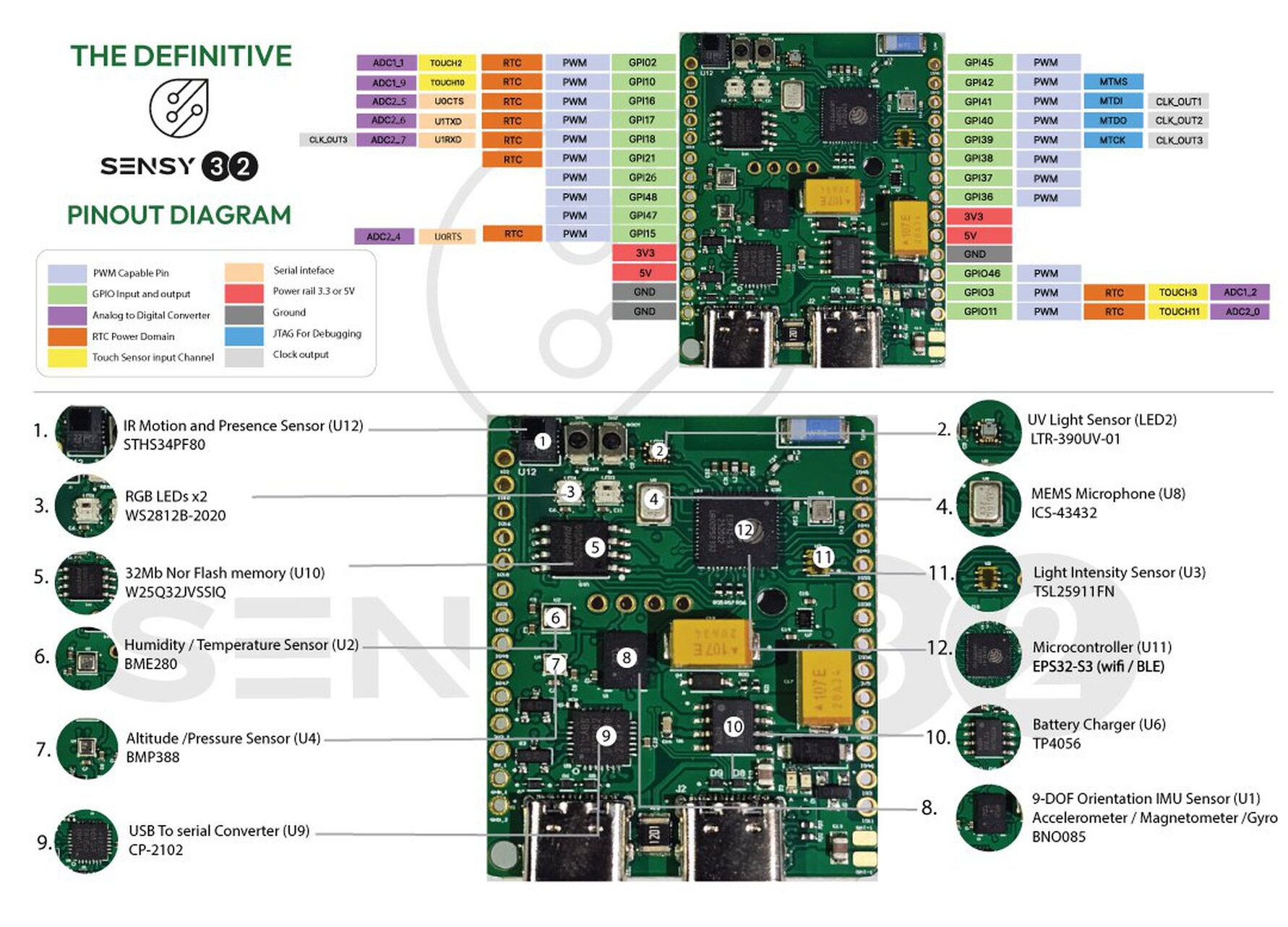

Sensy32 specifications:
- MCU – ESP32-S3 dual-core XTensa LX7 microcontroller @ 240MHz
- Memory – 512KB RAM
- Storage – 32Mbit NOR Flash Memory
- Wireless – 2.4GHz Wi-Fi and Bluetooth 5 (LE)
- Display – LCD screen for real-time monitoring and control (on the other side of the board, see video embedded at the end of the post)
- USB
- 2x USB-C ports
- USB to Serial converter
- Sensors
- UV Light Sensor
- IR Motion and Human Presence Sensor
- Humidity and Temperature Sensor
- Altitude and Pressure Sensor
- 9-DOF Orientation IMU Sensor (Accelerometer/Magnetometer/Gyro)
- Light Intensity Sensor
- MEMS Microphone
- Misc – RGB LEDs
- Power – 5V USB; Battery Charger
- Dimensions – 43 x 34 mm
The Sensy32 ESP32-S3 sensor platform includes an “advanced and user-friendly” cloud backend that supports customized dashboards for visualizing sensor data with graphs, charts, and widgets. A single account can manage up to 10 boards, with data available for viewing in real-time and storage for up to 30 days. Upgrades will be available for users with long-term storage needs.
Unfortunately, it is not open-source, but code samples are included in the sensor board Arduino library on GitHub. The Sensy32 board is priced at around $70 on Tindie. The board appears useful but doesn’t seem very cost-effective, given its feature set and the available alternatives. More information about the product can be found on the Sensy32 webpage.
