Axiomtek CEM710 COM Express module features Intel Xeon D-1700 SoC with up to 100Gbps Ethernet support

In 2022, we covered Intel’s Xeon D (Ice Lake-D) processor family, which includes the D-2700 and D-1700 models. These processors are designed for software-defined networking and edge applications, providing data center-grade capabilities at the edge. Key features include integrated AI and crypto acceleration, built-in Ethernet, and support for Intel Time Coordinated Computing (TCC) and Time-Sensitive Networking (TSN) to ensure high reliability. Leveraging these advanced capabilities, companies like ADLINK Technology and Congatec have introduced COM-HPC server modules and COM Express Type 7 modules based on the new Xeon D lineup.

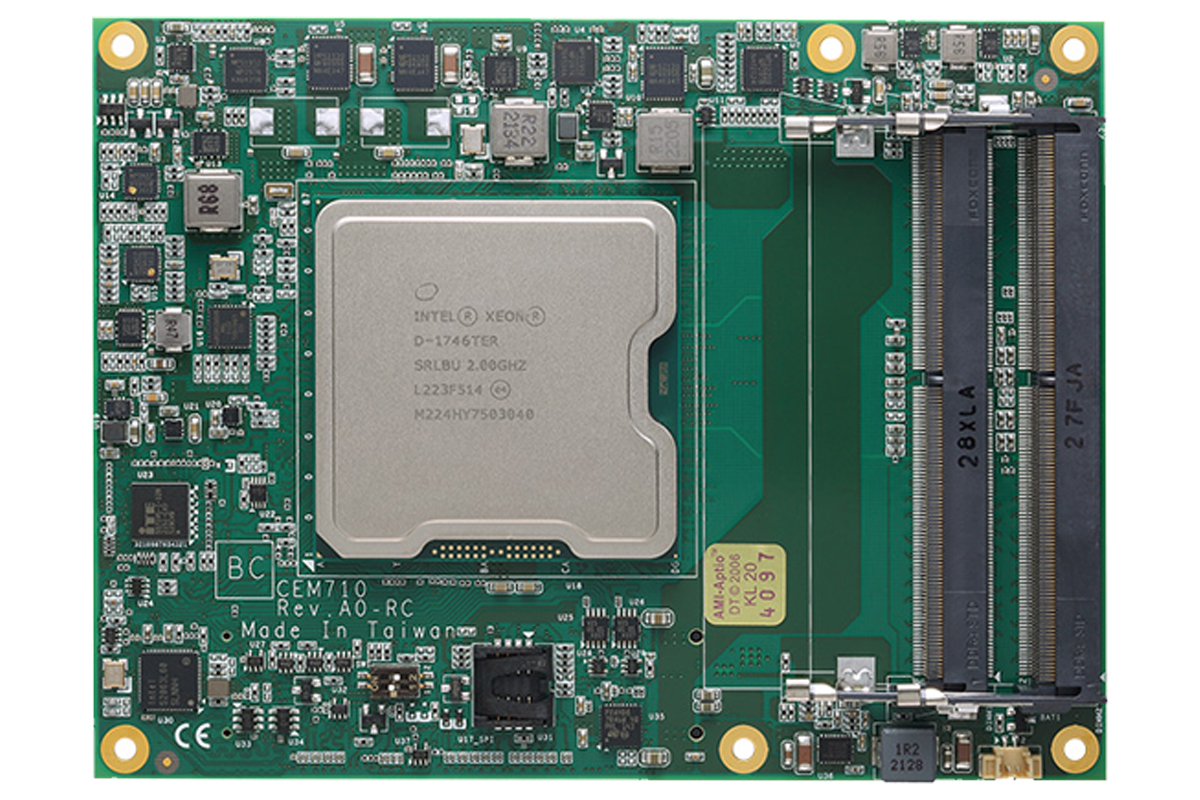

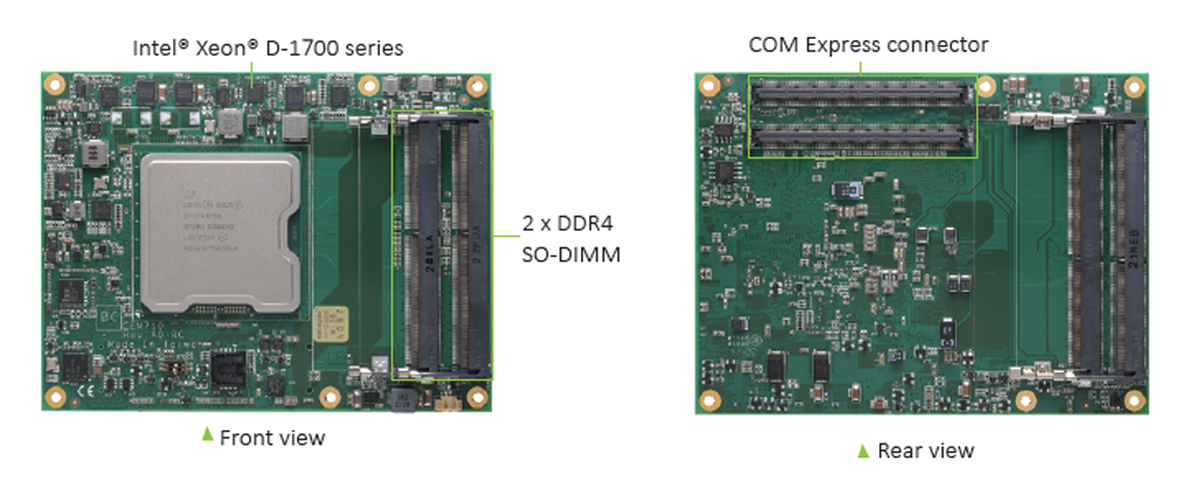

Axiomtek’s CEM710 is a COM Express Type 7 Basic Module powered by Intel Xeon D-1700 Series processors, designed for edge computing, industrial automation, and data-intensive applications. It offers up to 10 cores, 100Gbps Ethernet, and 64GB of DDR4 ECC memory, along with PCIe Gen3 slots for expandability. With rugged features and TPM 2.0 for security, it ensures reliable performance in demanding environments.

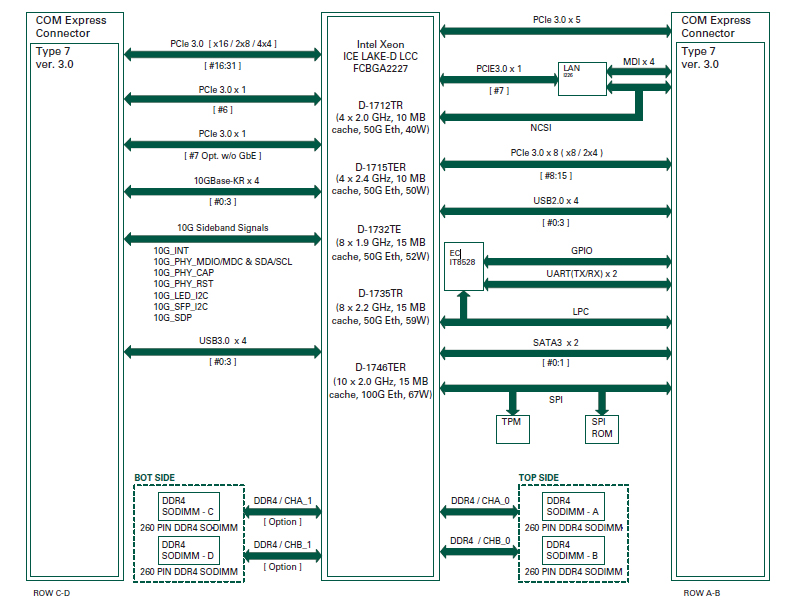

Axiomtek CEM710 COM express module specifications:

• SoC – Intel Xeon D-1700 Series (Ice Lake-D)
  • Xeon D-1712TR: 4 cores @ 2.0 GHz, 10MB cache, 50Gbps Ethernet, 40W
  • Xeon D-1715TER: 4 cores @ 2.4 GHz, 10MB cache, 50Gbps Ethernet, 50W
  • Xeon D-1732TE: 8 cores @ 1.9 GHz, 15MB cache, 50Gbps Ethernet, 52W
  • Xeon D-1735TR: 8 cores @ 2.2 GHz, 15MB cache, 50Gbps Ethernet, 59W
  • Xeon D-1746TER: 10 cores @ 2.0 GHz, 15MB cache, 100Gbps Ethernet, 67W
• System Memory – 2x DDR4-2400 SO-DIMM slots up to 64GB with ECC support
• Storage – 2x SATA Gen3
• Networking
  • 1x 10/100/1000/2500 Mbps with Intel I226 2.5GbE controller, configured through COMe PCIe port 7
  • 4x 10GBASE-KR with Intel 10Gbps external PHY
• USB – 4x USB 3.0 and 4x USB 2.0
• Serial – 2x TX/RX
• GPIO – 4-CH in, 4-CH out
• Expansion
  • 1x PCIe x16 Gen3 (PEG)
  • 1x PCIe x8 Gen3
  • 6x PCIe x1 Gen3
  • 1x I2C, 1x LPC, 1x SPI
• Misc
  • TPM 2.0
  • 65536 levels Watchdog Timer
  • Hardware monitoring
• Power Supply
  • +12V and +5VSB DC in via ATX
  • +12V DC via AT
• Dimensions – 125 x 95 x 2.0 mm (COM express form factor)
• Operating Temperature
  • Standard: 0°C to 60°C
  • Extended: -40°C to 85°C (with system thermal solution)
• Humidity – 10% to 95% relative humidity, non-condensing
• Vibration Endurance – 3.5 Grms
• Certifications – CE

The Axiomtek CEM710 module features an AMI UEFI BIOS, which supports modern boot environments and operates in UEFI-only mode, enhancing system security and reducing boot times. This “legacy-free” approach ensures compatibility with current operating systems, making it suitable for industrial and edge applications.

The module is compatible with multiple operating systems, including Linux, which provides reliability and real-time capability for embedded applications. It also supports Windows, such as Windows IoT or standard Windows 10/11, and can run real-time operating systems (RTOS) for precise timing requirements. This broad OS compatibility enhances its flexibility across diverse industrial use cases.

At the time of writing, Axiomtek has not officially disclosed the price yet. For further information, you may visit their product page where you’ll find a datasheet, drivers, and a user manual for the Xeon D-1700 COM Express module, and/or read the press release.
