Kontron 2.5”-SBC-AML/ADN Pico-ITX SBC features Alder Lake-N or Amston Lake SoC up to Intel Atom X7835RE

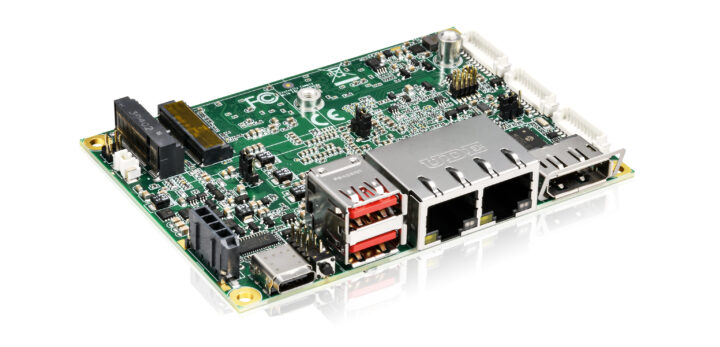

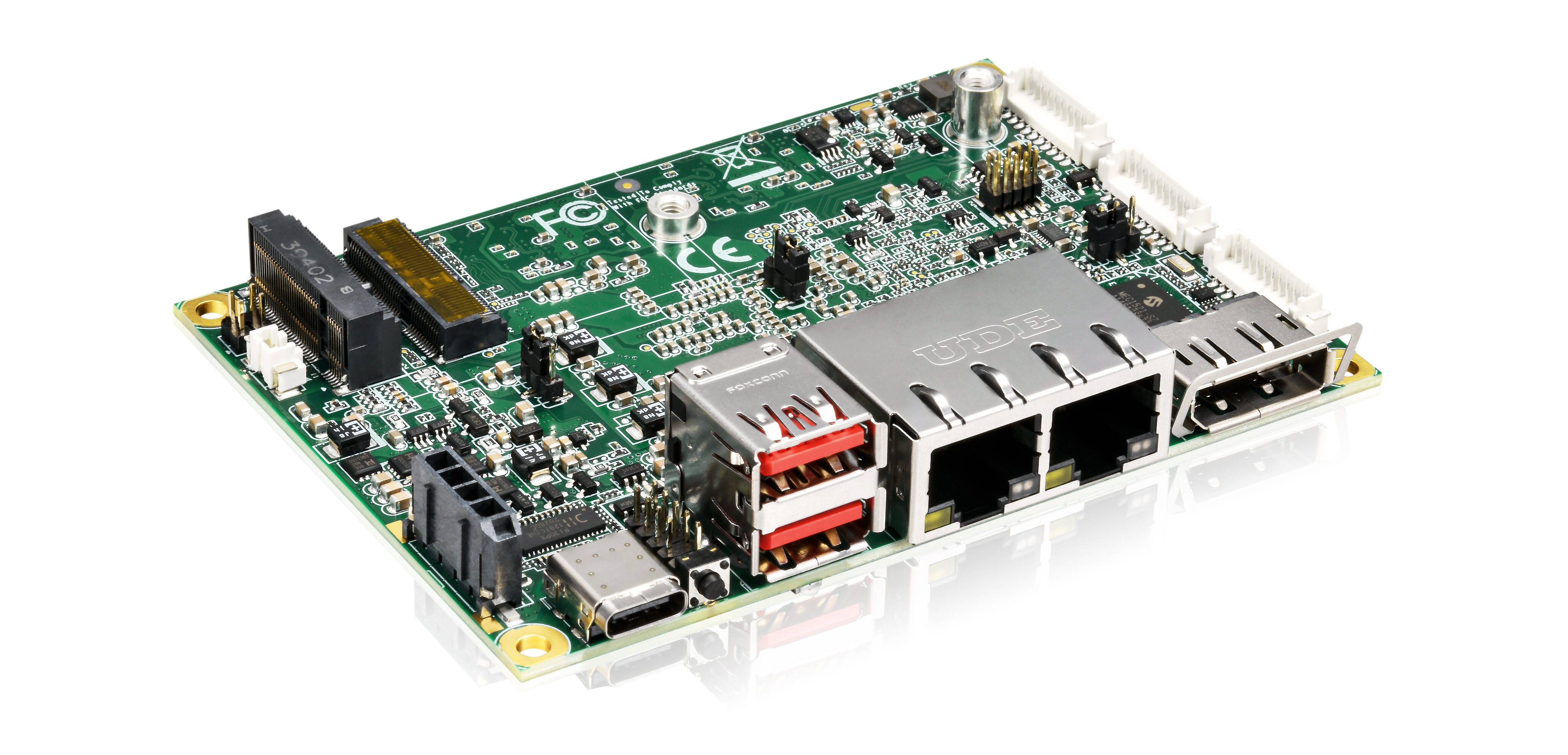

Kontron has launched its new Amston Lake Pico-ITX SBC, the 2.5”-SBC-AML/ADN series, optimized for low-power, real-time computing in industrial automation, smart cities, energy, retail, and healthcare applications. This compact SBC series supports Intel’s energy-efficient processors, including the Intel Atom x7000E Series, Intel Core i3 N-Series, Intel N-Series (Alder Lake-N), and the Intel Atom x7000RE Series (Amston Lake).

With Intel UHD Graphics (Gen12) featuring up to 32 execution units, these Amston Lake Pico-ITX SBCs enhance graphics processing and support concurrent AI inference. Powered by Intel Deep Learning Boost, they achieve faster AI inference, which is ideal for efficient edge computing, while meeting the stringent demands of real-time, low-latency applications.

Previously, we covered several Pico-ITX SBCs, including the AAEON PICO-ASL4, Jetway JPIC-ADN1, AAEON PICO-IMX8PL, and AAEON RICO-MX8P, among others. Feel free to explore these reviews if you’re interested in similar SBCs.

Kontron 2.5”-SBC-AML/ADN specifications:

• CPU
  • Standard
    • Intel Atom x7211RE dual-core processor up to 3.2GHz with 6MB cache, 16EU Intel UHD graphics; TDP: 6W
    • Intel Atom x7433RE quad-core processor up to 3.4GHz with 6MB cache, 32EU Intel UHD graphics; TDP: 9W
    • Intel Atom x7835RE octa-core processor up to 3.6GHz with 6MB cache, 32EU Intel UHD graphics; TDP: 12W
    • Intel Core i3-N305 octa-core processor up to 3.8 GHz with 6MB cache, 32EU Intel UHD Graphics; TDP: 15W
    • Intel Processor N97 quad-core CPU with up to 3.6 GHz, 6MB cache, 24EU Intel UHD Graphics; TDP: 12W
  • Project base
    • Intel Atom x7213E, dual-core processor up to 3.2 GHz, 16EU Intel UHD Graphics, TCC, 10W, EUC
    • Intel Atom x7211E, dual-core processor up to 3.2 GHz, 16EU Intel UHD Graphics, TCC, 6W, EUC
    • Intel Atom x7213RE dual-core processor up to 3.4 GHz with 6MB cache, 16EU Intel UHD graphics; 9W TDP
    • Intel Atom x7425E quad-core processor up to 3.4 GHz with 6MB cache, 24EU Intel UHD Graphics; TDP: 12W
    • Intel Processor N50 dual-core processor up to 3.4 GHz with 6MB cache, 16EU Intel UHD Graphics; TDP: 6W
    • Intel Processor N200 quad-core processor @ up to 3.7 GHz (Turbo) with 6MB cache, 32EU Intel HD graphics; TDP: 6W
• System memory – 1x In-band ECC-enabled LPDDR5 4800MHz soldered SDRAM up to 16GB
• Storage – Up to 128GB eMMC 5.1 storage

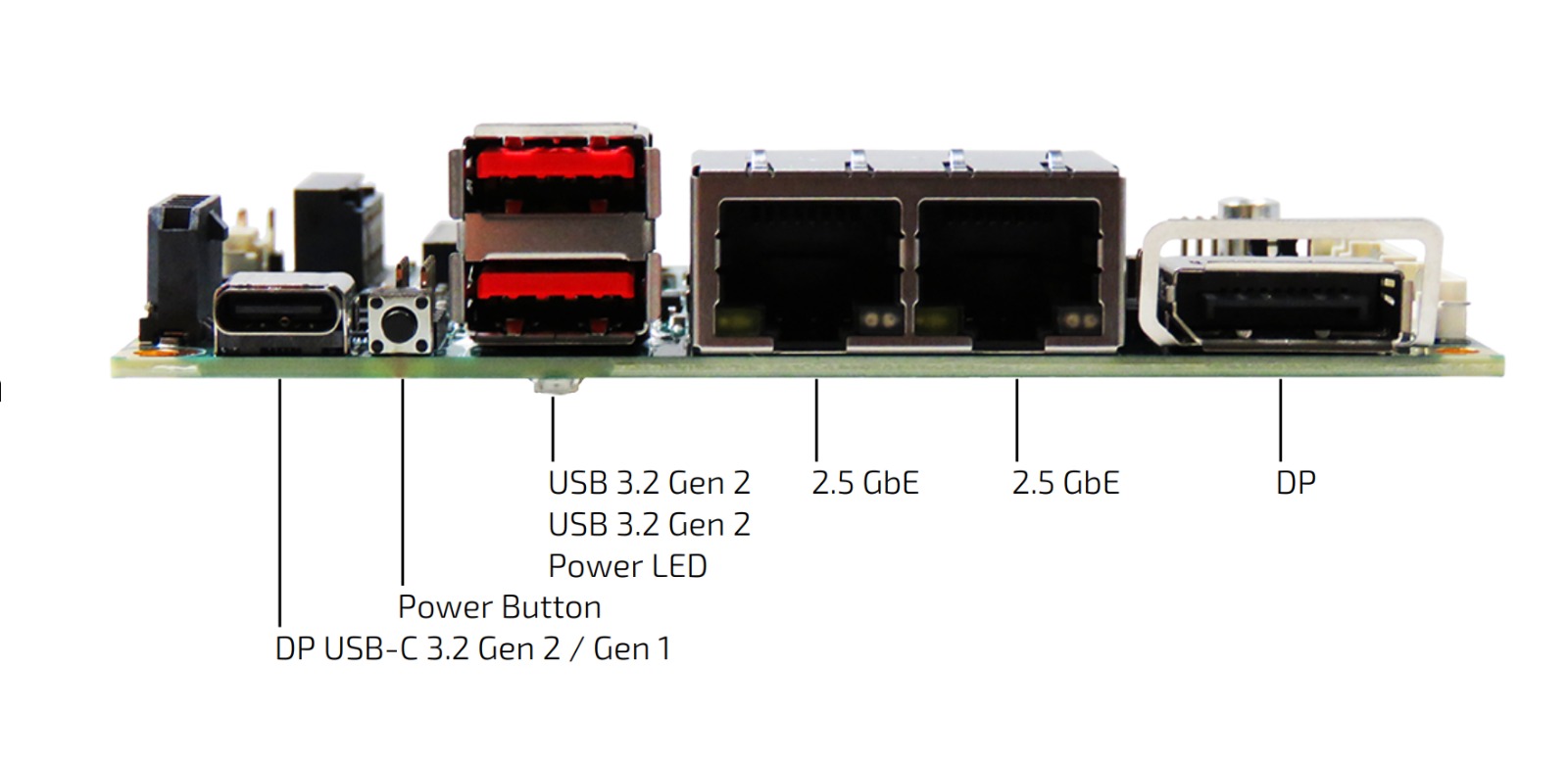

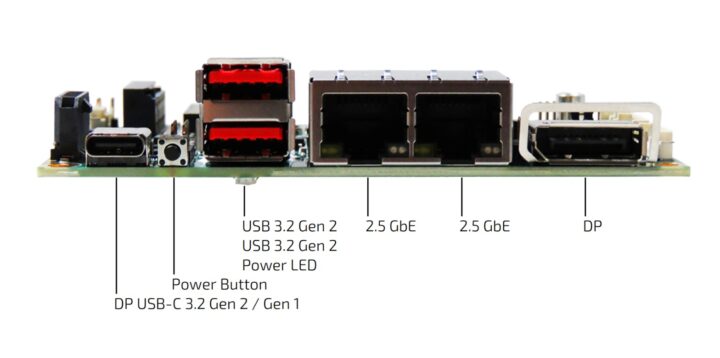

• Display
  • 1x eDP port up to 4096 x 2160 @ 60 Hz
  • 2x DP ports up to 4096 x 2160 @ 60 Hz (1x Full-size DP on rear, 1x DP USB-C on rear)
  • Triple display support
• Audio – Via 1x DP USB-C port
• Networking
  • 2x 2.5 GbE RJ45 LAN port on the rear with Intel I226-V/IT and TSN support for models with Atom processors
  • Optional WiFi and Bluetooth via M.2 Key E module
  • Optional 4G LTE/5G via M.2 Key B module plus SIM card slot
• USB
  • 2x USB 3.2 Gen 2 Type-A ports on the rear
  • 1x USB 3.2 Gen 2 Type C port (on rear, w/ DP & PD 5 V / 3 A, except Atom x7000RE)
  • 1x USB 3.2 Gen 1 Type C port (on rear, w/ DP & PD 5 V / 3 A, only Atom x7000RE)
  • 2x USB 2.0 header
• Serial – 2x RS232 (default) / RS232/422/485 (optional) header
• Expansion
  • 1x M.2 Key B socket (Type 2242/3042/3052/2280, w/ PCIe x2 / USB 2.0 / SATA / UIM)
  • 1x M.2 Key E socket (Type 2230, w/ PCIe x1 / USB 2.0 / CNVi)
  • 4x DI and 4x DO
• Security – TPM 2.0 Support (Infineon SLB 9672)
• Misc
  • Programmable watchdog timer to generate system reset event
  • Voltages, Temperatures hardware monitor
  • Processor integrated RTC
  • Power Button
  • On-board green power LED
  • Header for Power Button, Reset Button, Power LED & SATA LED
  • AMI UEFI BIOS
• Power – DC 9 V ~ 20 V via 1×2-pin pitch 1.25 mm Wafer
• Dimensions – 100  x 72 mm; Pico-ITX form factor
• Operating Temperature
  • Standard: 0°C~ 60°C
  • Extreme: -40°C ~ 85°C
• Storage Temperature
  • Standard: -20°C ~ 80°C
  • Extreme: -55°C ~ 85°C
• Humidity – 0 % ~ 95 %
• Certificate – CE Class B, FCC Class B, ICES Class B, UKCA, UR (UL Recognized)

Each board includes two internal COM ports (configurable as RS232 or RS232/422/485) and eight digital I/O channels, making them well-suited for industrial applications. These SBCs also come with two M.2 expansion slots (Key B and Key E) supporting Wi-Fi, WWAN (3G, 4G, or 5G), and additional SSD storage and are equipped with low-power processors with a TDP of 6 W to 15 W TDP to balance high functionality with energy efficiency.

The 2.5”-SBC-ADN and 2.5”-SBC-AML Amston Lake and Alder Lake N Pico-ITX SBCs support both Windows 10 and Linux operating systems. As of now, pricing details for these models have not been released, but the boards are already listed on Mouser. Additional information, including safety guidelines, datasheets, and ordering options, can be found on the product page and the press release.
