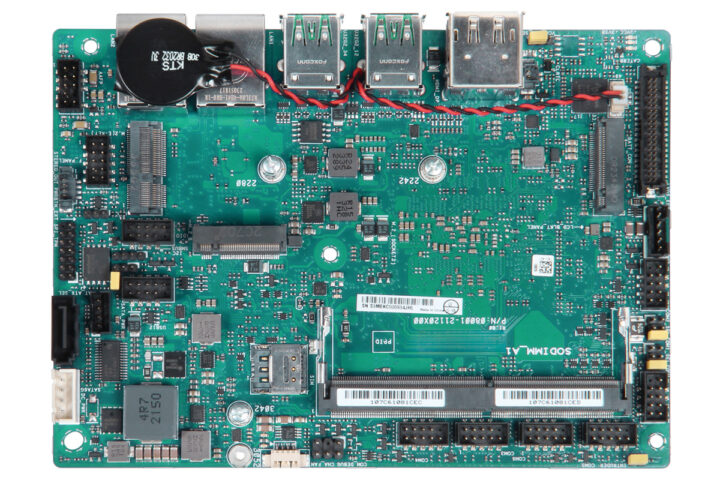

Portwell PEB-2274 3.5-inch fanless Intel Atom x6425E SBC offers triple display support, dual GbE, three M.2 sockets, and more

Portwell has recently launched PEB-2274, a 3.5-inch fanless SBC built around Intel Atom x6425E Elkhart Lake SoC. Key features include up to 32GB DDR4 memory, two Gigabit Ethernet ports, three M.2 sockets for storage and expansion, and a wide 9V to 36V DC power input. Additionally, it has various display interfaces (HDMI, DP, LVDS), multiple serial ports, USB, and audio options.

We have already covered several other 3.5-inch inch Elkhart Lake SBCs with dual Ethernet ports including the Avalue ECM-EHL 3.5-inch SBC, Congatec Conga-PA7 Pico-ITX board, the iBase IB836 3.5-inch SBC, and the AAEON GENE-EHL5 SBC. All these boards support dual Ethernet and some of them have support for triple ethernet ports. But what’s unique about the PEB-2274 is that it has dual GbE ethernet, triple display, and a design specifically for industrial applications.

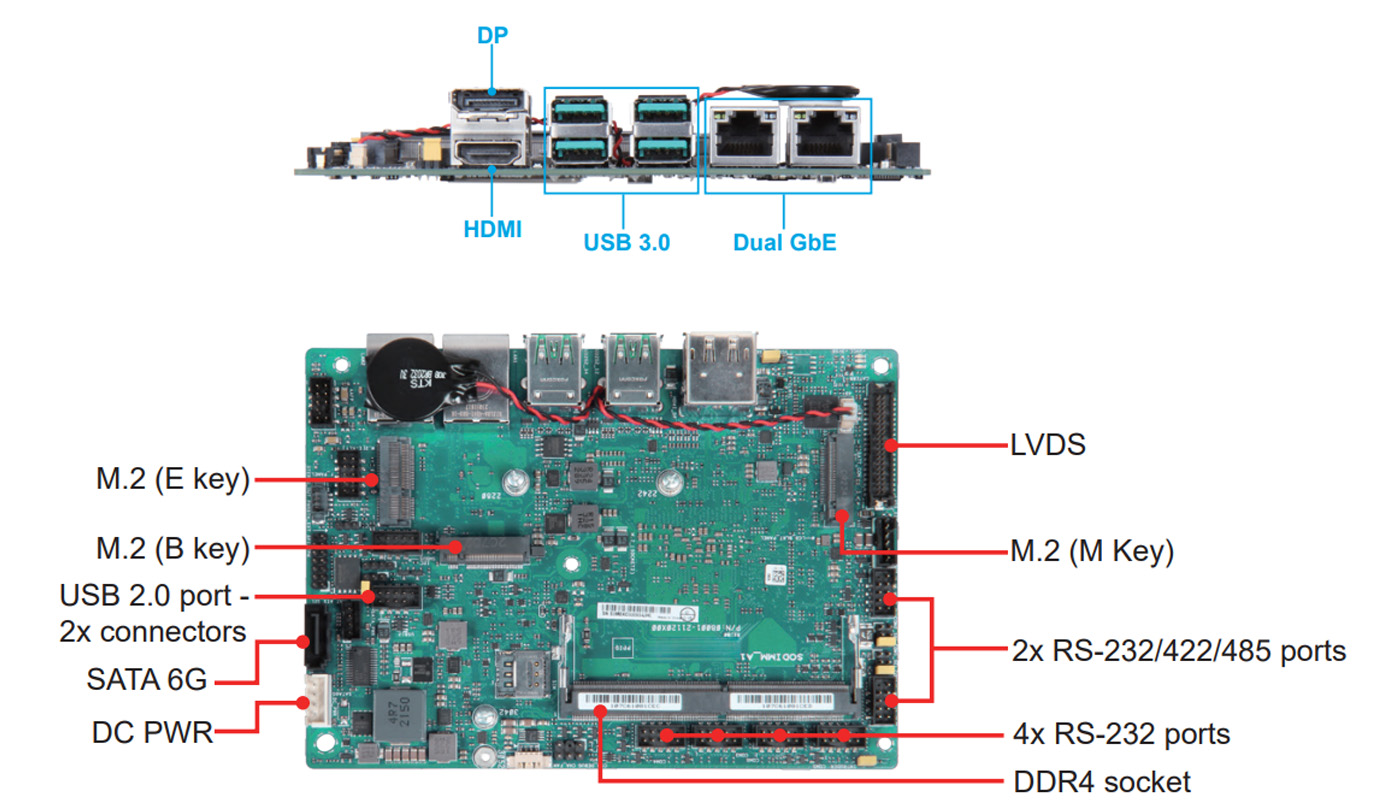

Portwell PEB-2274 specifications:

• SoC – Intel Atom x6425E quad-core processor @ 2.00 GHz / 3.00 GHz (Turbo) with Intel 10th Gen UHD graphics; 12W TDP
• Memory –  Up to 32GB DDR4 @ 3200 MHz via one SODIMM slot (IBECC support for Atom parts)
• Storage
  • 1x SATA 3.0 connector plus 5V SATA power connector
  • NVMe SSD via M.2 socket (see Expansion section)
• Display
  • HDMI 2.0b up to 4Kp60
  • DP++ 1.2 up to 4Kp60
  • LVDS up to 1080P60
• Audio
  • Realtek ALC269 audio codec
  • Line-out or Mic-in
• Networking
  • 2x Gigabit Ethernet RJ45 ports via Intel i210IT controllers
  • Optional WiFi, Bluetooth, via M.2 sockets (see Expansion section)
• USB
  • 4x USB 3.2 Gen2 ports on rear I/O
  • 1x USB 2.0 Header support additional 2x USB 2.0 connectors
• Serial – 6 (2 x RS-232/422/485, 4x RS 232) interfaces
• Security – 1x SPI TPM header
• Expansion
  • 8-bit GPIO header with 8x I/O
  • 1x M.2 E-Key 2230 socket for WIFI/BT device
  • 1x M.2 M-Key 2280 socket (SATA mode & PCIe x2 mode)
  • 1x M.2 B-Key socket for USB 2.0
• Misc – Watchdog timer, RTC battery
• Power Supply – +9-36V via 4-pin connector
• Dimensions – 146mm x 105mm (3.5-inch SubCompact board)
• Temperature Range – Operating: -40ºC to 85ºC, storage: -40ºC to 85ºC
• Humidity – 0% ~ 90% relative humidity, non-condensing
• MTBF  – TBD

After taking a good look at the board I found that the board has a physical SIM slot present, but the company does not mention that on the specification table on the website or their datasheet. Usually from a board like this, you will get specifications like Wake-on-LAN, Watchdog timer, multiple indicator LEDs, fan header, and BIOS specifications but all this information is also not available on the spec sheet.

The Intel Atom x6425E SBC has a compact and fanless design which makes it suitable for edge computing applications like industrial automation, panel PC, kiosks, and digital signage applications. There’s no word about supported operating systems, but Portwell normally offers support for Windows, Linux, and in some cases VxWorks.

Portwell did not provide pricing or availability information for the 3.5-inch fanless SBC. but you may be able to find a few more details on the product page for the PEB-2274 which also includes a datasheet with more technical information.
