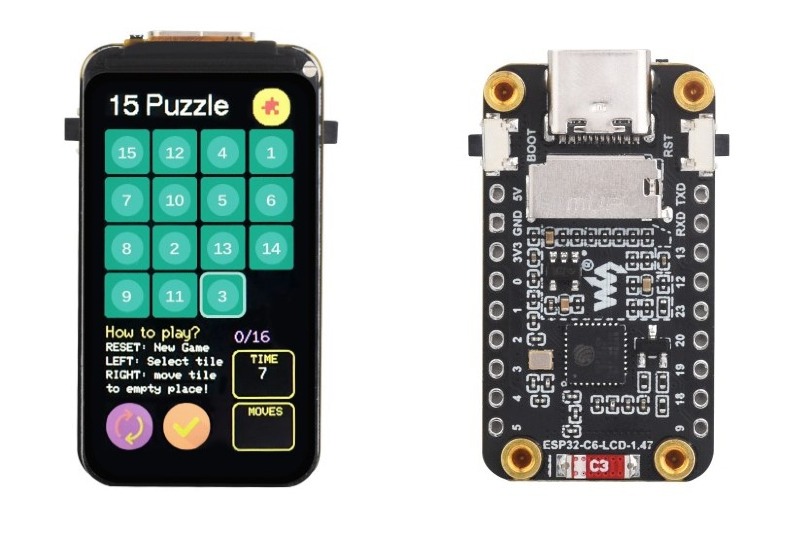

Waveshare has introduced the ESP32-C6-LCD-1.47 development board powered by an ESP32-C6 RISC-V microcontroller with WiFi 6 and Bluetooth 5 connectivity and equipped with a 1.47-inch display with a 172×320 resolution. With a 4MB flash, an RGB LED, and a microSD card slot for extra storage, this board is suitable for projects that need a compact display, low power consumption, and wireless connectivity such as AIoT applications and human-machine interfaces (HMI).
Earlier this month, we covered the ESP32-S3 USB dongle, another development board from Waveshare designed for HMI applications with the same 1.47-inch display with a 172×320 resolution, but a USB Type-A port instead of the USB-C port found in the model covered today. In the past, we’ve written about other ESP32-based development boards for HMI applications, including the LILYGO T-HMI, ESP32-S3-Touch-LCD-4.3B, and Waveshare’s ESP32-S3 LCD Driver Board supporting both square and round displays. Feel free to check them out if you’re interested.

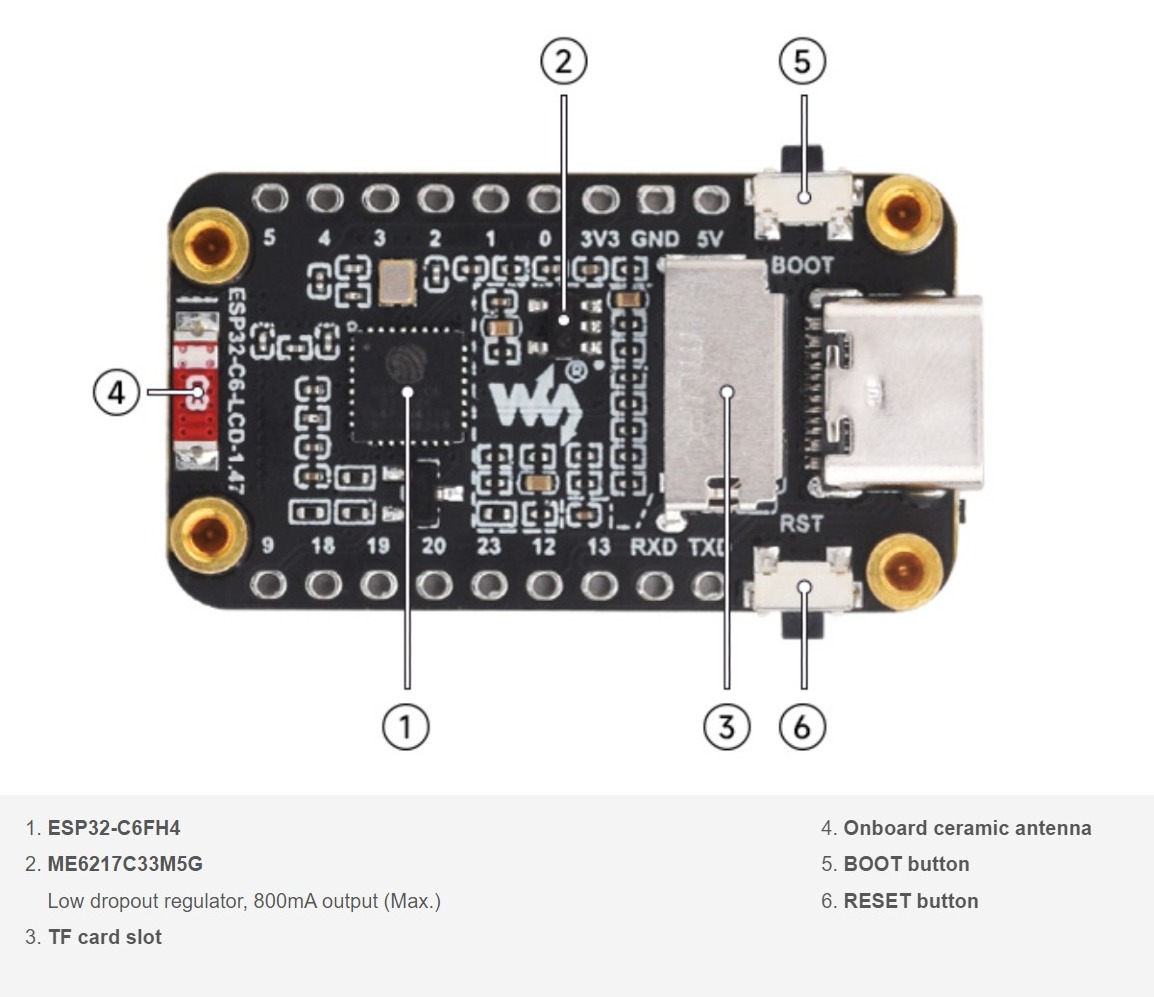

Waveshare ESP32-C6-LCD-1.47 specifications:
- Wireless MCU – Espressif Systems ESP32-C6FH4
- MCU cores
- 32-bit RISC-V core @ 160 MHz
- 32-bit RISC-V core @ 20 MHz low-power coprocessor can run tasks even when the main system is in a deep sleep state
- Memory – 512 KB HP SRAM, 16KB LP SRAM
- Storage – 320KB ROM, 4MB flash
- Wireless – 2.4GHz WiFi 6 and Bluetooth 5.0 LE
- MCU cores
- Storage – MicroSD card slot
- Display
- 1.47-inch TFT LCD
- Resolution – 172×320 pixels
- 262K color
- Display controller – ST7789 display controller
- USB – 1x USB Type-C port for power, programming, and data
- Expansion – 2x 9-pin headers
- 13x GPIO, UART, I2C, PWM
- 6x ADC pin
- 5V, 3.3V, GND
- Misc
- Built-in RGB LED with clear acrylic sandwich panel
- Reset and Boot buttons
- Onboard ceramic antenna
- Power Supply – 5V via USB Type-C male port regulated by ME6217C33M5G LDO (Onboard 3.3V and 5V Pins can also be used for power)
- Dimensions – 36.37 x 20.32mm (not including the USB port)
It supports precise control with features like a flexible clock and multiple power modes, ensuring low power consumption in various scenarios. LVGL, a free and open-source graphics library, offers all the tools needed to create embedded GUIs with simple graphical elements, attractive visual effects, and low memory usage. For more details, including Arduino software setup, library installation, and demo code, visit the Wiki.
The Waveshare ESP32-C6-LCD-1.47 1.47-inch display USB-C development board is available on AliExpress for $13.99 excluding shipping, and you’ll also find it on the Waveshare store for $11.99.
