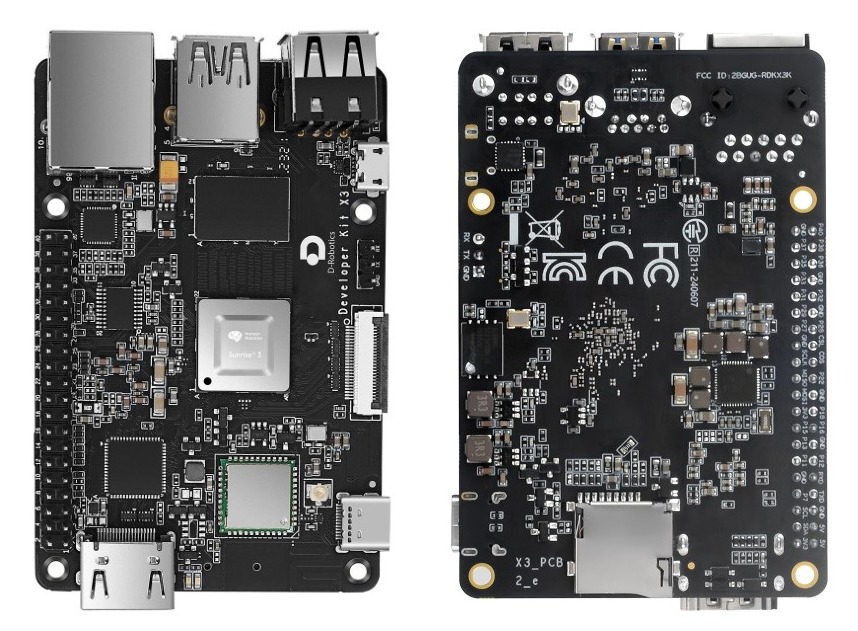

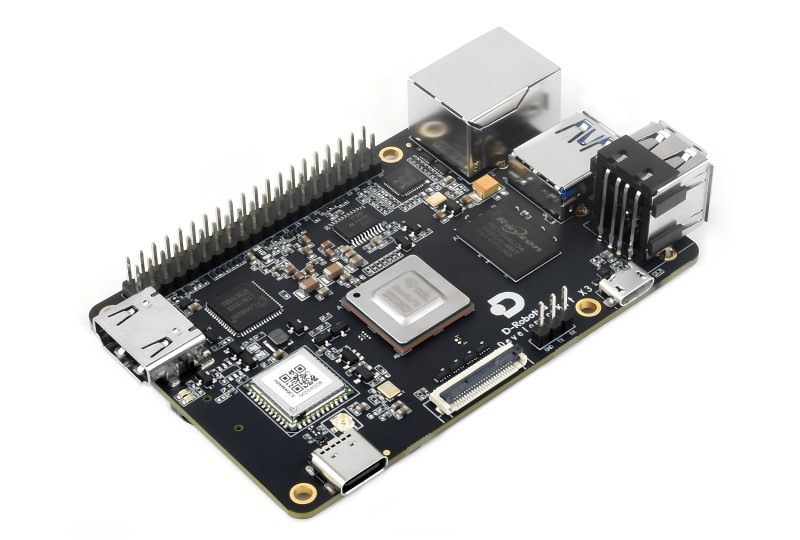

The D-Robotics RDK X3 development board is designed for edge AI applications and features a Sunrise X3 quad-core Arm Cortex-A53 processor running at 1.5GHz with a dual-core BPU (Brain Processing Unit) with 5 TOPS of edge inference capability. The board includes a 40-pin GPIO interface, ensuring compatibility with Raspberry Pi 4B accessories for versatile project development.
The RDK X3 offers 2GB or 4GB of LPDDR4 RAM and includes a MicroSD card slot for storage expansion. Designed for real-time applications like robot control and intelligent monitoring, its 5 TOPS inference capability makes it ideal for computer vision workloads such as object detection, body segmentation, scene parsing, etc…
Previously, we covered the Horizon X3 AI development board, which uses the same Horizon Robotics Sunrise X3 processor. We’ve also written about several other edge AI development boards, including the Synaptics Astra Platform SL1680, SagireEdge AI 600, and MYiR Tech’s MYC-LR3568. Feel free to explore them if you’re interested.
D-Robotics RDK X3 development board specification:
- SoC – Horizon Robotics Sunrise X3
- CPU – Quad-core ARM Cortex A53 @ 1.5 GHz
- BPU – Dual-core Bernoulli architecture with 5 TOPS
- Multimedia
- H.265 (HEVC) encoding and decoding up to 4K@60fps
- JPEG Encoding and Decoding up to 16Mpixels
- System Memory – 2GB/4GB LPDDR4 RAM
- Storage –
- 16GB/32GB/64GB eMMC flash
- MicroSD card socket
- Display
- 1x HDMI 1.4 up to 1080p60
- 1x MIPI-DSI up to 1080p60
- Camera – 2x 2-lane MIPI CSI for camera sensors
- Networking
- Gigabit Ethernet RJ45 port
- Wi-Fi 2.4/5GHz and Bluetooth 4.2 module
- Antenna – 1x U.FL connector for external antenna
- USB
- 1x USB Type-A 3.0
- 2x USB Type-A 2.0
- 1x Micro USB 2.0
- USB Type-C for power input

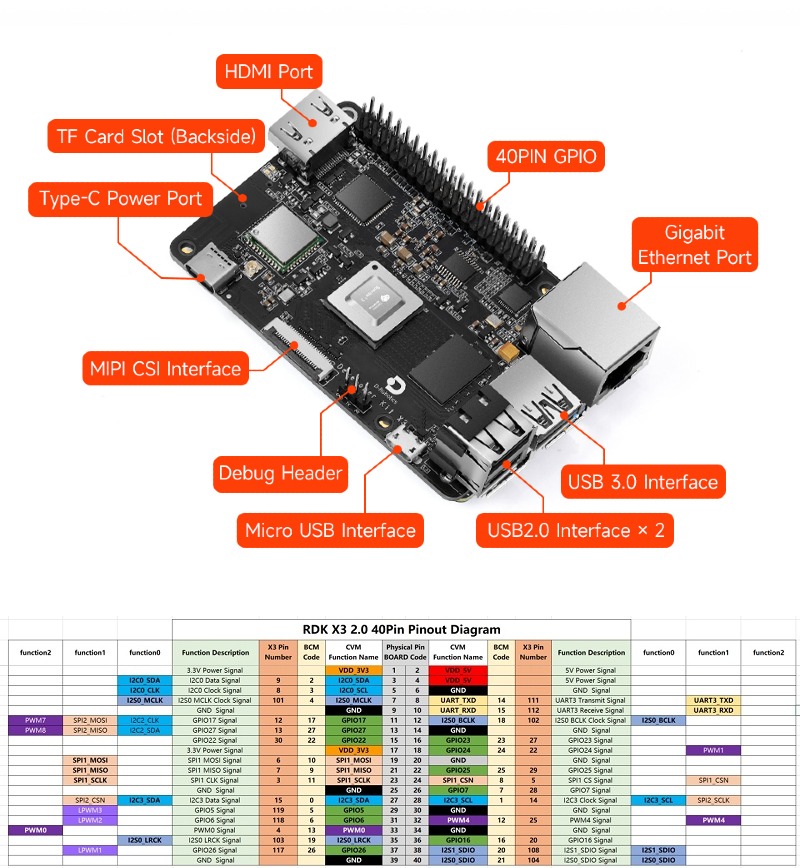

- Expansion – Dual line 40-pin header for GPIO, I2C, UART, SPI, I2S and PWM
- Misc
- 1x UART for debug serial port
- 1x power LED indicator
- 1x Green LED connected to GPIO26
- Power – 5V/2A DC-in via Type-C port
- Dimension – 85 × 56 × 20 mm
- Operating Temperature: -25°C ~ 95°C
The RDK X3 development board supports ROS1/ROS2 and open-source AI reference algorithms. It is a fully open-source Linux system compatible with Ubuntu 20.04 and 22.04. The board offers a Micro USB 2.0 port in USB Device mode for ADB, Fastboot, and UVC functions, and supports various sensors. The company’s wiki page provides technical details on remote login, system configuration, USB usage, GPIO interfaces, and Python code.
The D-Robotics RDK X3 development board comes in two variants: 2GB and 4GB RAM. The 2GB version is priced at $62.09 and the 4GB at $71.99 on AliExpress, We’ll also find the board on Amazon for $65/$75, as well as on Waveshare and DFRobot online stores at similar prices.
