Vecow EVS-3000 AI computing systems combine 14th Gen Intel Core CPUs and MXM Graphics for Edge AI applications

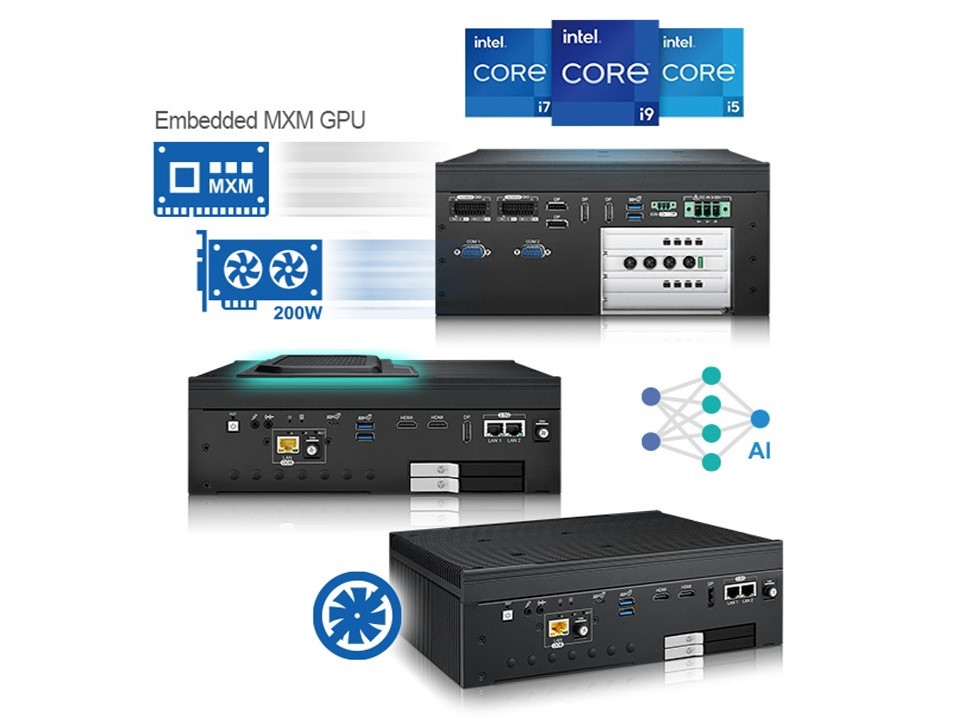

Vecow has introduced the EVS-3000 series, a new line of AI computing systems powered by Intel Core i9/i7/i5/i3 (14th Gen) processors with embedded MXM graphics. These systems deliver high computing power, come with multiple PCIe slots for expansion, and support remote monitoring making them ideal for edge AI applications such as autonomous robotics, public security, and machine vision.

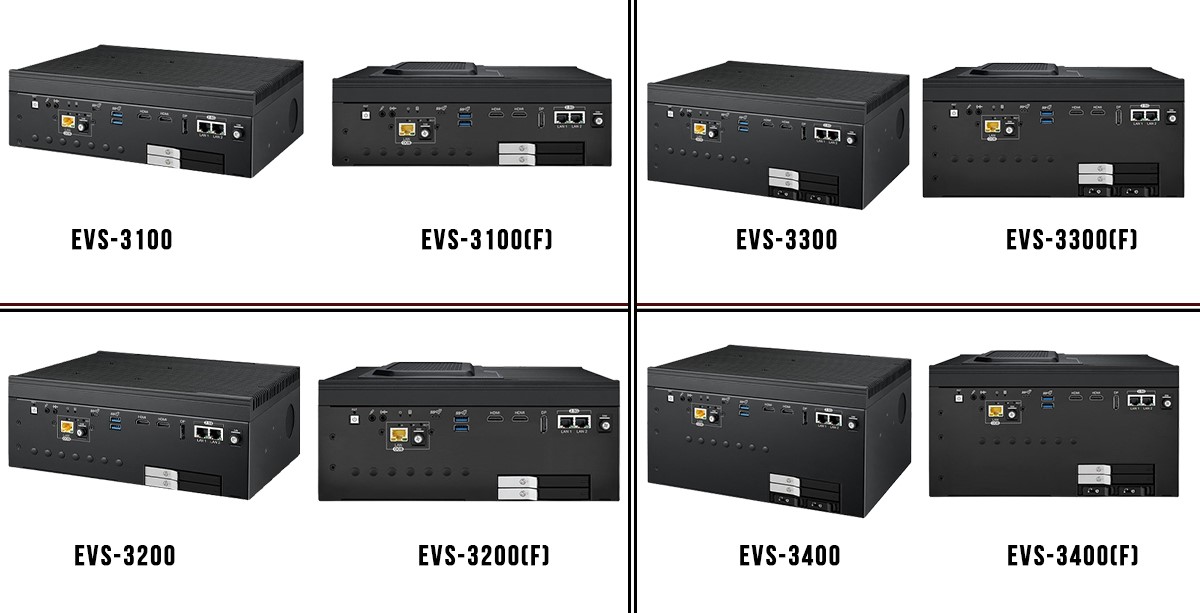

The EVS-3000 series includes both fan and fanless models: EVS-3100, EVS-3200, EVS-3300, EVS-3400 without fans, and EVS-3100(F), EVS-3200(F), EVS-3300(F), EVS-3400(F) with fans. All systems are powered by Intel R680E chipsets and feature compact NVIDIA or AMD MXM graphics, with support for 2.5GbE LAN, Out-of-Band (OOB) management, and multiple PCIe Gen 4 slots. These systems deliver high performance for AI computing at the edge for applications such as machine vision and robotics.

As you may know, we’ve previously covered several Vecow AI computing systems, including the TGS-1000 Series, SPC-9000 fanless embedded system, ECX-3200, EAC-5000, and EPBC-1000. Feel free to explore these options if you’re interested.

The Vecow EVS-3000 series specifications:

• SoC (one of the others)
  • Up to 24-core 14th gen Intel Core i9/i7/i5/i3 Raptor Lake-S Refresh Processor
  • Up to 24-core 13th Gen Intel Core i9/i7/i5/i3 Raptor Lake-S Processor
  • Up to 16-core 12th Gen Intel Core i9/i7/i5/i3 Alder Lake-S Processor
• System Memory – 2x DDR5 5600MHz SO-DIMM, up to 96GB
• Storage
  • M.2 Key-M socket (2280, PCIe x4)
  • 2x SATA III (6Gbps) with support for S/W RAID 0, 1; 2x front-access 2.5″ SSD/HDD trays
  • EVS-3400 and EVS-3300 additional storage; 2x front-access M.2 Key-M SSD trays
• Chipset – Intel R680E chipset supporting up to 65W TDP
• SIO – IT8659E chipset
• GPU
  • Intel UHD Graphics 770/730 driven by Intel Xe Architecture (in SoC)
  • Supports up to 115W compact NVIDIA Quadro or GeForce MXM graphics with NVIDIA CUDA cores
  • Dual NVIDIA/AMD GPU support with up to 200W combined power
• Out-of-band management (OOBM)
  • MCU – Nuvoton NUC980 ARM926EJ-S microcontroller @ 300 MHz
  • Interface – OOB LAN, 10/100Mb Ethernet LAN, RJ45 connector
  • Remote Management – Support Remote Power ON/OFF, Reset and Power Cycling
• Display
  • 2x HDMI 2.1 up to 4096 x 2304 @ 60Hz
  • 1x Display Port (DP) up to 3840 x 2160 @ 60Hz
  • 4x Display Port (DP) up to 7680 x 4320 @ 60Hz through MXM graphics
  • Supports up to 7x independent displays
• Audio – Realtek ALC888S-VD, 7.1 channel HD audio with 1 Mic-in and 1 Line-out
• Networking
  • 2x Intel I226 2.5GbE RJ45 ports with TSN support
  • Optional 4G LTE/5G via M.2 module and external SIM card socket
• USB
  • 4x USB 3.2 Gen 2 Type A
  • 1x USB 3.2 Gen 2×2 Type C supports max 20Gbps data transfer (5V/3A)
• Expansion
  • EVS-3100
    • 1x PCIe x16 slot with x8 signal
    • 1x M.2 Key-B socket (2280/3042/3052, PCIe/USB 3, default/SATA)
    • 1x M.2 Key-E socket (2230, PCIe/USB)
  • EVS-3200
    • 1x PCIe x16 slot with x8 signal
    • 1x PCIe x16 slot with x4 signal
    • 1x M.2 Key-B socket (2280/3042/3052, PCIe/USB 3, default/SATA)
    • 1x M.2 Key-E socket (2230, PCIe/USB)
  • EVS-3300
    • 2 PCIe x16 slot with x4 signal
    • 1x PCIe x8 slot with x8 signal
    • 1x M.2 Key-B socket (2280/3042/3052, PCIe/USB 3, default/SATA)
    • 1x M.2 Key-E socket (2230, PCIe/USB)

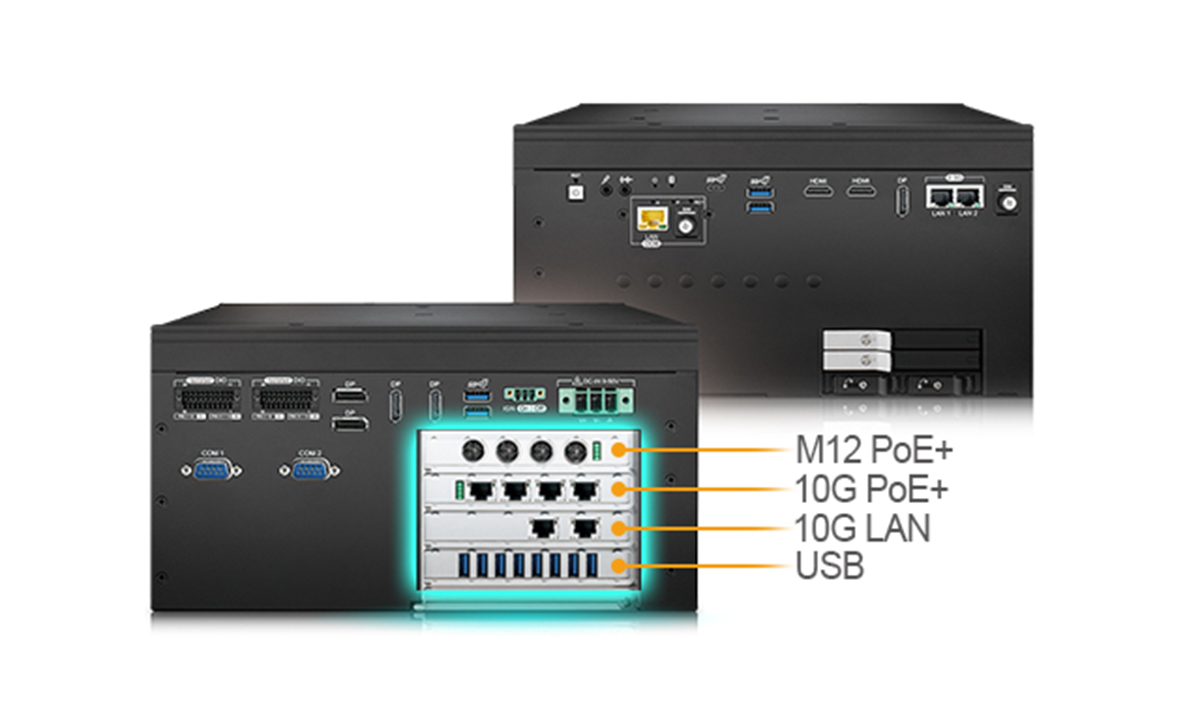

  • EVS-3400
    • 1x PCIe x16 slot with x8 signal
    • 1x PCIe x16 slot with x4 signal
    • 2x PCIe x8 slot with x4 signal
    • 1x M.2 Key-B socket (2280/3042/3052, PCIe/USB 3, default/SATA)
    • 1x M.2 Key-E socket (2230, PCIe/USB)
• Interface
  • 2x COM RS-232/422/485
  • 32x Isolated DIO (16 DI and 16 DO)
• Optional modules
  • WiFi & Bluetooth module with antenna
  • 4G LTE /GPS Module with antenna
  • 5G Module with antenna
  • M.2 Key-M storage module
• Misc
  • Power, OOB, and HDD LEDs
  • Security – Infineon SLB9670 TPM 2.0 security chip with SPI Interface
  • Watchdog Timer – Reset 1 to 255 sec./min. per step
  • Smart Management – Wake on LAN and PXE supported
  • HW Monitor – Monitoring temperatures and voltages. Auto throttling control when CPU overheats.
• Power – DC 9V to 55V with V+, V-, Frame Ground terminal block, 16-mode Software Ignition Control
• Dimension & Weight
  • EVS-3100 – 280 x 90 x 215mm | 5 kg
  • EVS-3100F – 280 x 97 x 215mm | 5.1 kg
  • EVS-3200 – 280 x 114 x 215mm | 5.6 kg
  • EVS-3200F – 280 x 121 x 215mm | 5.7 kg
  • EVS-3300 – 280 x 130 x 215mm | 6.2 kg
  • EVS-3300F – 280 x 137 x 215mm | 6.3 kg
  • EVS-3400 – 280 x 152 x 215mm | 6.8 kg
  • EVS-3400F – 280 x 159 x 215mm | 6.9 kg
• Environment
  • Temperature Range
    • 35W TDP CPU: -25°C to 55°C (-13°F to 131°F) with airflow
    • 65W TDP CPU: -25°C to 45°C (-13°F to 113°F) with airflow
  • Storage Temperature: -40°C to 85°C (-40°F to 185°F)
  • Humidity – 5% to 95% Humidity, non-condensing (95% at 55°C relative humidity)
  • Shock
    • IEC 60068-2-27
    • SSD – 50G @wallmount, Half-sine, 11ms
    • MIL-STD-810G method 514.6, Category 4 (with PCIe Card)
  • Vibration
    • IEC 60068-2-64
    • SSD – 5Grms, 5Hz to 500Hz, 3 Axis
    • MIL-STD-810G method 516.6, Procedure I (with PCIe Card)
  • EMC – CE, FCC, ICES, EN50155, EN50121-3-2

The system supports multiple operating systems, including Windows 11, Windows 10, and Linux. It offers flexible mounting options, such as wall mounting with a mounting bracket, as well as optional VESA mount, DIN rail mount, and rackmount configurations. Additionally, Vecow offers optional software such as VHub AI Developer for AI and computer vision, VHub ROS for robotics, and VHub EtherCAT for industrial communication.

Vecow’s EVS-3000 AI computing systems are available in eight variants: four fanless models and four with fans. While pricing and availability details have not been disclosed, these systems are typically expected to cost upwards of a thousand dollars. For more information on the EVS-3400, EVS-3300, EVS-3200, EVS-3100, and their with fan counterparts (EVS-3400(F), EVS-3300(F), EVS-3200(F), and EVS-3100(F)), visit the product page.
