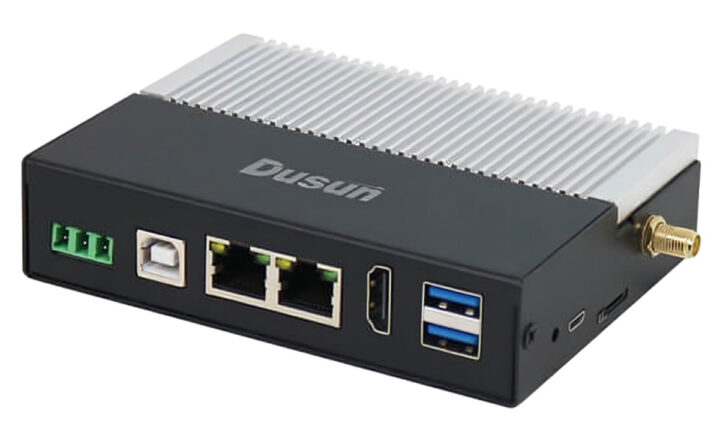

Dusun has recently launched the DSGK-061 Smart VNC Edge Computing AI Box or DSGK-061 Edge AI Box for short. This new Edge AI gateway is powered by a Rockchip RK3568 quad-core processor with a 1 TOPS NPU for edge computing. It has a built-in VNC (Virtual Network Computing) application for remote management and supports various interfaces and communication protocols such as HDMI, USB 3.0, TTL serial, LAN/WAN, and WiFi, making it suitable for applications like industrial automation, smart manufacturing, and more.
Previously we have written about similar Edge AI boxes like the Mixtile Edge AI box or Techbase iModGATE-AI, and some very powerful AI boxes with more than 30 TOPS NPU power like the Radxa Fogwise Airbox, the Firefly AIBOX-1684X, the Sipeed MaixBox M4N and more. Feel free to check those out if you are interested in similar products.

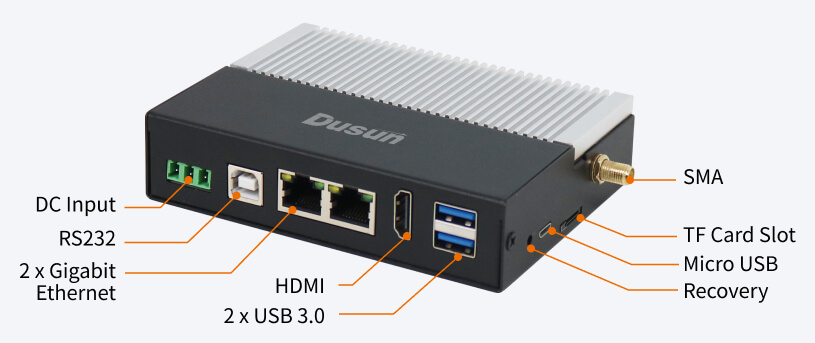

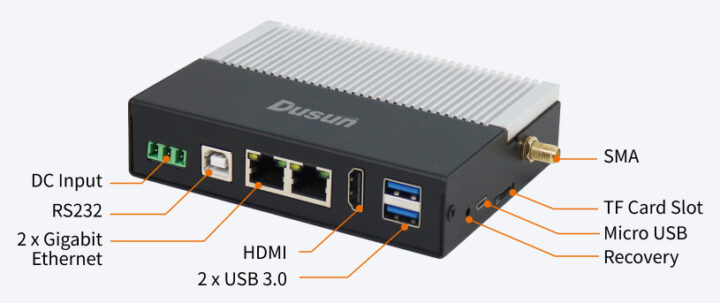

Dusun DSGK-061 specifications:
- SoC – Rockchip RK3568
- CPU – Quad-core Cortex A55 processor at up to 2.0 GHz
- GPU – Mali G52 GPU with support for OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
- VPU
- 4Kp60 H.264, H.265, VP9, 1080p60 MPEG-4/-2/-1, VP8, and VC1 video decoder
- 1080p60 H.264/H.265 video encoder
- AI accelerator – 1 TOPS NPU
- System Memory – 4GB LPDDR4
- Storage
- 32GB eMMC flash
- MicroSD card socket
- Video Output – HDMI port 4K @ 60Hz
- Audio – No Audio out port you need to use HDMI audio.
- Networking
- 2x Gigabit Ethernet RJ45 ports
- Supports 2.4GHz Wi-Fi and Bluetooth and includes an SMA connector for an external antenna
- USB
- 2x USB 3.0 Type-A ports
- 1x micro USB port for system recovery and upgrade
- Serial – 1x RS232 port accessible via USB Type-B port
- GPIO – 8x usable for user access
- Misc
- RTC
- Recovery button
- Internal cooling fan
- Power Supply – 10 to 28V DC via 3-way Phoenix connector

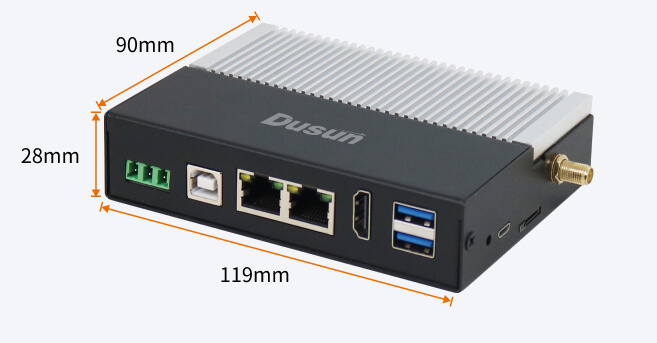

- Dimensions – 119 x 90 x 28mm
- Temperature Range
- Operating – -5°C to 65°C
- Storage – -40°C to 85°C
- Operating Humidity – 5% ~ 85% (no condensation)
The company mentions that this Edge AI box allows HMI devices to access its virtual system through VNC enabling application development and system-level function calls. This approach reduces device upgrade costs, making it easier for remote monitoring and management of industrial equipment without the need for expensive replacements. Software like TightVNC and RealVNC can easily be installed on Linux and/or Android, so it’s unclear what benefits Dusun IoT’s VNC solution brings.
In terms of software, the products page and the specification page provide conflicting data, as the product page mentions that it has support for Android 12 in one section, while Android 11 and Debian 11 are also mentioned in other sections. Other than that the product page mentions that it has support for Qt-based secondary development and the company provides extensive resources, including open-source SDKs, MQTT protocol support, and professional FAE team assistance to help developers throughout the development process.
At the time of writing the company does not provide any pricing information for the DSGK-061 Edge AI box, and you would need to request a quotation.
