Forlinx FET3576-C Rockchip RK3576 SoM powers feature-rich OK3576-C board for AIoT applications

Forlinx FET3576-C SoM is a new System-on-Module built around the Rockchip RK3576 SoC which features four Arm Cortex-A72 and four Cortex-A53 cores made from a 22nm lithography process. The SoM is available with 2GB or 4GB of LPDDR4 RAM option and can be equipped with up to 32GB of eMMC storage. Additionally, it has 6 TOPS NPU power and supports standard peripherals like GbE Ethernet, Wifi, Bluetooth, LVDS, MIPI DSI, and much more. All these features make this device useful for IoT, edge computing, digital signage, and many other applications.

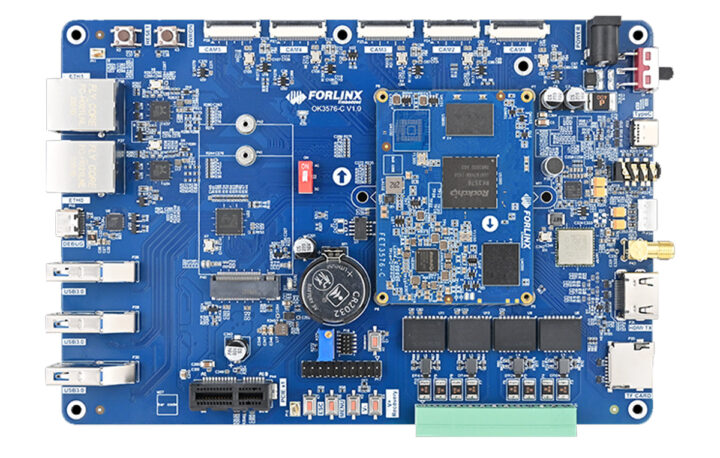

The new FET3576-C SoM and its OK3576-C development board look very similar to the Forlinx FET3562J-C SoM and related board we covered earlier this month. But the main difference between the two is that the new one is built with the RK3576 SoC whereas the old one is built around the Rockchip RK3562(J) SoC. Previously we also saw that the RK3576 SoC was used in products like Banana Pi BPI-M5 Pro, Mekotronics R57, and others. Feel free to check those out if you are interested in those topics.

SoM and development board specifications

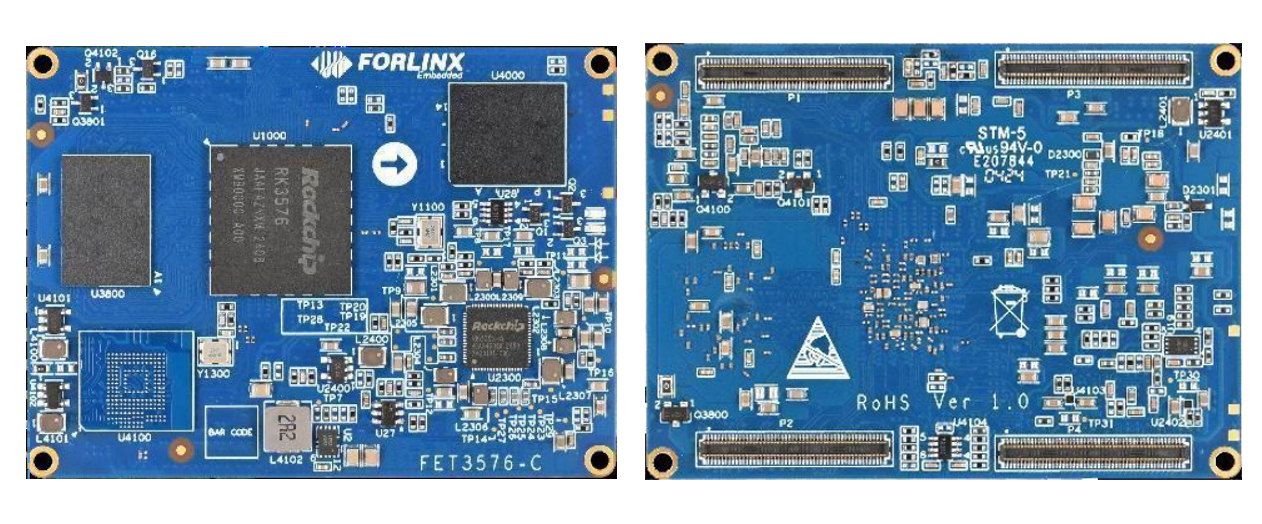

• FET3576-C SoM Specification
  • SoC – Rockchip RK3576
    • CPU
      • 4x Cortex-A72 cores at 2.3GHz, four Cortex-A53 cores at 2.2GHz
      • Arm Cortex-M0 MCU at 400MHz
    • GPU – ARM Mali-G52 MC3 GPU with support for OpenGL ES 1.1, 2.0, and 3.2, OpenCL up to 2.0, and Vulkan 1.1
    • NPU – 6 TOPS (INT8) AI accelerator with support for INT4/INT8/INT16/BF16/TF32 mixed operations.
    • VPU
      • Video Decoder: H.264, H.265, VP9, AV1, and AVS2 up to 8K @ 30fps or 4K @ 120fps.
      • Video Encoder: H.264 and H.265 up to 4K @ 60fps, (M)JPEG encoder/decoder up to 4K @ 60fps.
  • System Memory – 2GB or 4GB of LPDDR4 Memory
  • Storage
    • Up to 32GB eMMC flash
    • SDIO
    • SATA – Support for SATA v3.1 (up to 6GT/s)
  • Display Interfaces:
    • HDMI/eDP TX – 1x HDMI/eDP TX multiplexed,
    • MIPI DSI – 1x MIPI DSI-2 TX, up to 2K at 60Hz
    • Parallel –  RGB/BT.656/BT1120, up to 1920×1080 at 60Hz
    • EBC – 1x E-ink EPD, up to 2560×1920, up to 32-level grayscale
    • DP TX – 1x USB/DP combination via USB-C which supports DisplayPort v1.4, supports MST with DP Alt mode
  • Ethernet – 1x RGMII (10/100/1000Mbps), 1x RMII (10/100/1000Mbps)
  • USB
    • 2x USB3.2
    • 1x USB Type-C (DP Alt mode)
    • 2x USB 2.0 OTG
  • Camera Interfaces
    • MIPI-CSI – 5x CSI-2 (4x 2-lane D-PHY v1.2, 1x 4-lane D-PHY v2.0 or 3-trio C-PHY v1.1)
    • DVP – 1x, 8/10/12/16-bit, up to 150MHz, BT.601/BT.656/BT.1120 video formats.
  • Audio – Digital Audio Codecs with 2x DAC, I2S/PCM, SAI, SPDIF, PDM
  • Other Interfaces
    • PCIe – PCIe v2.1 (Root Complex only, up to 5GT/s)
    • UART – Up to 12 UARTs, support various serial data transfer modes and flow control
    • CAN – Compliant with CAN and CAN-FD;
    • SPI – Up to 5 ports, supports host/slave mode
    • I2C – Up to 9 ports, supports standard and high-speed modes (7/10-bit address)
    • I3C – 2x I3C ports
    • DSMC – Can support up to 4 chips selection
    • FlexBus – Supports built-in DMA and ping-pong operations for two addresses allocation
    • PWM – 16 on-chip PWMs with interrupt operation
    • ADC – 8x 12-bit SAR-ADC, sampling rate up to 1MS/s
    • GPIO -All GPIO can be used to generate interrupts; Supports power trigger interrupt and edge trigger interrupt; and more
  • Power – DC 12V
  • Operating temperature
    • FET3576-C: 0°C~+80°C
    • FET3576J-C: -40°C~+85°C
  • Dimensions – 56 x 68 x 4.92 mm

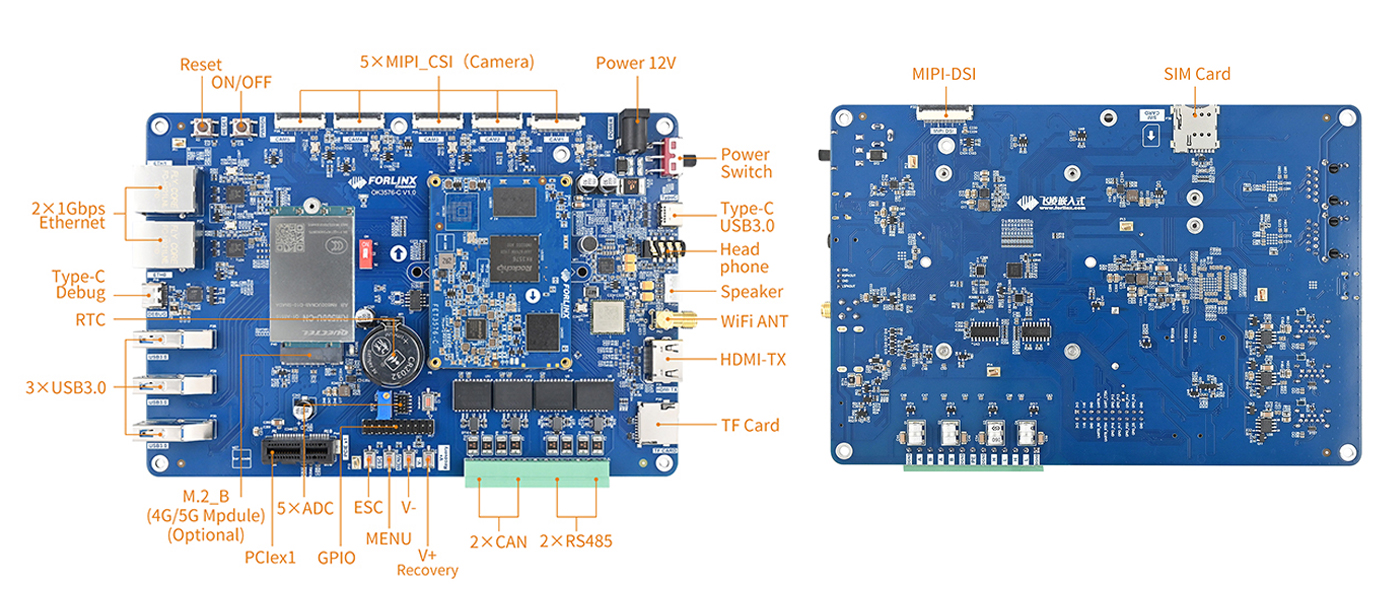

• OK3576-C Carrier Board Specifications
  • Storage – SD card slot up to up to 150Mhz, supports SDR104 mode
  • Display
    • 1x MIPI DSI (2560×1600@60Hz)
    • 1x HDMI 2.1 (4K@ 120Hz)
    • 1x DP TX Multiplexed with USB3.1 Gen1 Type-C connector
  • Camera
    • 1x MIPI DPHY V2.0, 4 lanes by 1x 26-pin FPC connector each lane up to 4.5Gbps and supports OV13850 camera
    • 4x MIPI DPHY V1.2, 2 lanes, by 4x 26-pin FPC connectors each lane up to 2.5Gbps and supports OV5645 camera
  • Audio – 1x On-board codec chip, supports Phone, MIC, and Speaker
  • Connectivity
    • 2x RJ45, 10/100/1000 Mbps
    • 4G/5G – 1x M.2 slot
    • WiFi and BT – 1x AW-CM358SM-WIFI&BT, supports 2.4G/5G WiFi and BT 5.0
  • USB
    • 3× Type-A USB connectors, supports HS mode (480Mbps), FS mode (12Mbps), and LS mode (1.5Mbps)
    • 1x Type-C connector, work together with DP TX
  • Expansion
    • 2x CAN and CAN-FD, with built-in transceivers
    • 1x PCIe x1 slot, up to 5Gbps
    • 2x RS485 interfaces with galvanic isolation
    • 5x ADC with 1.27mm pin headers
    • 1x UART 2.54mm header
    • 1x RTC
    • 8x GPIO with standard 2.54mm headers
  • Power – 12V
  • Dimensions – Not Mentioned

As the SoM is powered by a Rockchip RK3576 SoC, it should support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, and Vulkan 1.1. However, the company does not mention it on their products page or datasheet of the device.

In terms of software, the SoM is compatible with Linux 6.1.57 and Android and supports multi-task and multi-scenario parallel processing, as well as deep learning frameworks such as TensorFlow, Caffe, Tflite, Pytorch, Onnx NN, Android NN, and others.

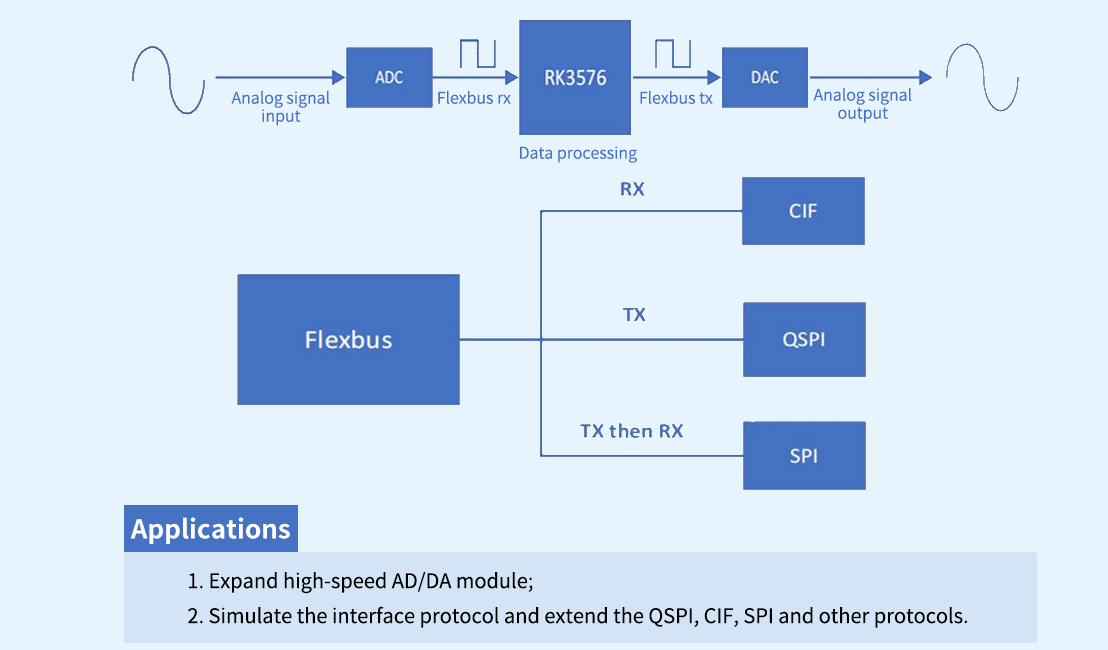

The SoM also supports a new parallel bus interface which the company calls “FlexBus”. It is a flexible parallel bus interface that can emulate various protocols and support 2/4/8/16-bit data transmission with a clock speed of up to 100MHz. It offers diverse bus transfer interfaces like DSMC, CAN-FD, PCIe 2.1, SATA 3.0, USB 3.2, SAI, I2C, I3C, and UART.

More details about the SoM and the development board can be found on the announcement and the product page. However, at the time of writing the company has not provided any pricing information.
