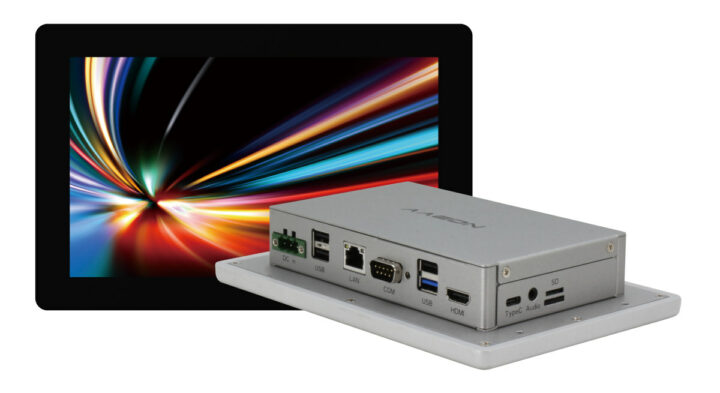

AAEON ACP-1078 – A Rockchip RK3568-powered 7-inch touchscreen panel PC for manufacturing and logistics

AAEON ACP-1078 is a 7-inch touchscreen panel PC powered by a Rockchip RK3568 quad-core Cortex-A55 AI SoC with 12V to 24V DC input, and an IP65-compliant aluminum front bezel suitable for manufacturing and logistics use cases.

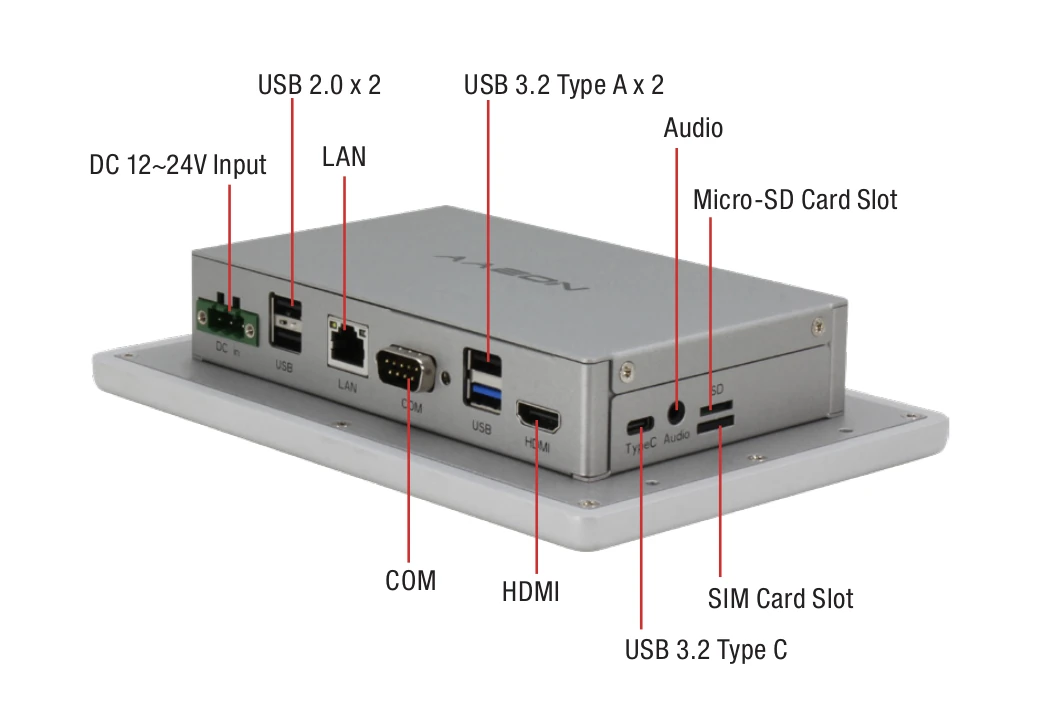

The fanless panel PC ships with up to 4GB RAM and 16GB eMMC flash and offers dual GbE networking, HDMI output, five USB ports, two COM ports, a microSD card slot, and a 3.5mm audio jack.

AAEON ACP-1078 panel PC specifications:

• SoC – Rockchip RK3568
  • CPU – Quad-core Cortex A55 processor at up to 2.0 GHz
  • GPU – Mali G52 GPU with support for OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
  • VPU
    • 4Kp60 H.264, H.265, VP9, 1080p60 MPEG-4/-2/-1, VP8, and VC1 video decoder
    • 1080p60 H.264/H.265 video encoder
  • AI accelerator – 0.8 TOPS NPU
• System Memory – 2GB or 4GB LPDDR4
• Storage
  • 16GB eMMC flash
  • MicroSD card socket
  • mSATA socket
• Display
  • 7-inch WSVGA (1024 x 600) color TFT LCD
  • Max. colors – 16.7M
  • Luminance – 320 nits
  • Viewing angle – 145° (H) ; 150° (V)
  • Backlight
    • LED
    • MTBF – 20,000 hours
  • Projected capacitive multi-touch
  • Light transmission – 90%
• Video Output – HDMI port
• Audio – 3.5mm microphone/earphone jack
• Networking
  • 2x Gigabit Ethernet RJ45 ports

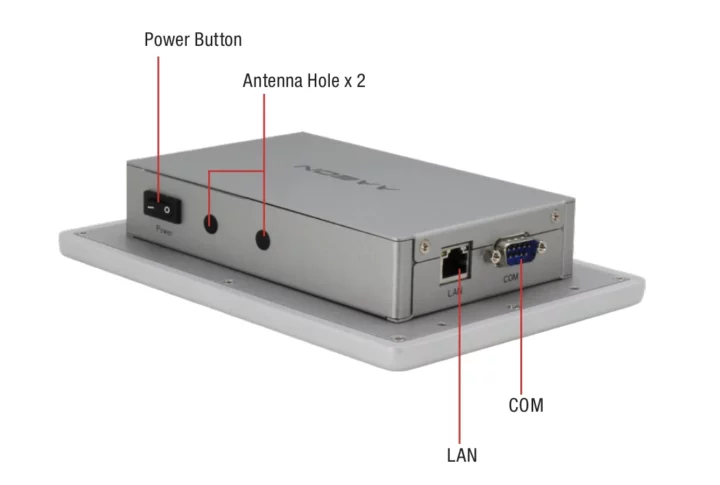

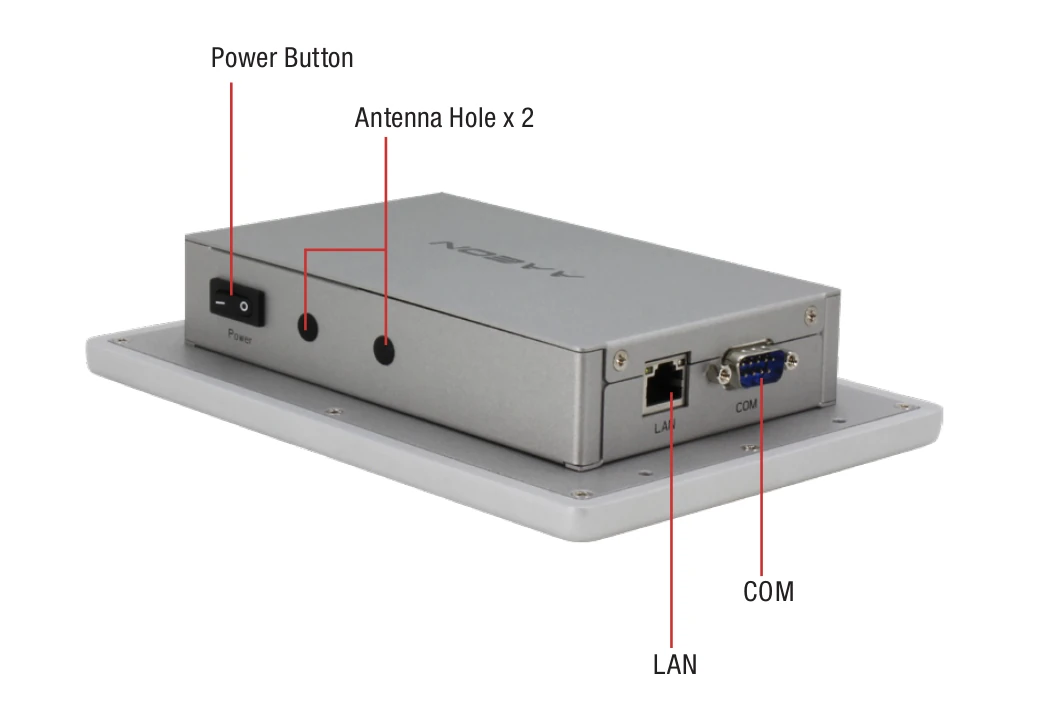

  • Optional wireless module via mini PCIe socket and two antenna holes
• USB
  • 2x USB 3.2 Gen 1 ports
  • 2x USB 2.0 Type-A ports
  • 1x USB 3.2 Gen 1 OTG Type-C port for system recovery
• Serial – 2x COM DB9 ports (1x RS-232/422/485 and 1x RS-232)
• Expansion – Full-size mini-PCIe slot (mSATA or PCIe 3.0 x1)
• Power Supply – +12V to 24V DC input
• Dimensions – 196.5 x 135 x 40mm (Aluminum Front Bezel + Metal Chassis)
• Weight – About 1 kg (gross weight; net weight not provided)
• Temperature Range
  • Operating  – Standard: -5°C to 50°C with 0.5 m/s airflow
  • Storage – -20°C to 60°C
• Operating Humidity – 90% @ 40°C, non-condensing
• Vibration –  1Grms / 5~ 500Hz / operation
• Shock – 15 G peak acceleration (11 msec. duration)
• Certifications – CE/FCC Class A
• IP65 Compliant Aluminum Front Bezel

The panel PC can run Android 12 or Debian Linux, and AAEON provides VESA / panel mounting options. Based on the arrangement of the ports, I believe the ACP-1078 is based on the AAEON RICO-3568 Pico-ITX Plus SBC we covered a few weeks ago.

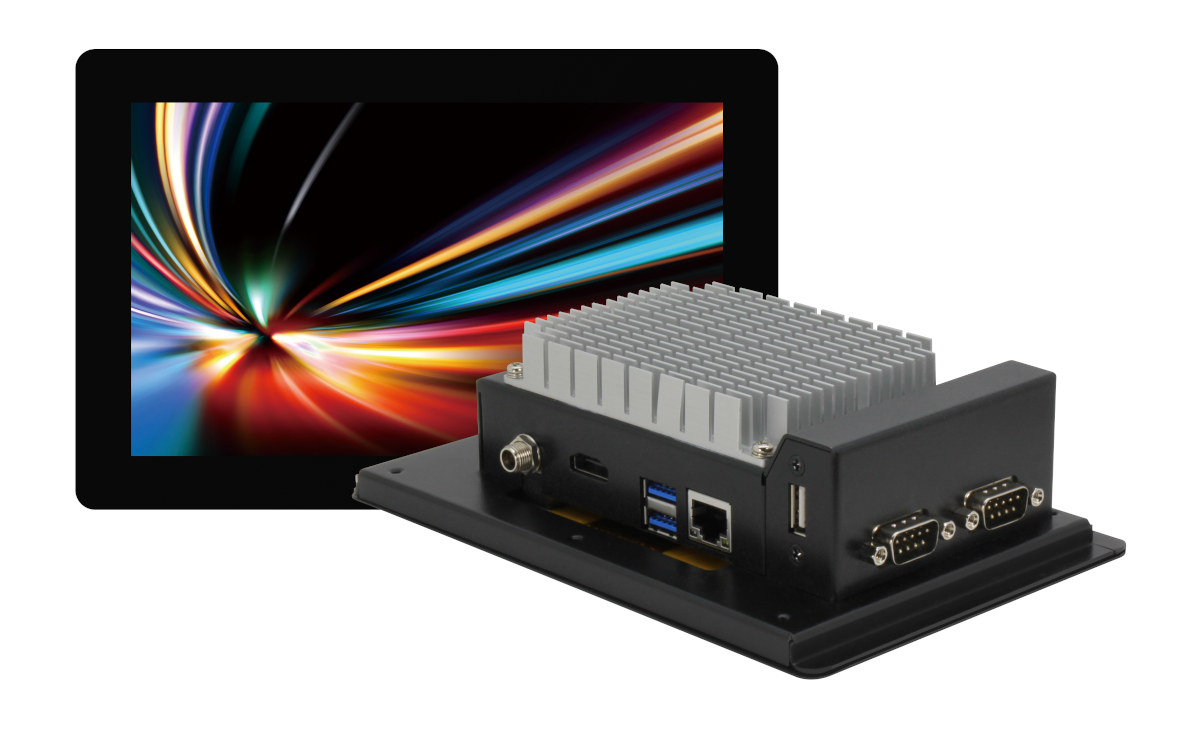

AAEON did not provide pricing information for the ACP-1078 panel PC. Additional information can be found on the product page. The company also jointly launched the similarly designed ACP-1075 panel PC but with an Intel Pentium N4200 or Celeron N3350 Apollo Lake processor running Windows 10 as pictured below.

The ACP-1075 is also a 7-inch touchscreen panel PC but comes with 4GB RAM and 64GB eMMC flash, M.2 B-Key and E-Key sockets, one GbE port, two COM ports, two USB 3.2 ports, and an HDMI output. It is mostly designed for smart kiosks. Based on the location of the HDMI, USB, and Ethernet ports, it could be based on the AAEON PICO-APL3 SBC launched in 2018… A short overview of the ACP-1075 and ACP-1078 can be watched in the video embedded below.
