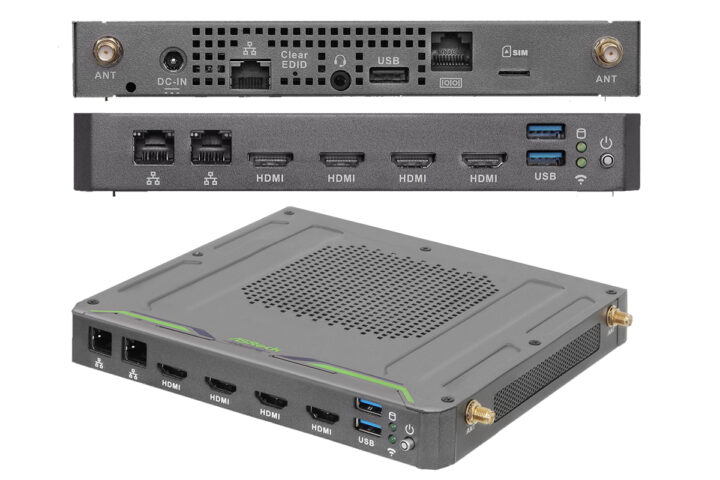

ASRock DSF-A6000 embedded box PC is built around the AMD Ryzen Embedded R2314 processor with support for up to 64GB of dual-channel DDR4 memory, three RJ45 ports (two 1GbE LAN, and one 2.5GbE LAN with optional PoE+) for connectivity. For storage, it features an M.2 M-Key slot for NVMe SSD and I/O options include USB 3.2 Gen2 and RS232. In terms of display capabilities, this PC supports up to four 4K displays simultaneously via HDMI 2.0b. Additionally, it supports out-of-band management through an optional MPU-OOB card and features EDID emulation for seamless display setup across various technologies.
Previously we have written about similar embedded box PCs like the Distec BoxPC Pro, the AAEON ARES-500AI embedded box PC, the BOXER-8256AI NVIDIA Jetson Xavier NX fanless embedded box PC, and many more feel free to check those out if you are interested in the topic.
ASRock DSF-A6000 embedded box PC specifications:
- SoC – AMD Ryzen Embedded R2314 quad-core processor @ 2.1/3.5 GHz (Turbo) with hexacore Radeon Vega graphics; TDP: 12 to 35W
- System Memory – Up to 64 GB Dual Channel ECC/non-ECC DDR4 2666 MHz with 2 x 260-pin SO-DIMM
- Storage – 1 x M.2 (Key M, 2242/2280) with PCIe Gen3 x4 for SSD
- Display Interfaces – 4 x HDMI 2.0b ports with 4K support driven by AMD Radeon Graphics
- Audio – 1 x Line-out, Mic-in with Realtek ALC256, High Definition Audio
- Connectivity
- LAN1 – Realtek RTL8111H with 10/100/1000 Mbps
- LAN2 – Intel I210 with 10/100/1000 Mbps
- LAN3 – Realtek RTL8125BG with 10/100/1000/2500 Mbps, supports PoE+ (optional)
- SIM Socket – 1 x Socket connected to M.2 Key B
- USB
- 2 x USB 3.2 Gen2
- 1 x USB 2.0
- Serial – 1 x RS232 (RJ50)
- Expansion
- 1 x M.2 (Key E, 2230) with PCIe Gen3 x1 and USB 2.0 for Wireless
- 1 x M.2 (Key B, 3042/3052) with PCIe Gen3 x1, USB 3.2 Gen1, USB 2.0, and SIM for 4G/5G
- Security – TPM 2.0
- Misc
- Watchdog Timer
- Clear EDID Button
- Fan for cooling
- Power Supply – 12V~19V DC-In Jack
- Environment
- Operating Temp: 0ºC ~ 40ºC
- Storage Temp: -40°C – 85°C
- Operating Humidity: 5% ~ 90%
- Storage Humidity: 5% ~ 90%
- Dimensions – 182.2 x 175.2 x 25 mm
- Weight – 750 grams
- Mounting – VESA mount/Wall mount/Din Rail

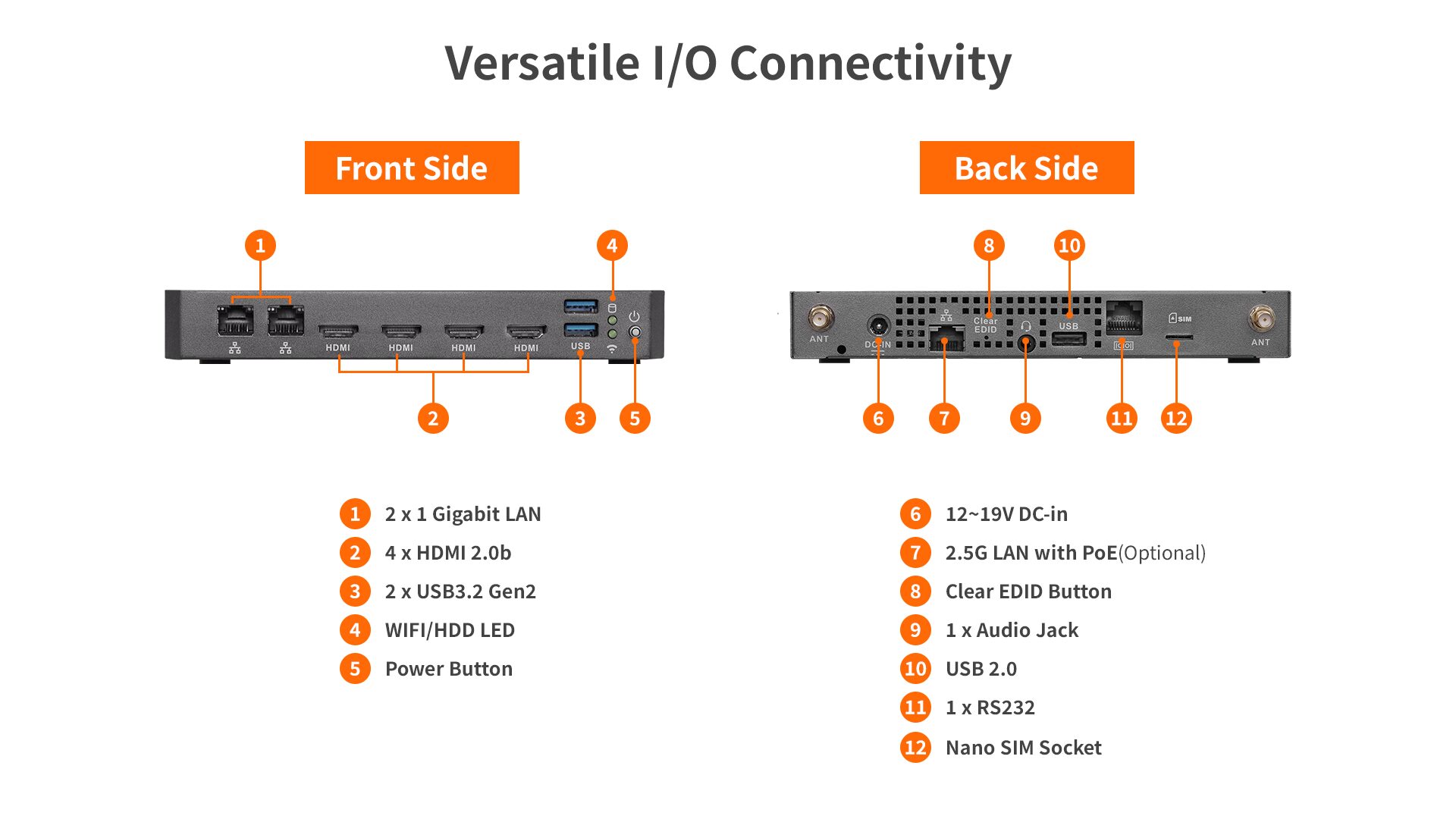

![DSF A6000 Specification ASRock DSF-A6000 embedded box PC Interfaces](https://www.cnx-software.com/wp-content/uploads/2024/07/DSF-A6000-Specification-720x405.jpg)

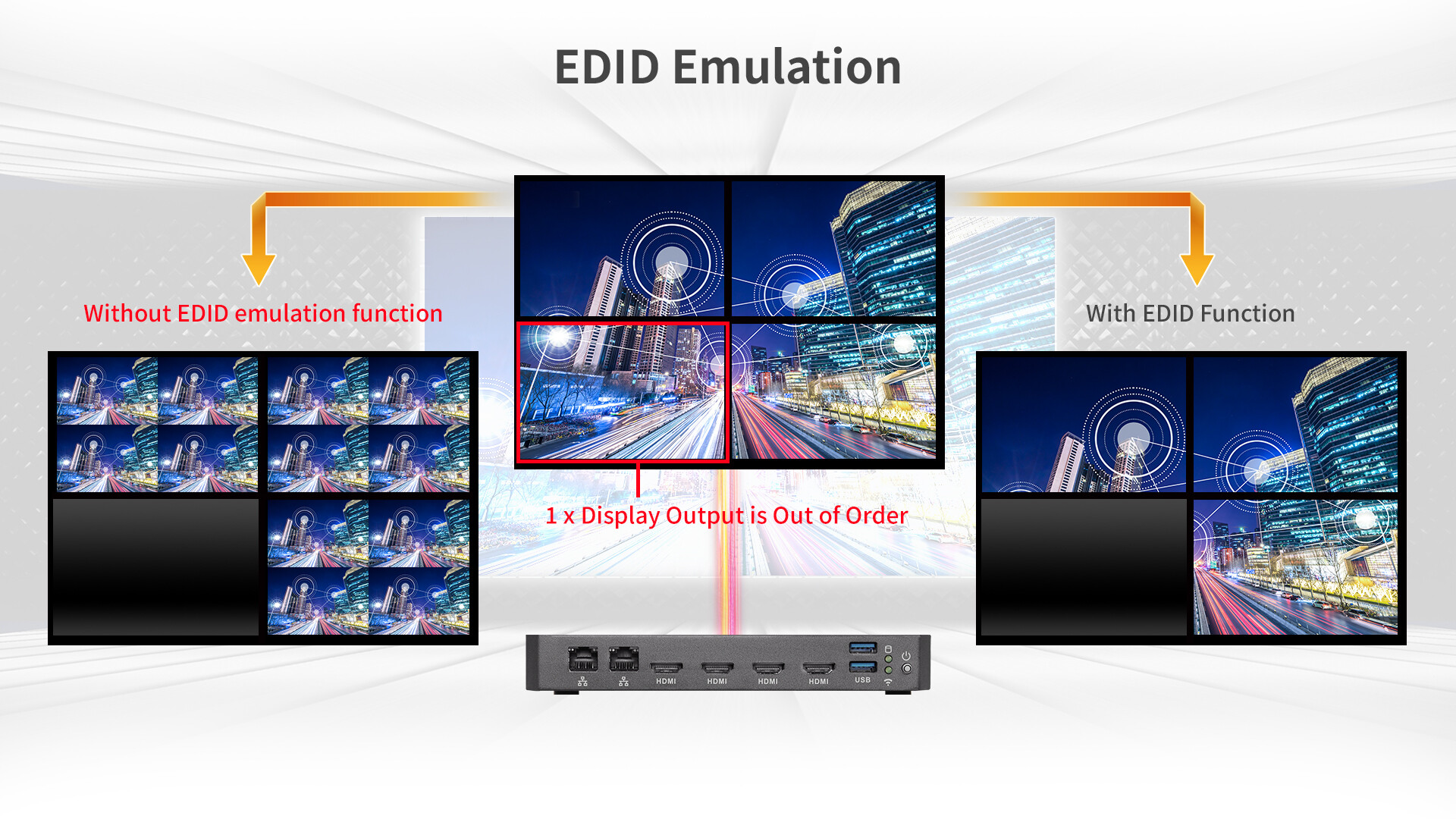

An optional MPU-OOB card connects to Allxon’s Cloud-Native platform, allowing remote management and troubleshooting even if the operating system isn’t working. The DSF-A6000 also supports EDID Emulation, which makes it easier to set up different display types by mimicking their display information.
![DSF A6000 Web Overview P4 DSF-A6000 EDID Emulation](https://www.cnx-software.com/wp-content/uploads/2024/07/DSF-A6000_Web-Overview_P4-e1721811124628-720x327.jpg)
The company mentions that the AMD Ryzen R2314 embedded box PC supports Windows 11 but does not mention any Linux-based OS. It has CE and FCC certification and ships with a 19V/90W power adapter and a wall mount bracket.
At the time of writing the company does not disclose any pricing information but more details about the ASRock DSF-A6000 can be found on the product page.
