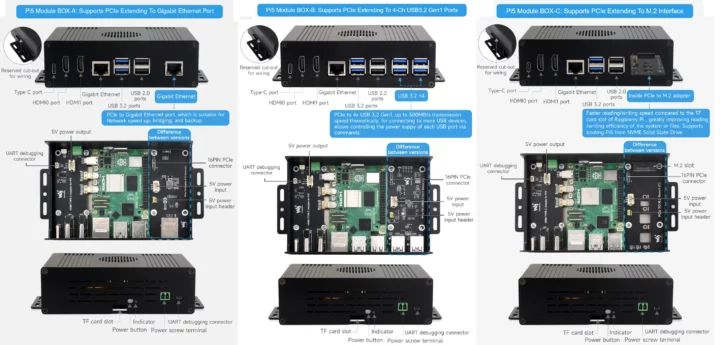

Waveshare Pi5 Module BOX is a multi-functional mini-computer kit designed for the Raspberry Pi 5. The housing of this kit is made from aluminum alloy and Waveshare lists three variants of this kit, the first one is the Pi5 Module BOX-A (PCIe to Gigabit Ethernet), Pi5 Module BOX-B (PCIe to 4-ch USB3.2 Gen1), and Pi5 Module BOX-C (PCIe to M.2 interface).
The kit looks very similar to the Waveshare Jetson Nano-powered mini-computer or the ODYSSEY-X86J4105 SBC with a case that we have reviewed previously, there was also this metal enclosure for the Raspberry Pi Compute Module 4 that we have written about, feel free to check that out if you are interested in some similar products.
Waveshare Pi5 Module BOX specifications
- Compatibility – Designed for Raspberry Pi 5 (not included)
- Case Material – Aluminum alloy
- PCIe Adapter Board Options:
- Pi5 Module BOX-A – PCIe to Gigabit Ethernet port
- Pi5 Module BOX-B – PCIe to 4-ch USB3.2 Gen1 ports
- Pi5 Module BOX-C – PCIe to M.2 interface
- Internal Space – Larger space for HATs and cable management
- Adapters – Pi5 HDMI and Type-C adapter for dual 4K outputs and dual power supply options
- Cooling – Reserved airflow vents, supports optional cooling fan (not included)

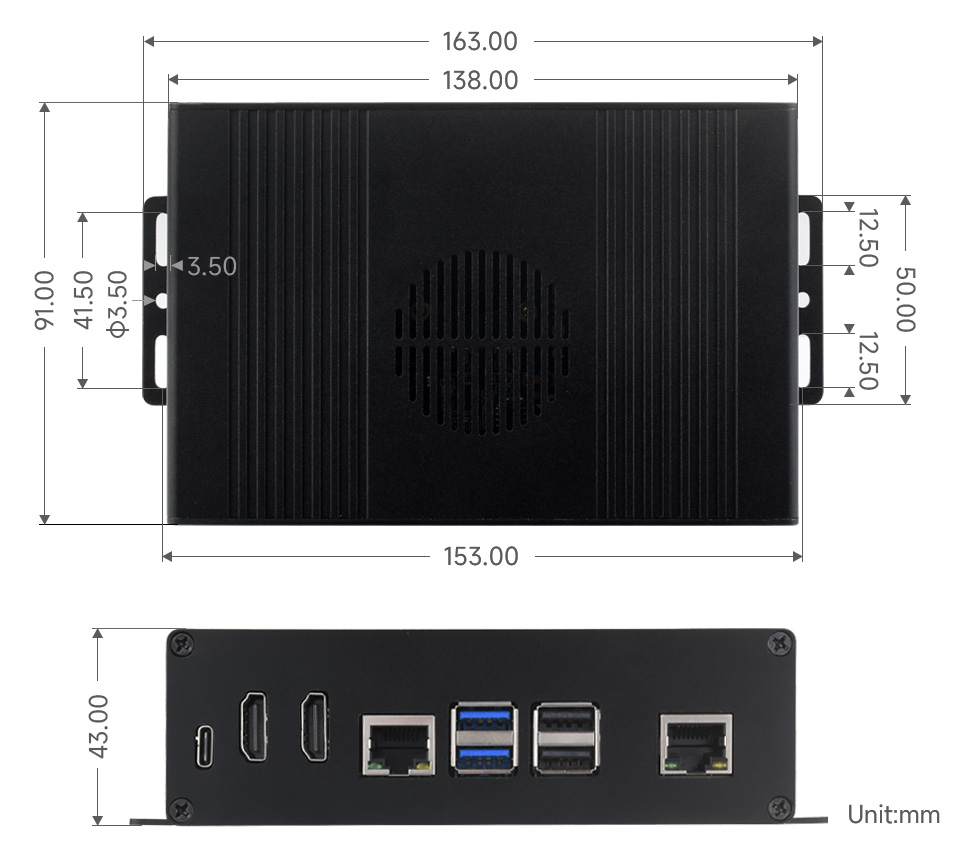

- Dimensions – 163.00 x 91.00 x 43.00 mm (L x W x H)
The multi-functional all-in-one mini-computer kit provides enough internal space to hold various HATs, so it can be configured with a GbE ethernet adapter, a 4-ch USB 3.2 adapter, or a PCIe NVMe adapter. The case will include a Pi5 HDMI and Type-C adapter, which enables dual 4K outputs and two power supply options. The case design features various reserved airflow vents and the option to install a cooling fan that helps keep the Pi inside the enclosed cool.
The company also provides detailed instructions on how to install the Raspberry Pi 5 and the attachment boards in case which can be found on the company’s product page, there’s also a wiki page that’s empty at the time of writing.
The Waveshare Pi5 Module Box can be purchased from Aliexpres where the Pi5 Module BOX-A will cost you $21.93, the BOX-B goes for $26.49, and the BOX-C sells for $22.07. The box is also available on Amazon for $33.99 (BOX-A), $41.99 (BOX-B), or $35.99 (BOX-C).
