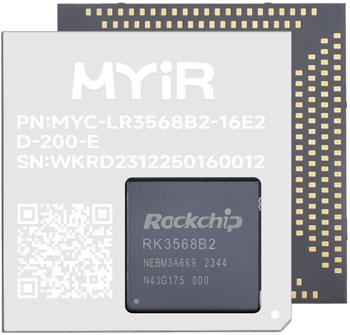

MYIR Tech has announced the release of the Rockchip RK3568-based MYC-LR3568 Edge AI system-on-module (SoM) offered in a compact 381-pin expansion LGA package design. It features up to 8GB LPDDR4 RAM, 32GB eMMC flash storage, a power management integrated circuit, and various connectivity options.
![MYIR MYD-LR3568 development board MYIR MYD-LR3568 development board](https://www.cnx-software.com/wp-content/uploads/2024/07/MYIR-MYD-LR3568t-720x551.jpg)
The base configuration of the MYC-LR3568 system-on-module offers only 2GB RAM and 16GB storage but the module supports up to 8GB RAM and 32GB eMMC storage. It supports several video codecs, including 4K 60fps H.265/H.264/VP9 decoding and 1080P 60fps H.265/H.264 encoding, for high-quality video playback and recording.
The MYC-LR3568 SoM works with Debian and Linux operating systems. It is designed for cost-sensitive industrial applications including but not limited to IoT gateways, NVR storage, industrial control, human-machine interface (HMI), cloud terminals, and facial recognition systems.
MYIR Tech’s MYC-LR3568 specifications:
- SoC – Rockchip RK3568 (B2 or J variant)
- CPU
- RK3568B2 – Quad-core processor with four Cortex-A55 cores @ 2.0 GHz
- RK3568J – Quad-core processor with four Cortex-A55 cores @ 1.4 GHz (industrial-grade)
- GPU – Arm Mali-G52 2EE GPU with support for OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
- AI acceleraror – 1.0 TOPS NPU
- VPU – Supports 4K decode and 1080p encode
- CPU
- Memory – 2GB LPDDR4 RAM (supports 1GB, 4GB, and 8GB options)
- Storage – 16GB eMMC (supports 8GB and 32GB options), 32KB EEPROM
- Package – LGA package with 381-pin expansion interface
- Connectivity – 2x RGMII/RMII, 2x USB 2.0 Host, 10x UART, 3x CAN 2.0, 6x I2C, 4x SPI, 15x PWM, 8x SARADC, Up to 152x GPIOs
- Expansion – 1x PCIe 3.0, 1x 2 lane RC/EP, 2x 1 lane RC, SDIO (SDIO 3.0/EMMC 4.5.1, SDIO 3.0)
- Display
- 1x HDMI 2.0
- 1x eDP 1.3
- 1x LVDS/Dual MIPI-DSI
- 1x Parallel RGB
- E-Ink interface (note: not supported by MYiR SDK).
- Camera – 1x DVP Camera Input, 1x MIPI-CSI
- Audio – 2x I2S/PCM (8-channel), 1x I2S/PCM (2-channel), 1x PDM (8-channel)
- Power
- Rockchip RK809-5 Power Management IC
- Power supply – 5V @ 1A, 3.3V @ 3A
- Dimensions – 45 x 43 mm
- Temperature Range – -40°C to +85°C (industrial grade) or -20°C to 70°C
- Operating System – Linux 5.10, Debian 11
![MYIR MYC-LR3568 block diagram MYIR MYC-LR3568 block diagram](https://www.cnx-software.com/wp-content/uploads/2024/07/myclr3568bd.jpg)
The system-on-module has been released with the MYD-LR3568 development board that serves as an evaluation platform. The development board is powered by a 12V/3A DC power supply and features a wide range of ports and interfaces, including two USB 3.0 and one USB 2.0 ports, dual Gigabit Ethernet ports, two CAN interfaces, and a built-in Wi-Fi and Bluetooth module. Expansion options comprise a MicroSD card slot, an M.2 NVME SSD slot, a 40-pin Raspberry Pi-compatible expansion header, and a MiFAN custom 40-pin expansion interface. It can drive multiple displays via HDMI, Mini-DP, MIPI-DSI, and LVDS.
MYIR offers a few optional modules to extend the board’s functionalities, including a 4ADH-to-MIPI Camera Module, a MIPI Camera Module, an RPI module, and an LCD module. Previous offerings from MYIR Tech include the MYC-J7A100T SoM, MYC-LMX9X SoM, MYD-LT527-SX board, and the Remi Pi.
The MYC-LR3568 system-on-module is sold in two standard configurations with the major differences being the onboard CPU and operating temperature. The $65 MYC-LR3568J-16E2D-180-I-G model features the RK3568J processor and works best between -40 to +85°C. The second configuration, MYC-LR3568B2-16E2D-200-E, costs $43 and has the RK3568B2 processor and an operating temperature range of -20 to 70°C. The MYD-LR3568 development board can be fitted with either module and ships with a USB cable, a 12V/3A power adapter, and a quick start guide. The product page has purchase links and more information.
