MyoWare 2.0 Muscle Sensor Wireless Kit targets electromyography (EMG) applications

The MyoWare 2.0 Muscle Sensor Wireless Kit is an Arduino-compatible electromyography (EMG) sensor kit capable of detecting and measuring the electrical signals generated by muscle fibers in the body. The MyoWare 2.0 kit is a collaborative product by SparkFun and Advancer Technologies.

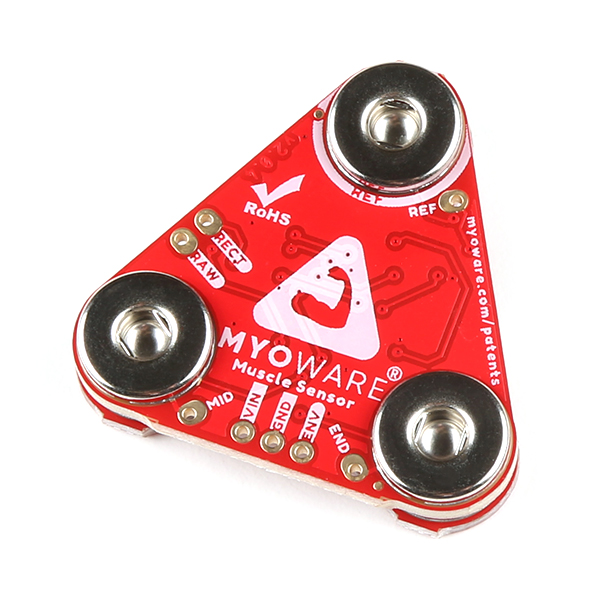

The MyoWare 2.0 ecosystem brings several improvements over the previous generation, including a compact design, solderless snap connectors, and an upgraded chipset for improved reliability and performance. It includes shields designed to seamlessly interface with the MyoWare 2.0 Muscle sensor, a wearable, Arduino-compatible EMG sensor.

The Muscle Sensor’s wearable design makes it possible to directly attach biomedical sensor pads and add-on shields to the board. It operates on a single-supply voltage between +3.3V to +5V and supports three separate output modes. It analyzes filtered and rectified activity from muscle movement and outputs a signal from 0 to the power source voltage (VIN) that represents the intensity of flex.

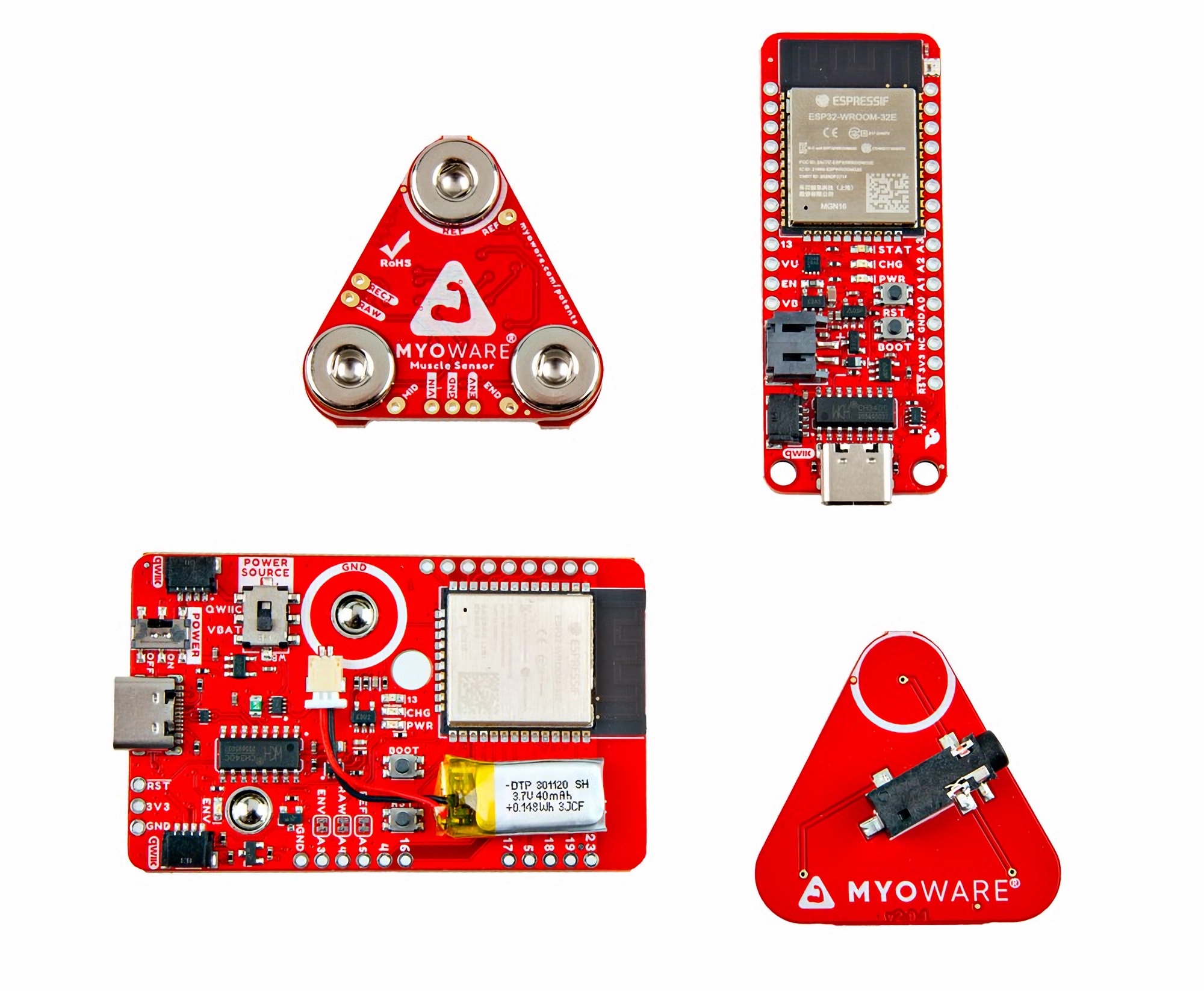

The new MyoWare 2.0 Muscle Sensor Wireless Kit includes the following components:

• SparkFun ThingPlus based on ESP32-WROOM-32E  modules with
  • Dual-core Tensilica LX6 @ 240MHz,
  • 520KB SRAM, 128MB internal flash, 16MB external flash, and
  • Wi-Fi, Bluetooth, and BLE connectivity
  • USB-C port
• MyoWare 2.0 Wireless Shield designed to take readings from the Muscle Sensor and transmit them to an Arduino-compatible development board
  • ESP32-WROOM-32E module with PCB antenna
  • Stackable with the Muscle Sensor, due to onboard snap connectors and pogo pins
  • Misc
    • Switches: Power Source (Qwiic, VBAT), Power ON/OFF
    • 2x buttons, 4x LEDs, 6x jumpers
  • Built-in LiPo battery
  • Dimensions: 63.5mm x 38.000mm
  • Weight: 16.7g
• MyoWare 2.0 Muscle Sensor with wearable design and seamless extensibility
  • Reverse polarity protection
  • Adjustable gain
  • Connectors: 3x female snap pins (Input Electrodes), 3x male snap pins (Power and EMG envelope output)
  • Output Modes: Raw, Rectified, and Envelope
  • Dimensions: 37.57mm x 35.90mm
• MyoWare 2.0 Cable Shield for use cases where the sensor pads cannot be mounted on the Muscle Sensor directly
  • 1x 3.5mm TRS connector
  • 3x male snap pins (Input Electrodes)
  • Dimensions: 37.57mm x 35.90mm
• 1x SparkFun Mini Screwdriver
• 1x 2m reversible USB A-to-C cable
• 2x disposable surface EMG/ECG/EKG electrodes – 24mm (10 pack)
• 1x Sensor Cable – Electrode Pads (3 connector)

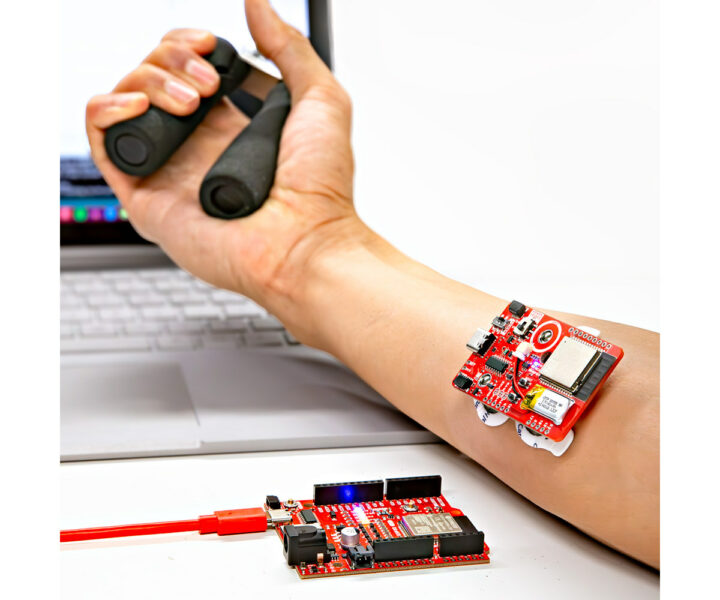

Advancer Technologies provides a MyoWare Arduino Library hosted on GitHub that provides an interface for interacting with the MyoWare 2.0 ecosystem using Arduino. A USB isolator is recommended if the development board is connected to a computer powered by mains electricity. The product page has detailed information about the components and how they can be used. The MyoWare website also has several tutorials and guides to get you started with the MyoWare 2.0 ecosystem. The video below shows the MyoWare 2.0 Muscle Sensor in action with another ESP32 board (not the SparkFun ThingPlus)

The MyoWare Wireless Kit is suitable for wearable applications that allow users to control devices with their muscles instead of buttons, levers, or joysticks. These include robotics, video games, prosthetics, and other innovative projects. It is priced at $120 on SparkFun, with quantity discounts available.
