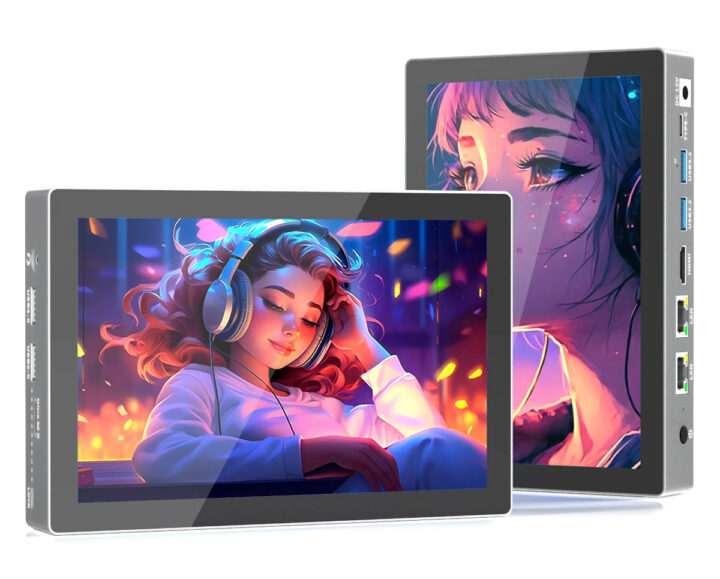

HIGOLE F9B Pro is a mini PC powered by an Intel Processor N100 quad-core CPU and equipped with a built-in 7-inch touchscreen display, a 5,000mAh battery, and full-size ports that could be confused with a 7-inch tablet if it was not so thick…
GOLE/HIGOLE has made many such mini PCs with integrated displays over the years initially to lower the Windows license fee, but they’ve kept making those with new Intel families, for example with the Gemini Lake-powered GOLE1 Pro mini PC with a 5.5-inch display introduced in 2022. The HIGOLE F9B Pro is just the latest iteration with a modern Alder Lake-N CPU and a 7-inch touchscreen display.
HIGOLE F9B (Pro) specifications:
- SoC – SoC – Intel Processor N100 quad-core Alder Lake-N processor @ up to 3.4 GHz (Turbo) with 6MB cache, 24EU Intel HD graphics @ 750 MHz; TDP: 6W
- System Memory – 16GB LPDDR4
- Storage
- 256GB or 512GB eMMC flash
- MicroSD card reader
- Display – 7-inch touchscreen IPS display with 1280×800 resolution; 5-point touch; 300 ANSI

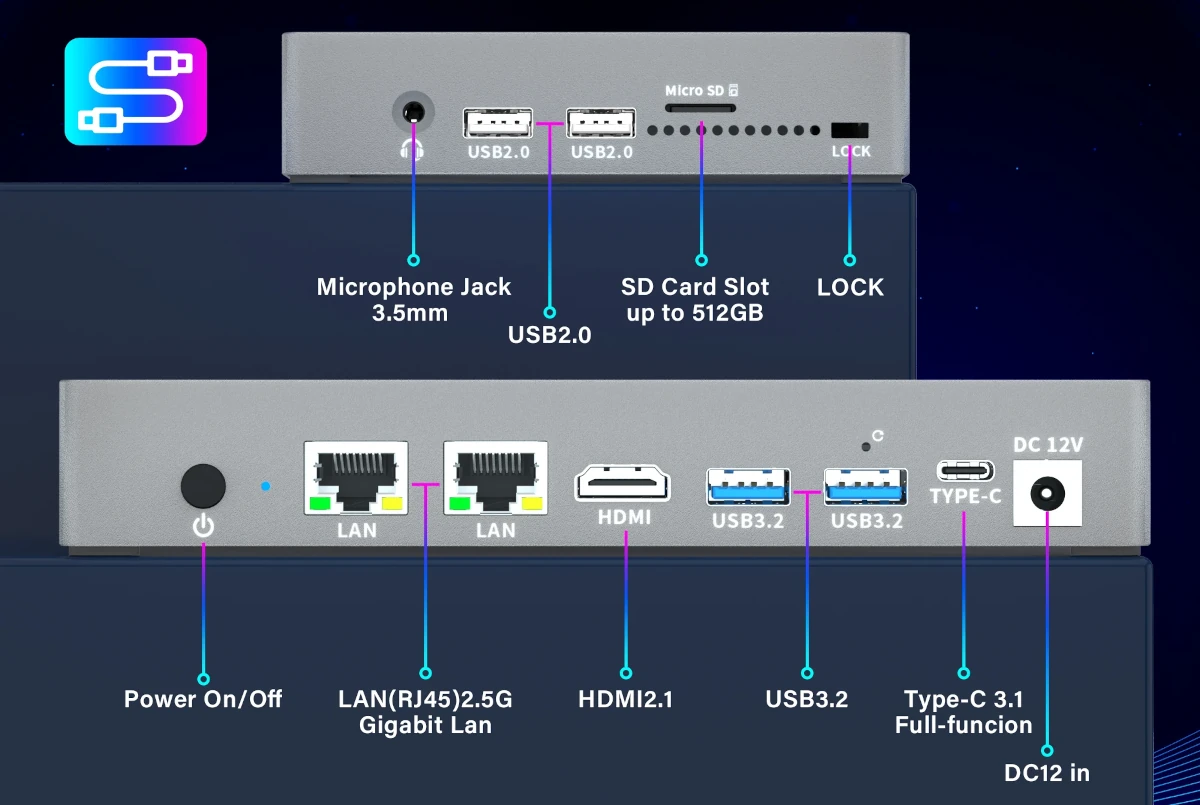

- Video Output
- 1x HDMI 2.1 port up to 4Kp60
- 1x DisplayPort via USB-C port up to 4Kp60
- Three independent displays are supported including the built-in 7-inch display
- Audio
- 3.5mm audio jack
- Built-in 8Ohm/1W speaker
- Digital audio output via HDMI port
- Networking
- 2.5GbE RJ45 port via Realtek RTL8125BG-CG controller
- Gigabit Ethernet RJ45 port
- WiFi 5 and Bluetooth 5.2 via RTL8821CE module
- Optional 4G LTE connectivity
- USB
- 4x USB 3.0 Type-A ports
- 1x USB 3.1 Type-C “full function” port
- 2x USB 2.0 Type-A ports
- Security – TPM 2.0
- Misc
- Power button
- Kensington lock slot
- BIOS with auto power on, Wake-on-LAN, and PXE support
- Battery – Optional 5,000mAh/7.6V battery good for over three hours
- Power Supply – 12V/3A via DC jack
- Dimensions – 173 x 116 x 26 mm
- Weight – 567 grams (with battery)
The mini PC ships with a 12V/3A power adapter and a user manual, and comes preloaded with Windows 11 Pro, but the company claims Ubuntu Linux is also supported.
It’s not the only Intel N100 mini PC with a built-in 7-inch touchscreen display as AndroidPC.es wrote about the SZBOX S7 and Liliputing noted the HIGOLE F9B Pro had almost the same design, but the SZBOX-S7 comes with a larger 7,200 mAh battery, an Intel AX201 WiFi 6 and Bluetooth 5.2 module, and only gigabit Ethernet, and
Three versions of the HIGOLE F9B (Pro) are available on Aliexpress
- HIGOLE F9B Pro with 5,000mAh battery, 7-inch display, 512GB eMMC flash – $291.74
- HIGOLE F9B 4G LTE with 5,000mAh battery, 7-inch display, 4G LTE mini PCIe module, 256GB eMMC flash – $312.27
- HIGOLE F9B “No Screen No Battery No 4G” with 256GB or 512GB eMMC flash – $217.40 to $246.34
The latter is quite similar to the MeLE Quieter4C ultrathin fanless Intel N100 mini PC, albeit with different port options. The SZBOX S7 model sells for $250 and up depending on storage capacity.
Note that there may be quality and reliability concerns with HIGOLE hardware. I reviewed several of their mini PCs in the past, and the original GOLE1 had a long list of CONS, and it died after the battery was fully discharged and could not be recharged. Then I had a reliability issue with another model when using an HDMI to VGA adapter that made the mini PC frequency reboot, and it died a few months after I sold it…
Jean-Luc started CNX Software in 2010 as a part-time endeavor, before quitting his job as a software engineering manager, and starting to write daily news, and reviews full time later in 2011.
Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress
Cute, but high price for an N100 box, suspicious reliability. Good to see Gemini Lake in the rear view mirror though.
Never understood the use of the display.
If you set it up right, I could see it being useful. Little displays for showing system usage stats are popping up in premium products. This is larger, with a touchscreen, and could be used like a Stream Deck, Echo Show, or any number of similar things. It has a speaker too.
One problem is that you need to place and orient it in a way that manages the cables but allows you to see/use the display.
The other problem is the price. It’s $100-150 more than cheaper N100 boxes to get the display. I don’t care about the battery either. You could use it without a UPS… if the battery doesn’t die like Jean’s.
