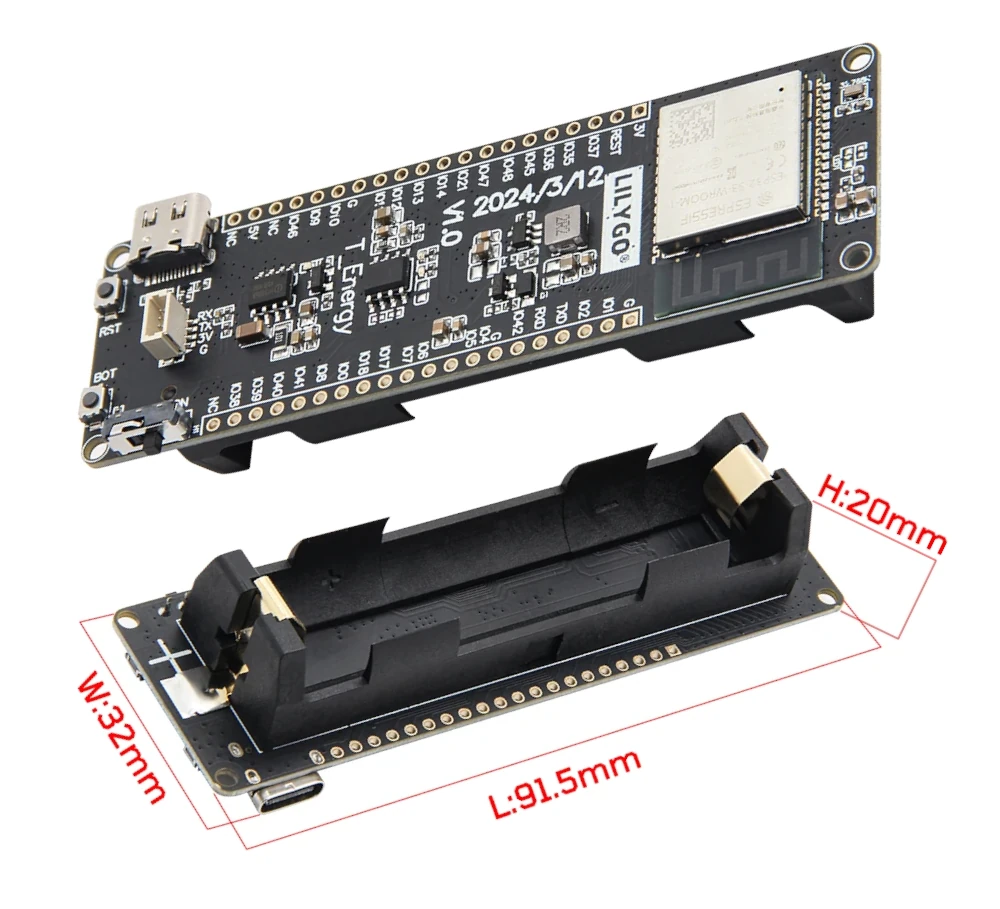

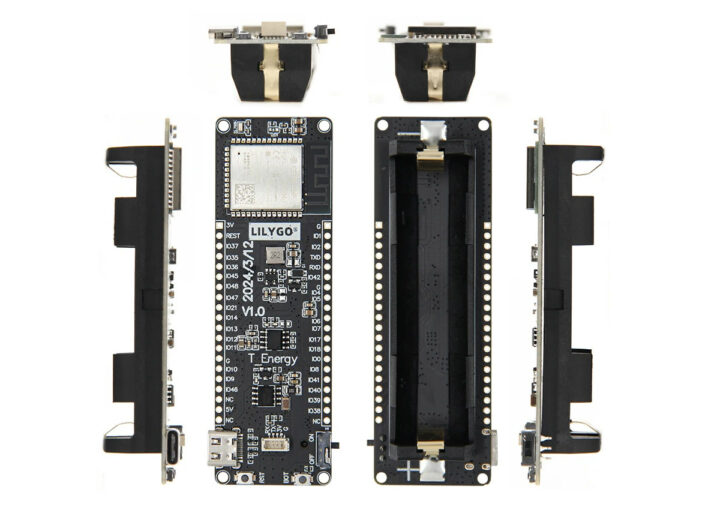

LILYGO T-Energy-S3 is an ESP32-S3 WiFi and Bluetooth IoT board with an 18650 battery holder, a USB-C port for charging and programming, and plenty of I/Os thanks to two 20-pin GPIO headers and a Qwiic connector.
We’ve already covered a large number of ESP32-S3 boards and products, including some designs for battery operation such as the Tokay Lite AI camera board, LILYGO’s T7-S3 board, and Smart Bee Designs’ Bee S3 board among others. But that usually means providing a 2-pin connector and charging circuitry to connect a LiPo battery, but the T-Energy-S3 ESP32-S3 board works directly with an off-the-shelf 18650 rechargeable Lithium battery.
T-Energy-S3 specifications:
- Wireless Module – ESP32-S3-WROOM-1-N16R8
- Espressif Systems ESP32-S3R8 – Dual-core Tensilica LX7 @ up to 240 MHz with vector instructions for AI acceleration, 512KB RAM, 8MB PSRAM
- Storage – 16 MB flash
- Wireless – 2.4 GHz WiFi 4 and Bluetooth
- PCB antenna
- USB – 1x USB Type-C for power, charging, and programming
- Expansion

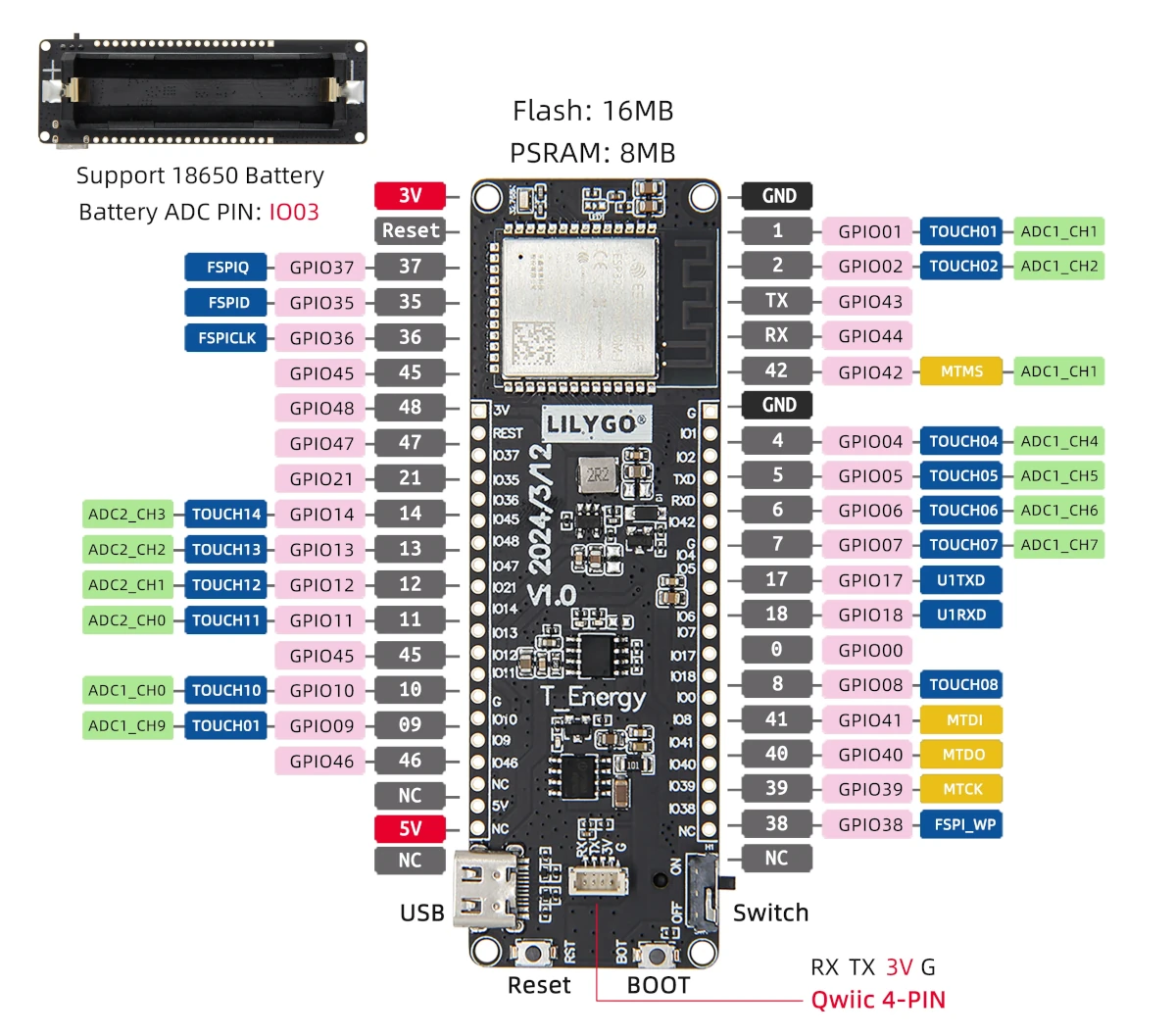

- 2x 20-pin headers with up to 32x GPIOs, SPI, 2x UART, 13x ADC, touch interface, Reset, 5V, 3V, GND
- 4-pin Qwiic connector for 3V UART
- Misc
- Reset and Boot buttons
- On/Off switch
- Power Supply
- 5V/500mA via USB-C port
- 18650 battery holder with ADC pin (IO03) for battery level
- HX6610S charging chip with power/battery reverse polarity protection using IP3005A
- Dimensions – 91.5 x 32 x 20 mm
LILYGO provides documentation for Arduino and PlatformIO including basic sketches for deep sleep and WiFi station mode, plus a test program for WiFi and GPIOs, as well as datasheets and a PDF schematic on GitHub. That means that as usual with LILYGO hardware you need to bring your own firmware, with the only exception being their Meshtastic-compatible boards and devices for messaging and GPS sharing.
The T-Energy-S3 is available now on Aliexpress for $16.98 including shipping, and should soon be offered on LILYGO’s Amazon store.
