Nano-ITX motherboard is powered by Intel Atom x7000RE Series “Amston Lake” SoC

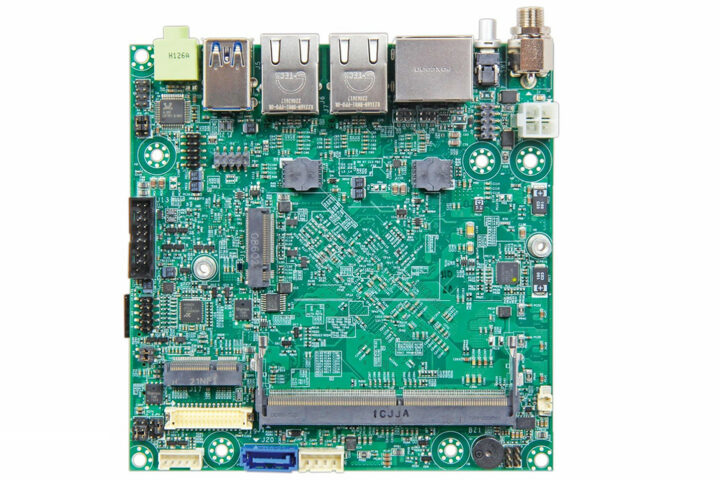

Portwell NANO-6064-ASL is an Intel Atom “Amston Lake” x7000RE-powered Nano-ITX motherboard. The board looks very similar to the Portwell Nano-6062 and features an operating temperature of -40°C to 85°C. The motherboard can support a max of 16GB DDR4 memory and features triple display output, dual 2.5Gbps Ethernet, USB, M.2, SATA, GPIO, and more, and takes power from a 12V external power input.

Previously, we’ve written about a range of Nano-ITX boards and SoMs with Amston Lake SoCs, including the ASRock SBC-262M-WT, conga-SA8 SMARC modules, ADLINK Atom x7000RE & x7000C COM Express and SMARC 2.1 modules and others. If you’re looking for similar options, feel free to check out those articles.

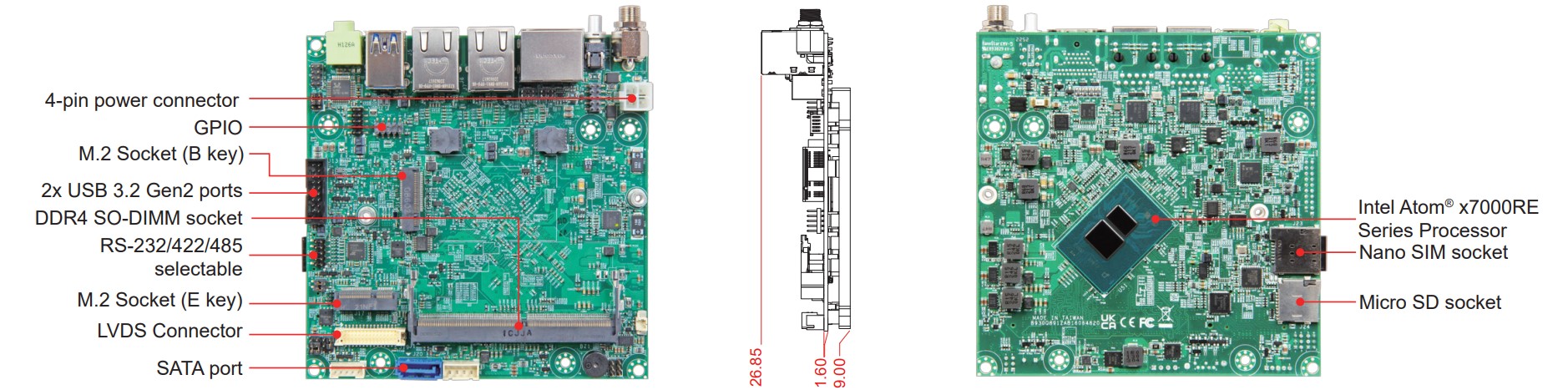

Portwell NANO-6064-ASL Specifications

• SoC (one or the other)
  • Amstom Lake
    • Intel Atom x7211RE dual-core processor with 6MB cache, 16EU Intel UHD graphics; 6W TDP
    • Intel Atom x7213RE dual-core processor with 6MB cache, 16EU Intel UHD graphics; 9W TDP
    • Intel Atom x7433RE quad-core processor with 6MB cache, 32EU Intel UHD graphics; 9W TDP
    • Intel Atom x7835RE octa-core processor with 6MB cache, 32EU Intel UHD graphics; 12W TDP
  • Alder Lake-N
    • Intel Atom x7211E, dual-core, 1.0GHz, 16EU Intel UHD Graphics, TCC, 6W, EUC
    • Intel Atom x7213E, dual-core, 1.7GHz, 16EU Intel UHD Graphics, TCC, 10W, EUC
    • Intel Atom x7425E quad-core processor up to 3.4 GHz with 6MB cache, 24EU Intel UHD Graphics; TDP: 12W
    • Intel Core i3-N305 octa-core processor up to 3.8 GHz with 6MB cache, 32EU Intel UHD Graphics; TDP: 15W
• System Memory
  • 1x non-ECC DDR4 3200MT/s SO-DIMM up to 16GB
  • 1x DPC, 1-channel
  • Support In-Band ECC
• Storage
  • 1x SATA III port (SATA 6Gb/s)
  • 1x M.2 2280 B Key (SATA III)
  • 1x MicroSD socket
• Display I/F

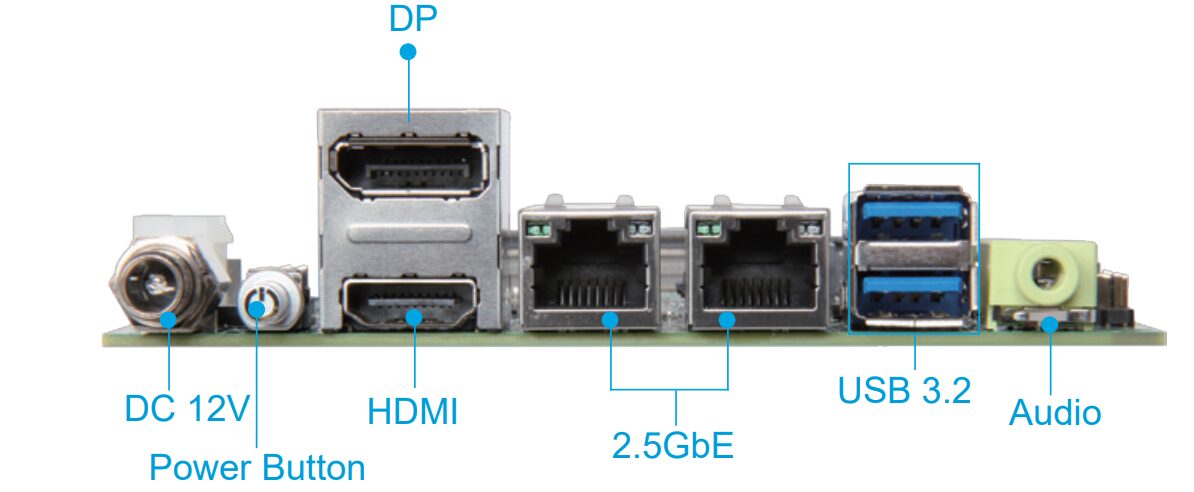

  • 1x HDMI port on rear I/O (HDMI 2.0b, 4096×2160 @ 60Hz)
  • 1x DP port on rear I/O (DP 1.4, 4096×2304 @ 60Hz)
  • 1x LVDS on board connector (Dual channel, 24bit, 1920×1200 @ 60Hz)
• Audio – Audio jack on rear I/O (Line-out) and onboard pin header (Line-in, Line-out, Mic-in)
• Network Connectivity – 2x 2.5GbE RJ45 port via Intel controllers
• USB – 2x USB 3.2 Gen2 on rear I/O, 2 x USB 3.2 Gen1 on board pin header (1x USB 3.2 Gen1 share with M.2 B key socket)
• Serial – 1x RS-232/422/485 port (selectable via BIOS)
• Expansion
  • 1x M.2 E-key 2230 socket
  • 1x M.2 B-Key 3052+2280 socket (shared with M.2 2280 SATAIII socket)
  • 8-bit configurable GPIOs controlled by embedded controller
• Misc – Watchdog timer, hardware monitoring (CPU & system temperature, voltages), on-board TPM 2.0 chip
• Power Supply – 12 input
• Dimensions – 120 x 120 mm (Nano-ITX form factor)
• Temperature Range – 0 to 60°C (Alder Lake-N SKU); -40 to 85°C (Amston Lake SKU)
• Humidity – 5 to 95% non-condensing
• MTBF – Over 100,000 hours at 55°C

At the time of writing the company did not provide any pricing information but they mentioned that this board is suitable for medical, retail, and digital signage applications. The company also mentions that the board will support various OS, including Windows 10 IoT Enterprise LTSC 2021 (64-bit), Yocto YP 4.0 LTS (64-bit), Ubuntu 22.04, Red Hat 8.8, and more.

More information about the board can be found on Portwell’s products page where you’ll also find a datasheet and a user manual with additional information.
