Cincoze DA-1200 fanless industrial embedded computer features Intel N97 CPU, operates in -40 to 70°C temperature range

Cincoze DA-1200 is a compact, fanless industrial embedded computer powered by an Intel Processor N97 Alder Lake-N CPU with up to 16GB DDR5, and equipped with M.2 Key-B sockets and 2.5-inch SATA slot for storage, dual 2.5GbE, optional WiFi and 5G connectivity, DisplayPort video output, and a CMI connector for expansion.

Designed for challenging industrial environments, the mini PC works across a wide temperature range (-40 to 70°C) and wide voltage range (9 to 48V) and complies with the MIL-STD-810H shock and vibration standard, as well as various EMC/EMI standards such as EN IEC 61000-6-2 and EN IEC 61000-6-4.

Cincoze DA-1200 specifications:

• SoC – Intel Processor N97 Alder Lake-N quad-core processor @ up to 3.6 GHz with 6MB cache, 24 EU Intel UHD graphics @ up to 1.20 GHz; TDP: 12W
• System Memory – Up to 16GB DDR5-4800 via SO-DIMM socket
• Storage

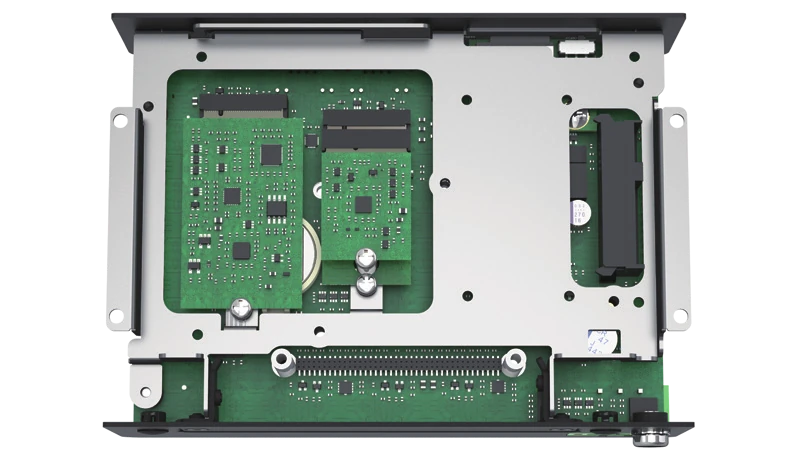

  • M.2 SSD shared by M.2 Key B Type 3052 socket, supports NVMe SSD (PCIe Gen 3×1) or SATA SSD (SATA 3.0)
  • M.2 SSD shared by M.2 Key B Type 2242 Socket, supports NVMe SSD (PCIe Gen 3×2)
  • 2.5-inch SATA HDD/SSD or 1x half-slim SSD (SATA 3.0)
• Video Output
  • DisplayPort connector up to 4096 x 2304 @ 60Hz (tested up to 3840 x 2160 @ 60Hz)
  • Optional extra display interface via CMI connector (See expansion) which can be DP, HDMI, DVI, or VGA
  • Support for up to 2x independent displays
• Audio – 3.5mm audio jack, digital audio output via HDMI

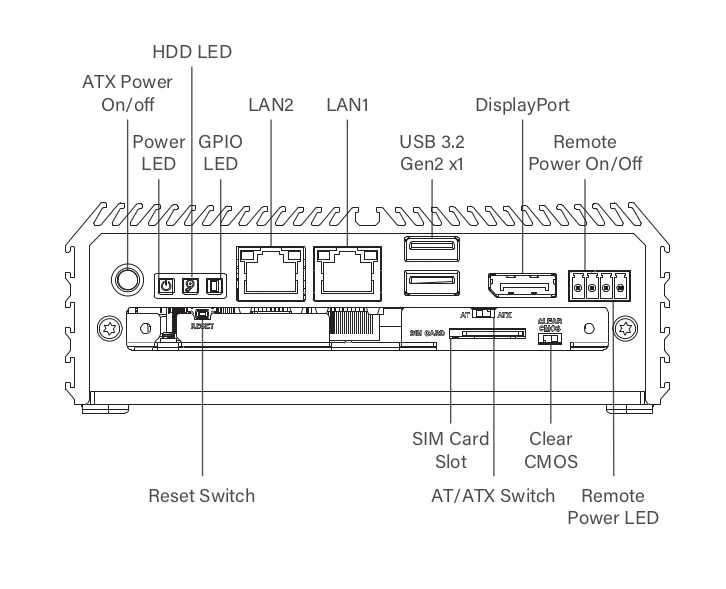

• Networking
  • 2x 2.5GbE RJ45 ports via Intel i225 controllers
  • Optional WiFi and Bluetooth module
  • Optional 4G LTE or 5G via M.2 module and front-accessible SIM socket
  • 2x antenna holes
• USB – 2x USB 3.2 Gen2 Type-A ports (10 Gbps)
• Expansion
  • M.2 Key B Type 3042/3052 socket for 5G/storage/add-on card expansion
  • M.2 Key B Type 2242 socket for storage/add-on card expansion

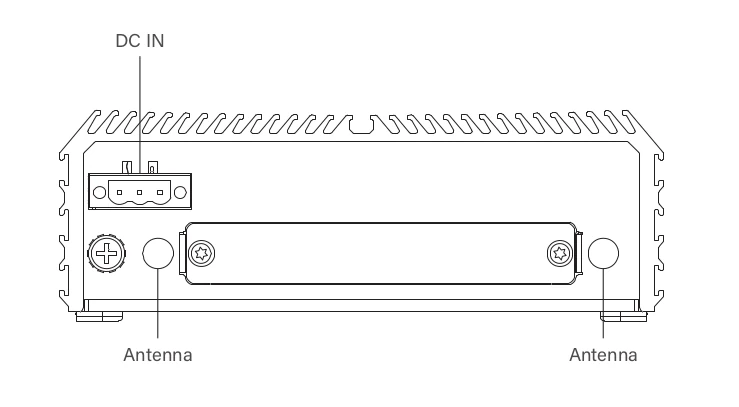

  • 1x CMI (Combined Multiple I/O) Interface for optional CMI modules from Cincoze
• Misc
  • Clear CMOS Switch
  • Reset Button
  • Instant Reboot – Support 0.2sec Instant Reboot Technology
  • Watchdog Timer
  • ATX Power On/Off Button
  • AT/ATX Mode Switch
  • Remote Power On/Off via 2-pin terminal block
  • Remote Power LED via 2-pin terminal block
  • SuperCap integrated for CMOS battery maintenance-free operation
  • AMI BIOS
• Power Supply – 9 – 48VDC via 3-pin terminal block
• Dimensions – 150 x 105 x 52.3 mm (Extruded aluminum chassis with heavy-duty metal)
• Weight – 810 grams
• Reliability & Protection
  • Reverse Power Input Protection
  • Over Voltage Protection (51 to 58V) – re-power on at the preset level to recover
  • Over Current Protection (15A)
• Temperature Range
  • Operating – -40°C to 70°C – PassMark BurnInTest: 100% CPU, 2D/3D Graphics without thermal throttling, with ambient air flow (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14_
  • Storage – -40°C to 70°C
• Relative Humidity –  95% RH @ 70°C (Non-condensing)
• Shock and vibration – MIL-STD-810H
• EMC
  • CE, UKCA, FCC, ICES-003 Class A
  • EN61000-6-4, EN61000-6-2 (24VDC Input Only)
• EMI
  • CISPR 32 Conducted & Radiated: Class A
  • EN/BS EN 55032 Conducted & Radiated: Class A
  • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
  • EN/BS EN61000-3-3 Voltage fluctuations & flicker
  • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
• EMS
  • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m
  • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV
  • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
  • EN/IEC 61000-4-6 CS: 10V (**Compliant with the standard when utilizing a shielded ethernet cable.)
  • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m
  • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz

The Cincoze DA-1200 supports wall, side, DIN Rail, or VESA mounting with the appropriate accessories. The company officially supports Windows 10 and can provide a Linux image/BSP upon request. Cincoze expects the fanless industrial embedded computer to be used for IoT gateway applications in smart manufacturing, smart logistics, and factory automation.

The DA-1200 appears to be available now, but Cincoze has not provided pricing for the embedded computer and accessories. More details may be found on the product page and in the press release.

Thanks to TLS for the tip.
