SolidRun’s first COM Express module is powered by the AMD Ryzen V3000 series APU

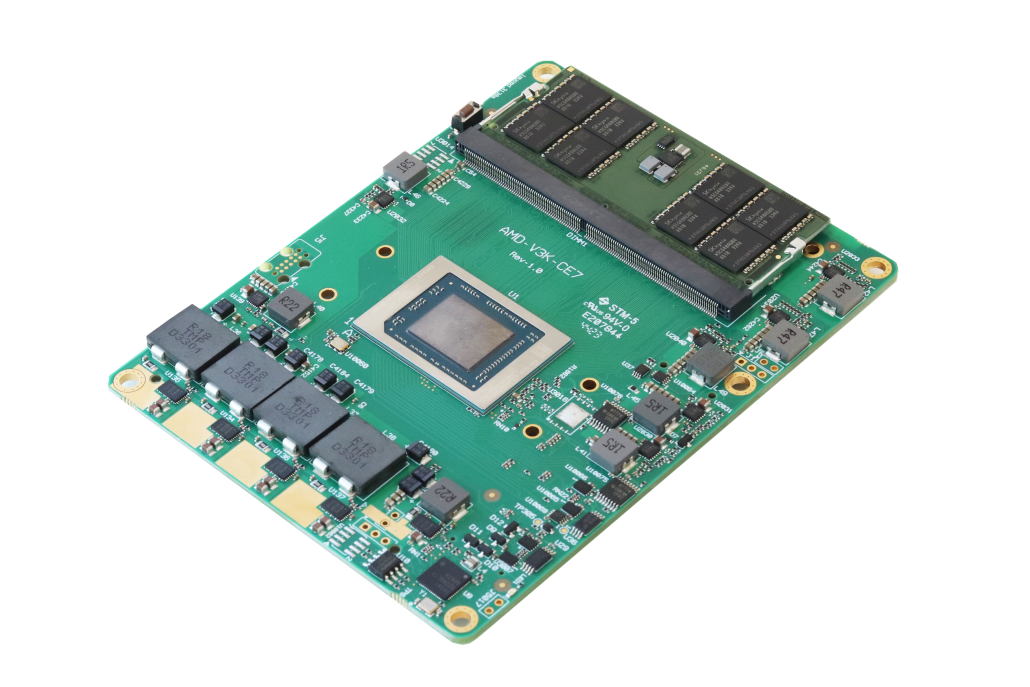

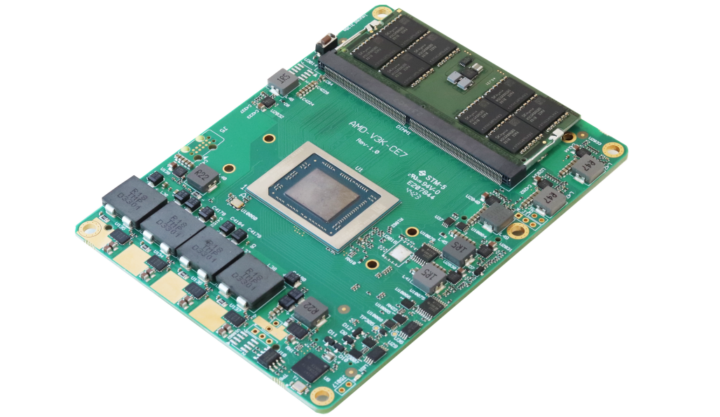

SolidRun has recently introduced the “Ryzen V3000 CX7” x86-based CoM Express 7 module powered by an AMD Ryzen V3000 Series V3C48 or V3C18I APU. This module is designed with AMD’s 6nm ‘Zen3’ architecture and can reach speeds up to 3.8GHz. It supports up to 96 GB of DDR5  memory, which can be either ECC or non-ECC, offering strong performance for different uses.

The module features 20 PCIe Gen4 lanes, dual 10Gbps Ethernet MAC, and two SATA Gen3 6Gbps interfaces (on V3C18I and V3C48 models) all these features make this module useful for high-speed networking, embedded computing, and storage applications.

Previously we have seen many similar COM Express & other modules based on the Ryzen V3000 Series of APUs including the ADLINK Express VR7 (COM Express) and another custom CPU module found in SolidRun Bedrock V3000 fanless industrial computer. Feel free to check those out if you are looking for similar modules.

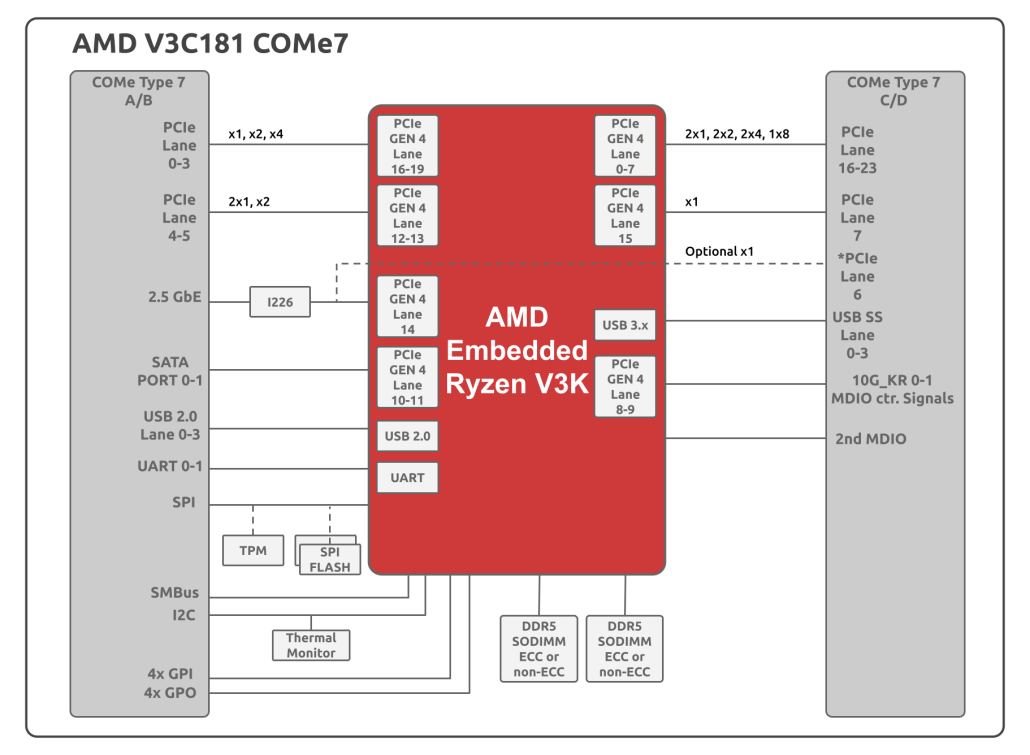

Ryzen V3000 CX7 COM Express module specification:

• CPU Options
  • AMD Ryzen V3C18I or AMD Ryzen V3C48, with optional headless R7000 7840HS and R8000 8845HS (with iGPU for computing only).
  • 8 Cores / 16 Threads.
  • TDP: 15W (V3C18I) / 45W (V3C48).
• CPU Speed
  • V3C18I – 1.9GHz base, 3.8GHz boost.
  • V3C48 – 3.3GHz base, 3.8GHz boost.
• Memory
  • Up to 96GB (2 x 48GB), ECC/Non-ECC DDR5 Memory Via two SODIMM sockets
  • Speed: Up to 4800 MT/s, 5600 MT/s for 7840HS and 8845HS.
• Networking
  • On-board 1x 2.5GbE
  • 2x 10GBASE-KR
• USB Ports:
  • 4x USB2.0
  • 4x USB 3.2
• PCI Express – 20 lanes (Gen 4).
• Other Interfaces:
  • 1x I2C.
  • 2x UART.
  • 2x SATA Gen3 6Gbps (V3C18I and V3C48 only).
• Security – Infineon TPM 2.0 (Optional, SPI based).
• Watchdog – Dedicated MCU.
• Operating System Compatibility – Windows or Linux.
• Power
  • Main Voltage: 9V-24V (Standard 12V).
  • I/O Voltage: 3.3V/1.8V.
• Physical Specs
  • Dimensions – 125 x 95 mm, COM Express Type 7 form factor
  • 2 x 220 Pin COM headers.
  • Total height (including 5mm mating height) – 11.2mm.
• Environmental Specs:
  • Temperature: Commercial (V3C48): 0°C to 70°C, Industrial (V3C18I): -40°C to 85°C.
  • Humidity (Non-condensing): 10% – 90%.

As of my understanding, the company is showcasing two generic options for the Ryzen V3000 CX7 module – the V3C18I is more energy-efficient with a 15W TDP, for lightweight systems. At the same time, the V3C48 offers higher performance at a 45W TDP, suitable for demanding tasks. There are also options for R7000 7840HS and R8000 8845HS processors that are headless (lacking integrated GPU) and intended for compute-only tasks. If the provided configurations don’t fit your requirements, SolidRun offers a Product Configuration Tool that enables customization to meet specific needs.

For this module, the company is providing documentation with detailed guides and tools for the AMD Ryzen V3000 CX7 series, including schematics, OS support, mechanical files, and compliance standards, ensuring thorough support and customization options.

In terms of software support, the company is providing Linux and Windows compatibility, alongside other operating systems, tailored specifically for the Bedrock V3000 platform. Additionally, there is also a guide on using a serial console, creating a bootable USB drive and disabling EEE (Energy-Efficient Ethernet) on Intel I226 NICs for the V3000 series.

At the time of writing, SolidRun hasn’t released the pricing details for this Ryzen V3000 CX7 COM Express module yet. But you can find more information about this board on the official announcement and visit the Ryzen V3000 CX7 product page.

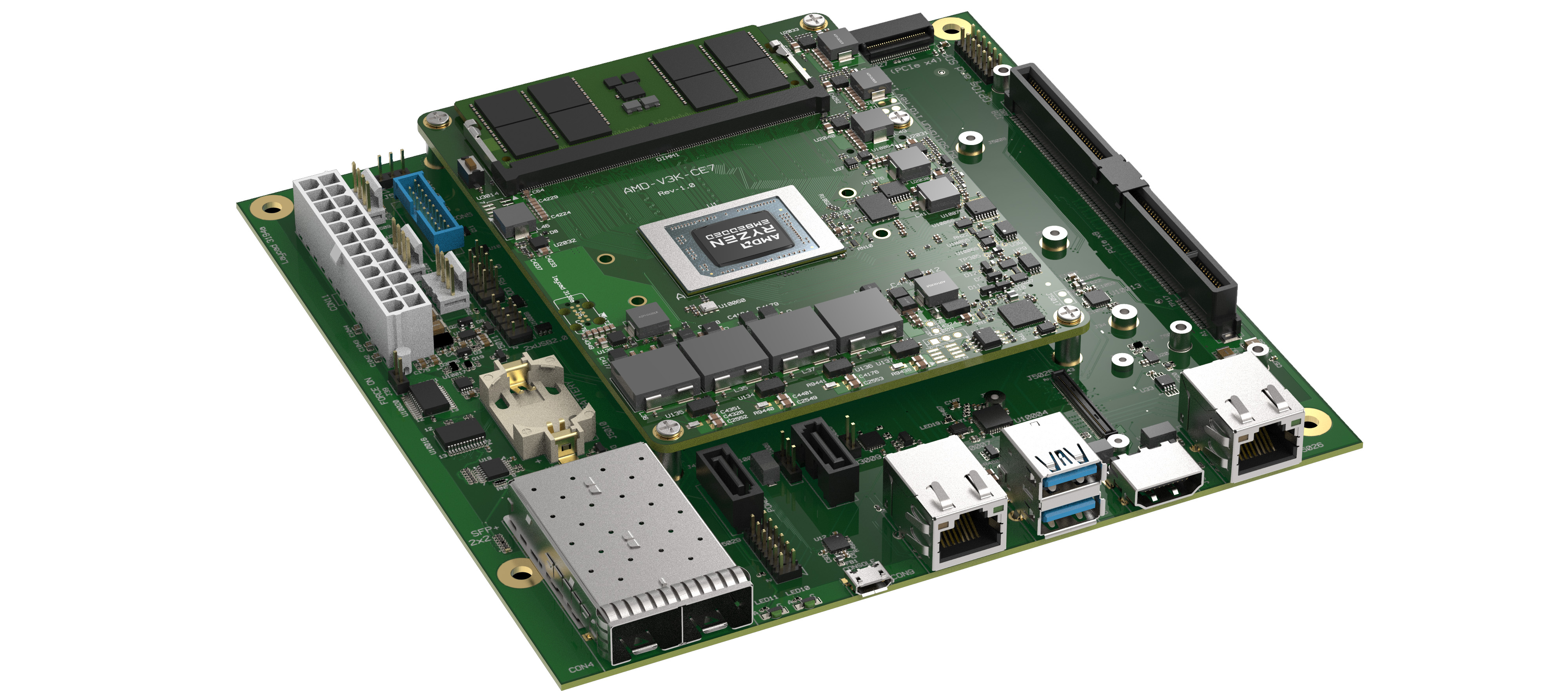

The company also showcases an evaluation board for this new module but there is not much information about this board other than some basic specs on the product page.
