COM Express development kit ships with Intel Core i3-13300HE or Core i5-13600HE Raptor Lake-P processor

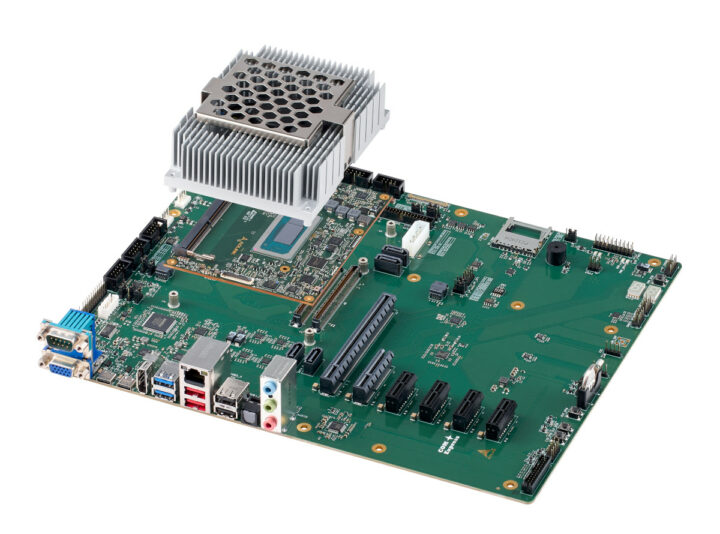

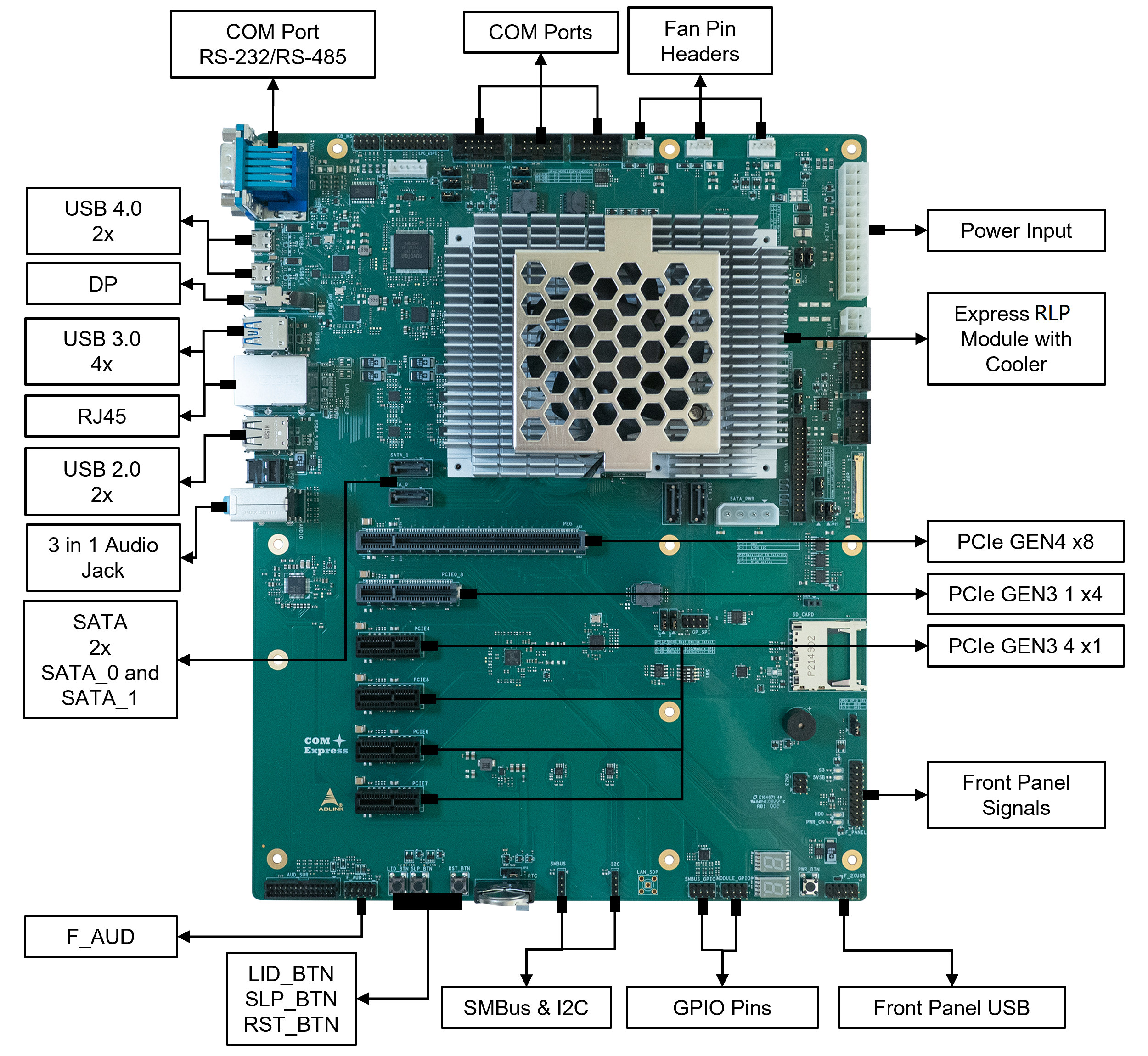

ADLINK has launched an “IoT prototyping kit” based on the company’s Express-RLP COM Express Type 6 module with either an Intel Core i3-13300HE or Core i5-13600HE Raptor Lake-P processor.

The module supports up to 64GB DDR5 and the ATX carrier board offers a wide range of interfaces such as 2.5GbE, two SATA ports, DisplayPort, LVDS (or EDP), and VGA video outputs, two USB4 ports, and more.

COM Express Type 6 Raptor Lake-P devkit specifications:

• System-on-Module – ADLINK Express-RLP COM Express Type 6 computer-on-module
  • Raptor Lake-P SoC
    • Intel Core i5-13600HE 4P+8E cores/16 threads processor @ up to 2.7 GHz with 18MB cache, Intel Iris Xe graphics; TDP: 45W (cTDP: 35W)
    • Intel Core i3-13300HE 4P+4E cores/12 threads processor @ up to 2.1 GHz with 12MB cache, Intel UHD graphics; TDP: 45W (cTDP: 35W)
  • System Memory – Up to 64GB (2x 32GB) DDR5 via SO-DIMM sockets
  • Dimensions – 125 x 95 mm (PICMG COM.0: Rev 3.1 Type 6 basic size)

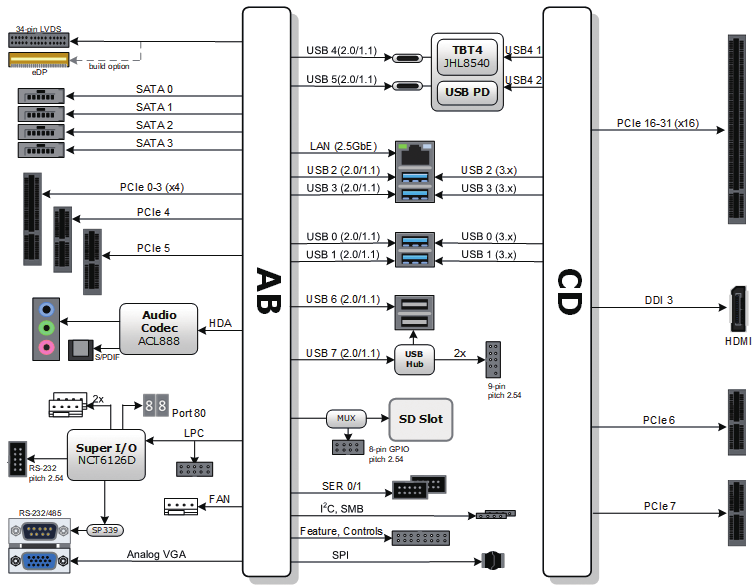

• Carrier board
  • Storage
    • 4x SATA connectors (but only 2x supported by the Express-RLP module)
    • SD card slot
  • Video Output
    • DisplayPort
    • 34-pin LVDS header (option for eDP)
    • VGA DB15 port
  • Audio
    • Realtek ALC262 audio codec
    • Mic/Line-in/Line-out
    • S/PDIF
  • Networking – 2.5GbE RJ45 connector
  •  USB
    • 2x USB4 Type-C ports
    • 4x USB 3.x ports, 2x USB 2.0 ports, and 2x USB 2.0 interfaces via 9-pin header for front panel
  • Serial
    • 1x DB-9 (from Super I/O) on Rear I/O
    • 3x 10-pin headers
  • Expansion
    • 1x PCI Express x16 slot
    • 1x PCI Express x4 slot
    • 4x PCI Express x1 slot
    • 8-pin GPIO header
    • Headers for SMBus, I2C, LPC
    • Header for front panel usage
  • Misc
    • Onboard diagnostics for BIOS POST code data on LPC bus
    • Onboard socket for secondary SPI flash for BIOS
    • 1x 4-pin FAN connector (from COMe module)
    • 2x 4-pin FAN connector (from Super I/O)
    • BTN (ON/OFF, Reset, SLEEP, LID), LED, Buzzer
  • Power Supply – 100-240V
  • Dimensions – 305 x 244 mm (ATX form factor)
• Temperature Range
  • Standard – 0°C to 60°C
  • Rugged – -40°C to 85°C (optional)
• Humidity
  • 5-90% RH operating, non-condensing
  • 5-95% RH storage (and operating with conformal coating)
• Shock and Vibration – IEC 60068-2-64 and IEC-60068-2-27, MIL-STD-202 F, Method 213B, Table 213-I, Condition A and Method 214A, Table 214-I, Condition D
• HALT – Thermal Stress, Vibration Stress, Thermal Shock and Combined Test

ADLINK supports Ubuntu 20.04 “for Intel IoT platforms” and Windows 10. More software and hardware details can be found on the wiki.

The company is currently selling the Core i3-13300HE COM Express Type 6 devkit for $495 and the Core i5-13600HE variant for $595 until November 6, after which the prices will be $755 and $865 respectively.
