Raspberry Pi CM4 compatible RISC-V SoM features StarFive JH7110 SoC

We’ve seen many Arm-based system-on-modules following the Raspberry Pi CM4 form factor, but we’ve now got a RISC-V one courtesy of the Milk-V Mars CM CPU module powered by a StarFive JH7110 quad-core RISC-V SoC.

The RISC-V module comes with up to 8GB RAM, a 16MB SPI flash, an optional eMMC flash, onboard GbE PHY, and a wireless module with WiFi 5 and Bluetooth 5.2 plus the two 100-pin board-to-board connectors offering (partial) compatibility with carrier boards made for the Raspberry Pi Compute Module 4.

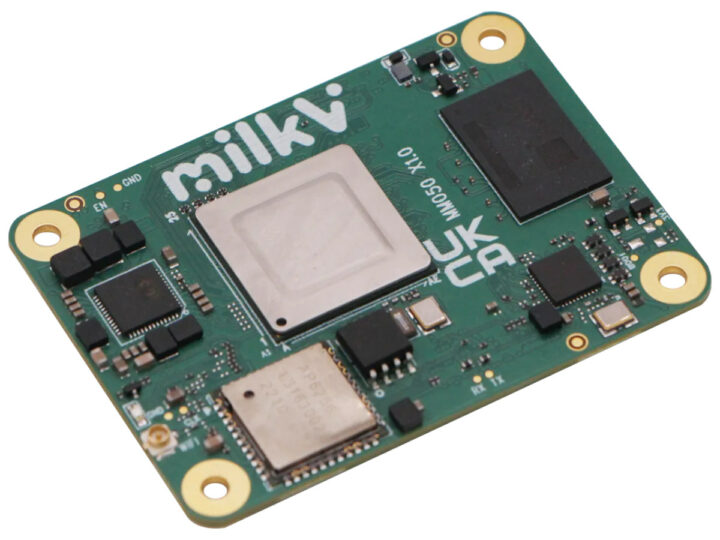

Raspberry Pi CM4 RISC-V CPU module

Specifications:

  • SoC – StarFive JH7110
    • CPU – Quad-core RISC-V processor (RV64GC) at up to 1.5GHz
    • GPU – Imagination BXE-4-32 GPU with support for OpenCL 1.2, OpenGL ES 3.2, Vulkan 1.2
    • VPU
      • H.264 & H.265 4Kp60 decoding
      • H.265 1080p30 encoding
      • JPEG encoder / decoder
  • System Memory – 2GB, 4GB, or 8GB LPDDR4
  • Storage
    • SDIO 2.0 (options to eMMC)
    • 16MB NOR flash
  • Networking
    • Gigabit Ethernet PHY (YT8513C)
    • WiFi 5 and Bluetooth 5.2 via AP6256 module
  • 2x 100-pin board-to-board connector
    • Video Output – HDMI 2.0, 4-lane MIPI DSI
    • Audio – 2-channel audio out (via GPIO), I2S
    • Camera I/F – MIPI CSI (2x 2-lane or 1x 4-lane)
    • USB – 1x USB 2.0
    • 1x PCIe 1-lane Host, Gen 2 (5Gbps)
    • Low-speed I/Os
      • Up to 28x GPIO, supporting 3.3V
      • 6x UART, 7x I2C, SPI
      • 8x PWM
  • Power Supply – 5V DC
  • Dimensions – 55 x 40mm
StarFive JH7110 Raspberry Pi CM4 system-on-module

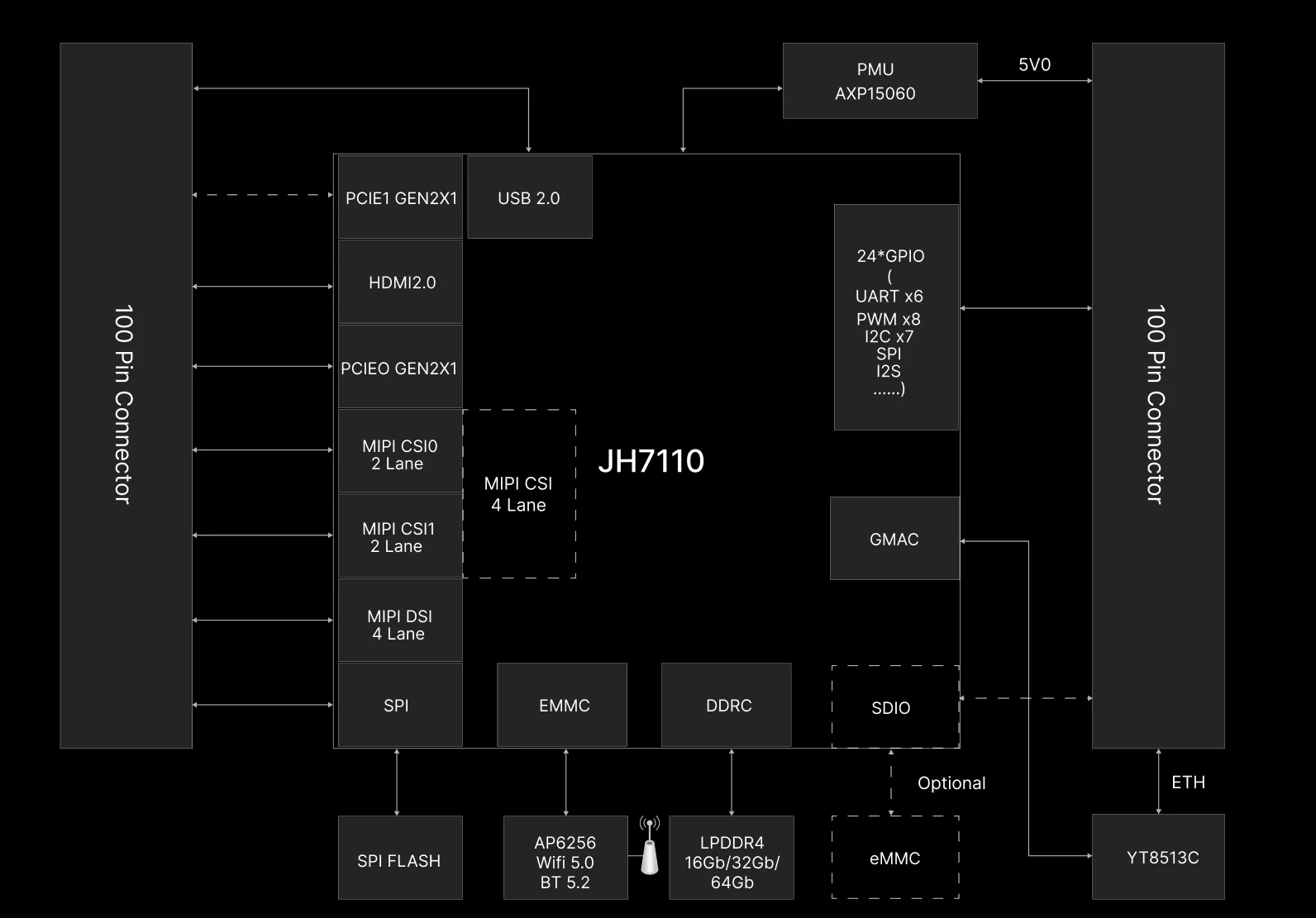

Block diagram

Ubuntu, Fedora, openSUSE, and Debian operating systems are listed for the Mars Compute Module (Mars CM). I could not find documentation for the Mars CM, but it should be mostly software-compatible with the earlier Mars SBC that roughly follows the Raspberry Pi 3 Model B form factor, and whose wiki has plenty of details.

Note the Raspberry Pi CM4-compatible system-on-modules on the market are obviously not software-compatible with the CM4, but mechanically and partially electrically compatible with it. For instance, all alternatives I’ve seen so far lack the second HDMI port. The RISC-V Raspberry Pi CM4 alternative has been tested successfully on the official CM4 IO board.

Mars Compute Module board to board connectors
Mars CM RISC-V SoM with the two 100-pin board-to-board connectors found in the Raspberry Pi CM4

While a lot of software development work has been done since I tested Debian 12 on StarFive VisionFive 2 SBC, also based on JH7110,  earlier this year, RISC-V software support for Linux is still in work in progress, so depending on the target application it may not be production ready.

The Mars CM can be pre-ordered on Arace for $34 with 2GB RAM and 8GB eMMC flash, $49 in 4GB/16GB configuration, and $79 for the 8GB/32GB model. Those are without a wireless module which adds $5. Deliveries are expected to start at the end of September.

Via Liliputing
