Servo and motor control with Raspberry Pi Pico, CircuitPython, and Wukong 2040 breakout board

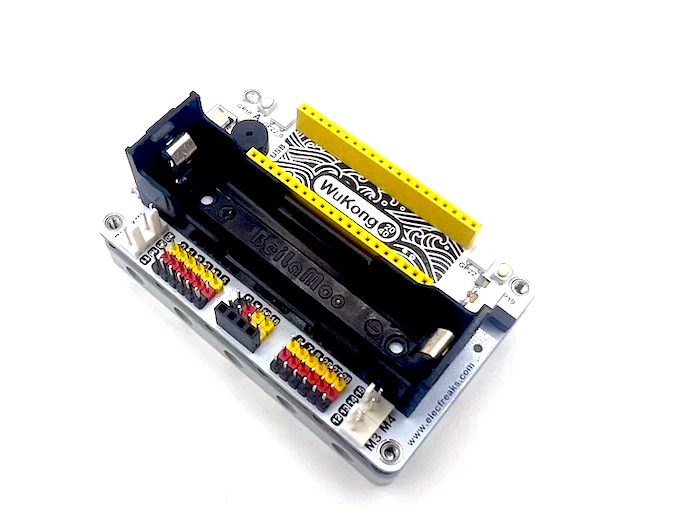

ELECFREAKS Wukong 2040 is a multifunctional breakout board designed for Raspberry Pi Pico. It is equipped with interfaces for four DC motors, up to twelve servos, a buzzer, A\B buttons, RGB “rainbow” lights, a Reset button, etc… The board can be powered by a single 18650 3.7V LiPo battery and integrates a power management IC that monitors the battery level and can also charge the battery via a USB charger. Battery life is typically 60 minutes per charge but can last over 120 minutes depending on the load.

Wukong 2040 key features and specifications

Description of the Wukong 2040 interfaces

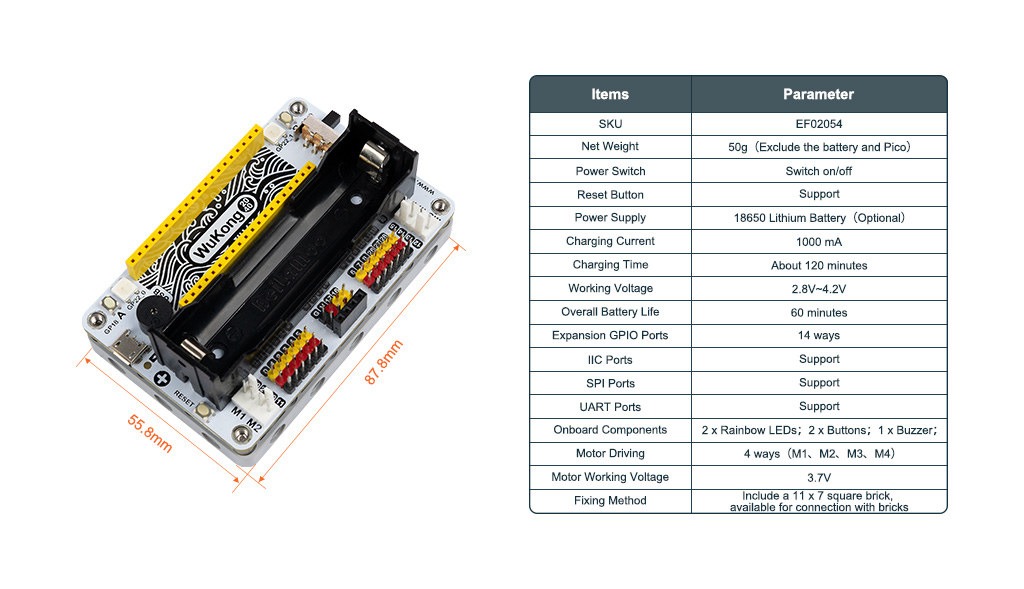

Specifications and dimensions of the Wukong 2040 Expansion Board for Raspberry Pi Pico

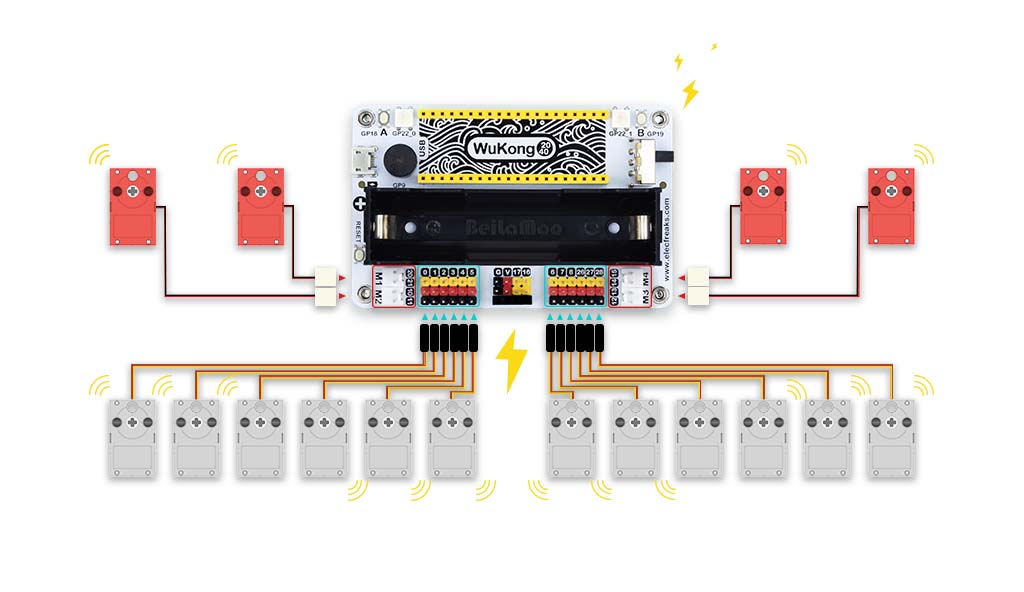

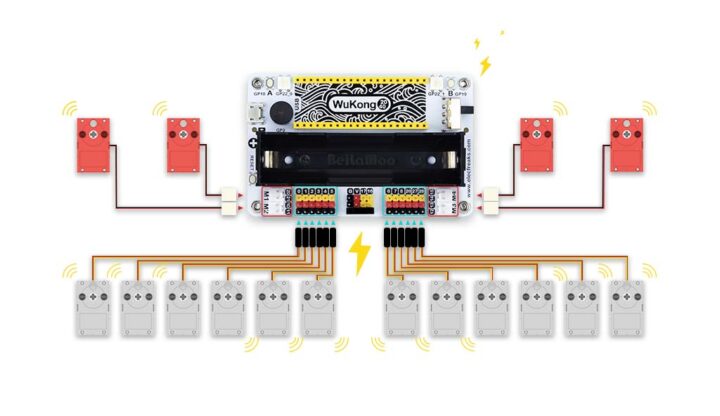

The Wukong 2040 breakout board for the Raspberry Pi Pico can control up to four DC motors and up to 12 servo motors as shown in the diagram below.

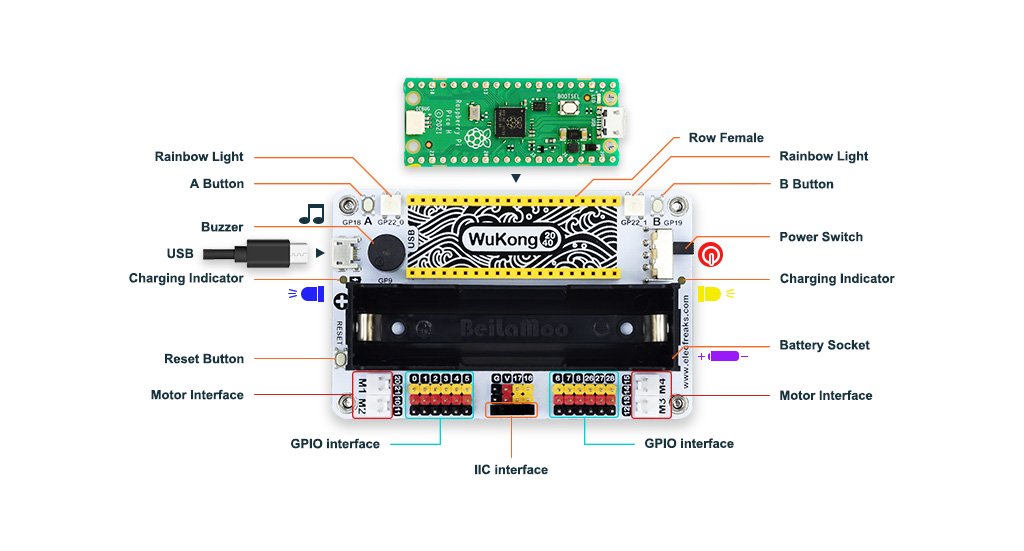

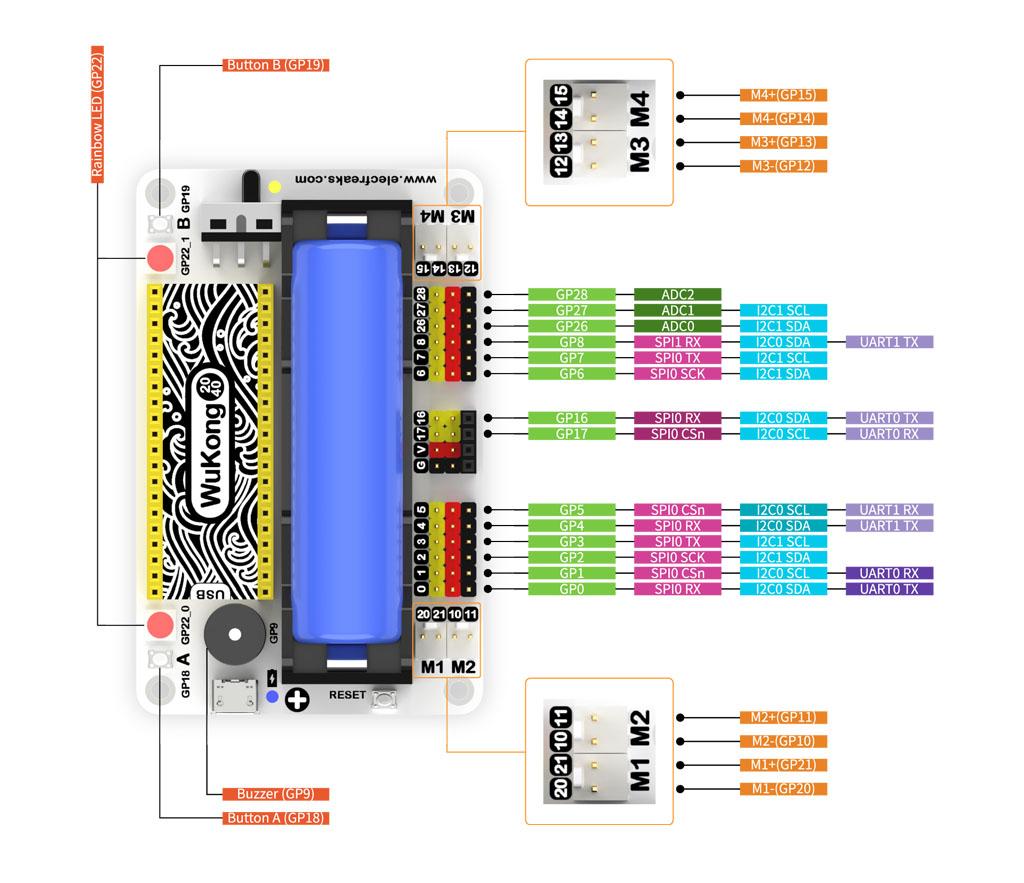

Pinout diagram of the Wukong 2040 board

Getting started with the Wukong 2040 and Raspberry Pi Pico using CircuitPython

Board and host preparation

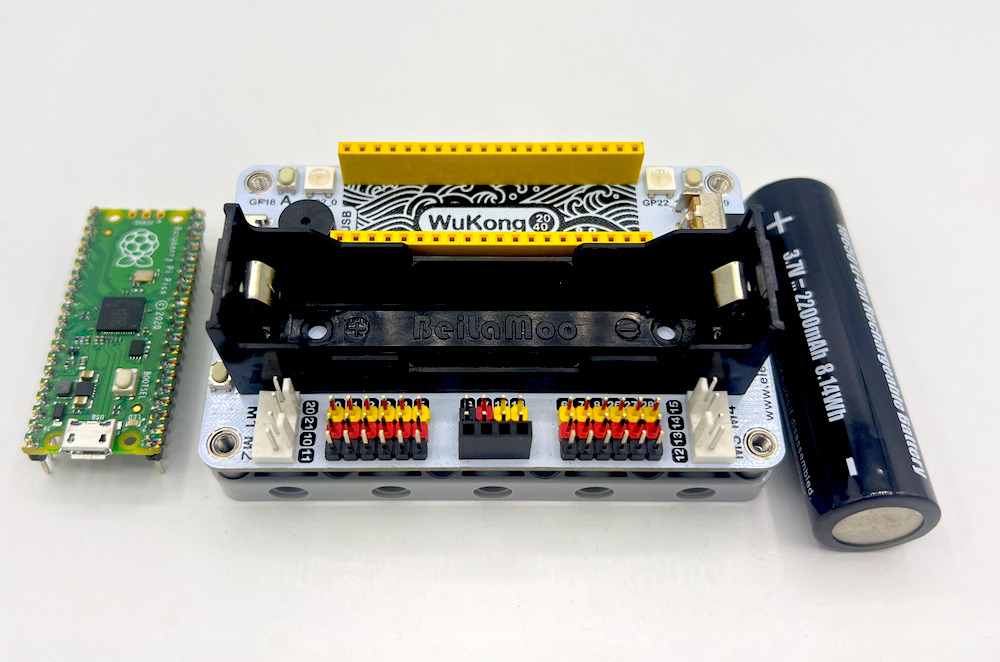

The Wukong 2040 breakout board can be used with the Raspberry Pi Pico, which we’ll use here, or the Raspberry Pi Pico W board, and uses one 18650 battery for power. We went with 2,200mAh battery for this tutorial/review.

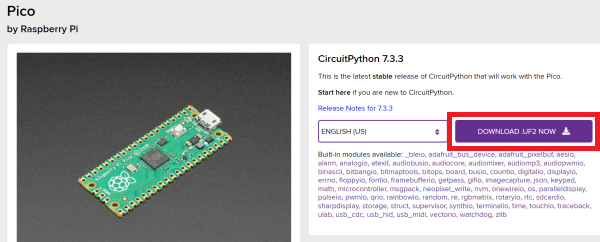

The Raspberry Pi Pico board supports C/C++, MicroPython, CircuitPython, and other programming languages. We’ll go with CircuitPython as it is an easy-to-use programming language and we can download the UF2 firmware from the official website.

Once we have downloaded the firmware, we can press and hold the BOOTSEL button to enter flashing mode.

Then we can connect the Raspberry Pi Pico to the computer using a USB cable and release the BOOSEL button on the Raspberry Pi Pico board. The board should show up as “RPI-RP2” drive.

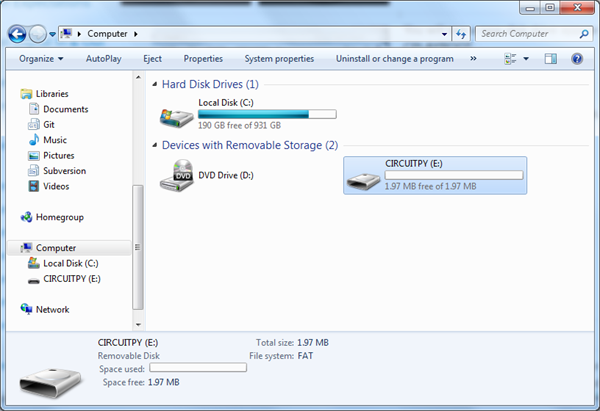

Now drag the previously downloaded UF2 file to the “RPI-RP2” drive and once the installation is complete, the “RPI-RP2” drive will disappear and the “CIRCUITPY” drive will appear in its place. That means we have successfully installed the CircuitPython firmware.

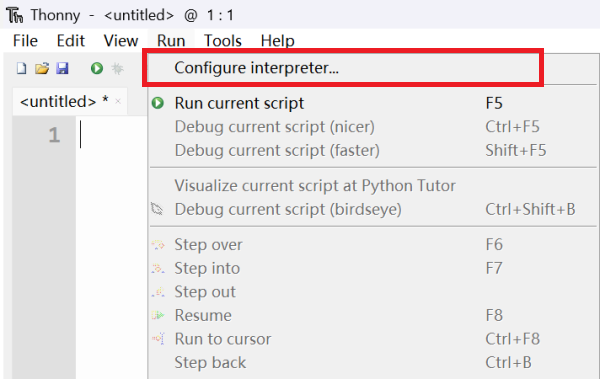

We’ll use the Thonny Python IDE for programming which can install on Windows, Linux, macOS, or even run from a Raspberry Pi SBC. Once the installation is complete, open Thonny, then click on the “Run” menu and select “Configure interperter”.

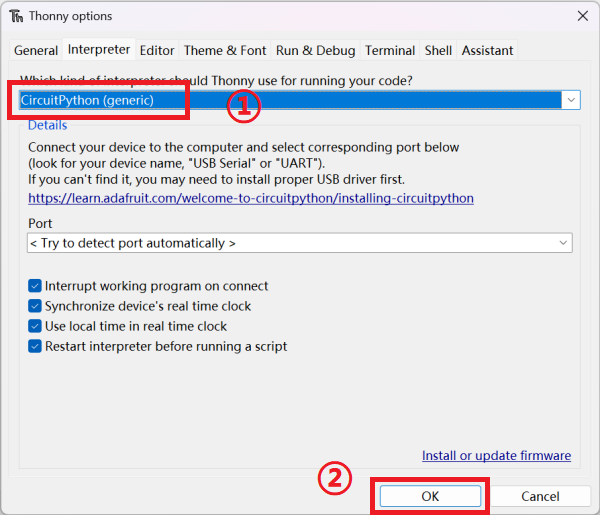

In the “Interperter” window:

Click to select “CircuitPython(generic)”
Click “OK” to complete the setup.

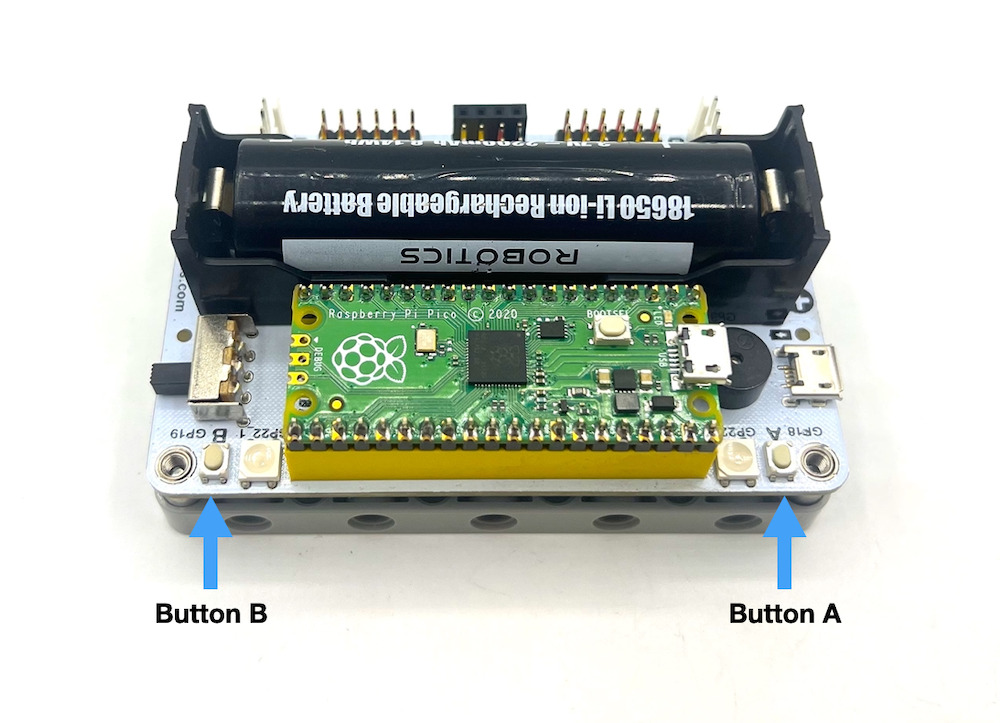

Using the A and B buttons on the Wukong 2040

Now that your board and host computer are ready we can start programming the board. We’ll start with the buttons. Push button A is connected to GPIO 18 of the Raspberry Pi Pico board and Push button B is connected to GPIO 19.

The code sample below if the A button is pressed, the LED on the Raspberry Pi Pico board will turn on, or if the B button is pressed, the LED on the Raspberry Pi Pico board will turn off.

import board
import digitalio

led_onboard = digitalio.DigitalInOut(board.LED)

led_onboard.direction = digitalio.Direction.OUTPUT

button_a = digitalio.DigitalInOut(board.GP18) # Create the wukong2040 button A object from the pins
button_b = digitalio.DigitalInOut(board.GP19)

button_a.direction = digitalio.Direction.INPUT # Set button_a to output mode
button_b.direction = digitalio.Direction.INPUT
button_a.pull = digitalio.Pull.UP # Set the pull-up
button_b.pull = digitalio.Pull.UP

while True:
if button_a.value == False: # The value of button_a.value is the status value of button A. Pressing is 0, releasing is 1.
led_onboard.value = True
elif button_b.value == False: # The value of button_b.value is the status value of button B. Pressing is 0, releasing is 1.
led_onboard.value = False

import board

import digitalio

led_onboard = digitalio.DigitalInOut(board.LED)

led_onboard.direction = digitalio.Direction.OUTPUT

button_a = digitalio.DigitalInOut(board.GP18) # Create the wukong2040 button A object from the pins

button_b = digitalio.DigitalInOut(board.GP19)

button_a.direction = digitalio.Direction.INPUT # Set button_a to output mode

button_b.direction = digitalio.Direction.INPUT

button_a.pull = digitalio.Pull.UP # Set the pull-up

button_b.pull = digitalio.Pull.UP

while True:

if button_a.value == False: # The value of button_a.value is the status value of button A. Pressing is 0, releasing is 1.

led_onboard.value = True

elif button_b.value == False: # The value of button_b.value is the status value of button B. Pressing is 0, releasing is 1.

led_onboard.value = False

Programming the buzzer

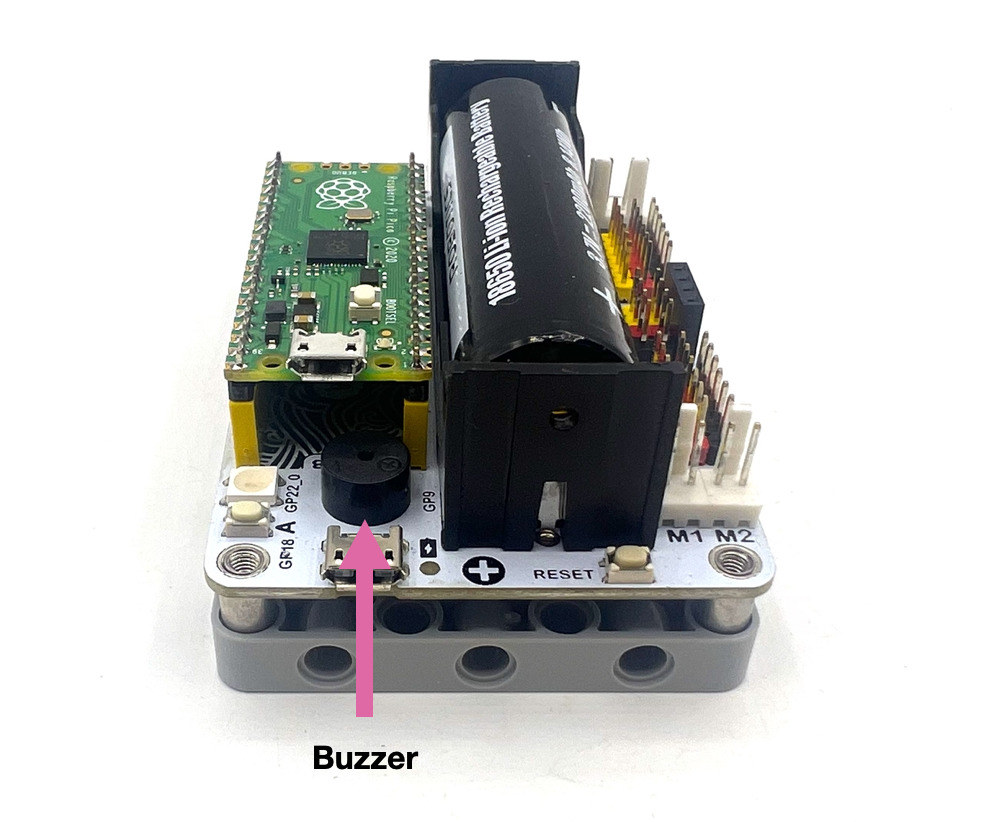

Let’s now play with the buzzer connected to GPIO 9

The code below generates a sine wave to play sound through the buzzer after button A is pressed:

import time
import array
import math
import board
import digitalio
from audiocore import RawSample

try:
    from audioio import AudioOut
except ImportError:
    try:
        from audiopwmio import PWMAudioOut as AudioOut
    except ImportError:
        pass

button = digitalio.DigitalInOut(board.GP18)
button.switch_to_input(pull=digitalio.Pull.UP)

tone_volume = 0.9
frequency = 440
length = 8000 // frequency
sine_wave = array.array("H", [0] * length)
for i in range(length):
    sine_wave[i] = int((1 + math.sin(math.pi * 2 * i / length)) * tone_volume * (2 ** 15 - 1))

audio = AudioOut(board.GP9)
sine_wave_sample = RawSample(sine_wave)

while True:
    if not button.value:
        audio.play(sine_wave_sample, loop=True)
        time.sleep(1)
        audio.stop()

import time

import array

import math

import board

import digitalio

from audiocore import RawSample

try:

from audioio import AudioOut

except ImportError:

try:

from audiopwmio import PWMAudioOut as AudioOut

except ImportError:

pass

button = digitalio.DigitalInOut(board.GP18)

button.switch_to_input(pull=digitalio.Pull.UP)

tone_volume = 0.9

frequency = 440

length = 8000 // frequency

sine_wave = array.array("H", [0] * length)

for i in range(length):

sine_wave[i] = int((1 + math.sin(math.pi * 2 * i / length)) * tone_volume * (2 ** 15 - 1))

audio = AudioOut(board.GP9)

sine_wave_sample = RawSample(sine_wave)

while True:

if not button.value:

audio.play(sine_wave_sample, loop=True)

time.sleep(1)

audio.stop()

Wukong 2040 RGB LED control

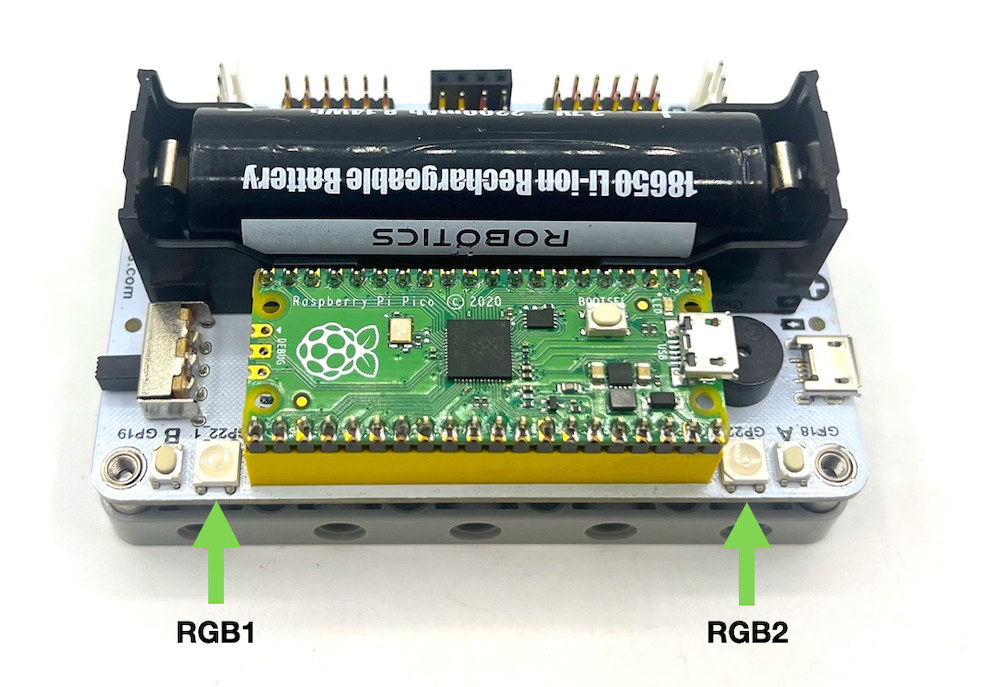

The Wukong 2040 board also comes with two RGB LED (WS2812B) connected to GPIO 22 of the Raspberry Pi Pico board.

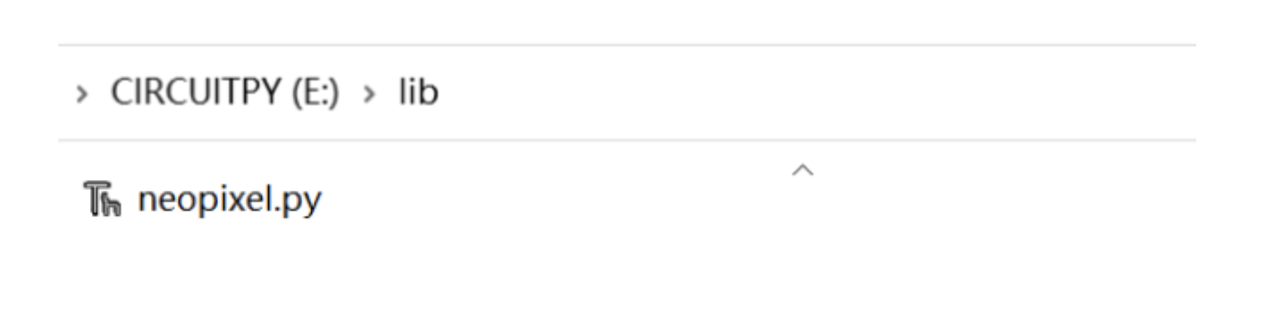

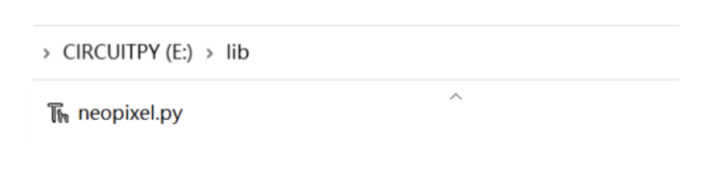

We’ll use Adafruit’s Neopixel library to program the RGB LED with CircuitPython. Once the neopixel.py library is downloaded, we can copy it to the “lib” directory of the “CIRCUITPY” drive.

The code below changes the color of the two RGB lights in an infinite loop.

import time
import board
from rainbowio import colorwheel
import neopixel

NUMPIXELS = 2
SPEED = 0.05
BRIGHTNESS = 0.2  # Values in (0.0, 1.0), where 0.0 is off and 1.0 is maximum
PIN = board.GP22  # Rainbow bead pins are GP22

pixels = neopixel.NeoPixel(PIN, NUMPIXELS, brightness=BRIGHTNESS, auto_write=False)

def rainbow_cycle(wait):
    for color in range(255):
        for pixel in range(len(pixels)):
            pixel_index = (pixel * 256 // len(pixels)) + color * 5
            pixels[pixel] = colorwheel(pixel_index & 255)
        pixels.show()
        time.sleep(wait)

while True:
    rainbow_cycle(SPEED)

import time

import board

from rainbowio import colorwheel

import neopixel

NUMPIXELS = 2

SPEED = 0.05

BRIGHTNESS = 0.2 # Values in (0.0, 1.0), where 0.0 is off and 1.0 is maximum

PIN = board.GP22 # Rainbow bead pins are GP22

pixels = neopixel.NeoPixel(PIN, NUMPIXELS, brightness=BRIGHTNESS, auto_write=False)

def rainbow_cycle(wait):

for color in range(255):

for pixel in range(len(pixels)):

pixel_index = (pixel * 256 // len(pixels)) + color * 5

pixels[pixel] = colorwheel(pixel_index & 255)

pixels.show()

time.sleep(wait)

while True:

rainbow_cycle(SPEED)

DC motor control test with Raspberry Pi Pico and Wukong 2040

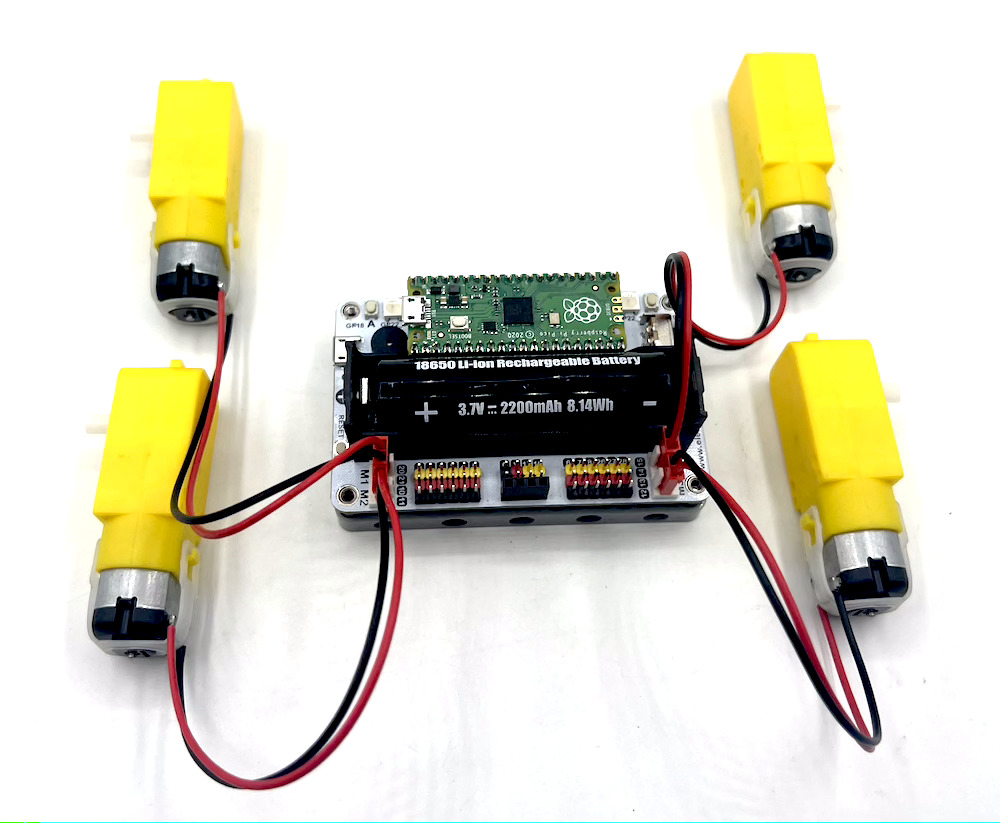

Let’s now connect four DC motors to the M1-4 ports of the Wukong 2040 which are themselves wired to the Raspberry Pi Pico as follows:

Port M1 is connected to GPIO20 and GPIO21
Port M2 is connected to GPIO10 and GPIO11
Port M3 is connected to GPIO12 and GPIO13
Port M4 is connected to GPIO14 and GPIO15

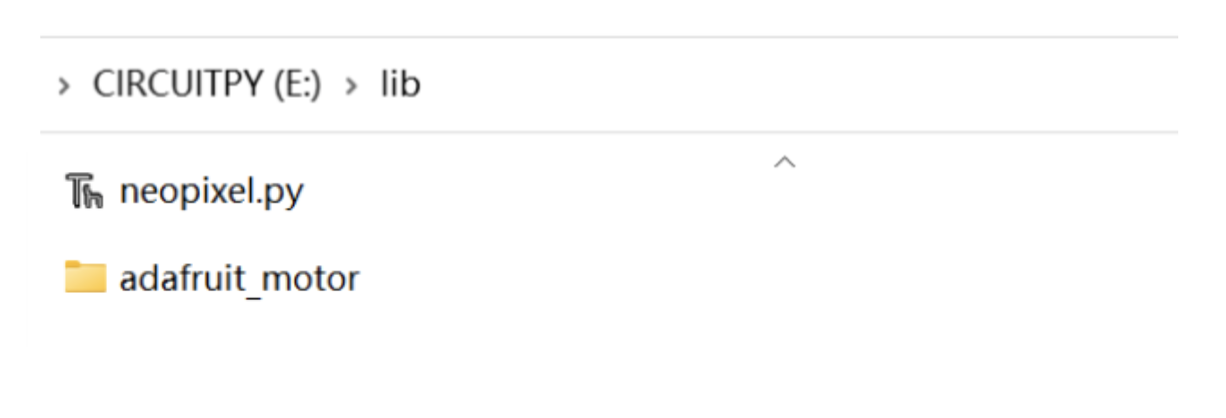

We’ll need another library to program the DC motor controller with CircuitPython: adafruit_motor. Copy the adafruit_motor folder to the “lib” directory of the “CIRCUITPY” drive.

The motor control code sample for Raspberry Pi Pico below sets the speed of the four DC motors by adjusting the frequency of the pulse signal (PWM). We can create basic movement functions of motor rotation, forward, backward, left turn, right turn, motor stop, etc… The test program instructs the motors to go forward for 5 seconds, then stop all motors for 1 second, then reverse for 5 seconds, then stop all motors for 1 second, and so on in an infinite loop.

import board
import digitalio
import time
import pwmio
from adafruit_motor import motor

motor1A = board.GP20
motor1B = board.GP21

motor2A = board.GP10
motor2B = board.GP11

motor3A = board.GP12
motor3B = board.GP13

motor4A = board.GP14
motor3B = board.GP15

pwm1A = pwmio.PWMOut(motor1A, frequency=50)
pwm1B = pwmio.PWMOut(motor1B, frequency=50)

pwm2A = pwmio.PWMOut(motor2A, frequency=50)
pwm2B = pwmio.PWMOut(motor2B, frequency=50)

pwm3A = pwmio.PWMOut(motor3A, frequency=50)
pwm3B = pwmio.PWMOut(motor3B, frequency=50)

pwm4A = pwmio.PWMOut(motor4A, frequency=50)
pwm4B = pwmio.PWMOut(motor4B, frequency=50)

motor1 = motor.DCMotor(pwm1A, pwm1B)
motor2 = motor.DCMotor(pwm2A, pwm2B)
motor3 = motor.DCMotor(pwm3A, pwm3B)
motor4 = motor.DCMotor(pwm4A, pwm4B)

def forward(speedM):
    motor1.throttle = speedM
    motor2.throttle = speedM
    motor3.throttle = speedM
    motor4.throttle = speedM

def backward(speedM):
    motor1.throttle = -speedM
    motor2.throttle = -speedM
    motor3.throttle = -speedM
    motor4.throttle = -speedM

def turnLeft(speedM): #max = 1
    motor1.throttle = -speedM
    motor2.throttle = -speedM
    motor3.throttle = speedM
    motor4.throttle = speedM

def turnRight(speedM): #max = 1
    motor1.throttle = speedM
    motor2.throttle = speedM
    motor3.throttle = -speedM
    motor4.throttle = -speedM

def stopall():
    motor1.throttle = 0
    motor2.throttle = 0
    motor3.throttle = 0
    motor4.throttle = 0

while True:
    forward(0.8)
    time.sleep(5)
    stopall()
    time.sleep(1)
    backward(0.8)
    time.sleep(5)
    stopall()
    time.sleep(1)

import board

import digitalio

import time

import pwmio

from adafruit_motor import motor

motor1A = board.GP20

motor1B = board.GP21

motor2A = board.GP10

motor2B = board.GP11

motor3A = board.GP12

motor3B = board.GP13

motor4A = board.GP14

motor3B = board.GP15

pwm1A = pwmio.PWMOut(motor1A, frequency=50)

pwm1B = pwmio.PWMOut(motor1B, frequency=50)

pwm2A = pwmio.PWMOut(motor2A, frequency=50)

pwm2B = pwmio.PWMOut(motor2B, frequency=50)

pwm3A = pwmio.PWMOut(motor3A, frequency=50)

pwm3B = pwmio.PWMOut(motor3B, frequency=50)

pwm4A = pwmio.PWMOut(motor4A, frequency=50)

pwm4B = pwmio.PWMOut(motor4B, frequency=50)

motor1 = motor.DCMotor(pwm1A, pwm1B)

motor2 = motor.DCMotor(pwm2A, pwm2B)

motor3 = motor.DCMotor(pwm3A, pwm3B)

motor4 = motor.DCMotor(pwm4A, pwm4B)

def forward(speedM):

motor1.throttle = speedM

motor2.throttle = speedM

motor3.throttle = speedM

motor4.throttle = speedM

def backward(speedM):

motor1.throttle = -speedM

motor2.throttle = -speedM

motor3.throttle = -speedM

motor4.throttle = -speedM

def turnLeft(speedM): #max = 1

motor1.throttle = -speedM

motor2.throttle = -speedM

motor3.throttle = speedM

motor4.throttle = speedM

def turnRight(speedM): #max = 1

motor1.throttle = speedM

motor2.throttle = speedM

motor3.throttle = -speedM

motor4.throttle = -speedM

def stopall():

motor1.throttle = 0

motor2.throttle = 0

motor3.throttle = 0

motor4.throttle = 0

while True:

forward(0.8)

time.sleep(5)

stopall()

time.sleep(1)

backward(0.8)

time.sleep(5)

stopall()

time.sleep(1)

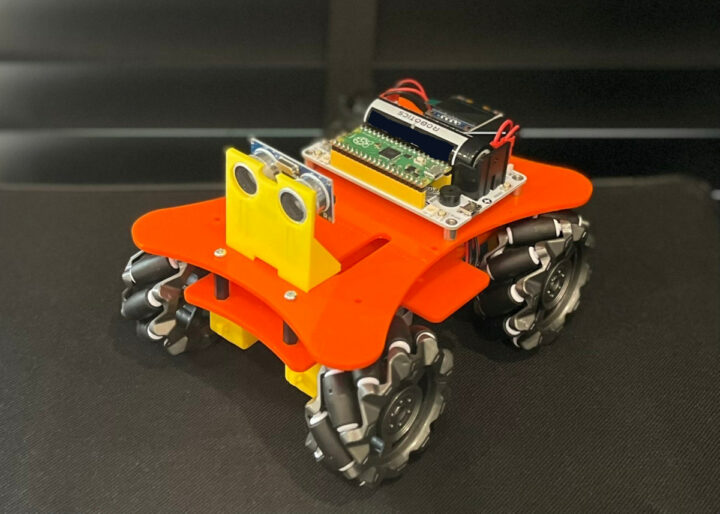

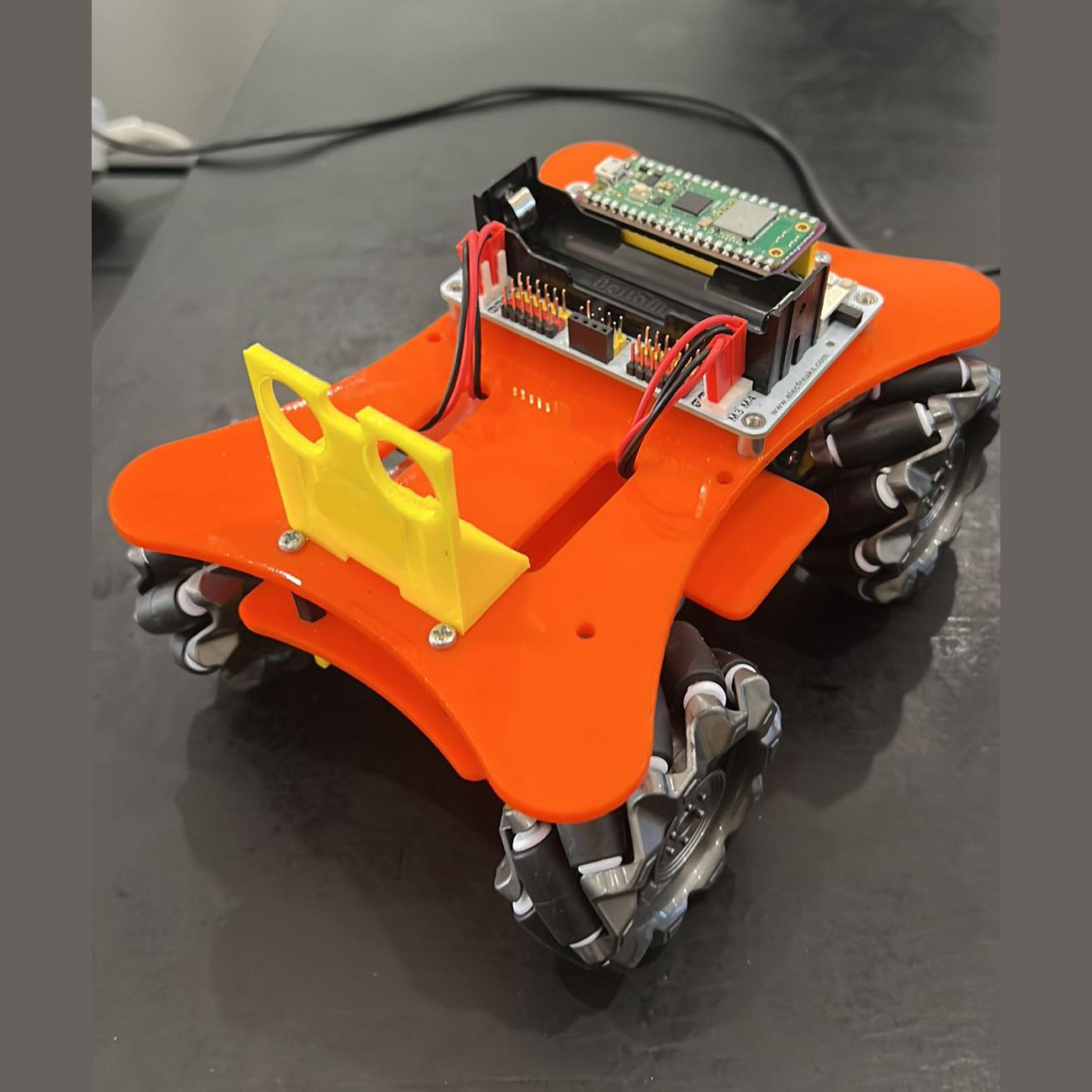

The board can also be installed into a proper robot with four wheels such as the mecanum wheel-powered robot shown below.

Raspberry Pi Pico Servo control with CircuitPython

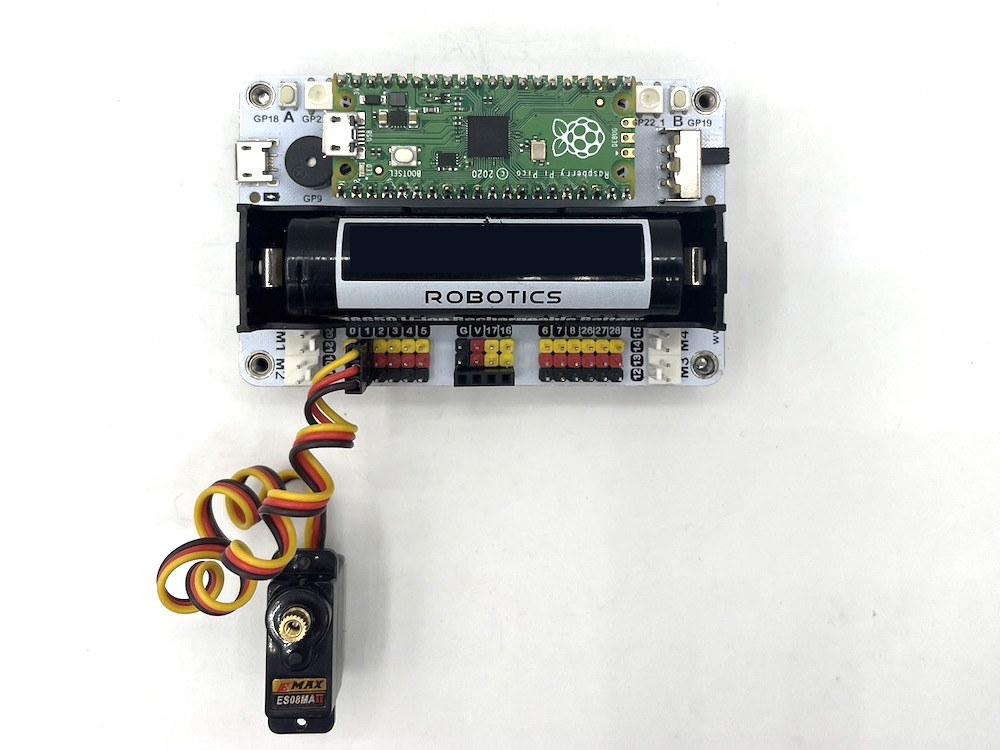

There are 12 input/output interfaces on the Wukong 2040 board (GPIO: 0, 1, 2, 3, 4, 5, 6, 7, 8, 26, 27, 28), which can be used to drive small servos. In this experiment, we will connect one servo motor to channel 0.

The test program below makes the servo motor rotates from 0 degrees to 180 degrees, and then from 180 degrees to 0, repeating the cycle in an infinite loop.

import time
import board
import pwmio
from adafruit_motor import servo

pwm = pwmio.PWMOut(board.GP0, duty_cycle=2 ** 15, frequency=50)

my_servo = servo.Servo(pwm)

while True:
    for angle in range(0, 180, 5):
        my_servo.angle = angle
        time.sleep(0.05)
    for angle in range(180, 0, -5):
        my_servo.angle = angle
        time.sleep(0.05)

import time

import board

import pwmio

from adafruit_motor import servo

pwm = pwmio.PWMOut(board.GP0, duty_cycle=2 ** 15, frequency=50)

my_servo = servo.Servo(pwm)

while True:

for angle in range(0, 180, 5):

my_servo.angle = angle

time.sleep(0.05)

for angle in range(180, 0, -5):

my_servo.angle = angle

time.sleep(0.05)

Driving an I2C OLED display with CircuitPython

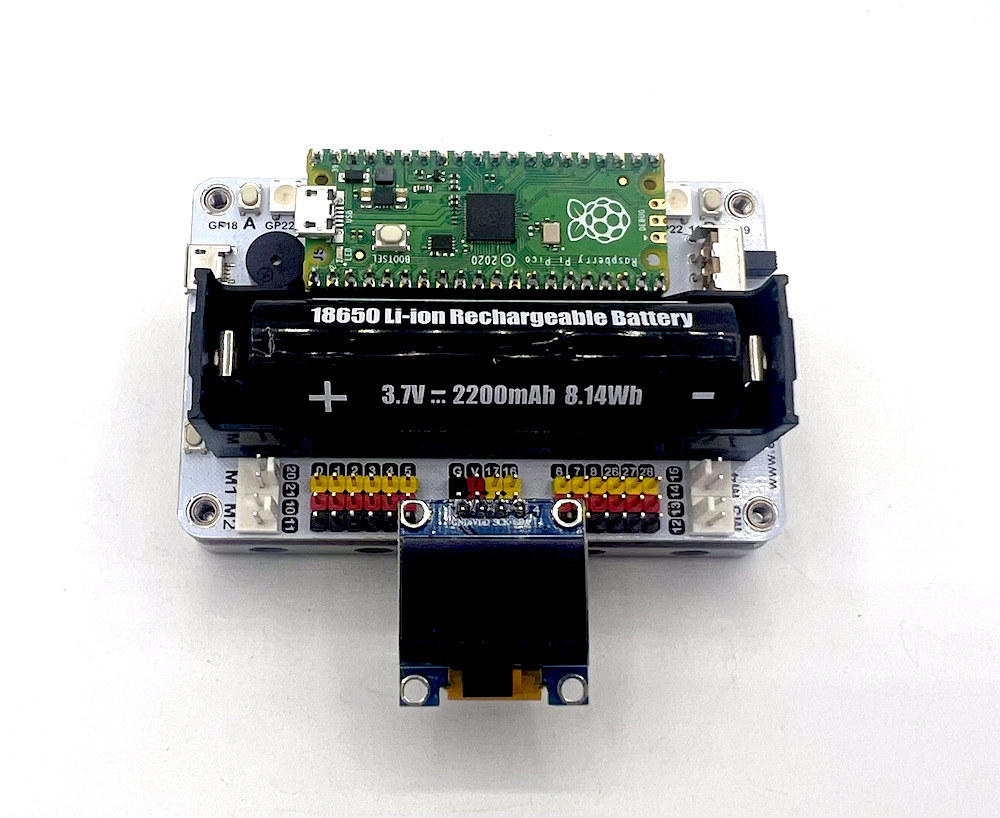

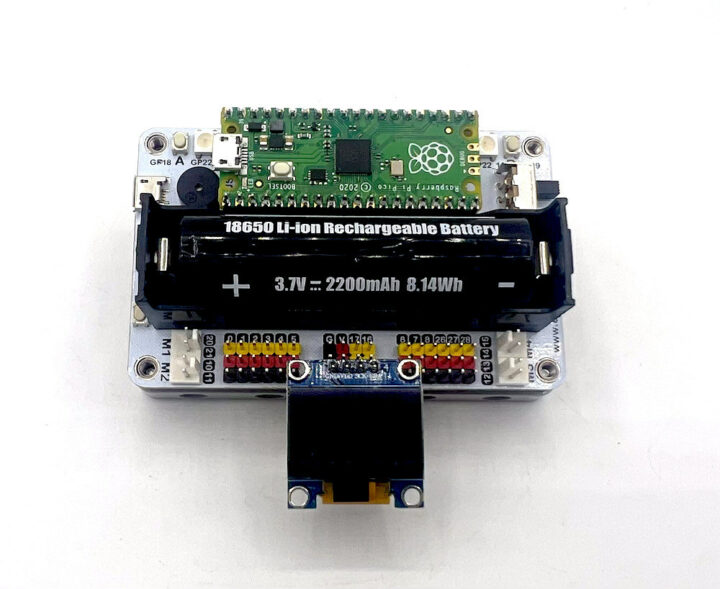

The Wukong 2040 breakout board for Raspberry Pi Pico has a built-in I2C interface (GP16, GP17) that can drive an OLED display, and we’ll use one with 128×64 resolution in this review.

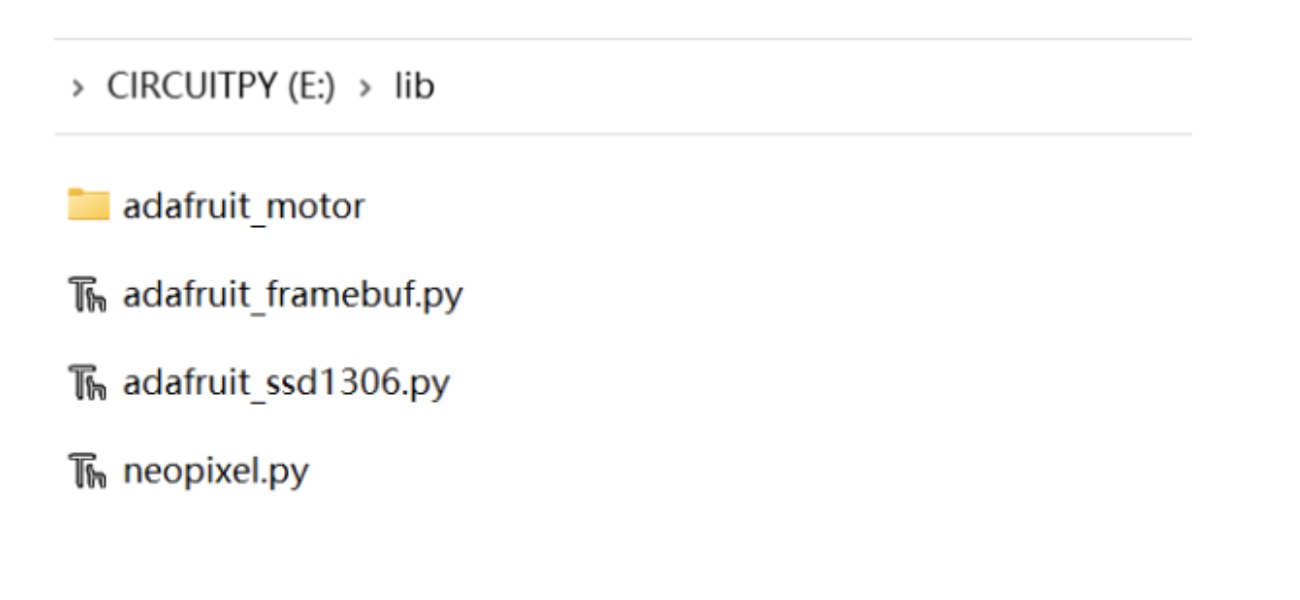

In order to program an OLED display with CircuitPython we’ll use two more libraries from Adafruit: adafruit_ssd1306.py and adafruit_framebuf.py. Copy both files to the “lib” directory in the “CIRCUITPY” drive.

The code sample below fills the screen, then draws a horizontal line, a vertical line, a circle, and a square to the OLED:

import board
import busio
import adafruit_ssd1306
import time

i2c = busio.I2C(board.GP17, board.GP16)
display = adafruit_ssd1306.SSD1306_I2C(128, 64, i2c, addr=0x3C)
bgColor=0

display.fill(bgColor)
for i in range(0,display.height,4):
    for j in range(0,display.width,4):
        display.pixel(j, i, not bgColor)
    display.show()

display.fill(bgColor)
for i in range(0,display.height,4):
    display.hline(0, i,display.width, not bgColor)
    display.show()

display.fill(bgColor)
for i in range(0,display.width,8):
    display.vline(i, 0,display.height, not bgColor)
    display.show()

display.fill(bgColor)
for i in range(0,display.height,4):
    display.line(0, 0, display.width, i, not bgColor)
    display.line(display.width, display.height, 0, display.height-i, not bgColor)
    display.show()

display.fill(bgColor)
for i in range(0,display.width//2,4):
    display.circle(display.width//2, display.height//2, i, not bgColor)
    display.show()

display.fill(bgColor)
for i in range(0,display.height,16):
    for j in range(0,display.width,16):
        display.rect(j, i, 12, 12, not bgColor)
        display.show()

for i in range(0,display.height,16):
    for j in range(0,display.width,16):
        display.fill_rect(j+2, i+2, 8, 8, not bgColor)
        display.show()

display.fill(bgColor)

import board

import busio

import adafruit_ssd1306

import time

i2c = busio.I2C(board.GP17, board.GP16)

display = adafruit_ssd1306.SSD1306_I2C(128, 64, i2c, addr=0x3C)

bgColor=0

display.fill(bgColor)

for i in range(0,display.height,4):

for j in range(0,display.width,4):

display.pixel(j, i, not bgColor)

display.show()

display.fill(bgColor)

for i in range(0,display.height,4):

display.hline(0, i,display.width, not bgColor)

display.show()

display.fill(bgColor)

for i in range(0,display.width,8):

display.vline(i, 0,display.height, not bgColor)

display.show()

display.fill(bgColor)

for i in range(0,display.height,4):

display.line(0, 0, display.width, i, not bgColor)

display.line(display.width, display.height, 0, display.height-i, not bgColor)

display.show()

display.fill(bgColor)

for i in range(0,display.width//2,4):

display.circle(display.width//2, display.height//2, i, not bgColor)

display.show()

display.fill(bgColor)

for i in range(0,display.height,16):

for j in range(0,display.width,16):

display.rect(j, i, 12, 12, not bgColor)

display.show()

for i in range(0,display.height,16):

for j in range(0,display.width,16):

display.fill_rect(j+2, i+2, 8, 8, not bgColor)

display.show()

display.fill(bgColor)

Conclusion

The Wukong 2040 breakout board for Raspberry Pi Pico can be used to extend the capabilities of the Pico board with the DC motor and servo control connection especially interesting to build robots such as a mecanum wheel-powered robot. While the Wukong 2040 Breakout Board for Raspberry Pi Pico can be programmed with many languages, CircuitPython based on the Python language is easy to use. The included 18650 battery holder also makes it convenient for powering your project, and the ability to charge the battery directly from the Wukong 2040 is also a plus.

I would like to thank ELECFREAKS for sending us the Wukong 2040 breakout board for Raspberry Pi Pico. It can be purchased for $9.90 on ELECFREAKS store.

This tutorial is a translation of the original review on CNX Software Thailand.

Jean-Luc Aufranc (CNXSoft)

Jean-Luc started CNX Software in 2010 as a part-time endeavor, before quitting his job as a software engineering manager, and starting to write daily news, and reviews full time later in 2011.

5 Replies to “Servo and motor control with Raspberry Pi Pico, CircuitPython, and Wukong 2040 breakout board”

jamez says:

March 29, 2023 at 03:12

Why not just stick the 2040 on board? and get rid of those huge connectors…

Konstantin Kim says:

March 29, 2023 at 18:46

Where is link to “wheel-powered robot” ?

1. Jean-Luc Aufranc (CNXSoft) says:

  March 29, 2023 at 21:22

  It’s a custom-built robot. The reviewer made it to teach his students in his school.

Guy fauquembergue says:

May 23, 2023 at 16:02

I am trying to use the wukong RP2040 with a Pico W and a circuitpython web server but it seems weird to setup the webserver with circuitpython there is examples in microptyhon. Nothing in circuit python. I would appreciate to find an example on how to drive motors with micropython. Best regards.

Guy Fauquembergue says:

October 13, 2023 at 14:18

Hi I have downloaded the latest circuitpython uf2 8.xx and cannot make a web server to drive the wukong product ipaddress and wifi modules are missing in the core modules.
Could you help thanks in advance
