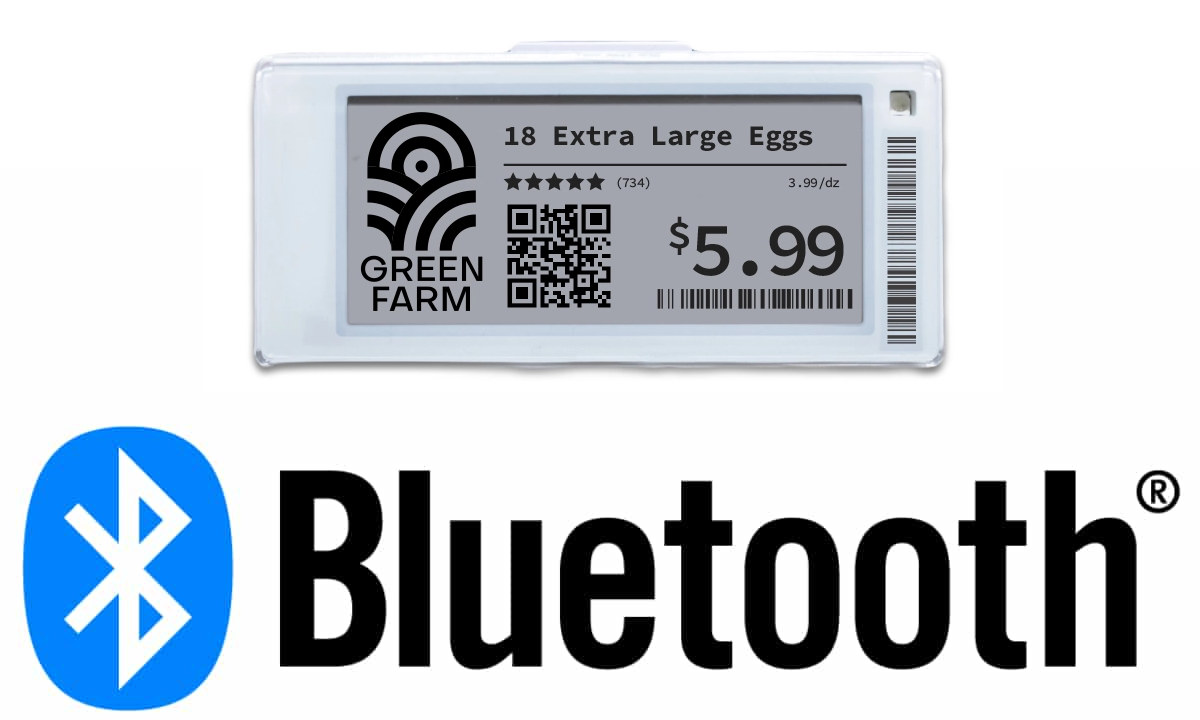

The Bluetooth Special Interest Group (SIG) has just adopted the Bluetooth 5.4 Core Specification with features such as PAwR and EAD designed for Electronic Shelf Label (ESL) systems.
The Bluetooth 5.3 Core Specification was adopted in August 2021 with various improvements, and Bluetooth 5.4 now follows with features that appear to be mainly interesting for large-scale Bluetooth networks with support for bi-directional communication with thousands of end nodes from a single access point, as would be the case for Electronic Shelf Label or Shelf Sensor systems.
Four new features have been added to Bluetooth 5.4:

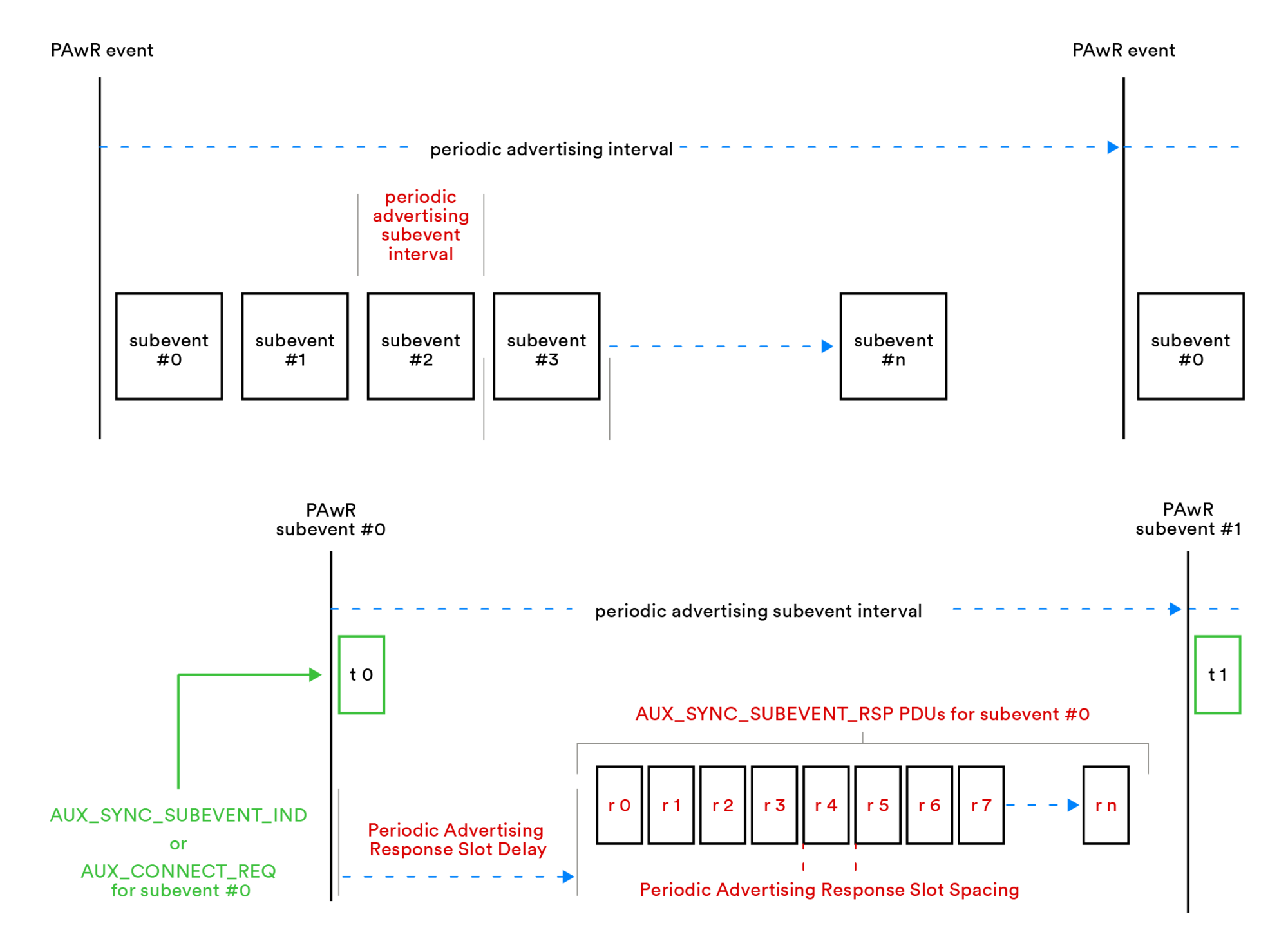

- Periodic Advertising with Responses (PAwR) – PAwR is a new Bluetooth Low Energy (LE) logical transport that provides a way to perform energy-efficient, bi-directional, communication in a large-scale one-to-many topology with up to up to 32,640 devices. Devices can also be allocated to groups allowing them to listen only to their group’s transmissions. An Electronic Shelf Label (ESL) profile is also defined in this section of the specification.
- Encrypted Advertising Data (EAD) – This new feature provides a standardized approach to the secure broadcasting of data in advertising packets. The main benefit is that it allows for the encryption of data shared over periodic advertisements with responses.
- LE GATT Security Levels Characteristic – Devices may now indicate the security mode and level required for all their GATT functionality to be available using a new GATT characteristic called LE GATT Security Levels.
- Advertising Coding Selection – The host can now specify which of two supported long-range coding options (S=2 or S=8) are used with LE extended advertising. The FEC (Forward Error Correction) S parameter controls how much error correction data is generated and the Bluetooth range. S=8 Increases the range by a factor of around 4 compared to the range achieved with the LE 1M PHY but reduces the protocol data rate to 125 kbps, while S=2 increases the range by a factor of around 2 compared to the range achieved with the LE 1M PHY but reduces protocol data rate to 500 kbps.
Silicon Labs says that their BG22 and BG24 microcontrollers can be used for Bluetooth 5.4 devices, while the BG21 family would be integrated into access points, so the good news is that Bluetooth 5.4 support does not appear to require new hardware, just a new firmware.
You can access the Bluetooth 5.4 Core Specification on the Bluetooth website, but since it’s over 3000 pages long, you may prefer reading the technical overview for more details about the new features. Further information may also be found in the press release and a blog post.
