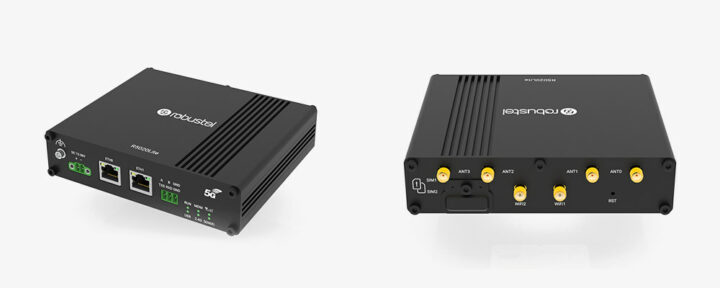

Robustel R5020 Lite 5G router targets industrial applications

Robustel R5020 Lite is an industrial 5G router with 4G LTE Cat 18 fallback, two Gigabit Ethernet ports and WiFi 5 connectivity, as well as features such as an RS232 or RS485 serial port,  wide 12-36V DC power input, and support for an extended temperature range.

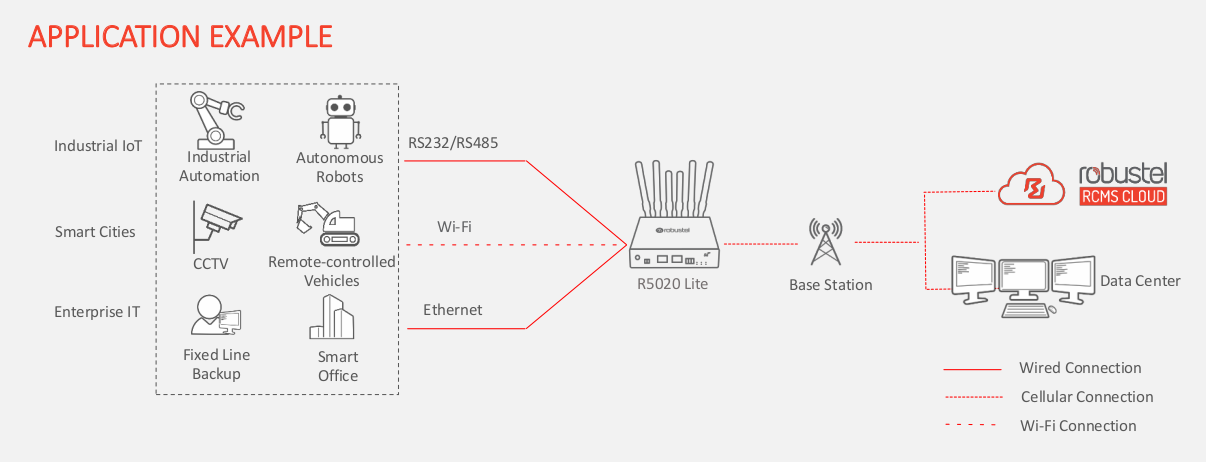

The company says the R5020 Lite is especially well suited for “Enterprise / SD-WAN applications as a ‘5G managed modem'”, and it can also be used as a backup for fixed line broadband, for primary broadband access, as well as for Industrial IoT (IIoT) applications like industrial automation, autonomous robots, and Smart Transportation applications.

Robustel R5020 Lite 5G router specifications:

• SoC – Undisclosed
• System Memory –  “Available for SDK”: 128MB RAM
• Storage – “Available for SDK”: 5MB flash
• Connectivity
  • Cellular – 5G/4G/3G
    • Global frequency bands
      • 5G: NR SA/NSA: n1/n2/n3/n5/n7/n8/n12/n13/n14/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n71/n75/n76/n77/n78/n79
      • 4G
        • LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71
        • LTE TDD: B34/B38/B39/B40/B41/B42/B43/B48
        • LAA: B46 (only supports 2 x 2 MIMO)
      • 3G: WCDMA: B1/B2/B4/B5/B8/B19
    • 4x SMA-K antenna connectors (ANT0 + ANT1 + ANT2 + ANT3)
    • 2x Mini SIM (2FF)
  • 2x Gigabit Ethernet ports configured as 2x LAN by default, but can also be configured as WAN + LAN; 1KW isolation protection
  • WiFi
    • • 802.11b/g/n/ac WiFi 5 2×2 MIMO with support for AP and Client modes
      • Frequency bands
        • 2.412 – 2.472 GHz (2.4 GHz ISM band)
        • 5.15 – 5.825 GHz (5 GHz ISM band)
      • Security – WPA, WPA2, WEP, WPA3
    • Data rates – 5GHz: Up to 867Mbps, 2.4GHz: Up to 300Mbps
    • 2x RP-SMA-L antenna connectors (WiFi1 + WiFi2)
• Serial – 1x RS232 or 1x RS485 (Software configurable) via 3-pin 3.5mm female socket with ESD protection (±8 KV air discharge, ±6 KV contact discharge)
• Misc
  • Reset button
  • LED indicators for RUN, Modem, USR, RSSI, Wi-Fi 2.4GHz, and Wi-Fi 5GHz
  • Built-in watchdog
• Power Supply  – 12 to 36V DC via 2-pin 3.5 mm female socket with lock
• Power consumption –  Idle: 370 mA @ 12V; data link: 1.7 A (peak) @ 12 V
• Dimensions – 136 x 115 x 32 mm (Aluminum enclosure)
• Weight – 475 grams
• Ingress protection – IP30
• Temperature Range
  • Operating: -20 to +55°C (Normal), -25 to +70°C (Extended)
  • Storage: -40 to +85°C
• Relative Humidity – 5 to 95% RH
• Certifications – RoHS 2.0

DIN rail mounting, desktop, or wall mounting options are offered for the router. It runs the company’s “RobustOS” operating system based on Debian 11 and said to provide a “simple, secure and lightweight operator interface”.  The OS supports a range of the usual network protocols, VPN tunneling, firewall functions, and management is possible through the web interface, a CLI program, or SMS, plus the serial port that can notably handle Modbus RTU to TCP.

Robustel also offers an SDK for customization, and support for an App Center with apps such as Data Guard, SNMP server/client, Captive Portal, and so on.  The router, or a fleet of routers, can be managed from the cloud with Robustel RCMS Cloud.

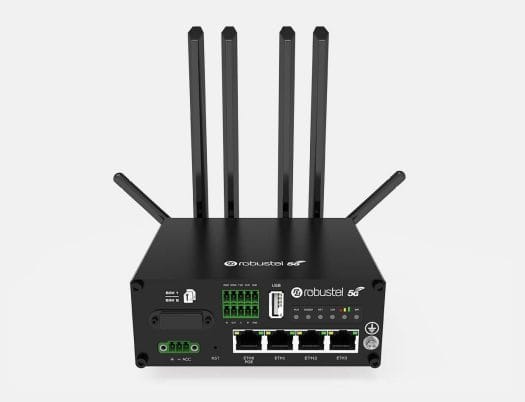

As one would have to expect, the Robustel R5020 5G Lite is a features-and-cost-down version of a larger industrial 5G router with more Ethernet ports, digital I/Os, and USB port, and more memory (256MB) available to the SDK.  More details about both routers can be found on the company’s website. The R5020 5G Lite happens to be the third 5G IoT router from the company as we previously covered the EG5120 industrial IoT gateway with a wider range of I/Os.
