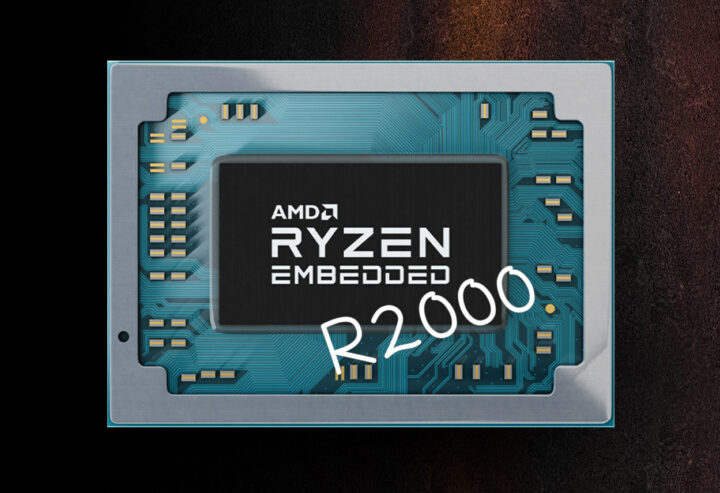

As expected, AMD has now launched the Ryzen Embedded R2000 series processors that build up on the earlier Ryzen Embedded R1000 family, but doubles the number of cores to up to four, gets improved Radeon graphics, and adds support for Windows 11 operating system.
Performance and efficiency have also improved with the new Ryzen Embedded R2514 CPU exhibiting up to 81 percent higher CPU (Passmark v10) and graphics (3DMark) performance compared to Ryzen Embedded R1606G processor, as well as higher performance-per-watt efficiency thanks to the Zen+ core architecture.
The company has four Ryzen Embedded R2000 processors in its portfolio at launch.
| MODEL | CORES/ THREADS | TDP Range | Base/Boost CPU Freq | GPU CORES | L2 + L3 CACHE |
|---|---|---|---|---|---|
| AMD Ryzen Embedded R2544 | 4C/8T | 35-54W | 3.35/3.7 GHz | 8 | 2 + 4 MB |
| AMD Ryzen Embedded R2514 | 4C/8T | 12-35W | 2.1/3.7 GHz | 8 | 2 + 4 MB |
| AMD Ryzen Embedded R2314 | 4C/4T | 12-35W | 2.1/3.5 GHz | 6 | 2 + 4 MB |
| AMD Ryzen Embedded R2312 | 2C/4T | 12-35W | 2.7/3.5 GHz | 3 | 1 + 2 MB |
Key features and specifications include:
- Memory – 2,400 to 3,200 MT/s (depending on SKU) DDR4 dual-channel memory support
- Storage – 2x SATA 3.0, NVMe support
- 16 lanes of PCIe Gen3, except for R2312 limited to just 8 lanes
- Up to four independent 4Kp60 displays using DisplayPort 1.4, HDMI 2.0b, or/and eDP 1.3 interfaces
- VPU – Up to 4K H.265/HVEC & VP9 10-bit decode, H.264 8-bit decode and H.265/HVEC & H.264 8-bit encode
- USB – 6x USB ports (USB 3.2 Gen2 and 2.0)
- Enterprise-class security features through the AMD Secure Processor, as well as AMD Memory Guard for real-time DRAM memory encryption
AMD Ryzen R2000 processors support Microsoft Windows 11/10, and Linux Ubuntu LTS, and the company plans to make the processors available for 10 years. Industrial & robotics, thin client
machine vision, and IoT are the main sectors targetting by the new SoCs.
Advantech Innocore will use the new processor in the DPX-S451 platform for slot machines, casino games, and betting terminals, DFI will make small-size Ryzen R2000 computers and SBC’s (possibly an update to GHF51 Ryzen R1000 SBC), IBASE plans to launch SI-324-N2314 fanless digital signage player and INA1600 desktop uCPE/SD-WAN appliance, while Sapphire expects to launch/upgrade NUC, mini-STX and thin mini-ITX motherboards.
There’s no product page for now, so information is limited to what is shown in the press release, and the new Ryzen Embedded R2000 Series will be showcased at the AMD booth (Hall 3A, Stand 239) at Embedded World 2022, June 21-23, in Nuremberg, Germany.
Jean-Luc started CNX Software in 2010 as a part-time endeavor, before quitting his job as a software engineering manager, and starting to write daily news, and reviews full time later in 2011.
Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress
Add Kontron D3723-R too.
Weird, whilst the V1000 and R1000 looked fairly similar, V2000 has been out for a while now with Zen2, but R2000 with Zen+ is now a generation behind the V2000. Is the emedded division where AMD clear out the stock that’s been sitting in their warehouse for 5 years?
I think R2000 is an upgrade to R1000, but more cost-effective than V2000.
