Learn more about Hailo-8 AI accelerator and understanding AI benchmarks

Last week we wrote about Hailo-8 M.2 card delivering up to 26 TOPS of AI performance, and comparing well against Google Edge TPU and Intel Movidius Myriad X  both in terms of footprint, performance, and efficiency.

I’ve since then had a conference call with Liran Bar, VP of Business Development for Hailo, where we had time to discuss more about Hailo’s AI solutions, and how to interpret & understand AI benchmarks that may be misleading in many instances.

Hailo-8 Architecture

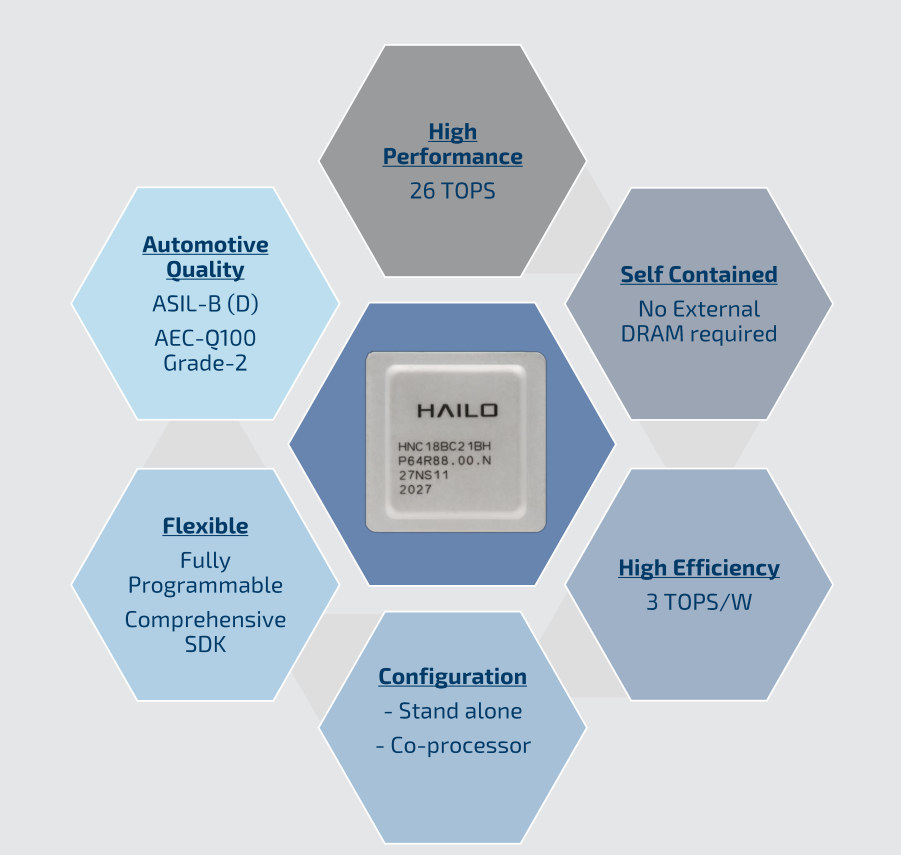

Hailo-8 Key Features

In the first post, we noted the chip managed to get the extra performance and efficiency thanks to a “proprietary novel structure-driven Data Flow architecture instead of the usual Von Neumann architecture”. But that’s a bit abstract, so Liran told me one of the key reasons for the performance improvement is that RAM is self-contained without the need for external DRAM like other solutions. This decreases latency a lot and reduces power consumption.

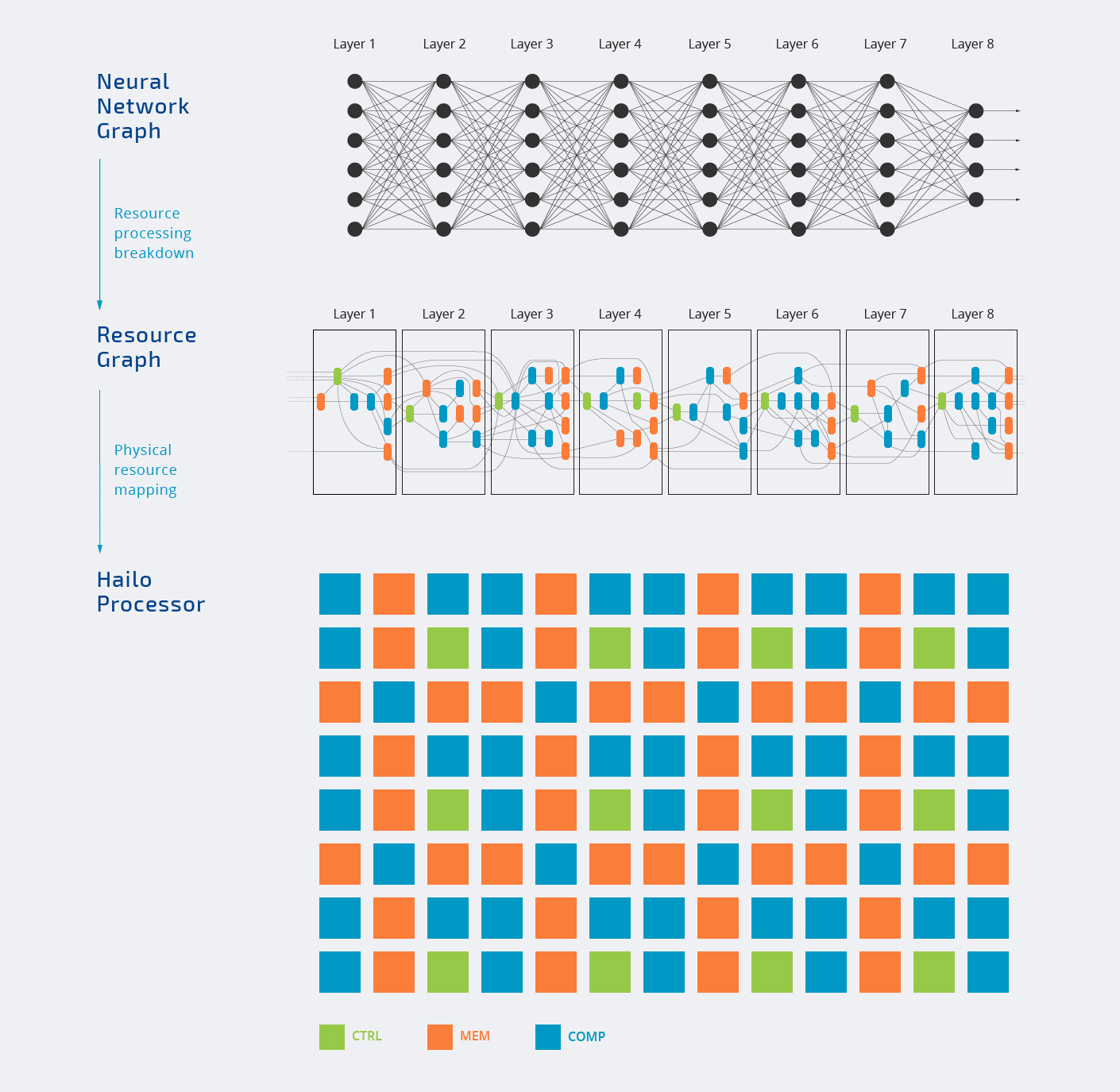

Internally, the Hailo-8 chip is comprised of three types of blocks with control, memory, and compute which are assigned to various layers of the neural network graph as shown in the animation below.

Hailo's Structure-defined Data Flow Architecture Concept

All processing takes place internally happens in the chip. You’ll also notice not all blocks are assigned, and that’s normal since every AI workload will only use parts of the AI accelerator. That’s also why the frequently TOPS number touted by companies is mostly a “marketing plot”.

The top diagram also shows Hailo-8 can be used in both standalone mode or a co-processor. Most companies will interface the chip with a more powerful host processor to handle other tasks, but in theory, it’s also possible to use Hailo-8 by itself.

Hailo-8 Development Tools

Hailo 8 Development Kit

The company provides an Hailo-8 evaluation board with PCIe edge connector, Gigabit Ethernet, audio, USB ports, I2C & UART interfaces, GPIO as well as two MIPI CSI camera interfaces. It’s meant to be plugged into a computer where you can use the development tools for TensorFlow or ONNX training, before getting the model through Hailo SDK to convert data and allocate resources as shown in Hailo-8 animation we presented above.

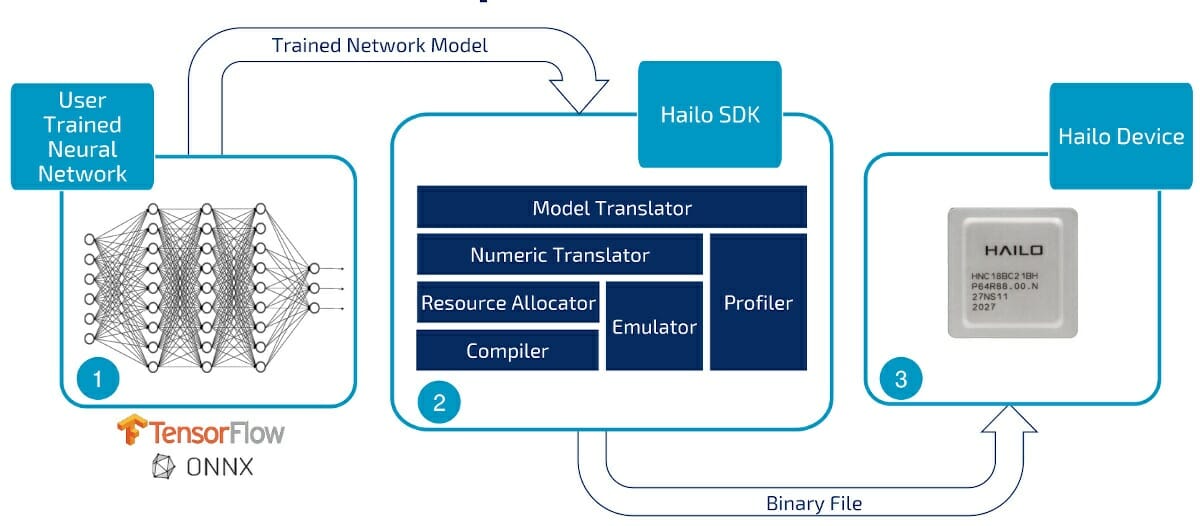

Hailo SDK

If you’ll like to get the hardware and software development tools, you’ll need to provide company and project details. I asked whether Hailo would make those more broadly available, and Liran answer eventually, but right now they are focusing on commercial projects. Hailo is an Israeli startup founded in 2017, and while they received a 88 million investment from NEC, ABB, and other investors, the company is likely not making any profit right now. Hailo also got requests from universities, but they had to decline since as a small company they don’t know the resources to provide support. If you have a project you can enquire on the product page.

Hailo-8 vs NVIDIA Jetson

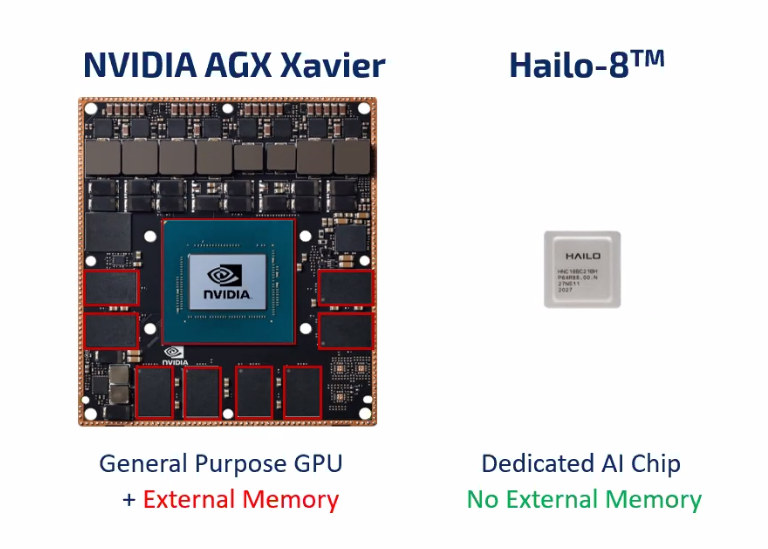

NVIDIA AGX Xavier Hailo-8

In their press release, the company focused on comparison with Edge TPU and Myriad X chips, but based on TOPS number, Hailo-8 performance is much closer to a solution like NVIDIA AGX Xavier. As you can see from the photo above the form factor is way smaller, and could be critical to your application if you used multiple AI accelerators in one application. That’s not to say both are the same as NVIDIA AGX Xavier is more flexible since you can also do training on the platform, while Hailo-8 is only made for low-power inference which it does at 20 times the power efficiency.

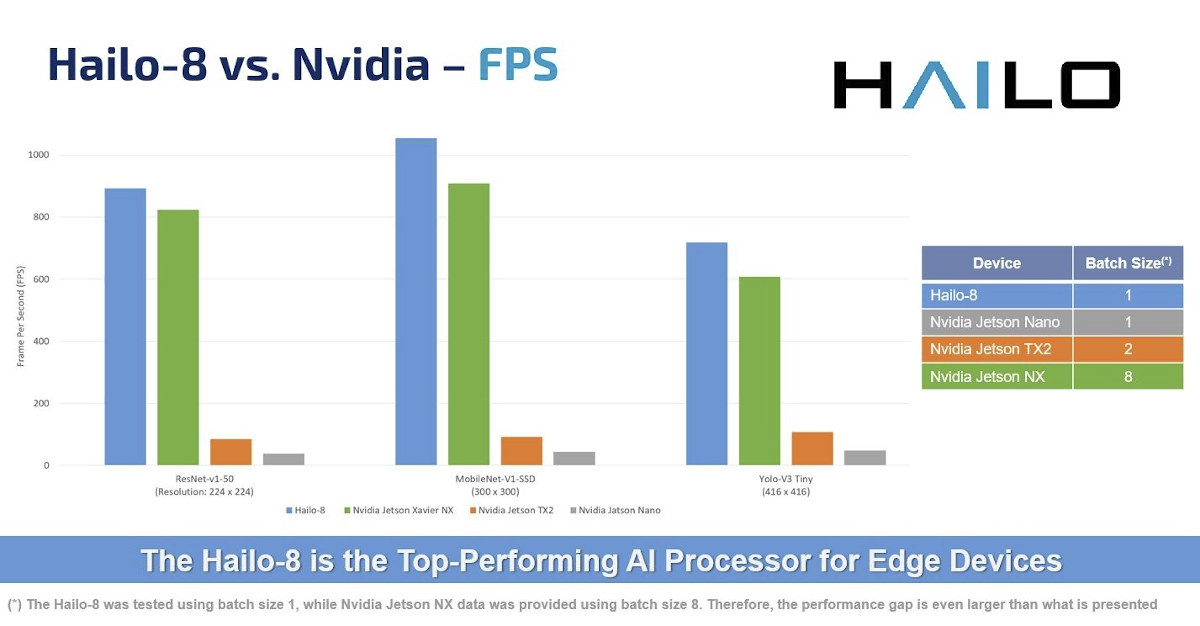

Hailo-8 vs Nvidia JetsonThe chart above shows the performance of Hailo-8 against NVIDIA Jetson Nano, Jetson TX2, and Jetson Xavier NX using Resnet-v1-50, MobileNet-v1-SSD, and Yolo-v3 Tiny. In those three benchmarks, Hailo-8 is slightly faster than Jetson Xavier NX but will be much more efficient, as NVIDIA Jetson Xavier NX power consumption is up to 10 or 15W depending on the mode used.

You may wonder why there’s a note about the batch size. That’s because Jetson Xavier NX relies on both an NVIDIA Volta GPU, and NVDLA engines, and GPUs perform better with highly parallel tasks, so the batch sized is configurable and impacts both performance and efficiency.

Understanding AI Benchmarks

AI chips companies like to float TOPS numbers to show the maximum theoretical performance of their chips. But in practice, those are just for marketing. For example, Hailo-8 is advertised with 26 TOPS, while Google Edge TPU is said to handle up to 4 TOPS. That’s six times the performance, but when running actual benchmarks, Hailo is 13 times faster than Edge TPU on average due to architectural differences. As we noted above, no AI workload will use all resources from the chip up to the advertised TOPS.

So TOPS numbers should always be taken with a grain of salt, and you may want to rely on benchmarks instead, but there are pitfalls here as well. If we look at Jetson Xavier AGX benchmarks, we can see the batch size is clearly shown.

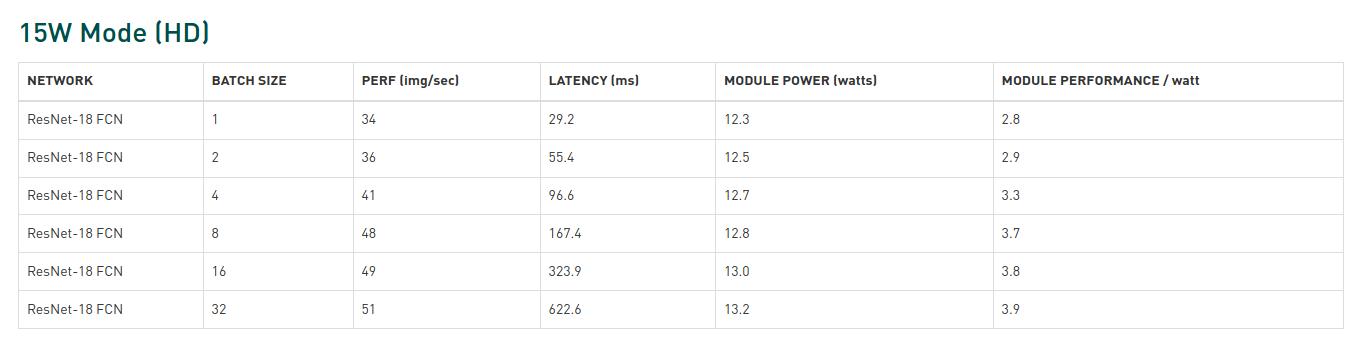

Jetson Xavier AGX BenchmarkBut when we switch to more recent Jetson platforms there’s no mention of batch size anymore.

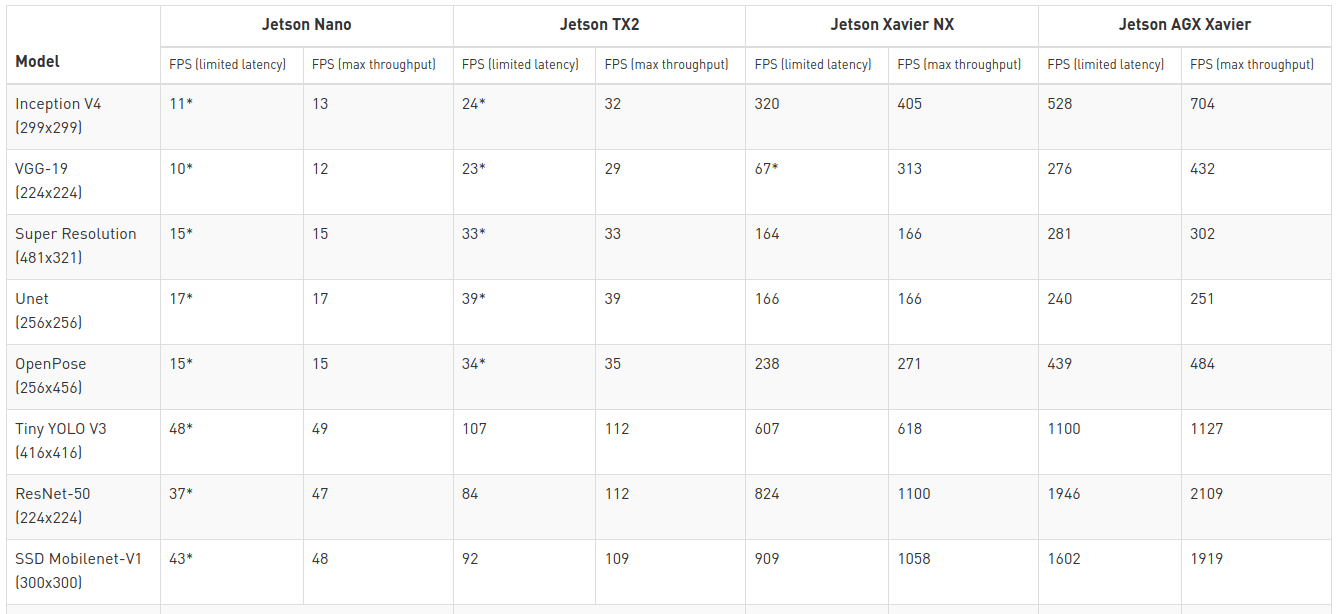

Jetson Nano vs TX2 vs NX vs AGX Benchmarks

So that makes comparison a bit more difficult. NVIDIA still states “the minimum latency throughput results were obtained with the maximum batch size that would not exceed 15ms latency (50ms for BERT) — otherwise, a batch size of one was used.”. That true except for results marked with * where the latency is over 15ms.

Standard benchmarks can still help, but one must be attentive to details. MobileNet-v1 SSD is typically run with an image size of 300×300, but Google decided to run the benchmark with smaller 224×224 images on the Edge TPU.

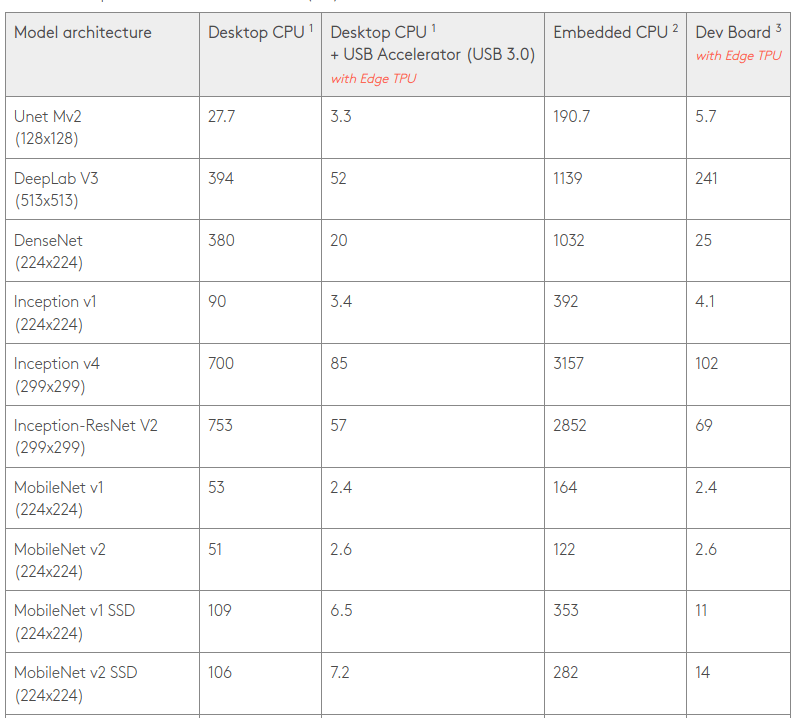

Google Edge TPU Benchmark

The company also shows results for a Desktop CPU with and without USB accelerator, and the same for an embedded CPU. The latter is a quad-core Cortex-A53 processor, but the “Desktop CPU” is a ~$4,000 Intel Xeon Gold 6154 18-core/36-thread processor with 200W TDP.  So when you see benchmarks showing TOPS per watt for the accelerator, it becomes much less relevant when connected to a 200W processor…

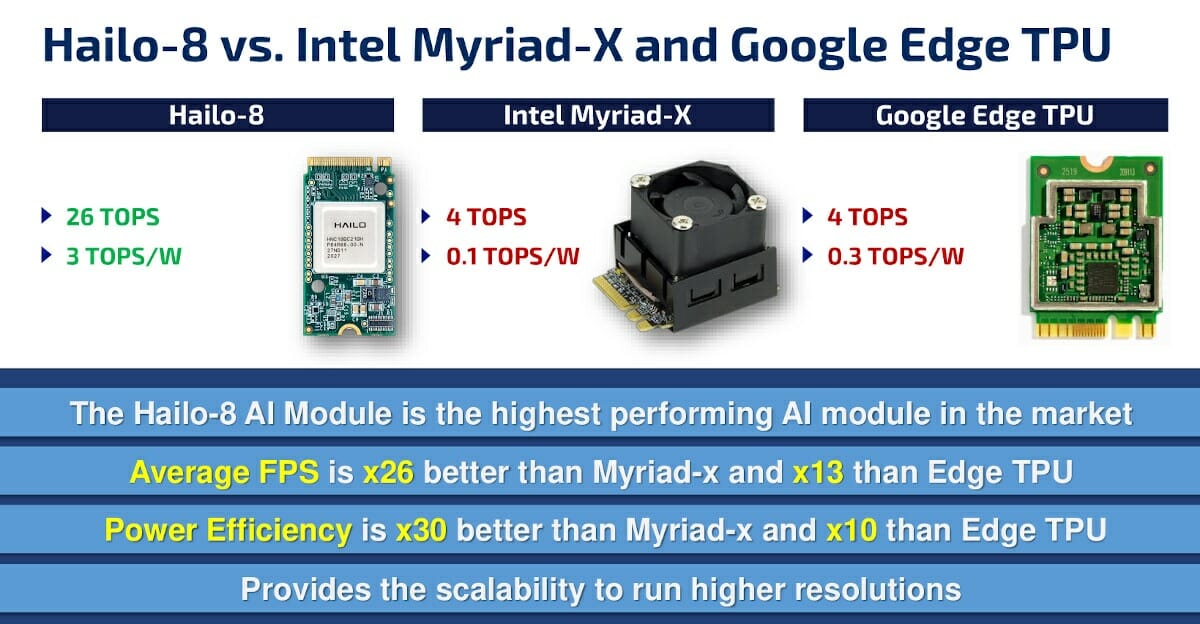

Hailo-8 vs Intel Myriad X Google-Edge TPU TOPS per Watt

Google writes “An individual Edge TPU is capable of performing 4 trillion operations (tera-operations) per second (TOPS), using 0.5 watts for each TOPS (2 TOPS per watt)”. But based on the benchmark tricks explained above, and other calculation, Hailo disputes Google claims of 2 TOPS/W, and instead claims an efficiency of only 0.3 TOPS/W, making Hailo-8 ten times more power efficient!

[Update: here’s how the TOPS/W calculation was done:

  1. Determine a workload (for instance Mobilenet V2) ==> this defines the number of operations per frame of a given size (e.g. 224×224) (A)
  2.  use the actual measured throughput in frames-per-second (B)
  3. use the actual measured power consumption  (C)
  4. multiply the number from A by the number from B and divide by the number from C (with proper units) ==> this gives TOPS/W
  5. Example – MobileNet V2 – according to edge TPU M.2 datasheet:
    1. MobileNet V2 TOPS / frame:  300 M MAC per frame = 600 M OPS per frame = 0.6 GOP per frame = 0.0006 TOP per frame (A)  (reference, see figure 5)
    2. Throughput: 416 fps (B) (reference: coral.ai M.2 datasheet, table 3)
    3. Power: 1.4W (C) (reference: coral.ai M.2 datasheet, table 3)
    4. It follows that: 0.0003 * 416 / 1.4 = 0.178 TOPS/W in this case
    5. Please that all of the above relies on edge-TPU published information]

The best is not to believe anyone, and if possible, get an evaluation board for each target platform and run your own AI workloads.

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard

9 Replies to “Learn more about Hailo-8 AI accelerator and understanding AI benchmarks”

    1. Indeed. But you’re not likely to see Open Source in that sense for a bit to come. It’s a bit…surprising…that you have NVidia basically opening up the design such that someone could come up with a fully FOSS device. This is not the case with the Xavier series. The driver details appear to differ from the NVDLA core and what’s in Xavier, so you can’t just use it with the implementation. The positive for NVDLA is that the programming details look to be the same. The other swing and a miss is the Coral Edge TPU. No programming details, but the driver and calling API is very open. If it weren’t for the braindead build system they use for Tensorflow Lite, I’d have had a proof of concept for that very thing in Yocto already. (Bazel build might work nicely for Google, but it’s not a good answer for anyone trying to package the stuff for others to consume. They presume EVERYONE is going to build to install it…on target even…)

  1. Howdifferent thiswould be from an FPGA?
    the other thing that intrigues me is the interaction betwen layers, at the end one layer must afect the next one…

    1. FPGA’s have fabric speed performance limitations and generally consume more juice than the ASICs doing the TPU, NVDLA, etc. work.

      Unless you’re going to a Binary convolution NN accelerator design, there’s limitations in doing it in FPGA that may not be suitable for things unless you already had more than enough FPGA fabric in hand to express your NN accelerator in the first place.

      If your design didn’t incorporate an FPGA, you may/may not see an actual advantage there. They’re amazing and capable for a LOT of things, but they’re absolutely not a silver bullet like many think of them.

  2. The representation that the power of Xavier is in a GPU is a misrepresentation on the part of Hailo there.

    The BULK of the Inference performance of the Xavier comes from two NVDLA cores in the Xavier that’re similar in nature to Google’s TPU and Hailo’s hardware.

  3. As for the TOPS per watt stuff, Jean-Luc, the pairings typically done with this class of devices isn’t in the configuration in question. You’d be looking at adding it via something other than the USB if you could (They have a PCIe model set in M.2 and mini-PCIe as well) unless that was your only connection method. In all cases of what they’re talking to, they’re not hooking it up to a 200+ Watt PC. They’re hooking it to a Pi4, a Nano for a speed lift in inferrences, etc. In that space the notion is solid and actually matters.

  4. I’ll be honest, though. I’d rather like NVidia to branch out and offer NVDLA cores as a solo add-in part as USB and PCIe like the Edge TPU. 2-3 times the performance at a similar power budget the Edge TPU has… It gets much higher TOPS/W than the other.

    1. nice dream…. but they will not, because they want to earn more on their modules…

      Hailo company must bring a developer board kit like NVIDIA, without it they will be non-relevant even better and cheaper…. Good Luck
