OnLogic Introduces Fanless Apollo Lake Thin Clients Running IGEL Edge OS

OnLogic has launched its first two offerings as part of the new IGEL Ready program with IGL200 and IGL300 fanless thin clients powered by various Intel Apollo Lake processors.

IGEL Edge OS enables the devices to be used for distributed computing, virtualization, and thin clients, and OnLogic thin clients target users in the manufacturing, energy, automation, and industrial Internet of Things (IIoT) sectors.

OnLogic IGL200

Specifications:

• SoC – Intel Celeron N3350 dual-core Apollo Lake processor @ 1.1 GHz / 2.4 Ghz (Burst freq.) with Intel HD Graphics 500
• System Memory – Up to 4GB LPDDR4-2133
• Storage – 32GB eMMC flash, MicroSD Card slot, mSATA slot
• Video Output – 2x Mini DisplayPort outputs with dual independent display support
• Audio – 1x audio Jack with Line-out and Mic-in
• Networking
  • 2x Gigabit Ethernet ports via Realtek RTL8111G controller
  • 4x antenna holes for optional cellular modem or/and WiFi
• USB – 1x USB 2.0 port, 2x USB 3.0 ports
• Serial – 1x COM port (RS-232)
• Expansion
  • 1x Full size mPCIe slot (shared with mSATA)
  • 1x Half-height mPCIe slot
• Misc – Power Button, power Indicator LED, PTT in BIOS, watchdog timer
• Power Supply – 12V DC input jack with 36W power adapter included
• Dimensions – 115 x 82 x 34 mm (Cast Aluminum and steel case)
• Temperature Range – 0 ~ 40°C
• Regulatory Compliance
  • FCC 47 CFR Part 15, CE
  • UL Listed configurations available.
  • CB scheme
  • WEEE Directive (2002/96/EC)
  • RoHS 2 (2011/65/EU), RoHS 3 (2015/863/EU)
  • EN 55024, EN 55032, EN 62368-1, IEC 62368-1
  • IP50

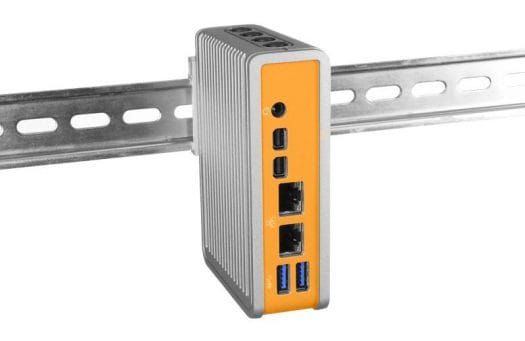

The company provides DIN-mount, VESA-mount, and Wall-mount options for the thin client. If it looks similar, it’s because the hardware is based on OnLogic CL210 launched in Q2 2018 when the company was still called Logic Supply, but with double the memory.

OnLogic IGL300

Specifications:

• SoC (One of the other)
  • Intel Atom E3930 dual-core Apollo Lake-I processor @ 1.3 GHz with Intel HD Graphics 500
  • Intel Atom E3950 quad-core Apollo Lake-I processor @ 1.6 GHz with Intel HD Graphics 505
• System Memory – Up to 8GB LPDDR4
• Storage – 1x M.2 2280 slot supporting PCIe x2 and SATA
• Video Output – 2x DisplayPort outputs
• Audio – 1x Audio jack with Line-Out and Mic-In
• Networking
  • 3x Gigabit Ethernet ports (Intel I210IT) including two with optional POE+
  • 4x Antenna holes for optional cellular modem and/or WiFi
• Serial – 2x RS-232/422/485 COM ports
• USB – 4x USB 3.0 ports
• Expansion
  • 1x Full size mPCIe socket
  • 1x M.2 E Key 2230 slot
  • 3-pin CAN bus terminal
  • 8-bit Isolated Digital I/O
• Security – TPM
• Misc – Power Button, PTT in BIOS
• Power Supply – 9 ~ 36V DC via 3-pin terminal block
• Dimensions – 119 x 56 x 154 mm
• Temperature Range – -25 ~ 70°C
• Humidity – 10% – 95% (non-condensing)
• Regulatory Certifications
  • FCC 47 CFR Part 15, CE
  • UL Listed configurations available.
  • CB scheme
  • RoHS 2 (2011/65/EU), RoHS 3 (2015/863/EU)
  • EN 55024, EN 55032, EN 62368-1
  • IEC 60068-2-27, IEC 60068-2-64

Again, the company offers DIN-mount, VESA-mount, and Wall-mount options for the device. Unsurprisingly, IGL300 is also based on an existing hardware platform namely OnLogic Karbon-300.

IGEL Platform

Since the hardware was built in 2018, the main part of the announcement is about IGEL’s Linux based operating system that coupled with a scalable and easy to use management platform allows secure access to cloud workspaces.

This type of virtualized computing enables centralized management of applications, permissions and updates. OnLogic IGEL Ready hardware enhances the advantages of distributed computing by pairing IGEL’s OS with OnLogic thin client endpoints designed to resist damage due to extreme temperatures, airborne contaminants, vibration or impact forces.

When integrated on OnLogic hardware, the IGEL platform is better equipped to function in rugged, harsh environments like a factory floor or a utility-scale wind turbine.

In a nutshell that means IGL200 and IGL300 thin clients benefit from the ruggedness of OnLogic hardware, and the flexibility of IGEL platform that integrates with Microsoft, Citrix, Zoom, etc… for a total of over 90 technologies.

OnLogic IGL200 and IGL300 thin clients pricing start at respectively $372 and $815. You’ll find further details on OnLogic and EGIL websites.
