STMicro Updates STM32MP1 Family with 800 MHz Cortex-A7 Processors

Until last year, all STM32 microcontrollers were based on Arm Cortex-M “MCU” cores, but that changed with the introduction of STM32MP1 Cortex-A7 + Cortex-M4 processor a year ago.

That meant for the first time, we had an STM32 processor with an MMU capable of running Linux or Android. The company had three product lines:

• STM32MP157 – Dual Cortex-A7 cores @ 650 MHz, Cortex-M4 core @ 209 MHz, 3D GPU, DSI display interface and CAN FD
• STM32MP153 – Dual Cortex-A7 cores @ 650 MHz, Cortex-M4 core @ 209 MHz and CAN FD
• STM32MP151 – Single Cortex-A7 core @ 650 MHz, Cortex-M4 core @ 209 MHz

All available in four different packages, and with or without hardware security (parts with A and C suffix) meaning we had a total of 24 parts.

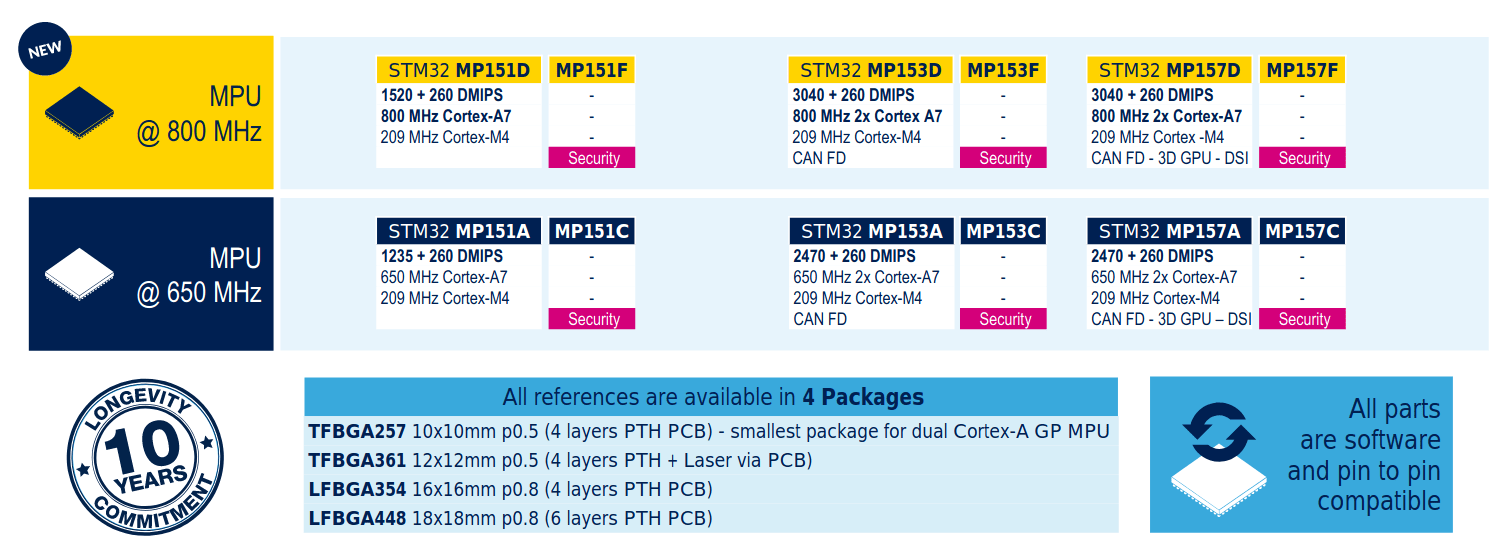

STMicro has now announced 24 more parts whose main and only difference compared to the STM32MP1 processors launched last year us the bump of the Cortex-A7 core CPU frequency to 800 MHz from 650 MHz. The names are the same but “A” 650 MHz parts become “D” 800 MHz parts, and “C” processors with security become “F” processors @ 800 MHz. The new STM3MP1 800 MHz processors are software and pin-to-pin compatible with the 650MHz equivalent.

The faster CPU clock will be beneficial for Voice and Audio Processing, HD video decoding, Artificial Intelligence & Machine-Learning applications, and will bring better user experience in Android systems.

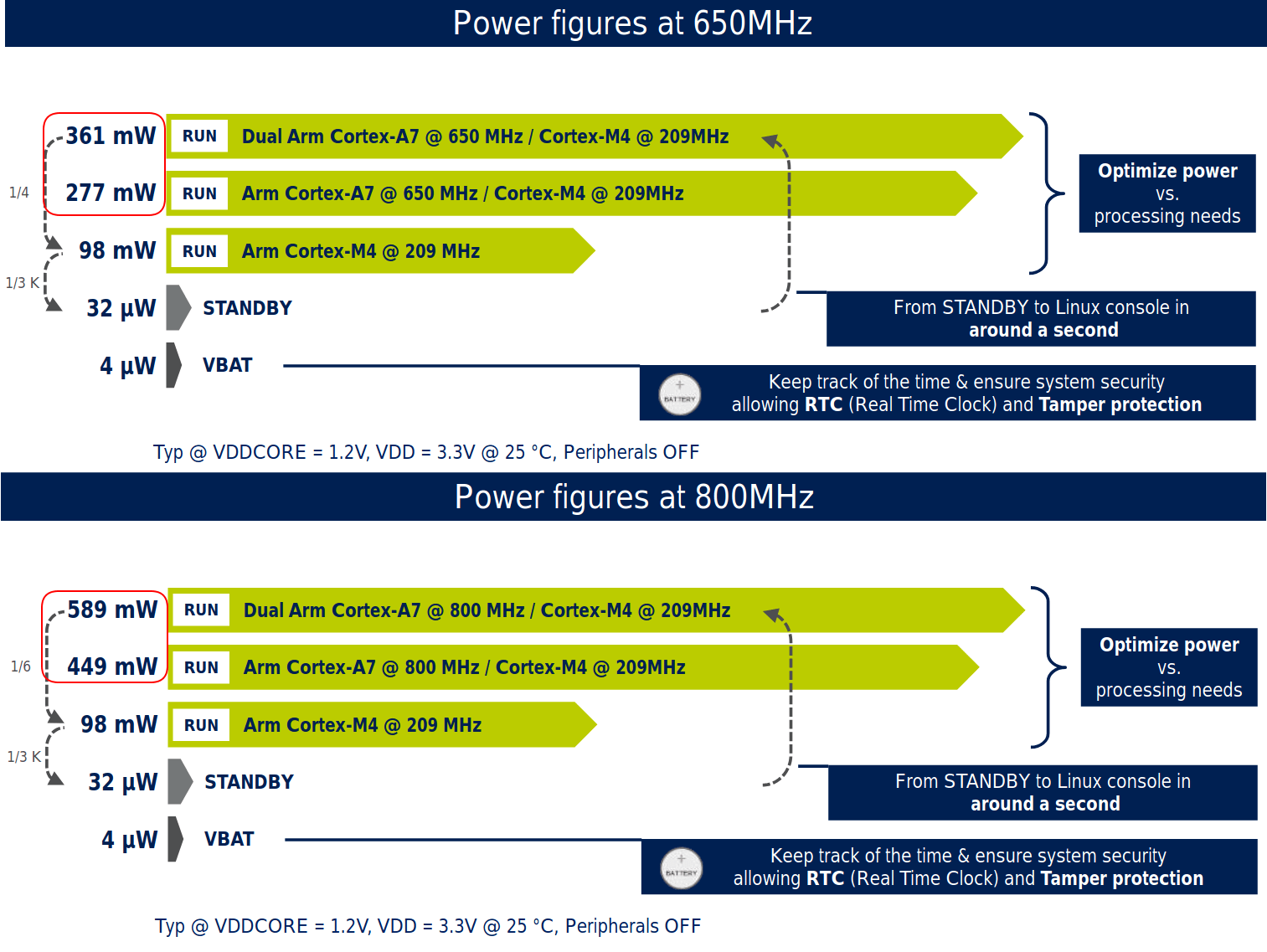

The higher CPU clock and performance does come at the cost of higher power consumption. The dual-core STM32MP157A/C consumes 361mW when the A7 cores run at 650 MHz and the M4 core at 209MHz, while STM32MP157D/F processor consumes 589 mW when the A7 cores max out to 800 MHz.

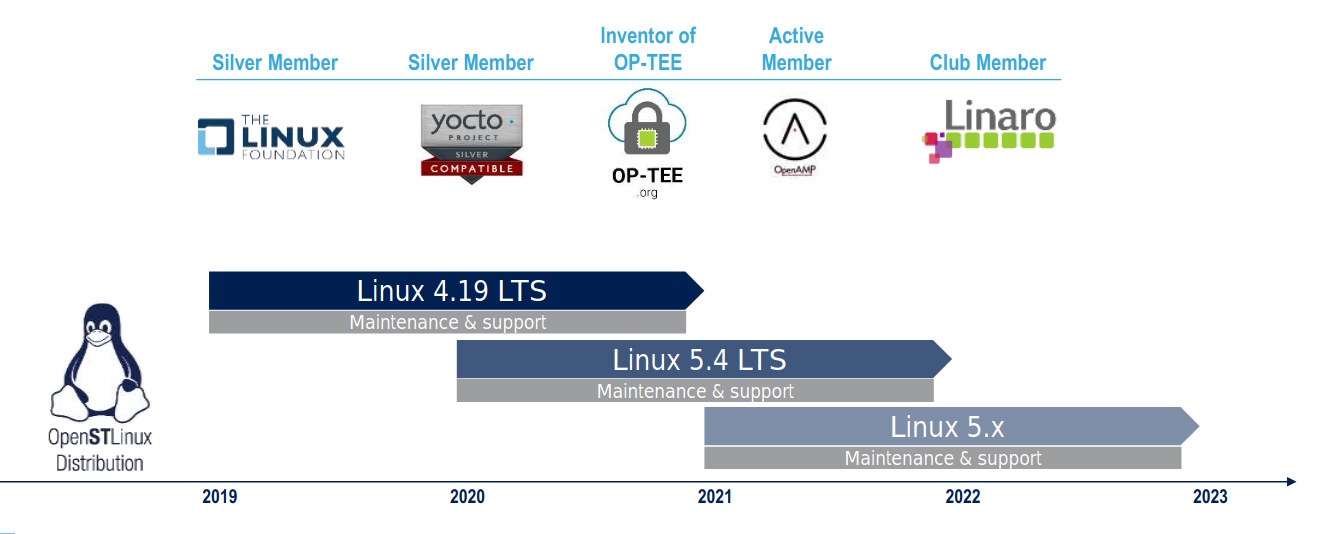

The company also mentioned software support in the press release with the OpenSTLinux Distribution to follow long term Linux kernel releases for the years ahead. STMicro is putting resources into development, as explained by Michael Opdenacker, CEO of Bootlin:

ST’s active participation to the Linux kernel community always impressed us. The simultaneous Linux & STM32MP1 availability made this launch attractive

..

In our opinion, ST understood what the customer’s interests are: mainline versions support of open-source projects, freedom to upgrade to newer versions, zero-cost availability of security updates, community support and security of their long-term investments. By sharing the same open-source DNA, Bootlin is proud to be an ST Authorized Partner and to offer to worldwide customers its engineering and training services on this platform.”

STMicro also pointed out improved Android & Cloud support, as well as STM32CubeMX, STM32CubeProgrammer, and the STM32CubeIDE debugger for the Cortex M-4 core.

STM32MP1 800Mhz processors are in production now, and the price starts at $4.83 for orders of 10k pieces.  You’ll find more information about STM32MP1 processors on the product page, and the most recent presentation (PDF).
