OnLogic Announces Shipping of 2 New Mini-PCs
OnLogic has just announced the availability of two AMD Ryzen Embedded powered mini PCs designed for industrial uses. The ML100G-40 is a fanless industrial mini PC, while the MC510-40 is an actively cooled mini PC
Overview
The ML100-40 has the option of having either a Ryzen Embedded R1505G or a V1605B, and comes with 3 video output ports and dual LAN ports. The system is equipped with 4 GB RAM, 32 GB M.2 SSD by default, and offers a wide range of I/O ports on the rear panel.
The MC510-40 is a low-profile fanned industrial Mini-ITX carrying an AMD Ryzen Embedded V1605B processor, with Radeon Vega 8 GPU. The actively cooled Mini-PC has 4 ports for independent displays, M.2 storage, and max 32 GB memory.

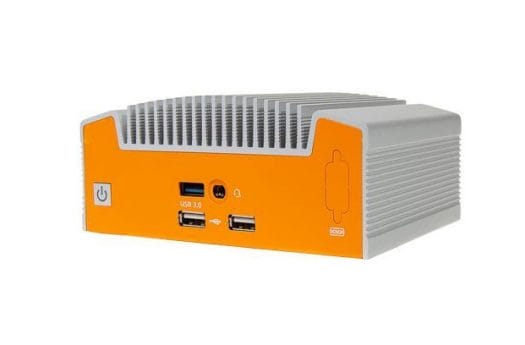

ML100-40 Specifications and Base Price
- Ryzen Embedded R1505G $565.00
- Ryzen Embedded V1605B $685.00
The ML100-40 can be fitted with a dual-core AMD Ryzen Embedded R1505G or the more powerful quad-core V1605B with respectively Radeon Vega 3 or Vega 8 GPU, and optional connectivity can be added through the Extrovert 4G LTE modem.
Either option is fanless and completely silent, through the Hardshell Fanless Technology created by OnLogic. The CPU is passively cooled which protects the components from dust, debris, and chemical or moisture.
- CPU
- AMD Ryzen R1505G dual-core @ 2.4 GHz Base, 3.3GHz Max with AMD Radeon Vega 3 Graphics
- AMD Ryzen V1605B quad-core @ 2 GHz Base, 3.6GHz Max (V1605B) with AMD Radeon Vega 8 Graphics
- RAM – 32 GB DDR4 SO-DIMM (non-ECC)
- Storage – 1x M.2 2280 PCIe x4/SATA slot

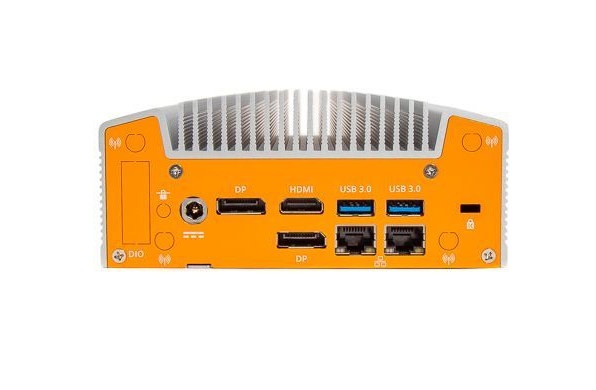

- Rear I/Os
- 2x DisplayPort connectors
- 1x HDMI port
- 2x Gb LAN ports
- 2x USB 3.1 ports
- 1x DC jack
- Front I/Os
- 1x Audio jack (line-out; mic-in)
- 2x USB 2.0 ports
- 1x USB 3.1 port
- 1x Optional COM port
- 4x Antenna holes
- Mounting – DIN-mount, VESA-mount, Wall-mount
- Dimensions – 142 x 62 x 107 mm (5.6″ x 2.4″ x 4.2″)

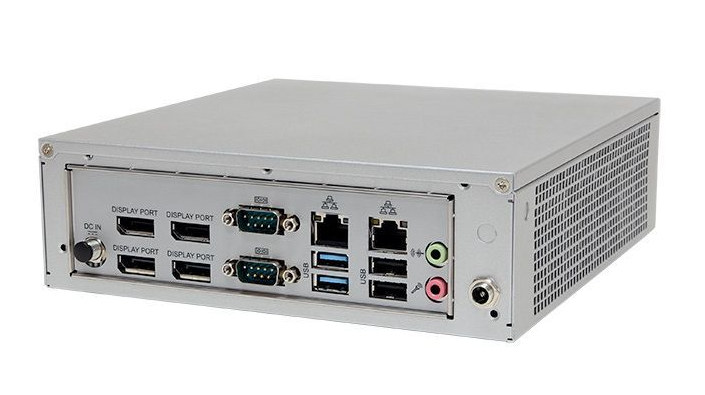

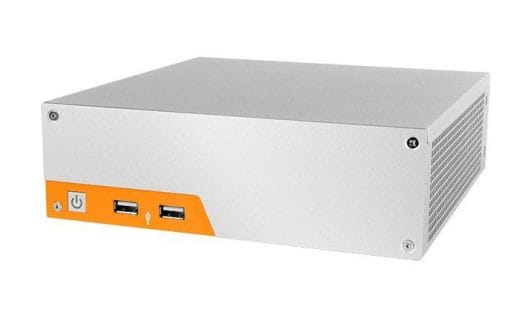

MC510-40 Specifications and Price
Price – $713.00

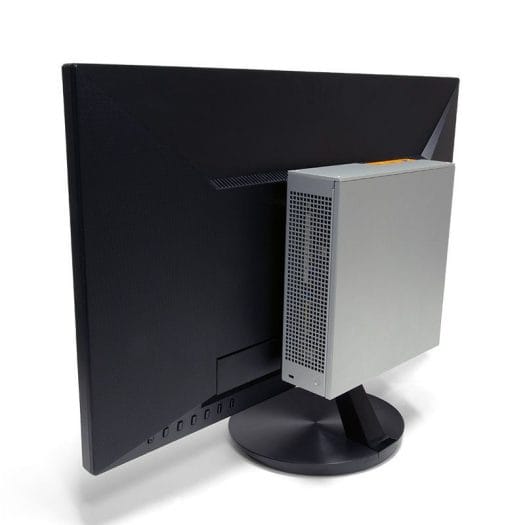

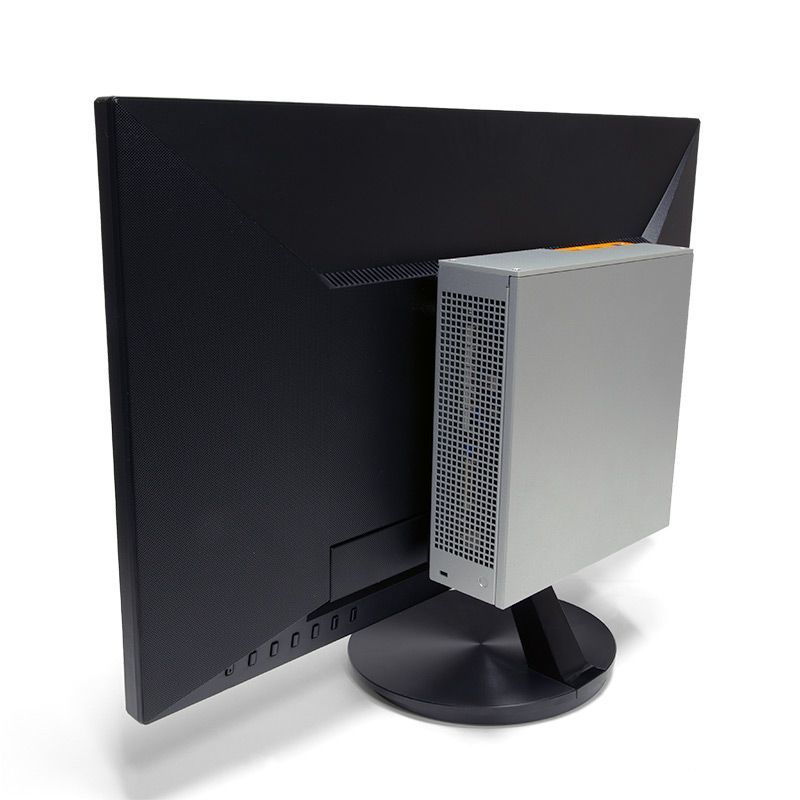

The MC510-40 is aimed at the digital signage, kiosk and different types of display focused environments. The case is meant to be more stylish and functional, and the double right-angle fold is said to decrease EMIs and help to improve EMC performance.
- Motherboard – ASRock AMD Ryzen V1605B embedded mini-ITX board
- Processor – AMD Ryzen V1605B quad-core @ 2 GHz Base, 3.6GHz Max (V1605B) with AMD Radeon Vega 8 Graphics
- RAM – 32 GB DDR4 SO-DIMM (non-ECC)
- Storage – M.2 (2260/2280), 2.5″ HDD/SSD
- Rear I/O
- 4x DisplayPort 1.3/DP++ ports
- 2x Gb LAN ports
- 2x USB 3.1 Gen 2 ports
- 2x USB 2.0 ports
- 2x RS-232/422/485 COM ports
- Front I/O
- 2x USB 2.0 ports
- 1x Power Button
- Temp Range – 0 ~ 50°C
- Dimensions – 192.6 x 59.3 x 199.6 mm (7.6″ x 2.35″ x 7.86″)
- Antenna holes
- Mounting – DIN-mount, VESA-mount, Wall-mount
Additional Information
The product pages have additional information for the ML100-40 and MC510-40. OnLogic was formerly Logic Supply and information on the AMD processors they use can be found on the OnLogic Website.
