Getting Started with RT-Thread Nano RTOS on RISC-V Processors

CNXSoft: This is a guest post by RT-Thread explaining how to create your first program running on their real-time operating system using a GD32V  RISC-V MCU board as an example.

This article describes how to “port” RT-Thread Nano to the RISC-V architecture, using the Eclipse IDE, GCC toolchain, and a basic project for the Gigadevice GD32V103 MCU.

Foreword

RT-Thread is an open-source embedded real-time operating system. RT-Thread has a standard version and a Nano version. The standard version consists of a kernel layer, components and service layer, and IoT framework layer, while the Nano version has a very small footprint and refined hard real-time kernel, better suited to resource-constrained microcontroller units (MCU).

The main steps for porting Nano are as follows:

1. Prepare a basic Eclipse project and get the RT-Thread Nano source code.
2. Add the RT-Thread Nano source code to the base project and add the corresponding header path.
3. Modify Nano, mainly for the interrupt, clock, memory, and application, to achieve porting.
4. Finally, configure the Nano OS for your application. Nano is customizable and can be tailored to the system via rtconfig.h file.

Preparations

Download RT-Thread Nano source code:

Create a basic bare-metal project in Eclipse such as a blinking LED sample code.

Prepare a basic project

Before we can port the RT-Thread Nano, we need to create a working bare metal project. As a sample, this article uses the blinking LED program based on GD32V103. The main routine of the program is as follows:



In our program, the system initialization and blinking LED function are mainly done, and once the downloader is compiled, you can see that the LED on the development board is flashing. You can complete a similar bare-metal project using the chip you need.

Add RT-Thread Nano to project

Add Nano source file

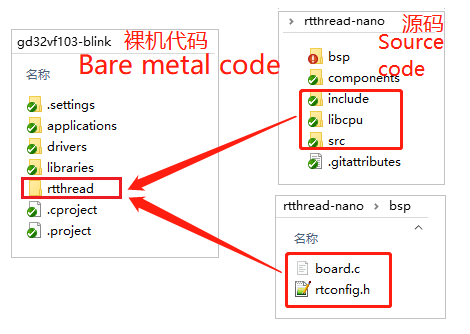

Create a new rtthread folder under the Eclipse project and add the following folders and files to the folder:

1. include, libcpu, and src folders from the Nano source code. Note that libcpu retains only files related to the chip architecture, such as bumblebee and common used in the sample.
2. Configuration files in rtthread-nano/bsp: board.c and rtconfig.h.

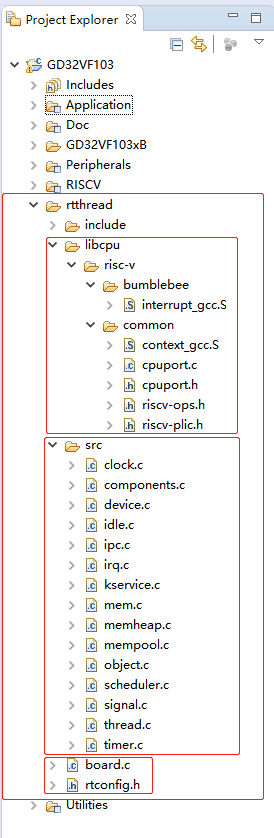

Reopen the Eclipse workspace, import the project, and rtthread folder is loaded into the project: The RISC-V chip kernel code: context_gcc.s and cpuport.c

Kernel files include: clock.c, components.c, device.c, idle.c, ipc.c, irq.c, kservice.c, mem.c, object.c, scheduler.c, thread.c, timer.c

Board configuration code and profiles: board.c, rtconfig.h

Add a header file path

Right-click on the project, click Properties into the interface shown in the image below, click C/C++ Build -> Settings, respectively add the assembler and C header path: add the path to the location of the rtconfig.h header file, add the header file path under the include folder. Then click C/C++ General -> Path and Symbols, add the corresponding header file, and finally click on the Apply button.

Fit RT-Thread Nano

Modify start.S

Modify the startup file to implement the code to boot RT-Thread using the entry() function called by the startup function rt_thread_startup (). The startup file start.S needs to be modified so that it jumps to the entry() function to execute at startup, rather than jump to main(), thus booting RT-Thread.

Interrupts and exception handling

RT-Thread provides an interrupt management interface when the system does not implement such function, and the physical interrupt is associated with the user’s interrupt service routine. The interrupt management interface is used to manage the interrupt so that the corresponding interrupt can be triggered and the interrupt service routine is executed when the interrupt occurs.

The GD32VF103 chip in this routine provides an interrupt vector in the startup file, and the user can implement the corresponding IRQ directly using the function provided by the interrupt vector. When an interrupt is triggered, the processor directly determines which interrupt source is triggered and then jumps directly to the appropriate fixed location for processing, eliminating the need to implement interrupt management on its own.

System Clock Configuration

The System Clock Configuration (which provides a working clock for the MCU core and peripherals) and OS Tick Configuration (a heartbeat for the operating system) is required in board.c file.

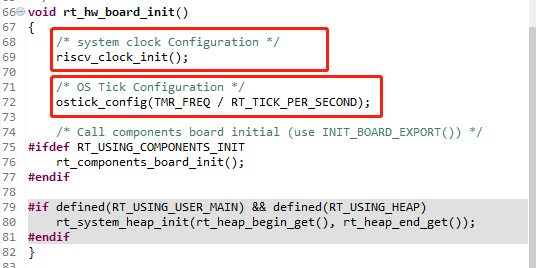

The configuration sample is shown in the following image with riscv_clock_init() configuring the system clock, and ostick_config() the system tick.

riscv_clock_init() configures the system clock as shown below:

OS Tick is implemented using a hardware timer, requiring the user to implement the interrupt service routine eclic_mtip_handler() of the hardware timer in board.c, and call RT-Thread rt_tick_increase().

Because the eclic_mtip_handler() interrupt service routine is reimplemented by the user in board.c and call an OS/system tick, the pre-defined eclic_mtip_handler needs to be removed to avoid duplicate definitions at compile time. If the project compiles successfully with no errors, then no further modifications are required.

Memory heap initialization

The initialization of the system memory heap is done in the rt_hw_board_init() function found in board.c. Whether the memory heap function is used depends on whether the macro RT_USING_HEAP is enabled, and RT-Thread Nano does not enable the memory heap function by default. This keeps a smaller size without opening up space for the memory heap.

Enabling the system heap allows you to use dynamic memory functions such as the API that uses rt_malloc, rt_free, and various other functions to dynamically create objects. If you need to use the system memory heap functionality, you can turn on the macro definition of RT_USING_HEAP, where the memory heap initialization function rt_system_heap_init() will be called, as follows:

Initializing the memory heap requires the heap’s start and end addresses. The  size of the array can be changed manually, as follows:

Note: When the heap dynamic memory function is turned on, the heap default value is small and needs to be changed when used, otherwise there may be a failure to request memory or create threads, here is the modification methods:

You can directly modify the size of the RT_HEAP_SIZE defined in the array, at least more than the sum of each dynamically requested memory size, but less than the total chip RAM size.

Write your first application

Once the RT-Thread Nano is ported to RISC-V, you can start writing your first application code. At this point, the main() function is transformed into a thread in the RT-Thread operating system, and our on-board blinking LED sample can run on RISC-V systems after some modifications:

1. First, add RT-Thread’s related header file <rtthread.h> at the top of the file
2. Implement the blinking LED code in the main() function (i.e. in the main thread) to initialize the LED pin and turn on/off the LED in a loop.
3. Replace the delay function with the delay function provided by RT-Thread:  rt_thread_mdelay(). This function causes the system to schedule and switch to another thread to run.

After the compiled code is downloaded to the chip, you should see the RT-Thread-based program running and the LED blinking. Note: When RT-Thread is added, the main() function in the bare metal automatically becomes the entry function of the main thread in the RT-Thread system. Because threads should not always monopolize the CPU, when using while(1) in main() you should add  rt_thread_mdelay() function to your code to give CPU time to other threads.

Differences from bare-metal blinking LED sample code

1. The delay function is different. RT-Thread provides rt_thread_mdelay() function used for both scheduling and delays. When the function is called in a given thread, the scheduler will switch to another thread. In contrast, the bare-metal’s delay function is running on the CPU all the time.
2. The initialization of the system clock is different. After RT-Thread Nano is ported to your target (RISC-V in our example), there is no need to configure the system in main() (e.g. HAL initialization, clock initialization, etc.) because the RT-Thread is already ready to configure the system clock when the system starts. This is explained in the previous section, “System Clock Configuration”

Configure RT-Thread Nano

You can configure the corresponding functionality as you need to turn the macro definition in rtconfig.h file on or off as follows:

RT-Thread Nano does not enable the macro RT_USING_HEAP by default, so only the static creation of tasks and semaphores is supported. To create objects dynamically, you need to turn on the RT_USING_HEAP macro definition in rtconfig.h file.
