OmniVision OA805 4K Video Camera SoC Supports 100 ms Boot Time, 4K HEVC Encoding

OmniVision OA805 Arm Cortex-A5 4K video camera processor is specifically designed for battery operated security and surveillance cameras, including video doorbells, with the ability to encode 4K30p video streams with HEVC/H.265 video codec at very low power consumption.

The processor also has a very short boot-up time of just 100ms, meaning it can go from completely powered off to fully functional upon trigger by a motion detection sensor. That short boot time removes the need for standby or sleep mode further lowering the power consumption and allowing the camera to have up to two years of battery life (albeit no mention of battery capacity was made…).

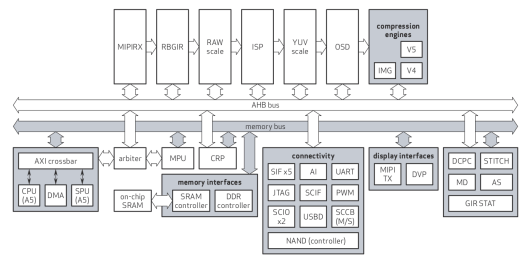

OmniVision OA805 specifications:

• CPU
  • Main CPU – Arm Cortex-A5 processor with NEON, 32KB I-cache, 32KB D-cache
  • Secondary CPU (SPU) – Arm Cortex-A5 processor with NEON, 32KB I-cache, 32KB D-cache
  • Media Processing Unit (MPU) – 32-bit RISC MCU with 8KB I-cache, 8KB D-cache
• System Memory – 16-/32-bit LPDDR2, 16-/32-bit DDR3 and DDR3L
• Storage I/F
  • 1x storage card peripheral interface (SD card???)
  • 2x storage IO peripheral interfaces
  • NAND flash interface
• Camera interfaces
  • 1x 4-lane or 2x 2-lane MIPI CSI receiver
  • Up to 16MP image sensor
  • SCCB master to access image sensor
• ISP (Image signal processor)
  • Dual sensor 10-bit raw to YUV processing
  • Adjustable AEC/AGC, AWB, and auto-focus
  • Color correction/adjustment, gamma correction, and contrast adjustment
  • Digital effects
  • 16×16 zone lens shading correction and online color shading correction
  • Lens distortion and perspective correction
  • Defective pixel correction
  • Mirror, flip, and rotation
  • Supports up to 4x digital zoom
  • 3D/2D de-noise filter
  • RGB-IR processing
  • HDR processing
• Video engine
  • Supports single video recording with a maximum resolution of up to 4096 x 2160 @ 30 fps
  • Supports dual video stream recording with one 1920 x 1080 @ 60 fps stream and one 1280 x 720 stream
  • Rate control to support variable and constant bit rates
  • Flexible motion detection with 8 windows of ROI
• Still picture -Still picture capture up to 16MP with compression
• Display interface
  • 2-lane MIPI DSI
  • 10-bit DVP output
  • On-screen-display (OSD) and scaling functions
• Audio
  • External audio CODEC support via 2x audio serial interfaces for full-duplex audio functions
  • Embedded audio engine for audio recording and playback
• USB – 1 x USB2.0 HS/FS device controller with UVC video and mass storage classes support
• Other Peripherals
  • Serial – 5x serial interface controller (master/slave)
  • 64x GPIOs equipped with interrupt capabilities
  • Embedded PLLs
• Security
  • AES/DES/3DES encryption/decryption
  • Secure boot with firmware image authentication and allowing JTAG accesses to authenticated users
• Debugging – JTAG interface
• Power supply
  • Core: 0.9V
  • Analog: 1.8V/3.3V
  • DDR I/O: 1.2V (LPDDR2) / 1.35V (DDR3L) / 1.5V (DDR3)
  • I/O: 1.8V/3.3V
  • PLL: 1.8V
  • EFUSE VPP: 1.8V
• Temperature Range – -30°C to +85°C
• Package – 11x11mm

There’s no information about software support, but I’d assume the company provides a Linux SDK for the chip, and does offer an evaluation kit.

OmniVision OA805 video processor is said to be available, with limited information on the product page, but if you happen to be at CES 2020, you can inquire about the solution at the company’s CES hotel suite until January 10.
