Kodlix GK45 Mini PC with up to 3 SSD and 3 Displays
Kodlix computers and accessories are designed for industry and home use. The GK45 is the latest mini-PC built for 4K video options and features, and supports as many as 3 SSDs. The GK45 has 1 x DP, 1 x HDMI, 2 x Ethernet Ports, as well as a USB Type-C display/power port.

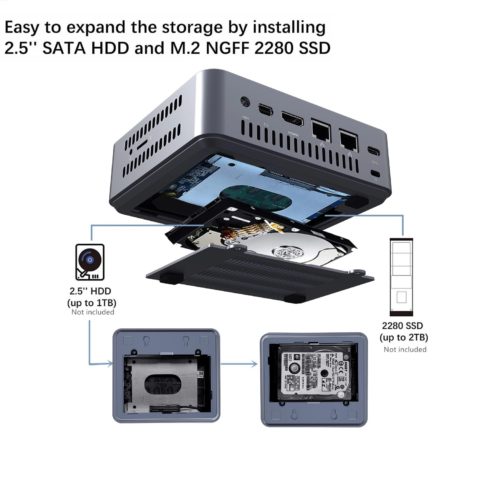

GK45 Mini PC Storage Expansion Options
The GK45 has expanded storage capabilities, and can support up to 3 SSDs, in various formats, starting with 64 GB of eMMC (on-board) or M.2 NVMe 2242 128GB SSD, with support for expansion as follows:
-
-
- M.2 NGFF 2280 SSD up to 2TB SATA 3.0 6.0Gbps
- M.2 NVMe 2242 SSD up to 1TB
- 2.5″ SATA HDD up to 2TB SATA 3.0 6.0Gbps
-
GK45 Mini PC Basics
The GK45 runs an Intel Celeron J4105 Gemini Lake processor, that runs at a speed of up to 2.5 GHz. The mini PC can drive up to 3 displays, through mini DP, HDMI 2.0 and USB Type-C, and supports for VP9 10-bit and HEVC 10- bit decoding. All ports that can support a display or monitor or TV up to 4K @ 60Hz.
The dual Gigabit Ethernet ports enable router and NAS functions.
Smart Fan Cooling
The temperature control is through a smart fan, which runs nearly silent and can be optimized to different use cases.
Graphics and Applications
The GPU is an Intel UHD Graphics 600, with support for video and digital signs, home TV use (larger screens dimensions) medical equipment and education applications.
Connectivity
The connectivity is made through IEEE 802.11 dual-band WiFi AC, and Bluetooth 5.0.

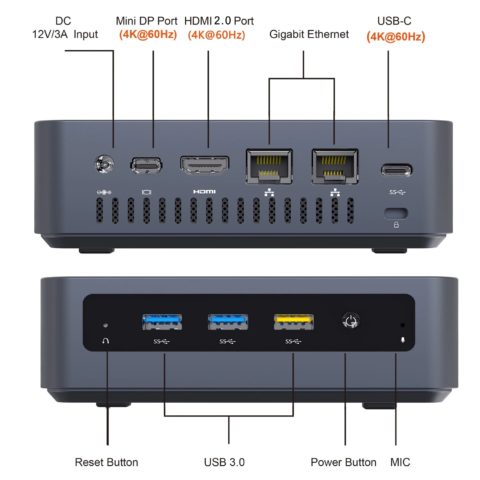

I/O Ports
Front
-
-
- Built-in MIC
- USB 3.0 Fast Charge
- USB 3.0 x 2
- Power
- Reset
-
Back
-
-
- USB Type-C (DCin / 4K Video / Data)
- Gigabit Ethernet RJ45 x 2
- HDMI 2.0a port
- Mini DP port
- DC 12V/3A input
-
Operating System Options for GK45 Mini-PC
There is support for Windows 10, Linux loaded to the NVMe SSD, for quicker start speeds and loading capabilities. There is 4GB or 8GB LPDDR4 2133 MT/s onboard RAM and a TF Card Reader (SD).
Kodlix GK45 Specification
| General | Brand: KODLIX Model: GK45 Type: Mini PC System: Windows 10 Pro CPU: Intel Gemini Lake J4105 Core: 2.5GHz,Quad Core GPU: Intel HD Graphics 600 RAM: 4G RAM RAM Type: LPDDR4 Max. Extended Capacity: TF card up to 64GB (not included) Maximum External Hard Drives Capacity: 2TB Color: Black |
|---|---|
| Media Supported | Decoder Format: H.263,H.264,H.265,HD MPEG4 Video format: 1080P,4K,AVI,FLV,ISO,MKV,MP4,MPEG1,MPEG2,MPEG4,RM,WMV Audio format: AAC,APE,FLAC,MP3,OGG,RM,WAV,WMA Photo Format: GIF,JPEG,JPG,PNG Support 5.1 Surround Sound Output: Yes |
| Product Details | 5G WiFi: Yes WIFI: 802.11 a/b/g/n/ac, Dual-band WiFi 2.4GHz/5GHz , Dual wireless antenna Bluetooth: Bluetooth 5.0 Power Supply: Charge Adapter Interface: DC 12V,HDMI,Microphone Jack,Mini DP,RJ45,TF card,Type-C,USB2.0,USB3.0 Language: Multilanguage HDMI Version: 2.0 Other Functions: ISO Files,Others HDMI Function: HDCP Power Consumption.: 10W RJ45 Port Speed: 1000Mbps |
| Firmware Information | System Bit: 64Bit |
| Power Requirement | Power Type: External Power Adapter Mode Power Input Vol: 12V Suggest Input: 12V 3A Power Adapter Input: 100-240V / 50-60Hz |
| Dimensions and Weight | Product weight: 0.3500 kg Package weight: 1.1000 kg Product size (L x W x H): 13.60 x 12.00 x 4.60 cm / 5.35 x 4.72 x 1.81 inches Package size (L x W x H): 20.00 x 14.50 x 7.55 cm / 7.87 x 5.71 x 2.97 inches |
| Package Contents | Package Contents: 1 x Mini PC, 1 x Power Adapter, 1 x HDMI Cable, 1 x English User Manual |
Pricing and Continuing Information
The Kodlix GK45 mini PC is priced at $249.99 on Amazon, and 239.99 on GearBest – See GK45 product page, the AndroidPC.es article, and the eCommerce listings for more information.
Stephen started writing about technology after publishing sci-fi short stories. His first White-Paper, written in 2008, was well received and inspired him to continue writing about technology. Today he writes in the technology space full time, covering a multitude of topics. During the time he wrote part-time he edited hundreds of titles for large publishers, in science and technology. He lives in Staten Island, with his wife and children.
Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress
Nice, but way too expensive.
I would love to win one of these during giveaway week. 😉
If it would have 8GB of RAM for the same price, I would definitely look shortlist it 🙂
The J4105 has only 6 PCIe-2 6 lanes. So the NVMe is probably x2 and SATA only not PCI. Better go with an Odroid H2 with one NVMe PCI x4 and two SATA ports on which you can install up to 32GB of memory. Also has two 1GbE ports. A much better deal for the same final price. Finally because it’s a DIY SBC you can use whatever disk size you want i.e. 10TB.
Its one nvme the rest is all sata as per the article above. So just one real ssd, one emmc, and twice sata.
You’re mistaken. Wi-Fi is via CNVi, so no PCIe needed. Two PCIe for Ethernet, which leaves four PCIe for NVMe, as nothing else uses PCIe.
