Strawberry4Pi is an ecosystem of hardware, firmware, and software to create home automation and IoT projects with for Raspberry Pi boards.

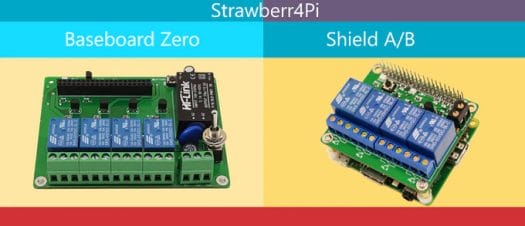

The project offers a pre-configured Linux operating system, a mobile app for Android and iOS, as well as two boards with four relays: Strawberry4Pi baseboard Zero for Raspberry Pi Zero (W), and Strawberry4Pi shield A/B for the larger boards such as Raspberry Pi 3 Model B+ or Model A.
Strawberry4Pi boards specifications:
- 4x SONGLE relays
- Misc – Temperature sensor and Wifi configuration button
- Power Supply
- Baseboard Zero – 100V-220V via 3-pin terminal block
- Shield A/B – 5V via 2-pin terminal block
- Dimensions
- Baseboard Zero – 97 x 75 mm
- Shield A/B – 65 x 56 mm
- Certifications – CE/FCC

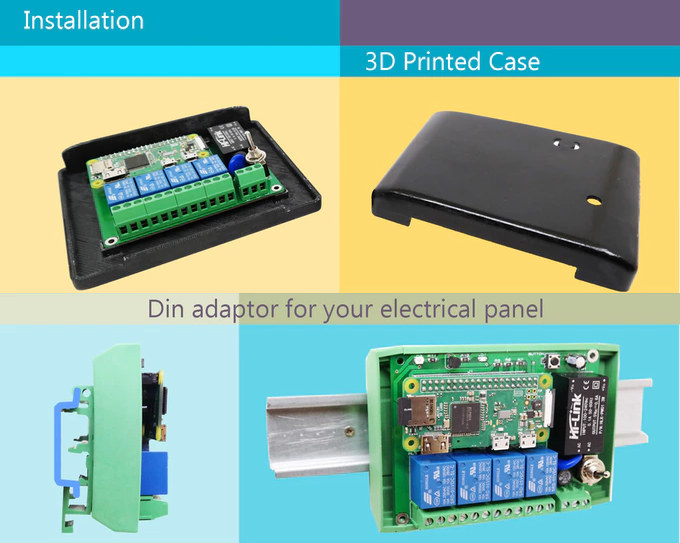

A 3D printed case and a DIN rail mount are also offered as options.
There’s no a whole lot of information about the operating system as most people won’t need to mess with it, but I suppose it’s either based on Raspbian Lite or built with the Yocto Project. We do have however more details about the mobile app that will be available on Google Play and Apple App Store.
The app basically allows you to control “Pins” (the name for relays in the app) to turn them off and on manually, enabling blinking, use PWM for motors, set timers and so on. It can also work with sensors so for example a fan is turned on only if the temperature is too high.
The board can also be controlled through Google Home using Cindy voice assistant with voice command such as “OK Google, Cindy open my garage door“.
The project has launched on Kickstarter, and already surpassed its lowly 2,349 GBP target (almost $3,000 US). Pledges start at $29 for Strawberry4Pi Shield A/B and $39 for Baseboard Zero. Full kits with a Raspberry Pi board start at about $65. Shipping adds around $6.5 worldwide, and rewards are expected to ship to backers around August 2019.
