BBen MN10 TV Stick Review – Windows 10, Ubuntu 17.04, Benchmarks, and Kodi

The BBEN MN10 is the second Apollo Lake device to be released in the stick form-factor and on paper looks to have a lot to offer:

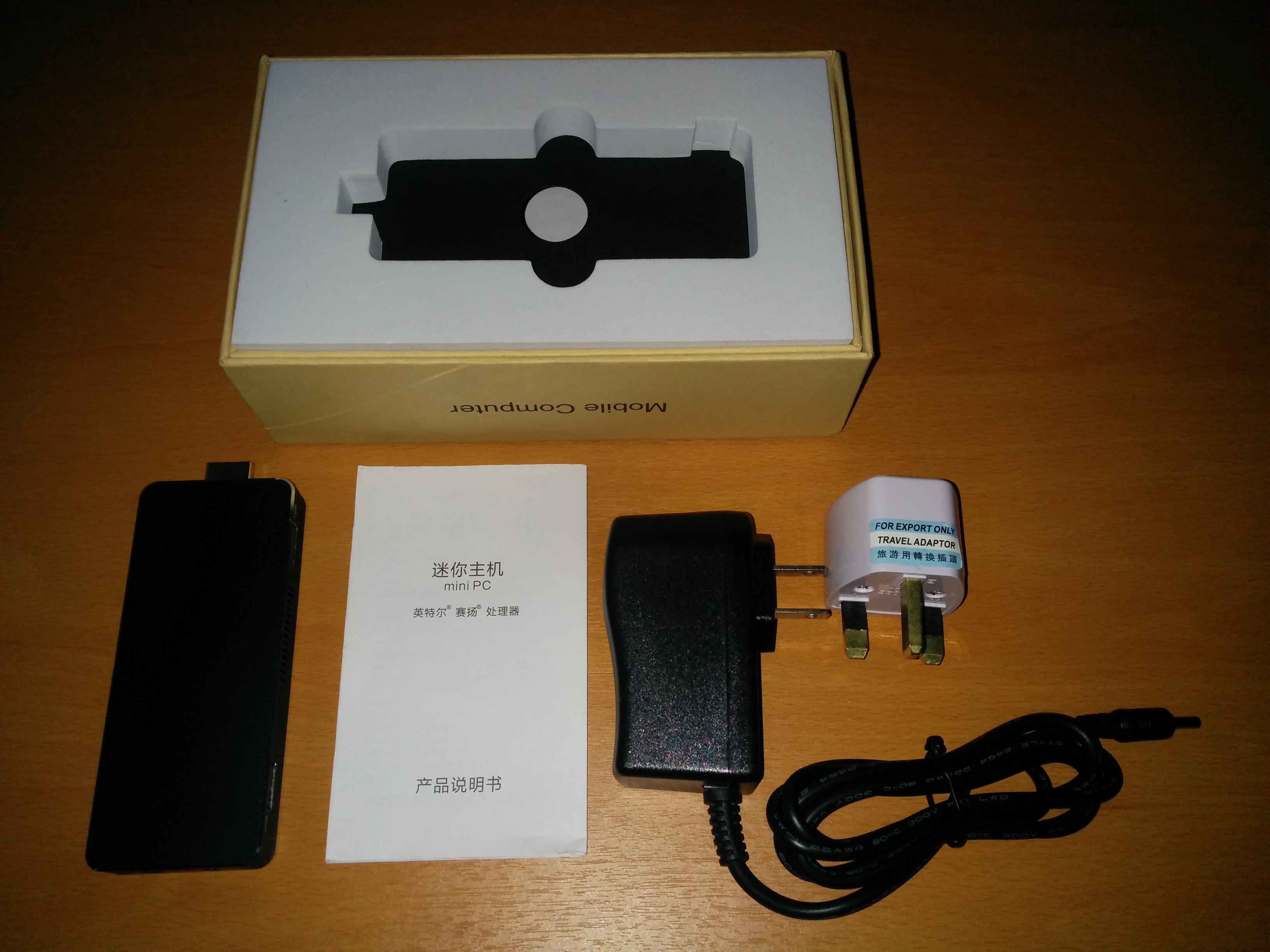

It features an Apollo Lake N3350 SoC, an unusual 3GB of RAM, 64GB of storage and is cooled by a ‘mute’ fan. The devices comes in a plain box with a power adapter, and a leaflet style manual.

It also included a three-pin UK power adapter, as this was advertised as the ‘BBen MN10 Mini PC  –  UK PLUG  BLACK’.

Looking at the detail specifications:

We can immediately see discrepancies as the device does not have a ‘RJ45 Port Speed: 1000M LAN’ port, and was not supplied with ‘1 x HDMI Cable’ nor ‘1 x Remote Control’.

Powering on the device and the ‘mute’ fan is also a miss-representation as it starts immediately and is noticeably noisy. It also runs at full speed regardless of workload so the noise is a constant reminder that the device is switched-on:

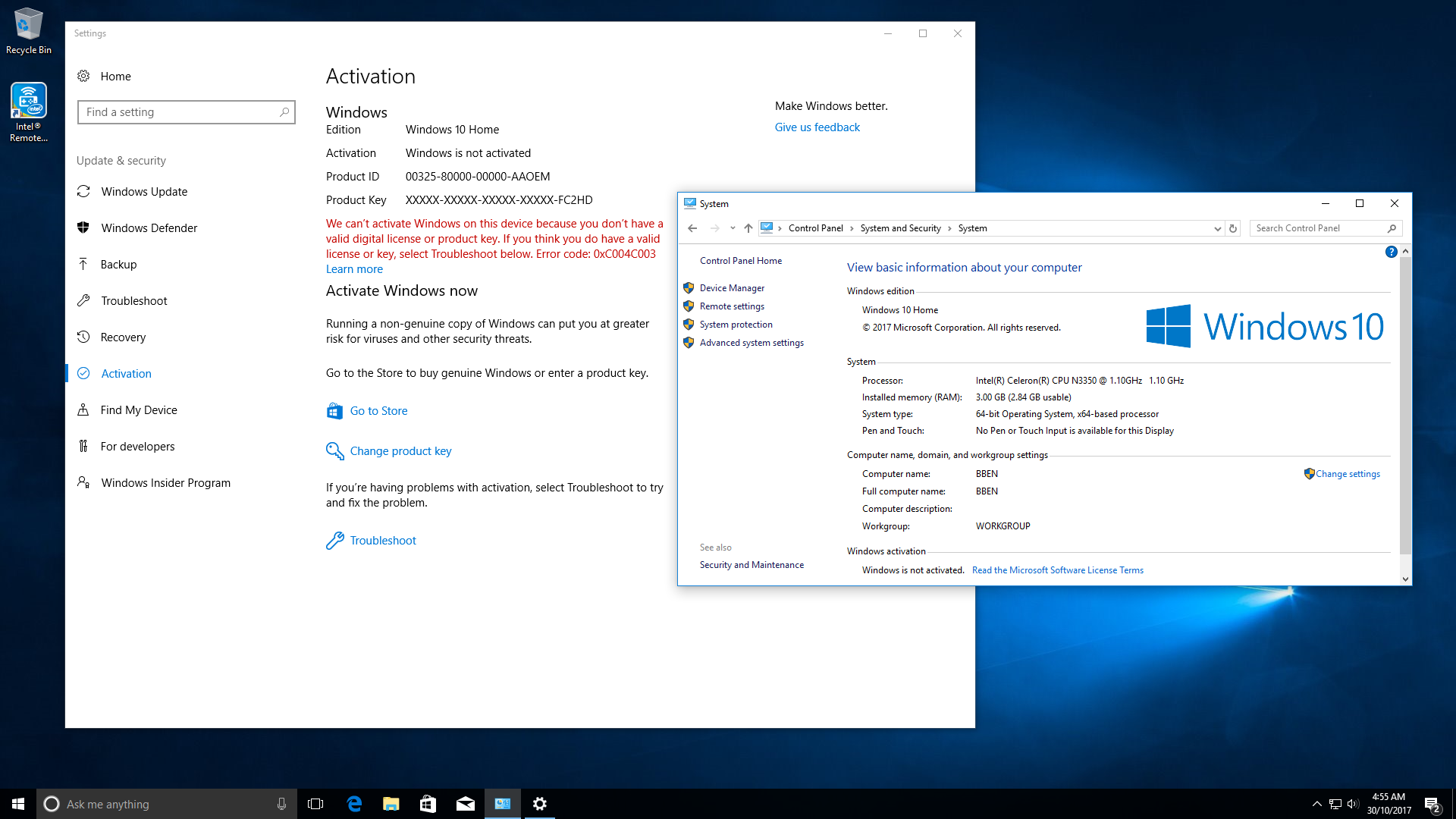

Starting Windows and the disappointment continues with a message informing that ‘We can’t activate Windows on this device because you don’t have a valid digital license or product key’:

also ‘Intel Remote Keyboard Host App’ is pre-installed (see icon top left) and the computer name is already been set as ‘BBEN’.

As a result I tried installing Microsoft’s Windows 10 Home ISO but because of the confirmed lack of license, I then installed Microsoft’s Windows 10 Enterprise product evaluation ISO in order to review the device.

The basic hardware matched the specification:

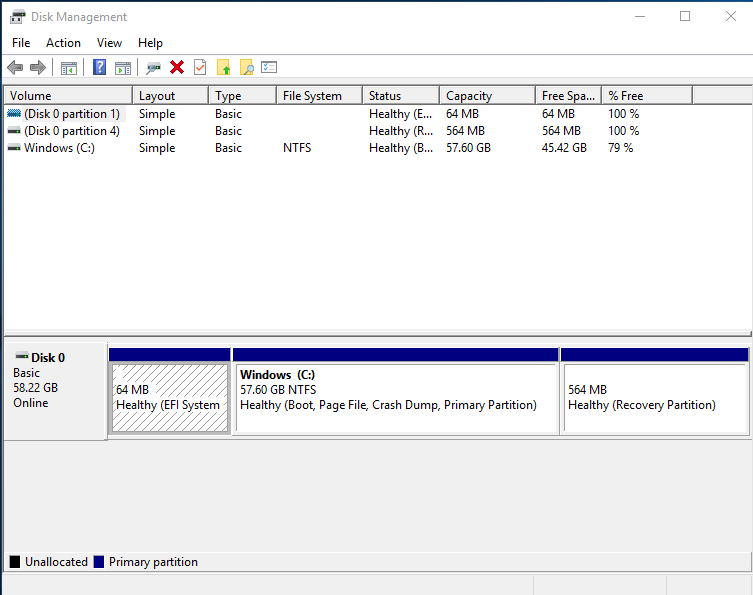

with plenty of free-space available post installation:

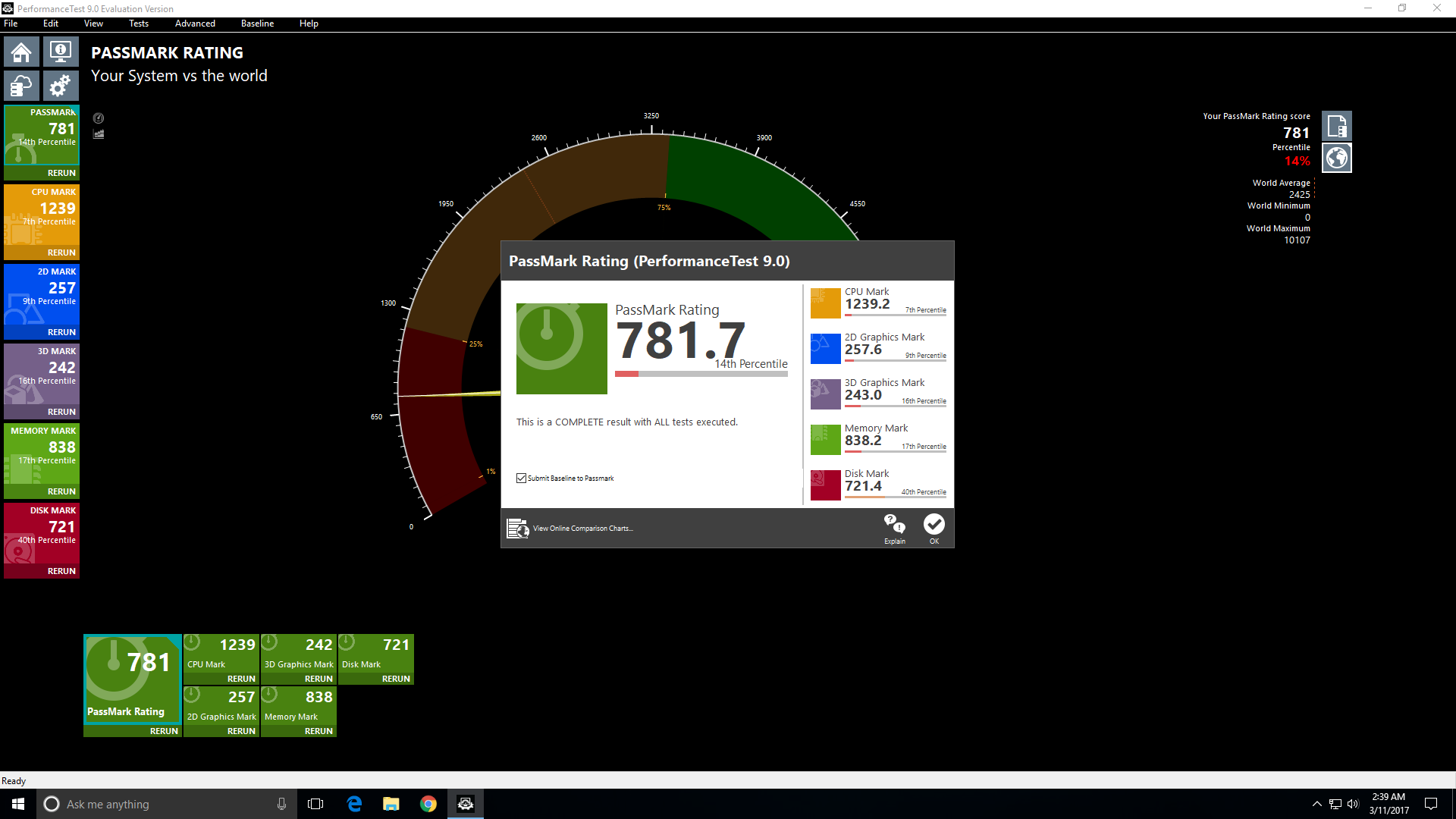

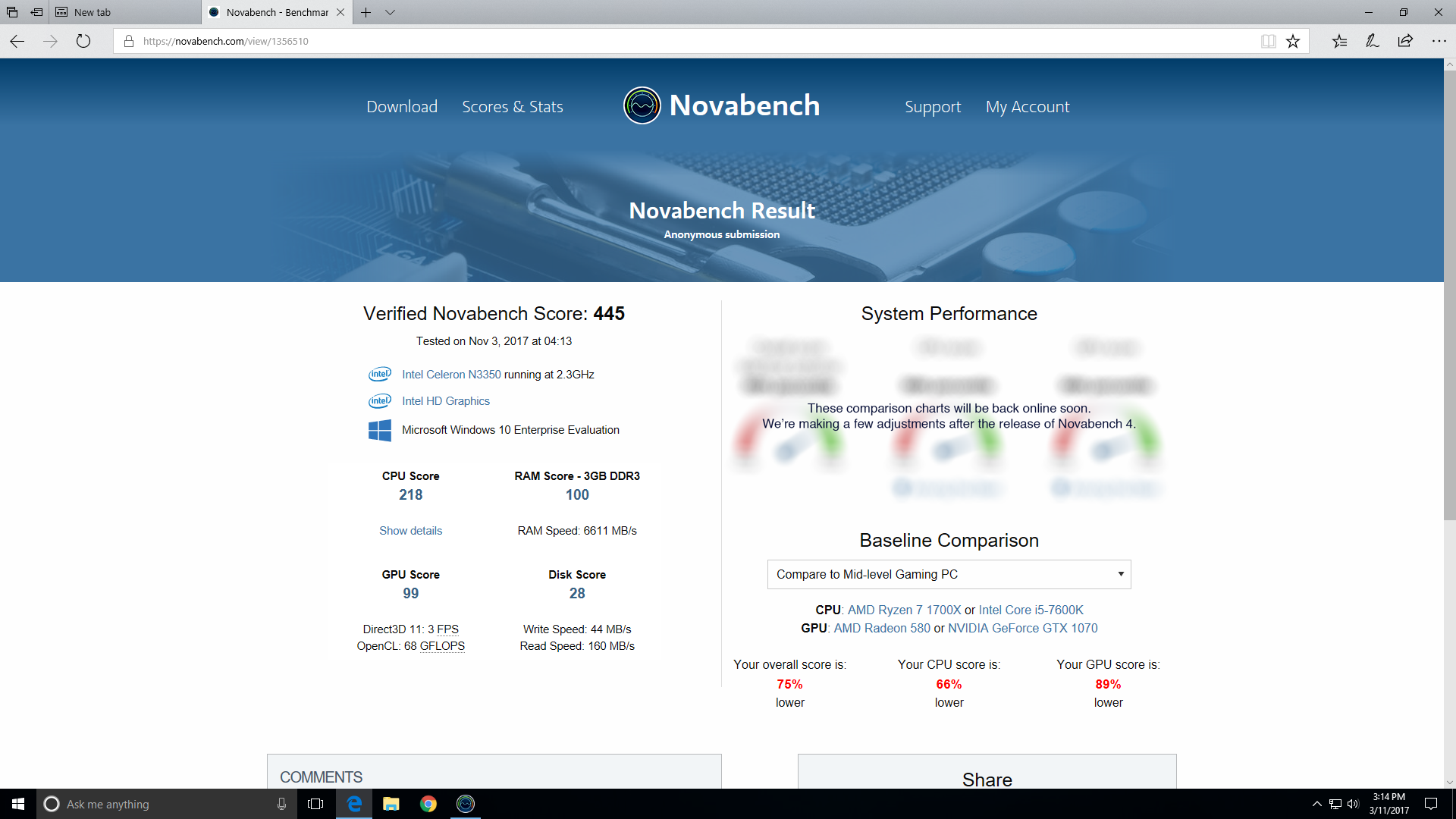

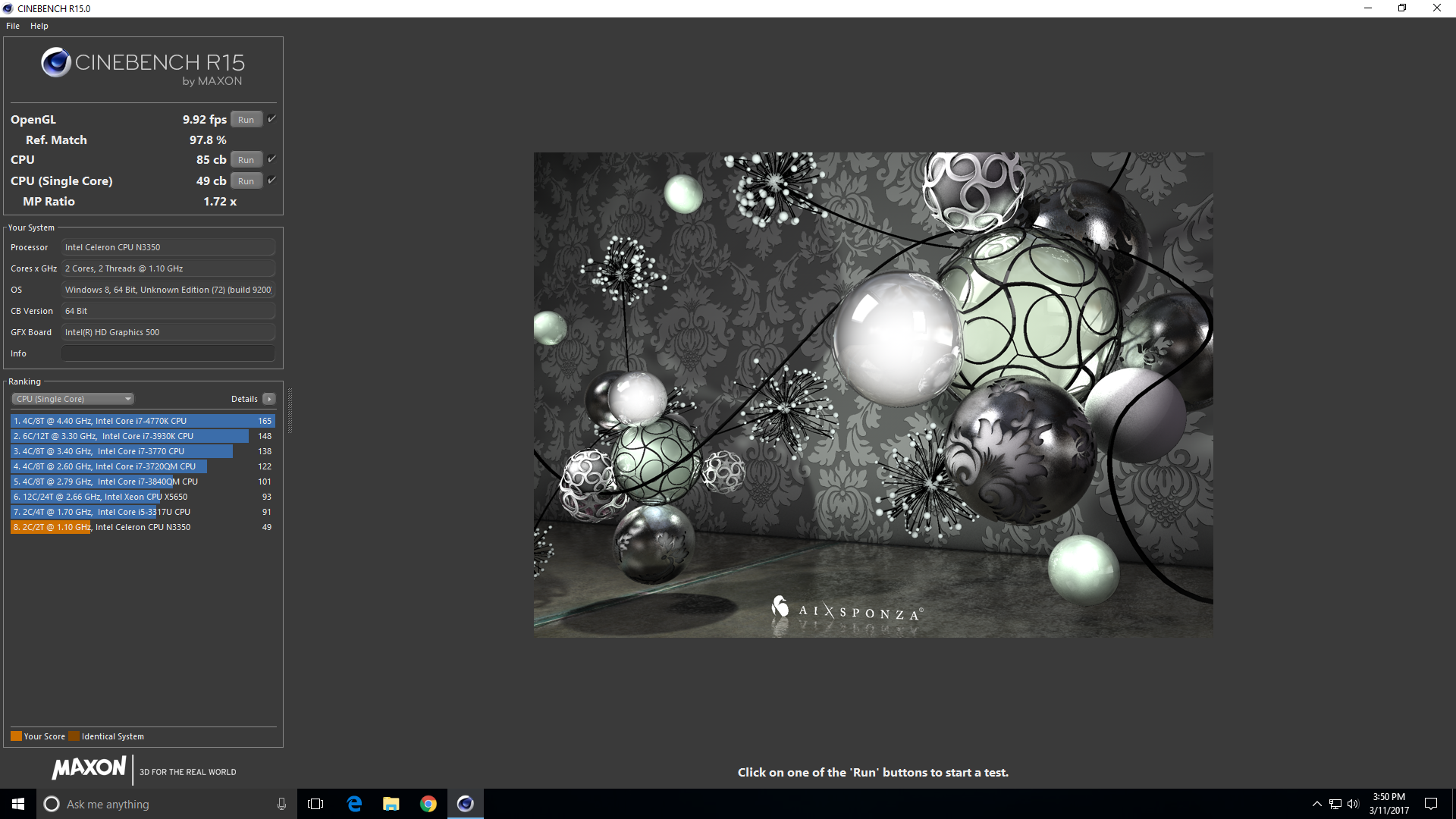

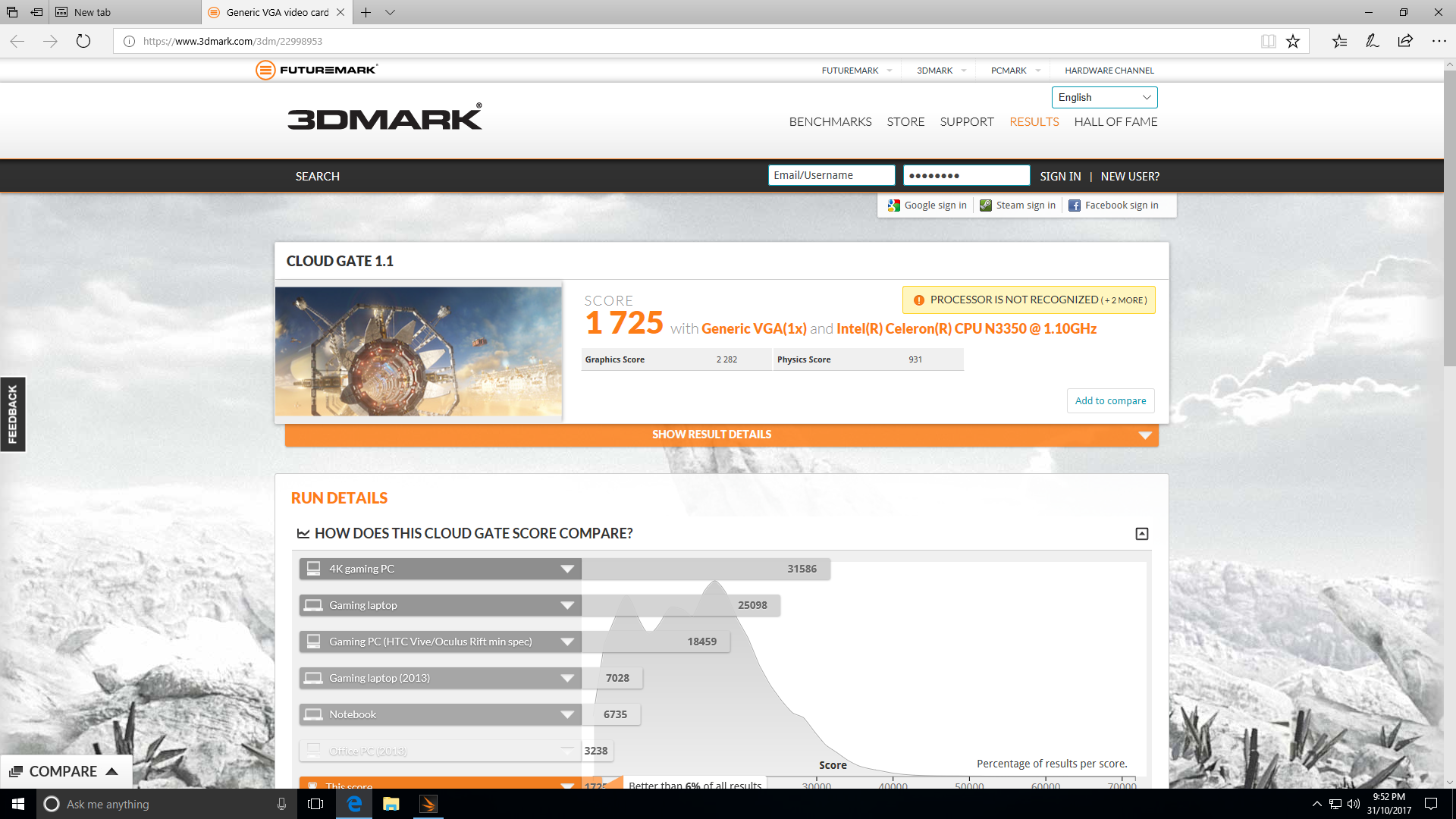

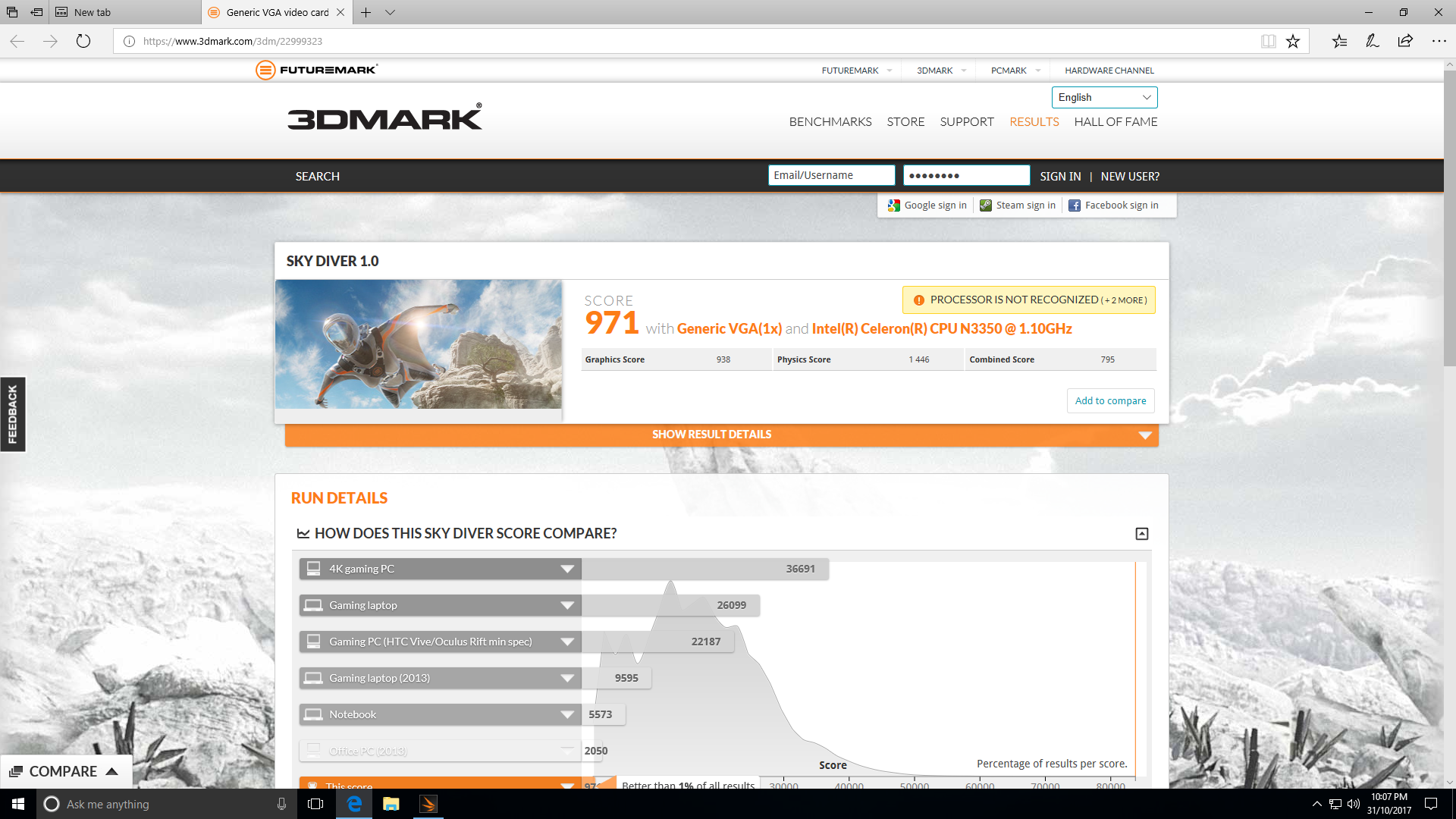

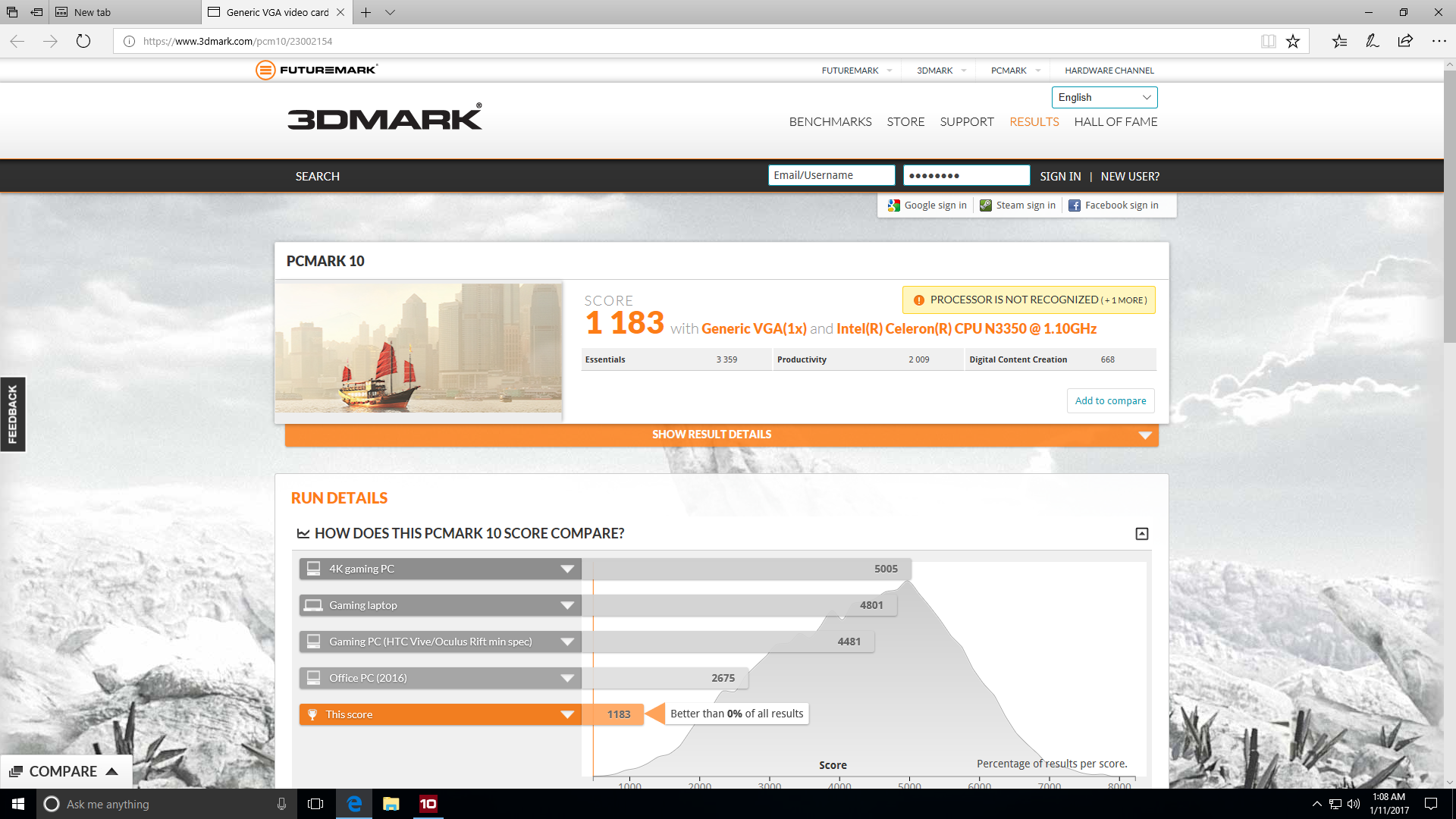

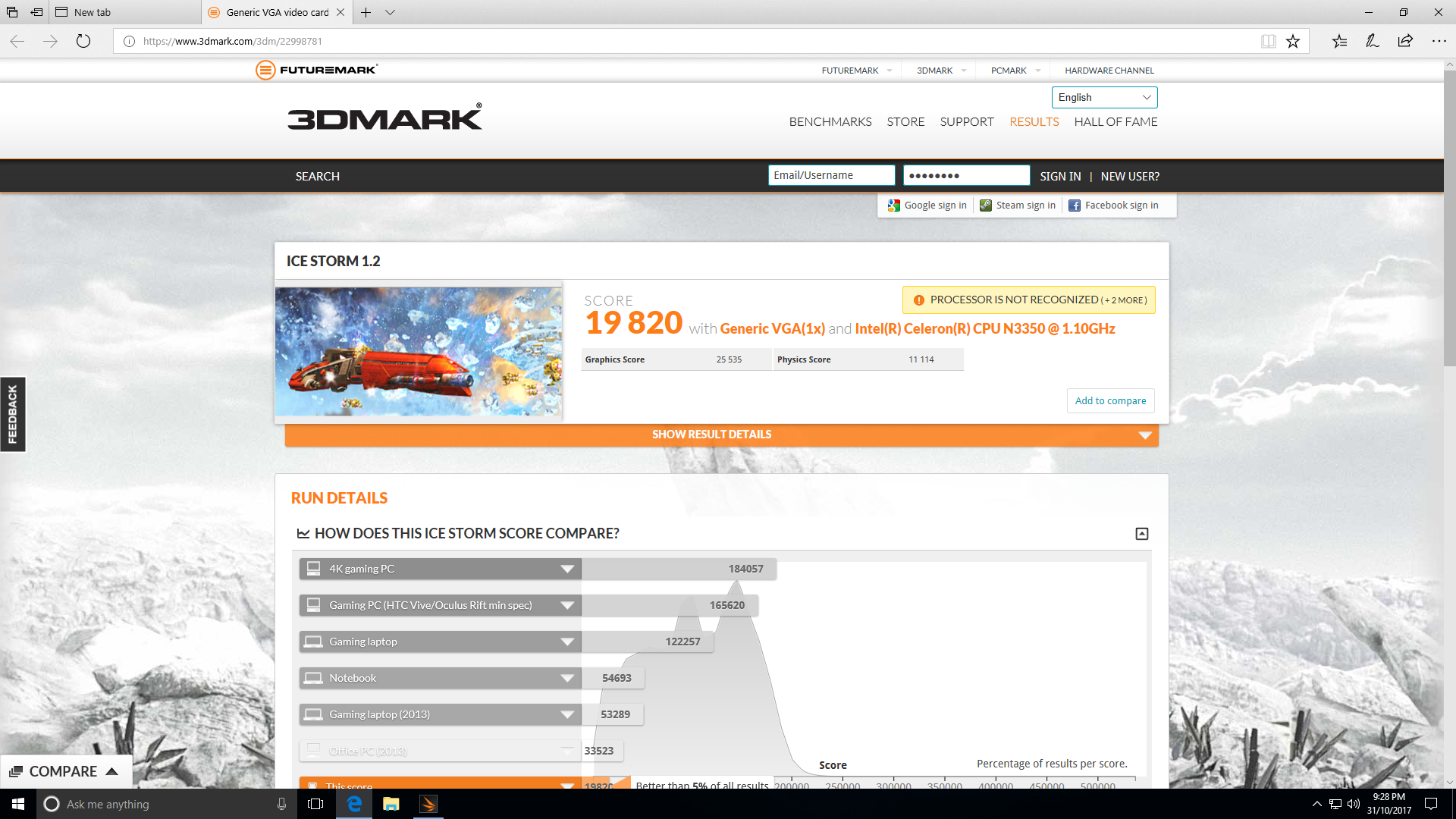

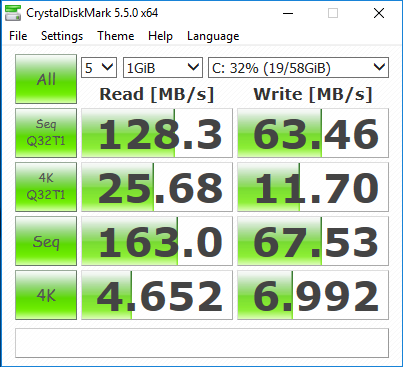

I then ran some standard benchmarking tools to look at performance under Windows. These are a new set of benchmarks as I’ve updated the tools and releases specifically for devices running Windows version 1709 and later:

As can be seen the performance is as expected for the N3350 SoC and is comparable with other devices such as ECDREAM A9 or Beelink AP34 Ultimate:

Next I installed Ubuntu as dual-boot using my ‘isorespin.sh’ script, which includes installing the rEFInd bootloader to enable booting on Apollo Lake devices when the BIOS doesn’t support Linux:

Performance is again as expected:

And can be compared with other Intel Apollo Lake and earlier Intel Atom devices:

Revisiting the hardware using Linux commands additionally shows the micro SD card is running the slower HS200 interface:

and rather interestingly a S/PDIF audio interface shows up in the sound settings. However given there is only a 3.5mm audio jack and when an external speaker is connected through it, sound works when selecting the S/PDIF interface. This again is somewhat misleading.

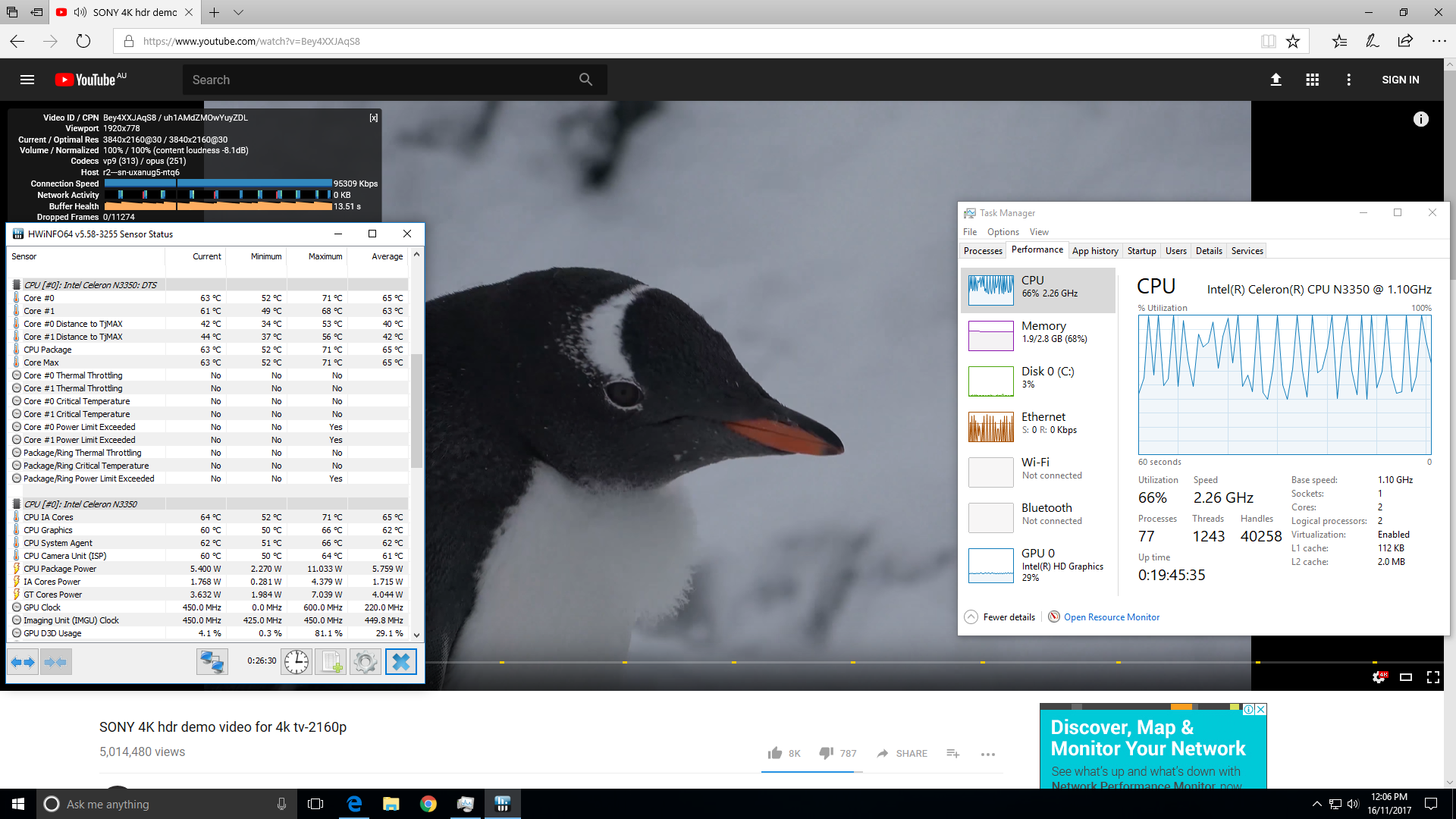

Looking at real-work Windows usage cases the first being watching a 4K video using Microsoft Edge which works flawlessly:

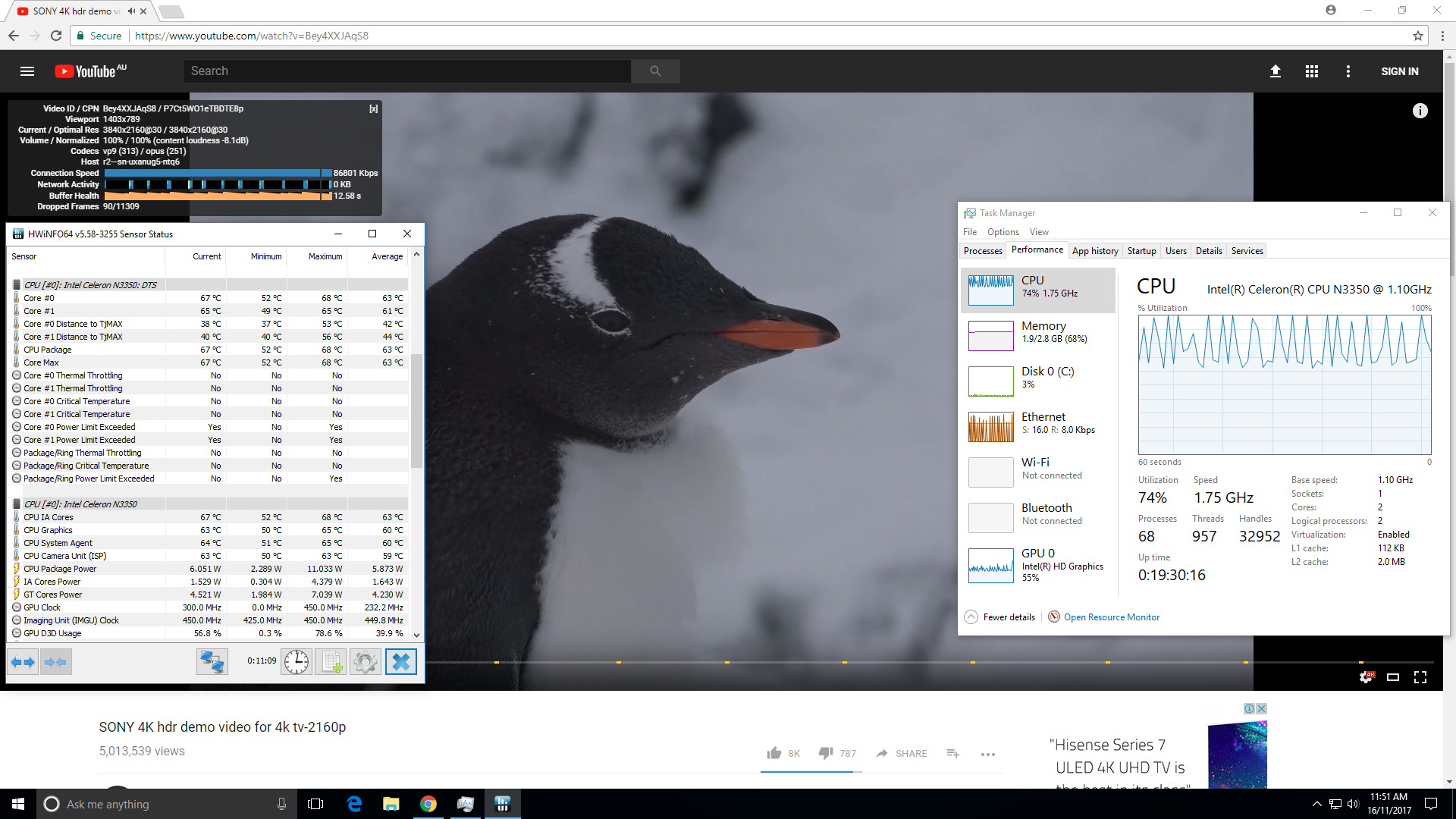

The same video when watched using Google Chrome results in occasional dropped frames:

but notice how much harder the CPU and GPU are working.

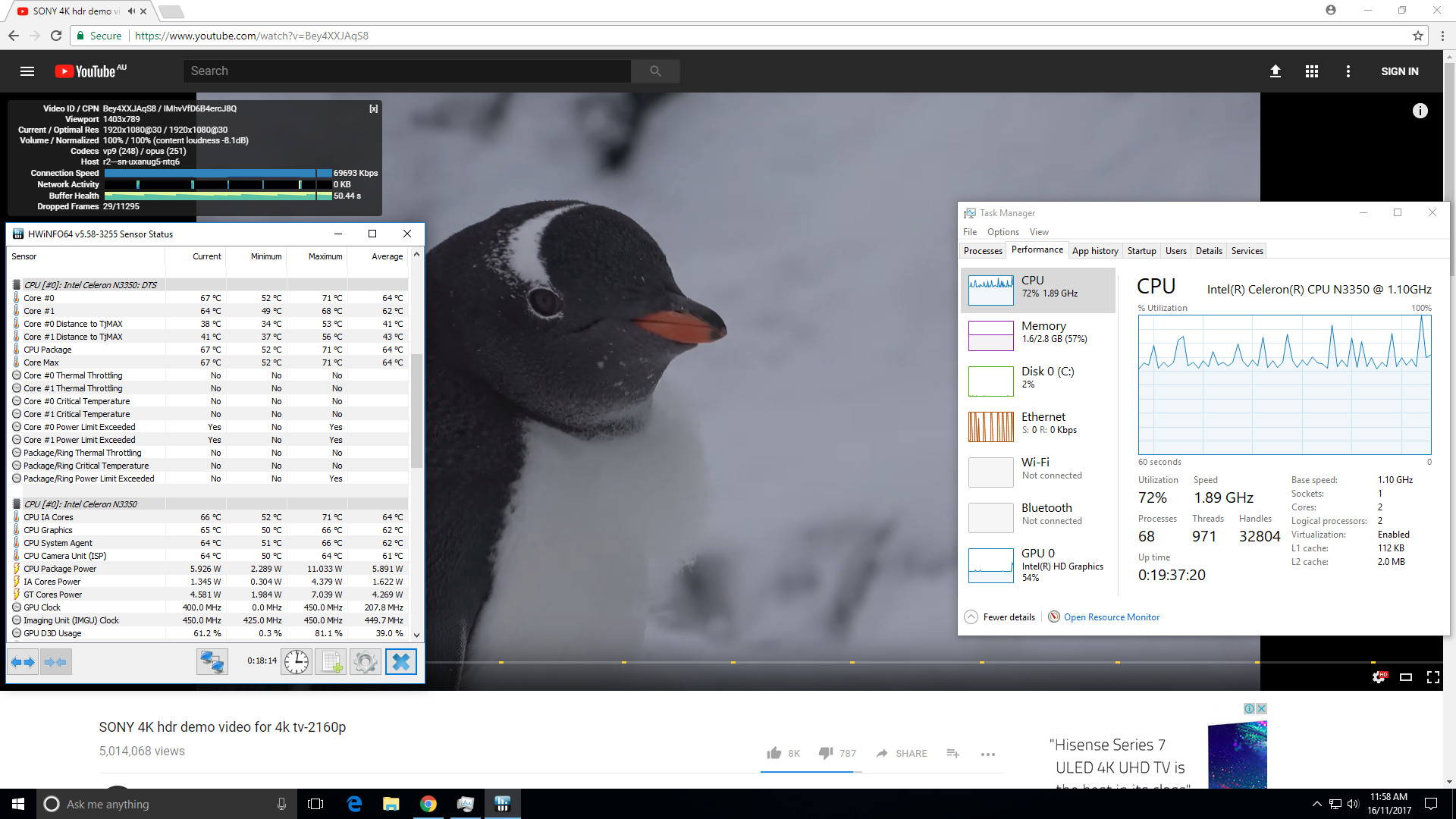

Watching the same video and changing the video quality to high definition (1080p resolution) results in a better experience.

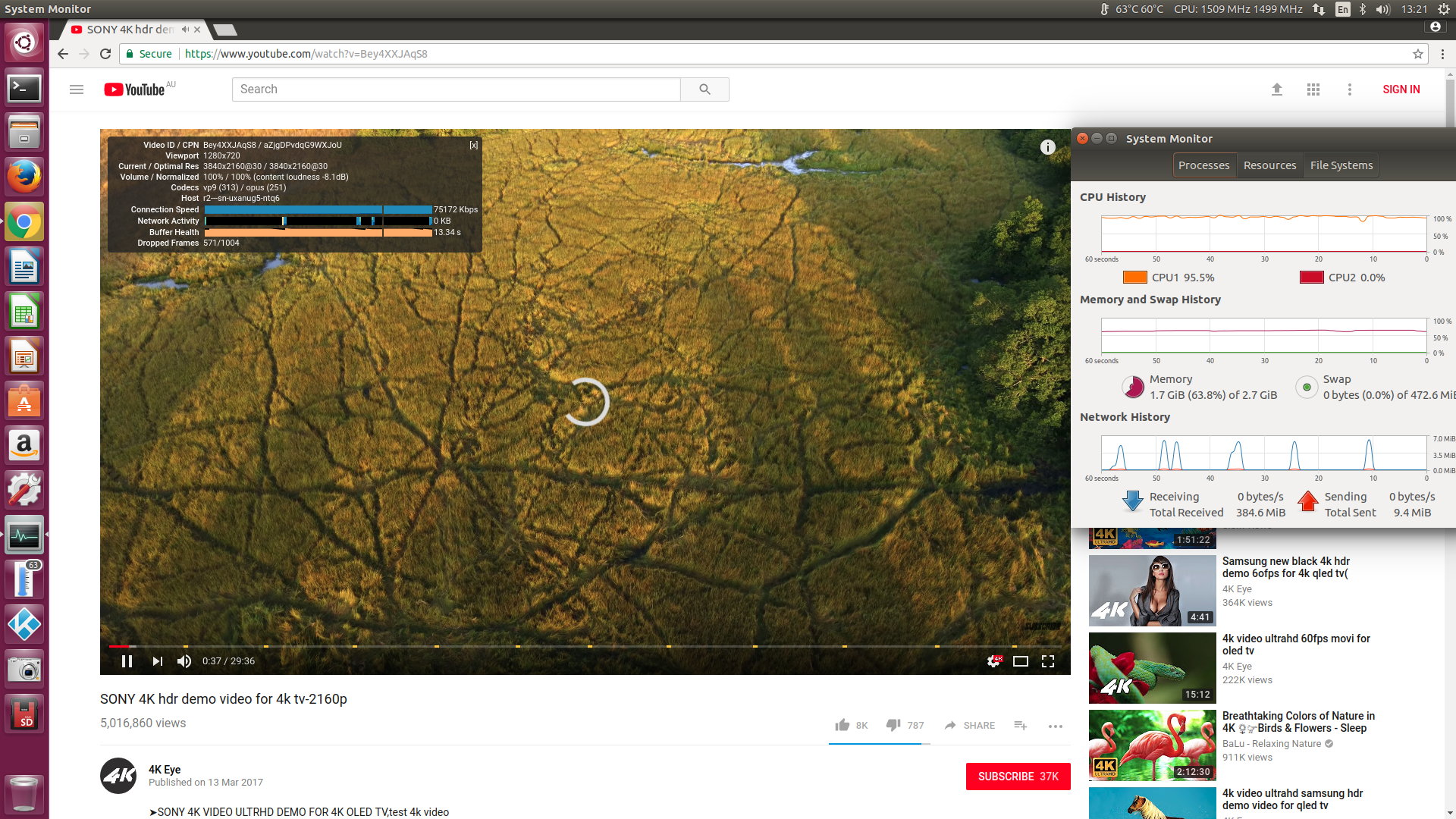

Unfortunately this can’t be said for watching the same video in Google Chrome on Ubuntu. At 4K the video is unwatchable with excessive dropped frames and a stalled network connection after a short while:

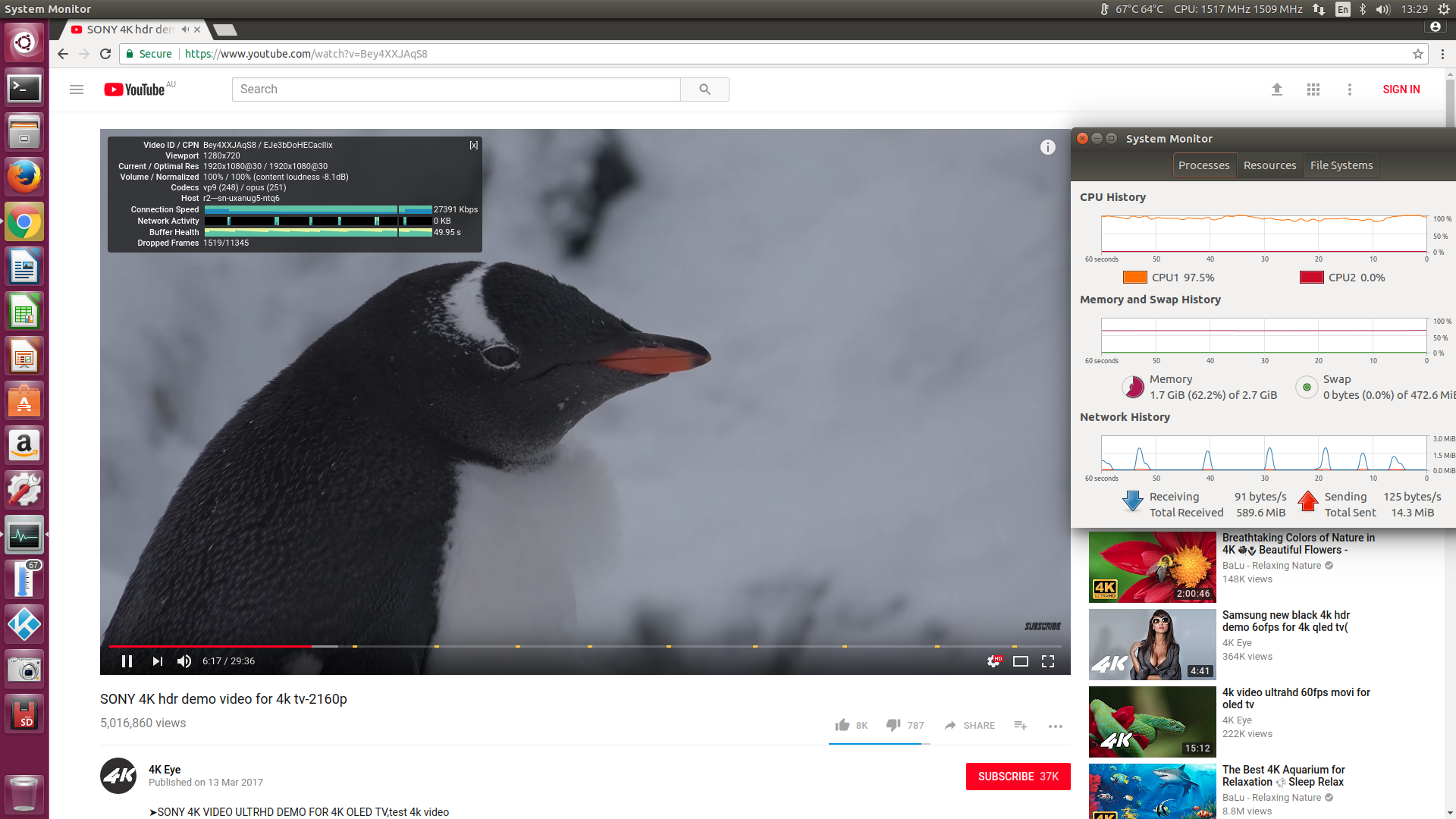

Even at 1080p the video still stutters:

Running Kodi on both Windows and Ubuntu show similar ‘differences’ in the results.

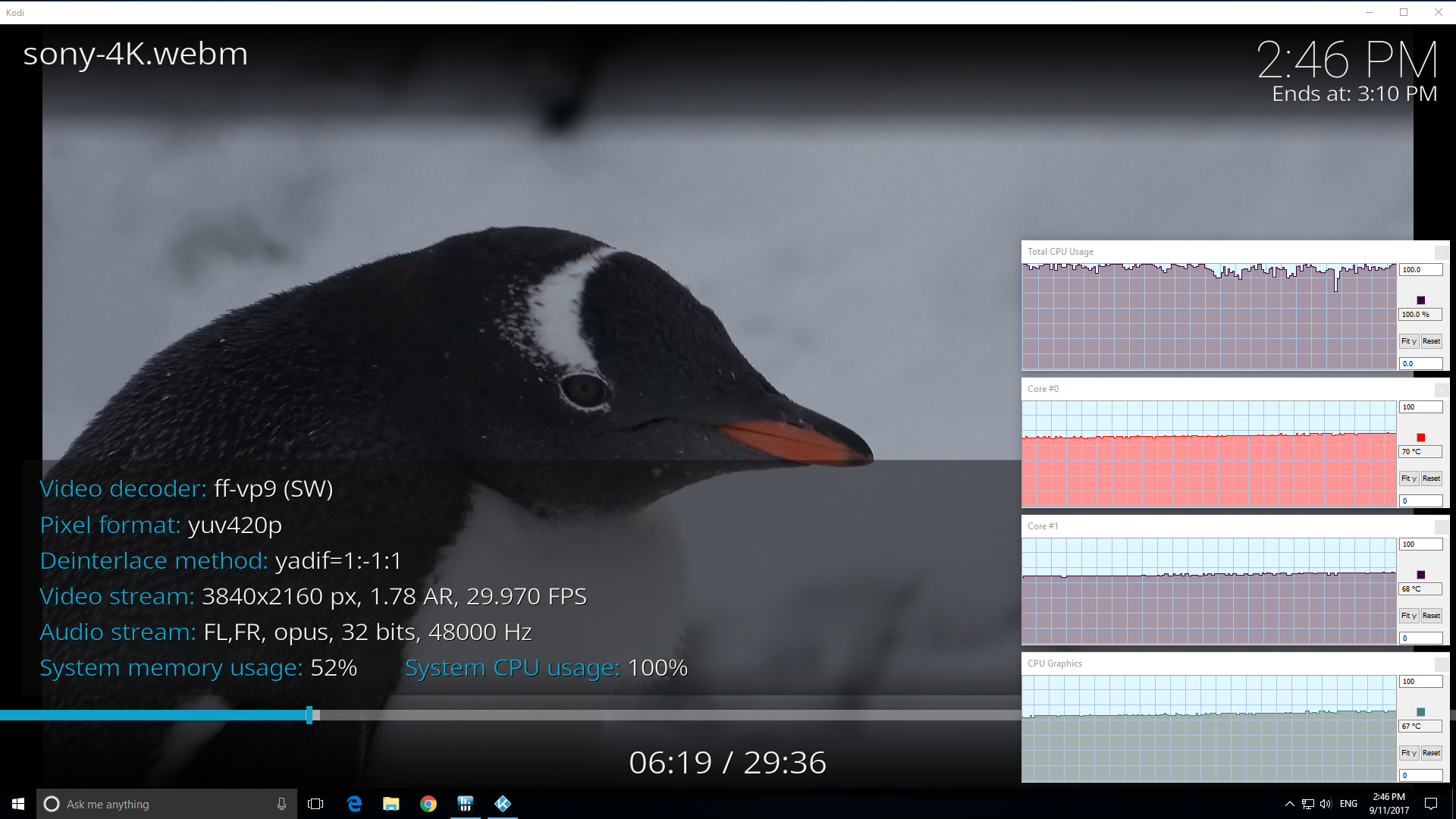

On Windows if the video is encoded using the VP9 codec then decoding is using software resulting in high CPU usage and high internal temperatures:

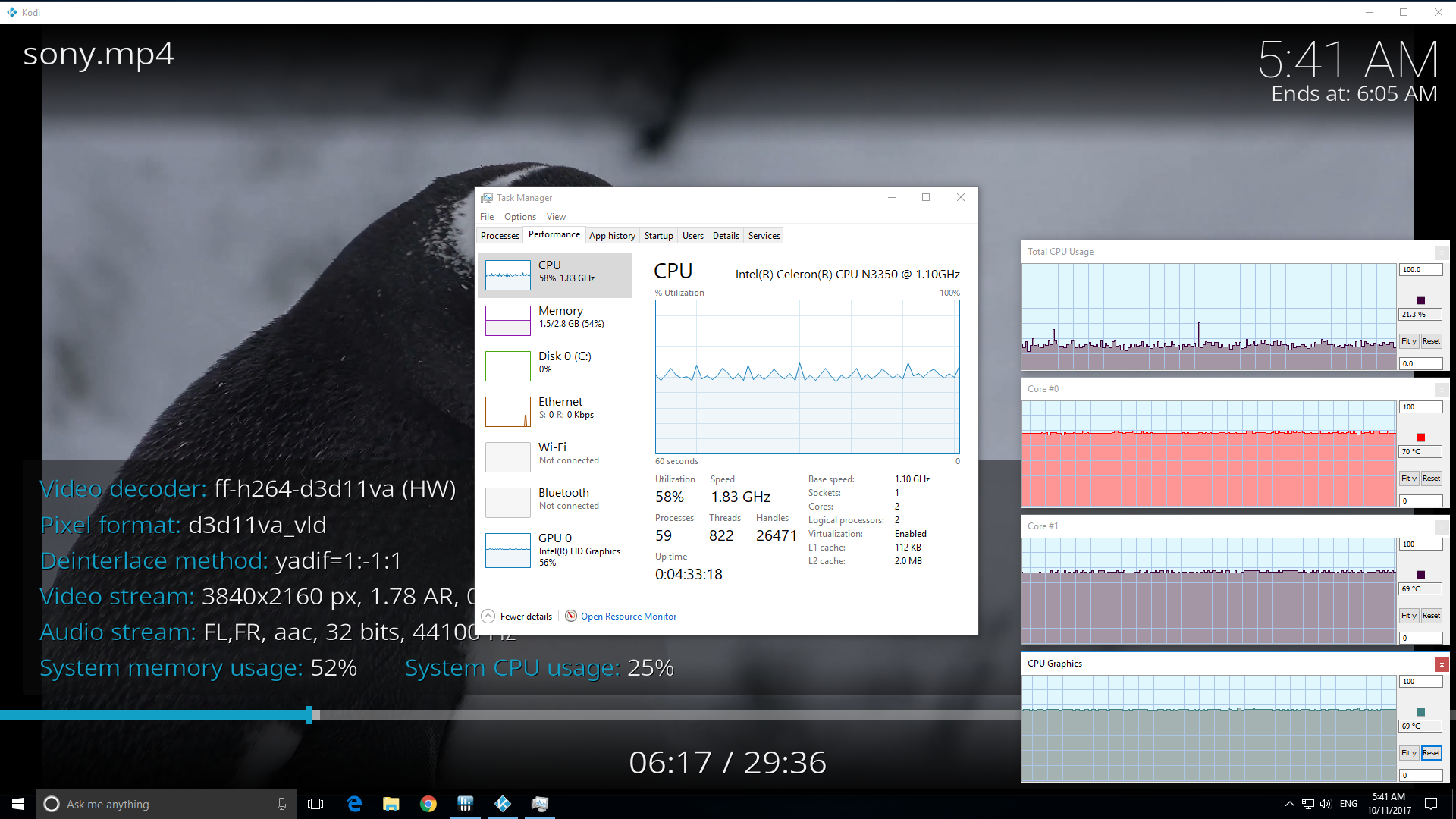

However when the video is encoded with the H.264 codec then Windows uses hardware to decode:

and similar for videos encoded with H.265 or HEVC:

with no issues playing the videos.

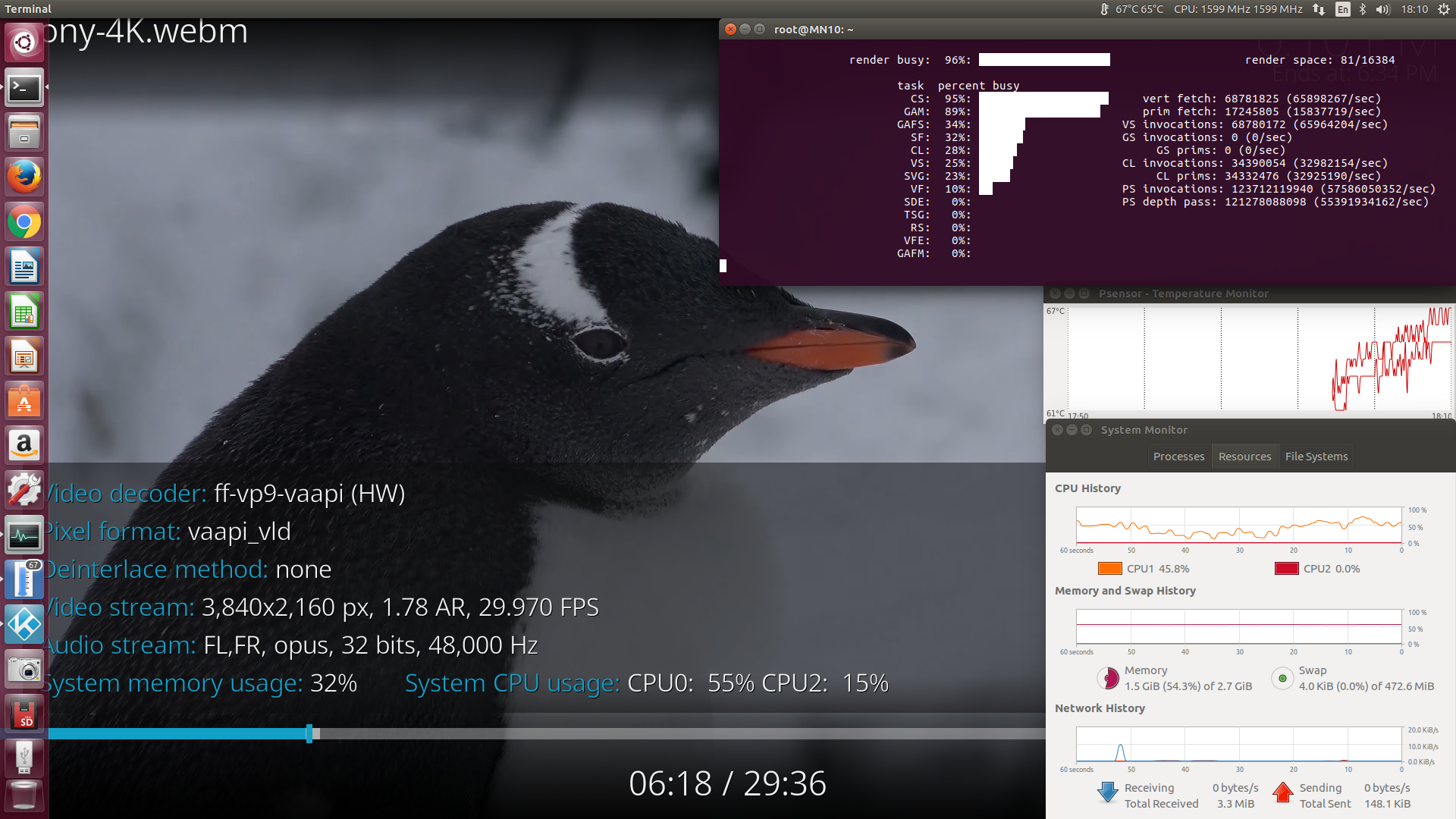

On Ubuntu hardware is used to decode all three codecs:

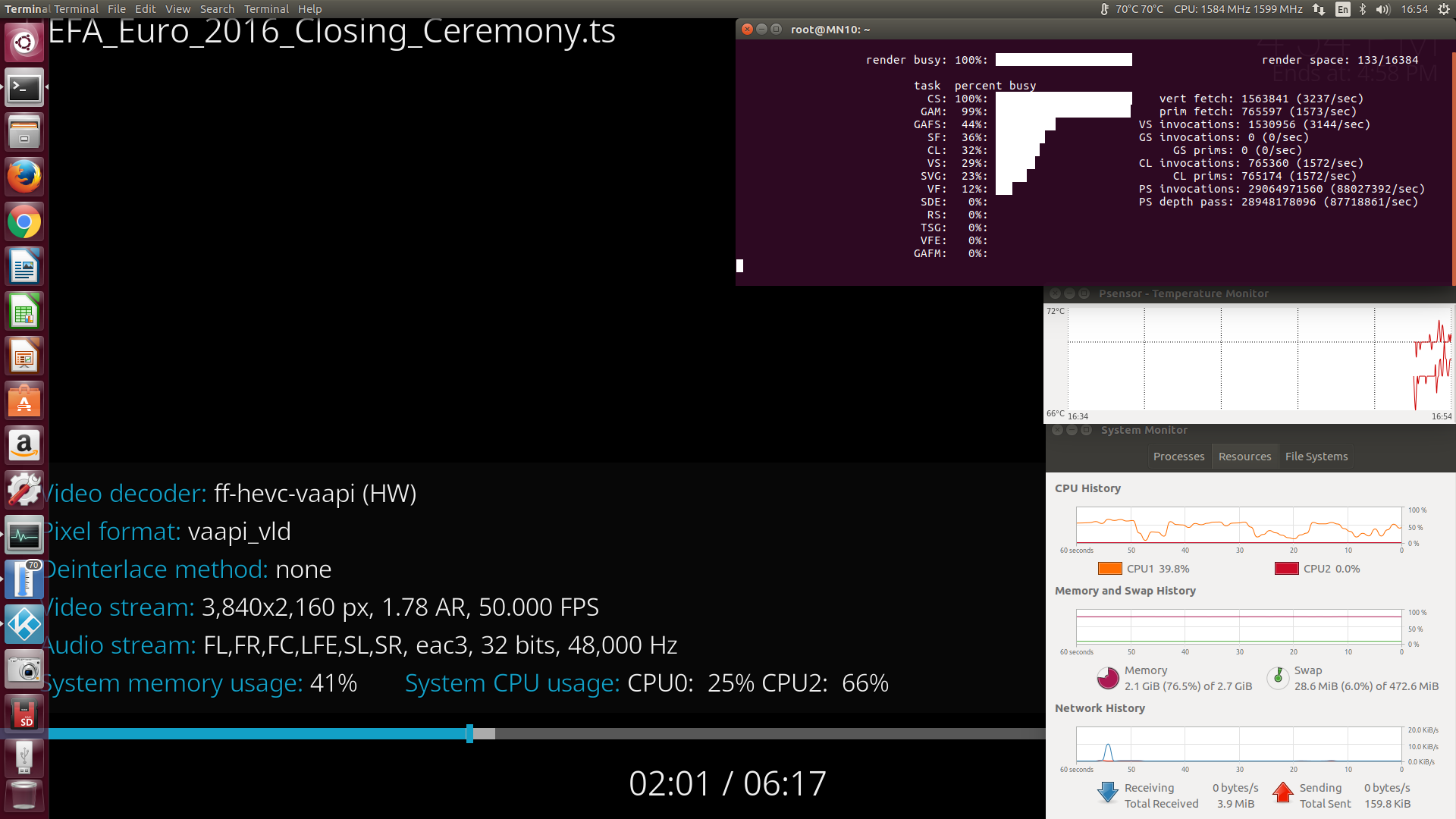

however some H.265 videos resulted in a blank (black) screen just with audio whereas others played without issue:

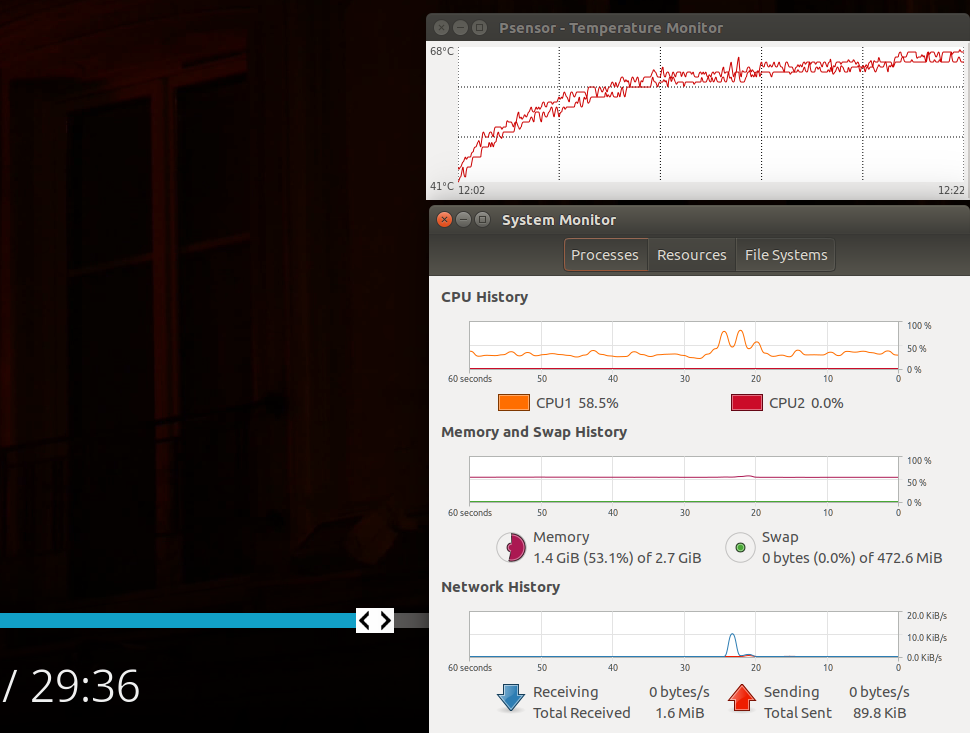

As previously mentioned the internal fan is screaming away merrily although it’s effectiveness with internal cooling is somewhat questionable:

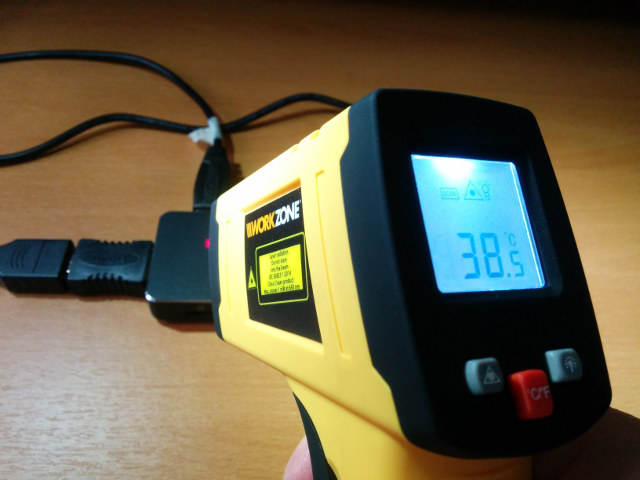

It does assist in keeping the device at a safe external temperature:

with the highest observed reading being 41°C.

So looking at the physical characteristics of the device its size is only slightly larger than the second generation Intel Compute Stick:

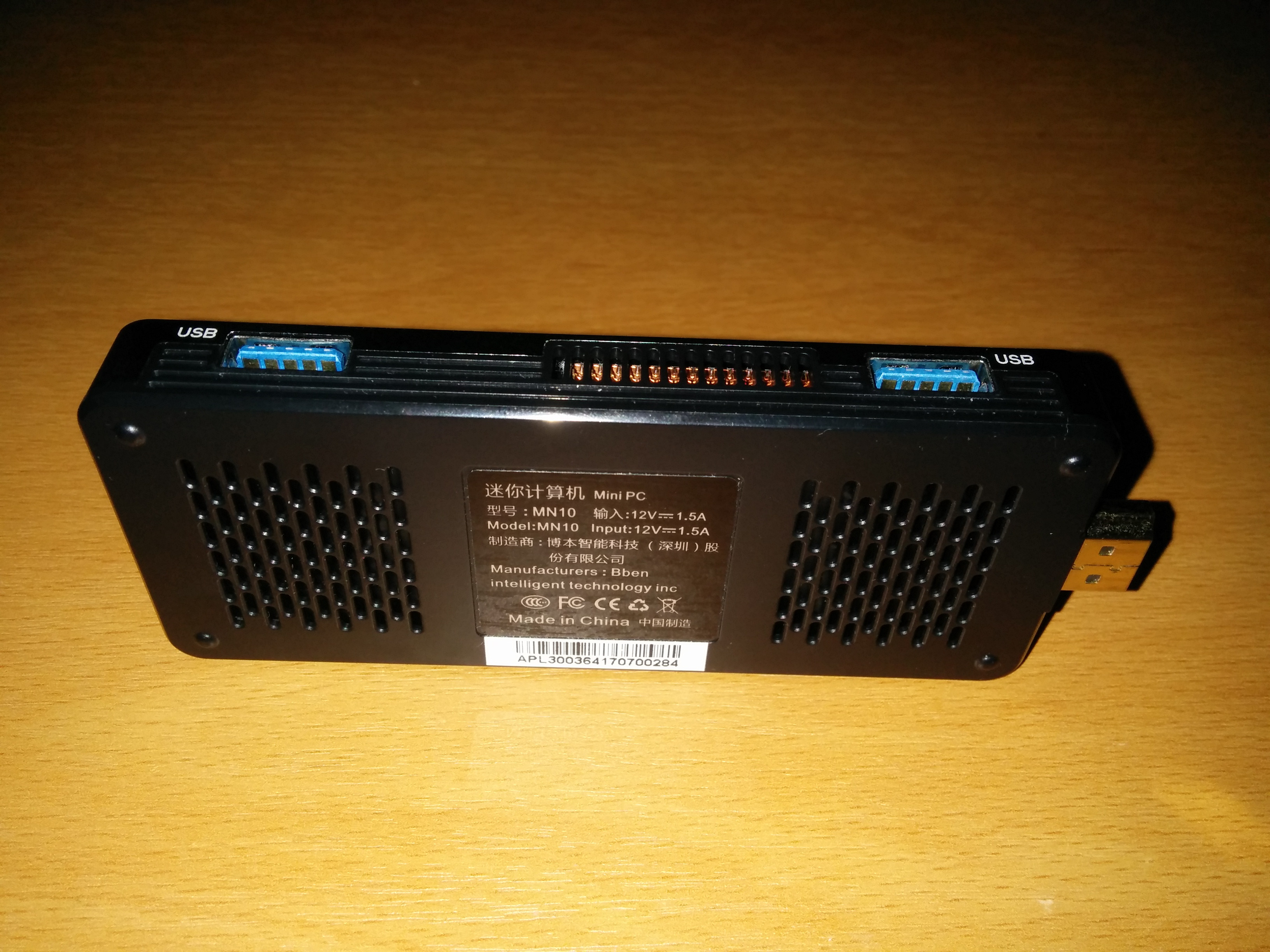

Initially I used the device upside down as it seemed sensible to have the case vents exposed:

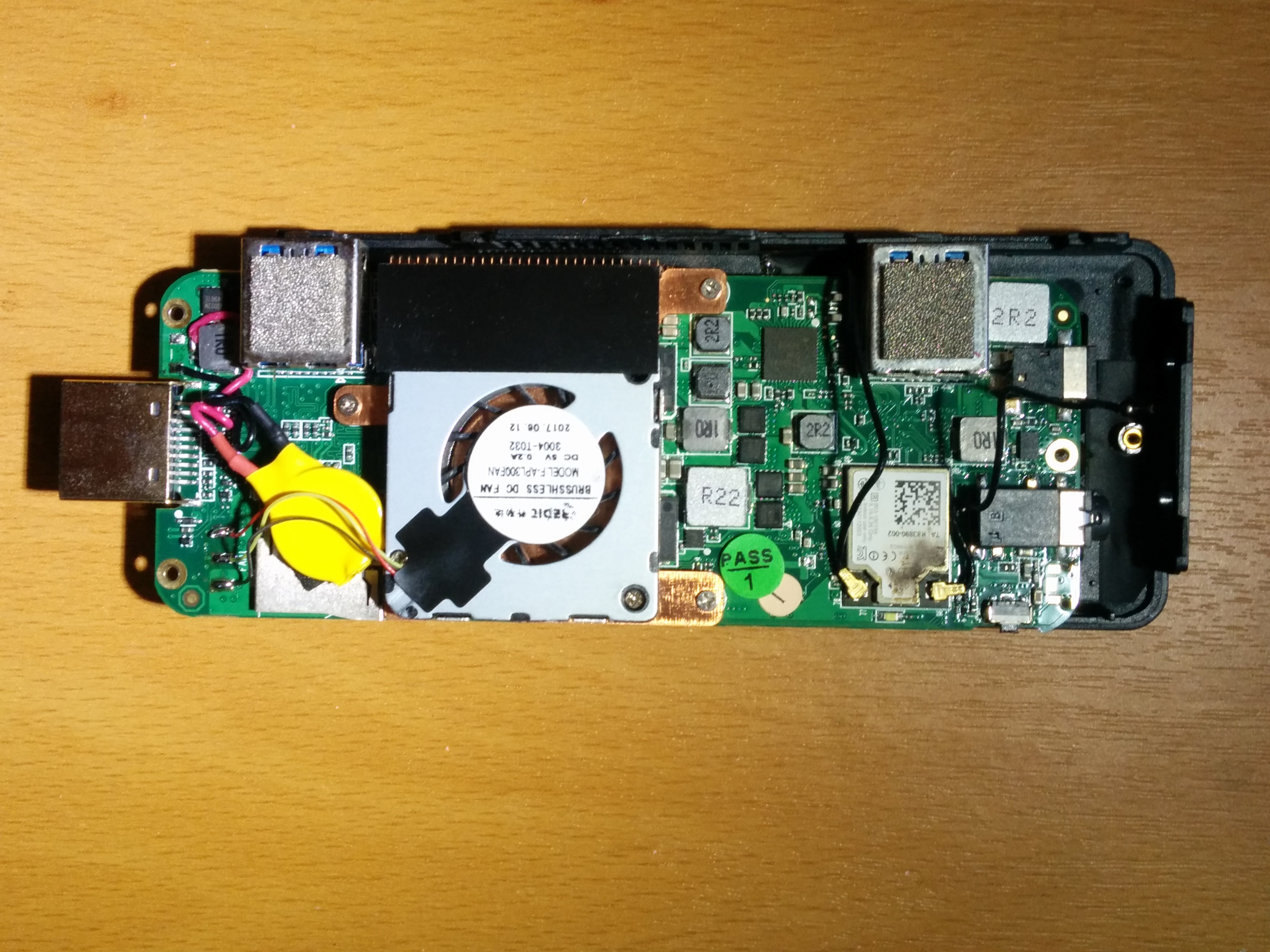

However cracking open the case reveals the fan actually uses the side vent between the two USB ports:

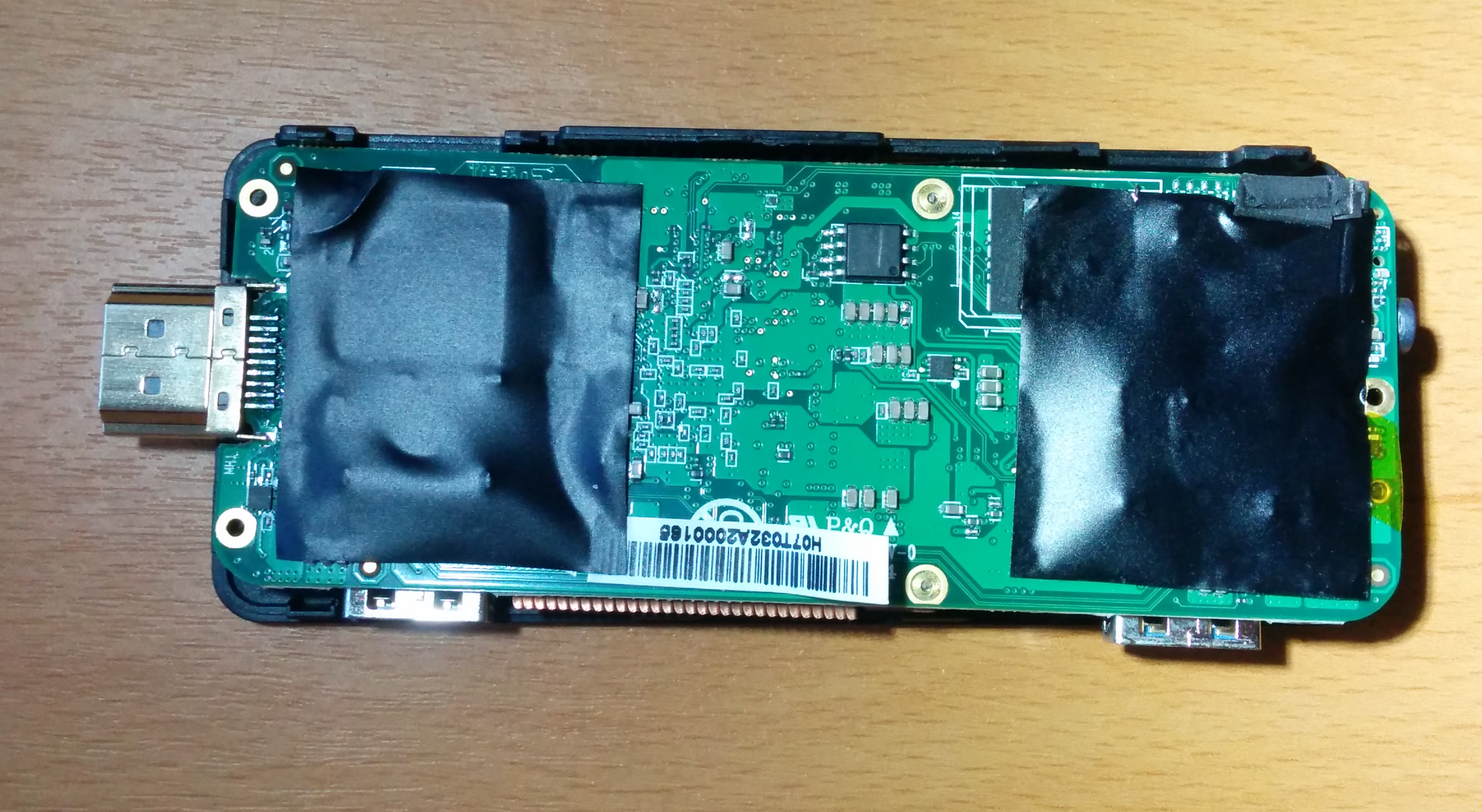

with the bottom vents for cooling the memory and storage chips:

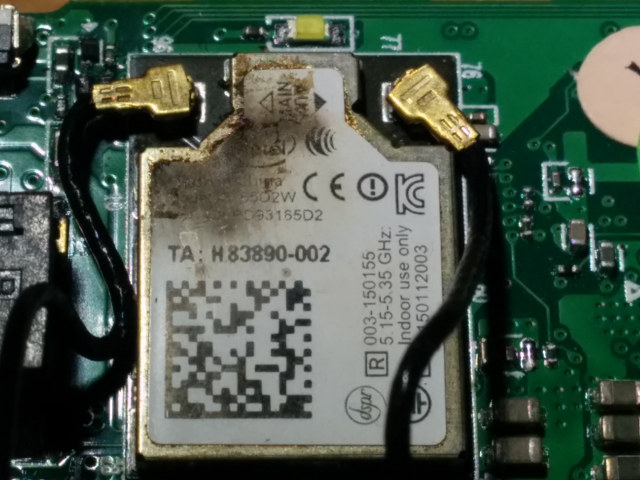

Remarkably the WiFi chip appeared to have been exposed to excessive heat at some stage:

yet had still passed inspection as evidenced by the green ‘Pass’ sticker.

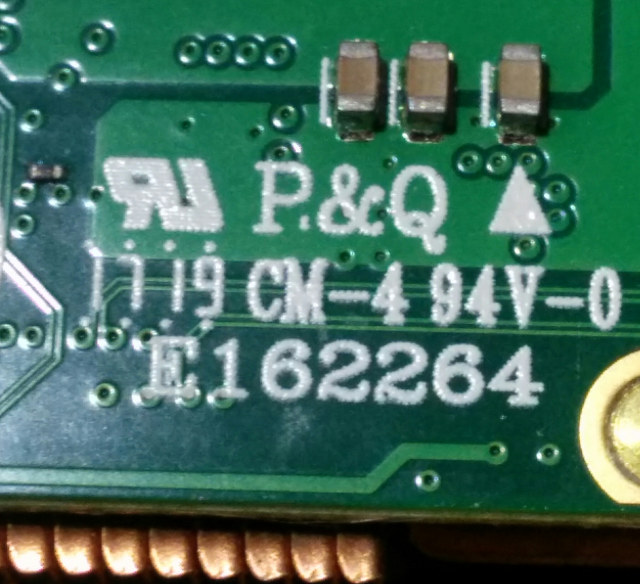

The only identifiable marking on the board were on the bottom under the sticky black coverings:

The BIOS is minimalistic:

which is an issue when booting with a connected USB to Ethernet adapter, as it defaults to PXE booting which needs to timeout before booting occurs from internal storage. A workaround is to boot Windows from the boot menu after pressing F7:

Notice also that the BIOS is unbranded and simply displays the Intel logo.

Finally after using Windows then Ubuntu and returning to Windows I encountered that audio over HDMI had disappeared:

and reinstalling the Intel HD Graphics driver didn’t fix it.

So to sum up this is a device with specific limitations which the buyer should be aware of prior to purchase. I’d like to thank Gearbest for providing the BBEN MN10 for review. They sell it for $197.42 shipped. You’ll also find it on Aliexpress from various sellers with not-activated or activated Windows 10 Home / Pro.
