MINIX based Intel Management Engine Firmware & UEFI are Closed Source & Insecure, NERF to the Rescue!

You may have heard a few things about Intel Management Engine in recent months, especially as security issues have been found, the firmware is not easily upgradeable, and the EFF deemed it a security hazard asking Intel for ways to disable it.

In recent days, I’ve seen several media reports about the Management Engine being based on an Intel Quark x86-based 32-bit CPU running MINIX open-source operating system. Keep in mind, there’s nothing nefarious about MINIX, it’s just that Intel keeps its own developments on top closed. One of sources for the information is a blog post explaining how to disable Intel ME 11, but ZDNET also points to one of the talks at the Embedded Linux Conference Europe 2017 entitled “Replace Your Exploit-Ridden Firmware with Linux” by Ronald Minnich, Google which explains the problem, and proposes a solution to (almost) disable Intel’s ME, and replace UEFI by a small open source Linux kernel and ramdisk.

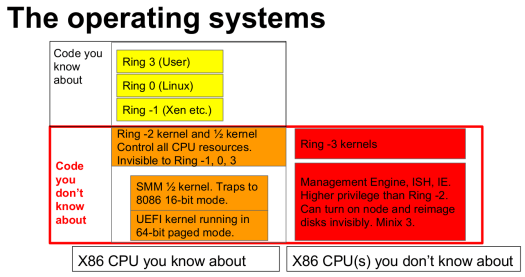

To better understand about the issue, we’ll first need to talk about rings… yes… rings. Protection rings with numbers from -3 to +3 indicate the level of privileges with Ring 3 being the lowest priviledge, and Ring -3 giving full access to all hardware. It’s unrelated to OS privileges and normal users and root are are part of the same Ring 3 privileges.

Ring 0 to 3 are well documented, Ring -1 is for hypervisors like Zen so “known to mankind”, but while we know something about Ring -2 CPU, the code for the UEFI kernel and SMM half kernel are not always known, and in the case of Ring -3 kernels which include the Management Engine, Integrated Sensor Hub (ISH), and Innovation Engine (IE) we know very little about the hardware and software, despite them having the highest privilege.

We do know the Management Engine Ring -3 OS provides the following features.

If you have no idea what some of the feature do, that’s OK, as even Richard is unclear. The important part is that the firmware has a full network stack, and web servers are running for remote management, which has recently become a serious problem as Intel found a vulnerability in “Intel Active Management Technology (AMT), Intel Standard Manageability (ISM), and Intel Small Business Technology” that can allow “an unprivileged attacker to gain control of the manageability features”.  It requires a firmware update, but considering this affect Intel’s first to seven generation, the bug is at least 9 years old, and most systems won’t be updated. Read this PDF for a detailed (71 pages) security evaluation of Intel’s ME

Beside the Management Engine, the presentation also goes through Ring -2 OS (UEFI), an extremely complex kernel (millions of lines of code) running on the main CPU, and whose security model is… obscurity. UEFI exploits also exist, and can be made permanent since UEFI can rewrite itself. The firmware also always runs, and exploits are undetectable by kernels and programs.

The solution proposed to address the privacy and security issues related to ME and UEFI is called NERF (Non-Extensible Reduce Firmware).

It’s only a partial solution because the system cannot fully boot without ME, but they’ve managed to reduce the size from 5MB to 300KB, removing the web server and IP stack in the process on Minnowboard MAX board thanks to me_cleaner. The SMM Ring -2 semi kernel can be disabled however.

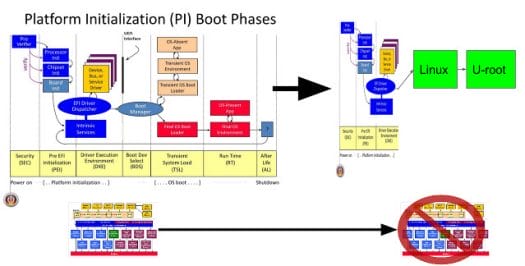

UEFI stands for Unified Extensible Firmware Interface, so to simplify the code and make it less vulnerable to exploits they’ve made their implementation NON-extensible, and as a result it’s much simpler, as illustrated in the diagram below.

UEFI DXE stage is replaced with a single Linux kernel (tied to the BIOS vendor), and a 5.9MB firmware-based root file system written in Go (u-root.tk). If you are interesting in the details watching the 38 minutes ELCE 2017 presentation.

You may also be interested in the slides.
