MeLE PCG03 Apo Apollo Lake mini PC supports M.2 80mm SSD’s, but at the time of the review I did not have such accessories, so I only tested the computer with its 32GB eMMC flash and external USB drives. I’ve now received Kingdian N480 240GB SSD courtesy of GearBest, so I’ll install it in the mini PC, test it in Windows 10, and install Ubuntu 16.04.
KingDian N420 M.2 SSD Hardware Installation

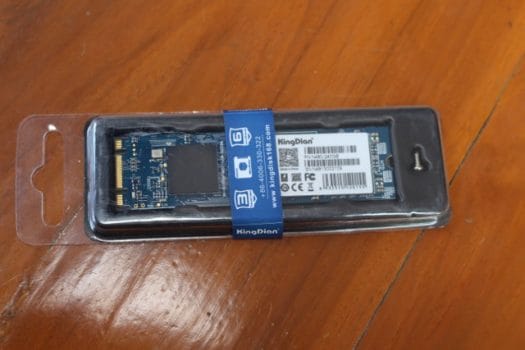

I’ve received a big carton box for the SSD, but finally the retail package is minimal.

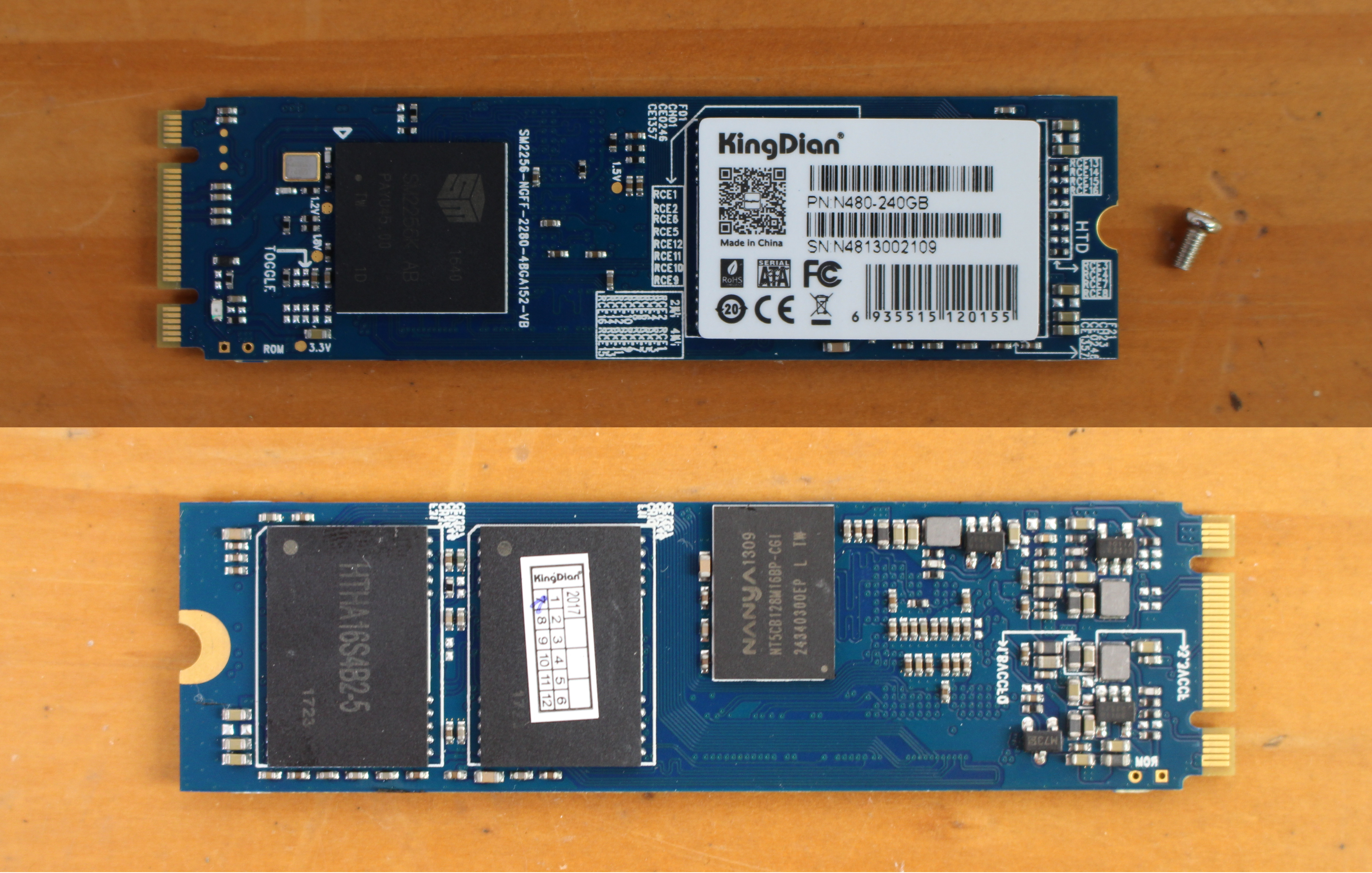

You’ll find the SSD and a screws in the package. You’ll note the device supports both M.2 Key B and Key M sockets.

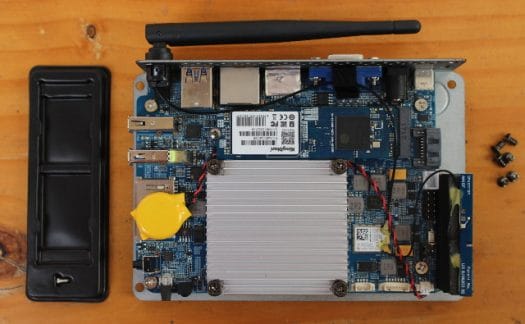

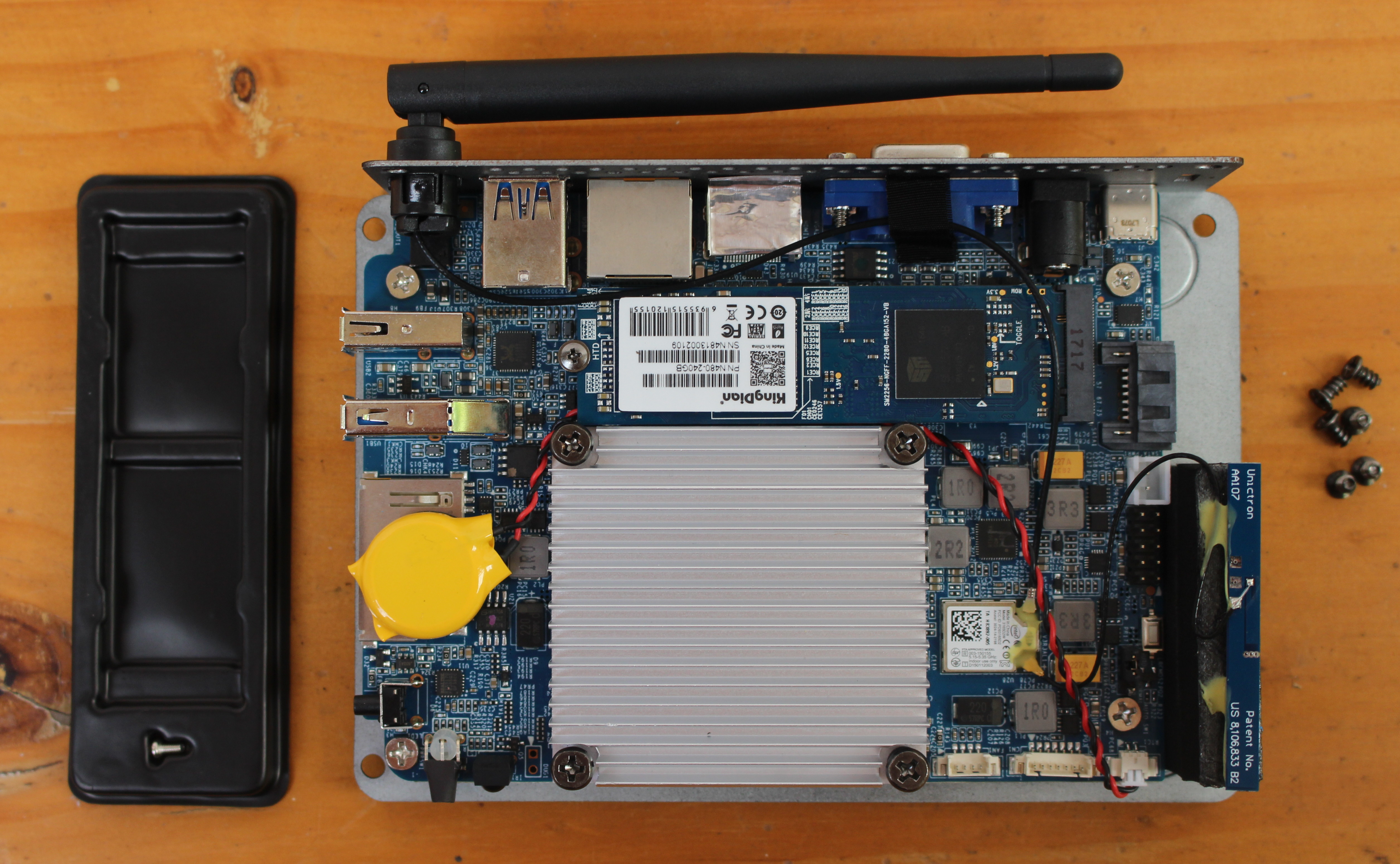

I’ve already explained how to open MeLE PCG03 Apo, basically loosen 6 screws, and then I just had to insert the SSD with the right orientation (check the 4 / 5 pins on each side), and use the screw already found inside to keep the M.2 card in place.
KingDian N480 M.2 SSD in Windows 10
I just put back the case together, and started the computer in Windows. If you go to My Computer you won’t find any new storage device however.

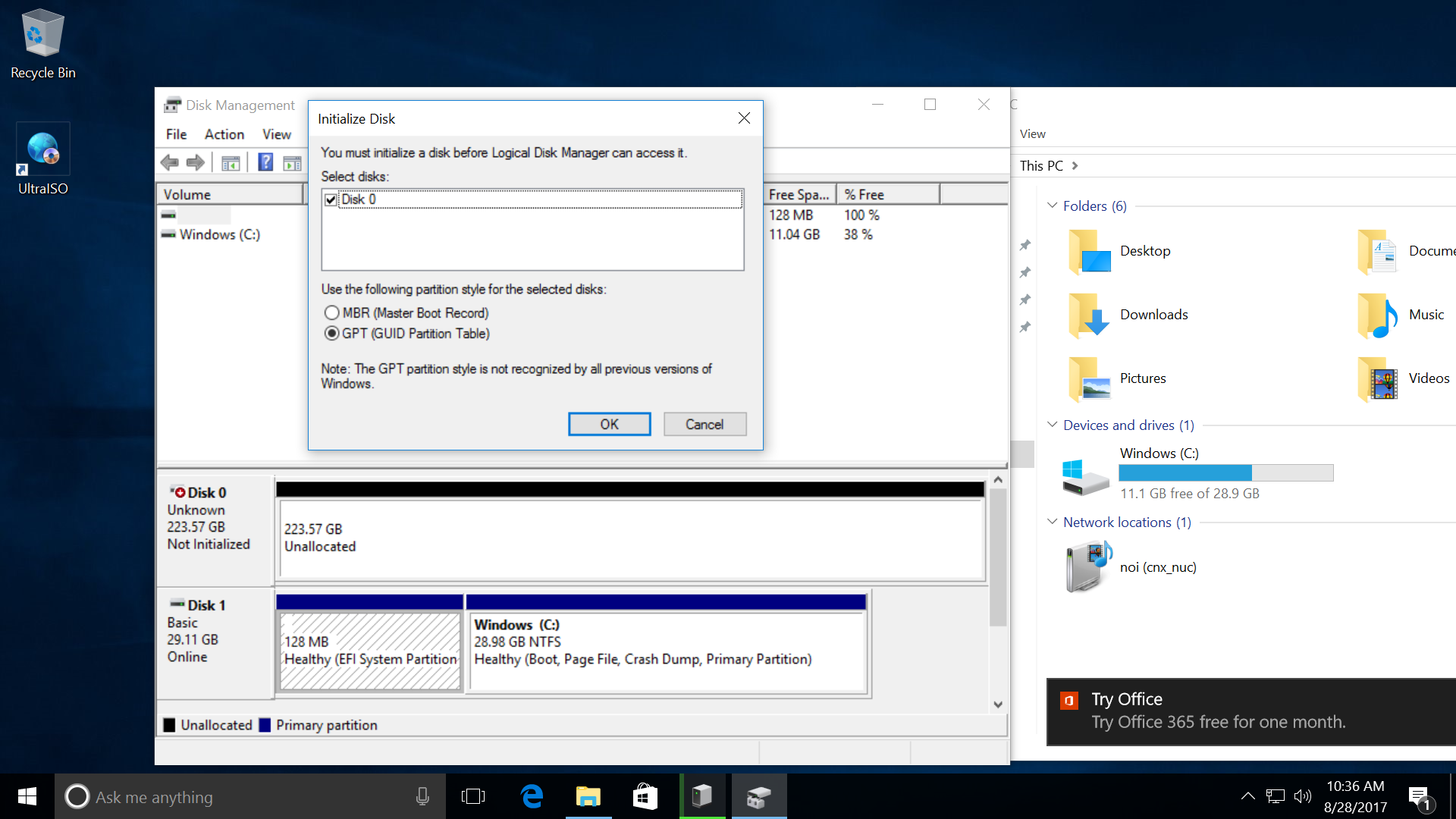

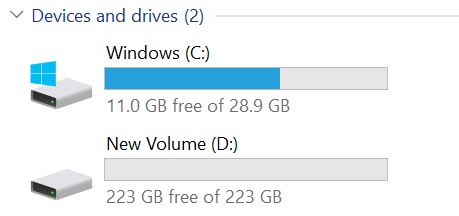

So I launched Disk Management program, and it automatically detect the new drive asking me to Initialize Disk with either MBR or GPT. I select the later, and used the program to format the drive with NTFS, and it would show as D: drive with 223 GB space.
So at this stage ,you can use the drive normally to install program, and avoid filling up to 32GB eMMC flash too quickly.

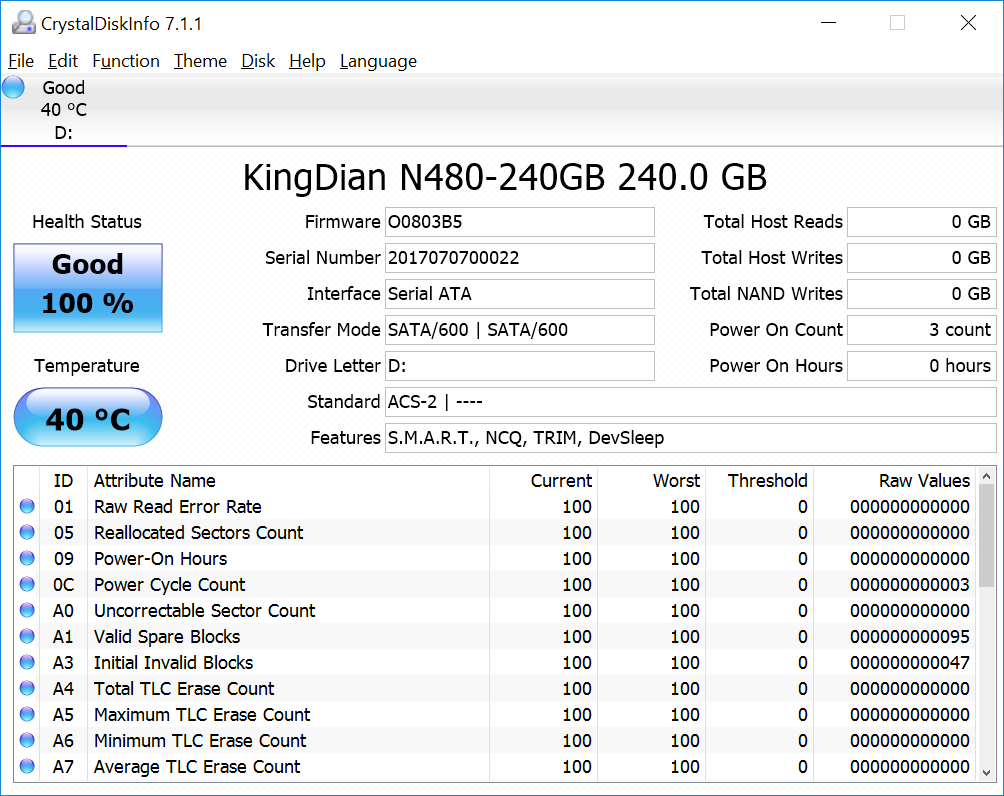

I install CrystalDiskInfo 7.1.1 in case people want to get more information like ACS-2 standard, or S.M.A.R.T and TRIM features.
Finally, I ran CrystalDiskMark 5 benchmark, and the performance is pretty much as expected on this kind of device.
It’s much better than the eMMC flash performance shown below.
So it should pay off to install WIndows 10 in the SSD, as you’d gain much performance while loading apps, booting, or browsing the web with many tabs. However, MeLE told me the Windows 10 license is tied to the eMMC flash, so if you install Windows 10 in the M.2 SSD it will not be activated. Ian Morrison (aka Linuxium) had the same problem in his review of Beelink AP34 Ultimate, but he found a method to move Windows 10 from the eMMC flash to the M.2 SSD so that it still shows Windows is activated when installed in the M.2 drive. I have not tried in the MeLE mini PC, but it might work too.
Installing Ubuntu 16.04 to the M.2 SSD Drive

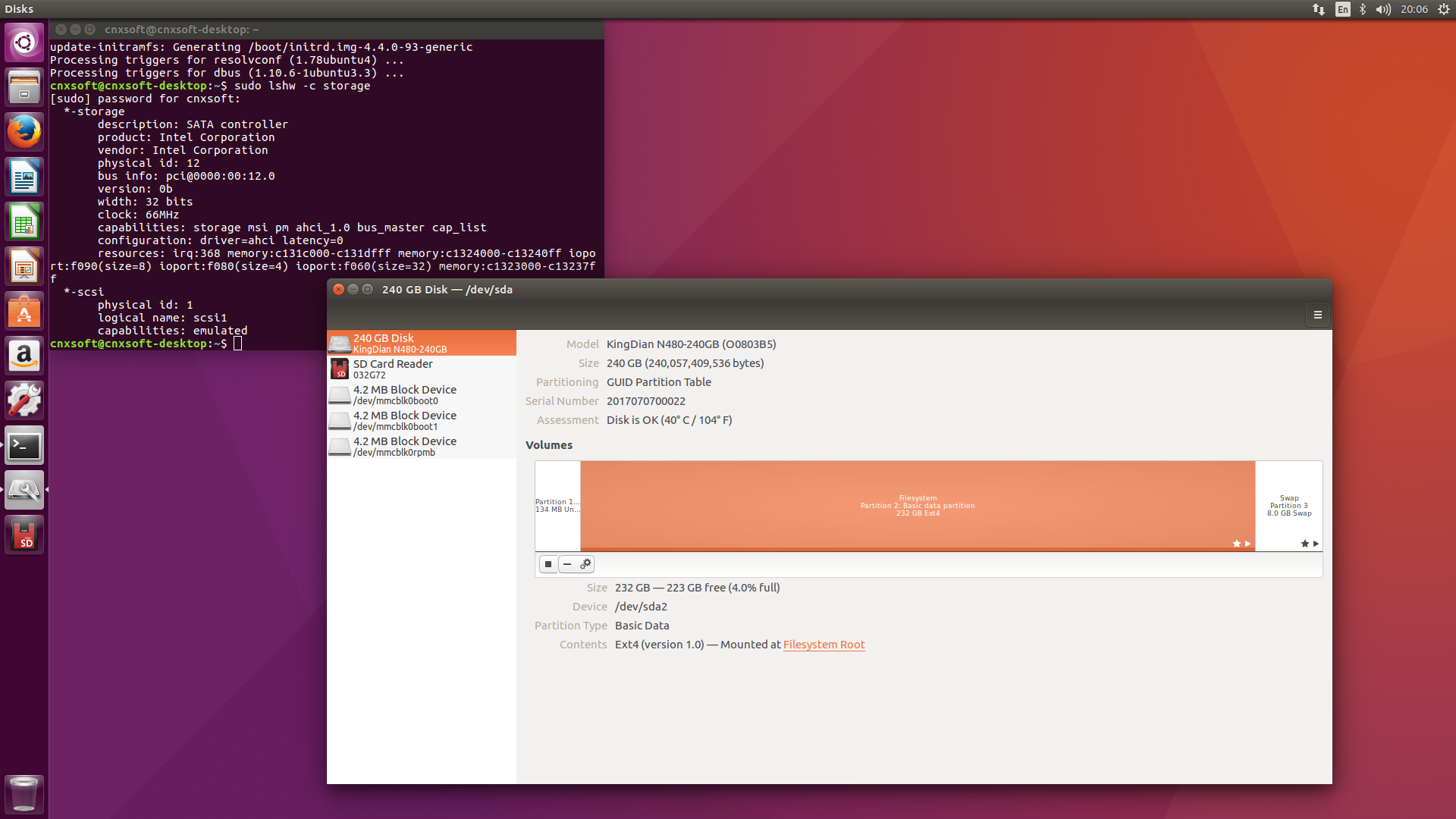

Last time, I tried Ubuntu 16.04 in MeLE PCG03 Apo from a USB 3.0 flash drive, so this time, I used the same method, but instead installed it to my freshly installed M.2 drive. The installation took less than 20 minutes, and I could boot to Ubuntu in about 20 seconds, with 9 seconds going to Grub, and 11 seconds to Unity login prompt.
For reference I also ran iozone to benchmark the drive in Ubuntu:
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 |
iozone -e -I -a -s 1000M -r 4k -r 16k -r 512k -r 1024k -r 16384k -i 0 -i 1 -i 2 Iozone: Performance Test of File I/O Version $Revision: 3.429 $ Compiled for 64 bit mode. Build: linux-AMD64 Contributors:William Norcott, Don Capps, Isom Crawford, Kirby Collins Al Slater, Scott Rhine, Mike Wisner, Ken Goss Steve Landherr, Brad Smith, Mark Kelly, Dr. Alain CYR, Randy Dunlap, Mark Montague, Dan Million, Gavin Brebner, Jean-Marc Zucconi, Jeff Blomberg, Benny Halevy, Dave Boone, Erik Habbinga, Kris Strecker, Walter Wong, Joshua Root, Fabrice Bacchella, Zhenghua Xue, Qin Li, Darren Sawyer, Vangel Bojaxhi, Ben England, Vikentsi Lapa. Run began: Mon Aug 28 19:55:14 2017 Include fsync in write timing O_DIRECT feature enabled Auto Mode File size set to 1024000 kB Record Size 4 kB Record Size 16 kB Record Size 512 kB Record Size 1024 kB Record Size 16384 kB Command line used: iozone -e -I -a -s 1000M -r 4k -r 16k -r 512k -r 1024k -r 16384k -i 0 -i 1 -i 2 Output is in kBytes/sec Time Resolution = 0.000001 seconds. Processor cache size set to 1024 kBytes. Processor cache line size set to 32 bytes. File stride size set to 17 * record size. random random bkwd record stride kB reclen write rewrite read reread read write read rewrite read fwrite frewrite fread freread 1024000 4 69910 81781 98177 96116 28900 81445 1024000 16 151137 204368 254333 245516 65395 93151 1024000 512 336748 251765 455601 454658 382369 112353 1024000 1024 246161 372370 449371 459299 392923 88617 1024000 16384 254604 375758 475920 474800 428495 160872 iozone test complete. |
If you are interested in KingDian N480 M.2 80mm SSD, you can purchase it for $58.93 or $93.35 on GearBest for respectively 120 or 240GB capacity [Update: coupon OKDN240 should lower the price. Valid until end of September]. The card appears to be quite popular, so it can also be found on Amazon US, Banggood, Aliexpress, eBay, and other online stores.
