Network Video Recorder (NVR) boards allow you to record videos from IP cameras to a SATA drive, and display them in a mosaic for monitoring & security. One of such boards is XiongMai NBD7024T-P powered by a Hisilicon Hi3535 dual core Cortex A9 processor, and featuring Gigabit Ethernet, SATA, and USB 3.0 interfaces, on top of HDMI and VGA video output and stereo audio output. With such features, this type of board could likely be re-purposed for other applications, such as a NAS setup too,and they are fairly inexpensive going for $45 including shipping on Aliexpress.

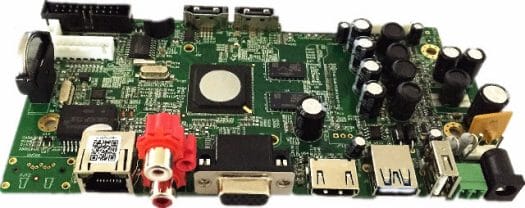

NBD7024T-P NVR board specifications:
- SoC – Hisilicon Hi3535 dual core Cortex A9 processor @ 1.0 GHz
- System Memory – 4Gbit (512MB) RAM
- Storage – 2x SATA ports up to 8TB each, maybe some SPI flash for firmware
- Video Output – 1x HDMI, 1x VGA
- Audio Output – 2x RCA jacks for stereo audio
- Video Input (IP) – 8x @ 5M, 16x @ 4M, 32x (24fps), 16x, 8x @ 1080p, 32x @ 960p, 16x @ 720p up to 192 Mbps bandwidth
- Video & Audio Compression – H.264, G.711A
- Display & Playback “Quality” – 1280×1080 max display resolution, playback: 5M/4M 1080p/960p/720p
- Video Preview – 1/4/8/16/24/32
- Connectivity – Gigabit Ethernet port + 4ch WiFi ???
- USB – 1x USB 2.0 port, 1x USB 3.0 port
- Misc – RTC battery, some expansion headers
- Power supply – 12V/4A
- Power Consumption – <10W (without HDD)
- Dimensions – 164mm x 80mm
- Weight – ~130g
- Temperature Range – 0°C-+55°C
- Humidity – 10%-90% RH
You can use the built-in interface shown above, a Windows based CMS app, XMeye mobile app to manage the video streams, or any ONVIF compliant apps. The board is said to run some kind of embedded Linux distributions. The seller of the board on Taobao, also “sells” the SDK for various Hisilicon processors for 5 RMB. But since the name of the SDK is shown a search for Hi3535_V100R001C01SPC020 led me to that direct link on baidu where it looks like you can download it for free, until you find out the archive is password protected… The SDK is said to be based on Linux 3.14, and you’d have to use this, since I could not see any activity about Hi3535 in LKML.
The manufacturer of the board is Hangzhou XiongMai Technology, and you can find a product brief here. If you find $45 is too high for your use case, some cheaper 4-channel NVR boards based on HiSilicon Hi3520D ARM Cortex A9 processor @ 660 MHz can be found for about $17 shipped with Fast Ethernet, one SATA 2.0 interface, and HDMI & VGA output.
HiSilicon Hi3535 processor sells for about $8 in quantities, so in case software support is acceptable, and HiSilicon helps with the release of the SDK, it might be possible to make low cost boards for headless applications. It still remains to be seen how SATA, Ethernet, and USB 3.0 interfaces perform on the processor.
Thanks to Jon for the tip.
Jean-Luc started CNX Software in 2010 as a part-time endeavor, before quitting his job as a software engineering manager, and starting to write daily news, and reviews full time later in 2011.
Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress
That seems like the cheapest USB3+SATA+GBE board around. We don’t yet know anything about the performance, but others in this price range cannot even provide the connectivity regardless of the performance.
The design is surprizing, not using solid capacitors nor flat coils. For the price we can’t demand too much but seeing this board reminded me the hardware we were using 10 years ago and made me realize that things have changed since 🙂
@willy
Definitely. And that $17 board is cheapest SATA board around. Wonder if Armbian supports it?
I’m waiting for the Armbian port!
SDK will probably have source for everything except the h.264/5 support. I have the Hisilicon SDK for their camera chips and that’s what is in it.
After we get Armbian! maybe the PI people will make a version with better connectors and expose both GbE ports.
I suspect performance is quite good. Hisilicon (part of Huawei) is a better silicon vendor than Allwinner. You don’t put dual GbE, dual SATA, PCIe and USB 3.0 onto a light weight bus.
Hisilicon makes the Kirin SOCs.
This chip also has the hardware needed to transcode broadcast TV in real-time from MPEG2 to h.264 so that you can stream it.
I have NVR with same hardware Hi3535 gigabit ethernet and usb3.0. Hope we have Armbian port soon
@Hoangdinh86
I’m not sure Armbian guys will be interested as there’s virtually no hope of getting mainline Linux on that board.
Before anything happens with Armbian, a community would have to be created around the processor, and work on the kernel. For this to happens there needs to be a clear advantage of using Hisilicon over other solutions. The processor mentioned above were launched around 2013, and we don’t know when the company will phase out the processors, for new ones.
Have you played with the SDK and/or tested I/O performance on your board?
I dont know how to test I/O with my board because the firmware is only about NVR
@john Smirl
you sure can support hardware transcode from mpeg2 to h264?
@Hoangdinh86
I see. This can be an issue. Have you tried to do a port scan to see whether some ports are opened? Something like:
Or just try to connect via telnet or ssh?
@cnxsoft
Tonight I will check my board and try to connect via telnet, ssh
at the time I write this they have an offer for that 4 ch hisilicon nvr board for $13.60; lasts still one hour. support for linux seems mostly absent so i decided to skip. (shipping to NL would have been $ 3.65)
@FransM
The boards run Linux, but specifically designed for NVR. So getting a easy to customize Linux distribution would still require some work.
No schematics available, no documentation, no sources, obviously zero support by the vendor. Looks like a SinoVoip product. No thanks. 😉

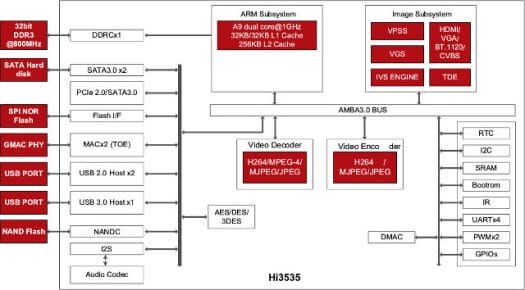

looking at that block diagram i tried to look up some AMBA Bus specifications and found that nice document comparing AMBA 2 vs AMBA 3 with use cases (there’s also newer AMBA4 bus for cortex A7/A15) :
