ArcherMind Mediatek X20 Pro Development Board Adds 3G, 4G LTE and More I/Os

Archermind launched Mediatek X20 board powered by Mediatek Helio X20 deca-core processor, and compliant with 96Boards CE hardware specifications last year for $199. The company has now been working on a “professional” version, dubbed Mediatek X20 Pro that adds supports for 3G and 4G / LTE, as well as extra I/O connectors for cameras, LCD modules, and an RF baseboard.

Alpha Star Mediatek X20 Pro board specifications:

• SoC – Mediatek Helio X20 (MT6797) deca-core processor with two ARM Cortex A72 cores @ 2.1~2.3 GHz, four Cortex A53 @ 1.85 GHz, four Cortex A53 @ 1.4 GHz, and  ARM Mali-T880 GPU @ 700 MHz
• System Memory – 2GB LPDDR3 2-ch @ 933 MHz
• Storage – 8GB eMMC 5.1 flash + micro SD 3.0 card slot
• Video Output – HDMI up to 1080p @ 30 fps
• Video Support – 25MP @ 24fps / 25MP @ 30 fps; WQXGA 2560×1600 60fps; FHD 1920×1080 120fps; 4Kx2K 30fps H.265 w/HDR
• Connectivity – 802.11 b/g/n WiFi, Bluetooth 4.1 (MT6631), GPS with antenna connector
• Cellular Connectivity – Modem with support for WCDMA B1/B8, FDD-LTE B1/B3,TDD-LTE B38/B39/B40
• USB – 2x USB 2.0 host ports, 1x micro USB port (device only).
• Expansion:
  • 1x 40 pin low speed expansion connector – UART, SPI, 2x I2C, 12x GPIO, DC power
  • 1x 60 pin high speed expansion connector – 4L-MIPI DSI, USB, 2x I2C, 2L+4LMIPI CSI
  • IO extended interface – Support one 2k LCM or two 1080P LCM, 13M+13M dual camera
  • Optional 16-pin analog expansion connector – Stereo headset/line out, speaker, analog line-in, and more
  • 2x connectors on the bottom of the board for RF sub-board
• Misc – Power, reset and volume buttons. 6 LEDS (4x user, 1x Wifi, 1x Bluetooth)
• Power Supply – 8 to 18V DC input
• Dimensions – 85 x 54 mm

The board only supports Android 6.0, with Linux support depending on what Mediatek decides to do. You’ll find some hardware and software document on the Wiki which still has many non-working links…, and none of them seem related to the Pro version yet.

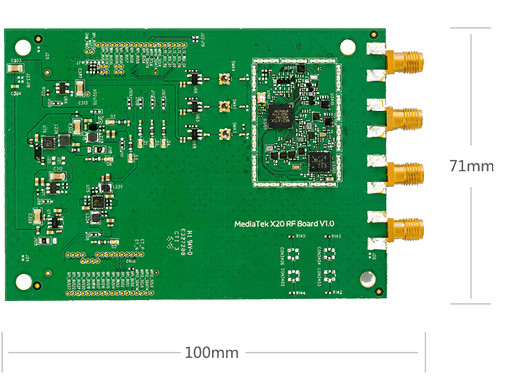

If you want to use 3G or 4G cellular , you’ll need to get  “Mediatek X20 RF sub-board” that connects to X20 board via two board-to-board connectors with the following key features:

• Modem Features – World-mode Modem with Single RF for all Markets
  • FDD/TDD LTE R11 Cat-6 (300Mbps/50Mbps) with 2x20MHz DL carrier aggregation support
  • HSPA+ R8 (42Mbps/11Mbps) / TD-SCDMA Rel.7 (2.8/2.2 Mbps)
  • CDMA2000 1x/EVDO Rel.A, SRLTE support
• Transceiver Features
  • Transmitter – Direct conversion(LTE/3G/8PSK) and DFM for GMSK; Dedicated power detection circuits for power control over specific power range; 4LB/4MB/2HB TX output port
  • Receiver – Hybrid direct-conversion(4G/3G/C2K) /low-IF (GGE, DC-HSDPA) receiver; 14+14 RX input ports; 4 RXIF IQ outputs
• RF Board Band Support – WCDMA band 1,8; TDD-LTE band 38,39,40; FDD-LTE band 1,3
• Dimensions – 100 x 71 mm

Charbax interviewed the company at Linaro Connect Budapest 2017 where they showcased their new X20 Pro board and corresponding add-on boards, as well as the upcoming Mstar Altra board compliant with 96Boards TV Platforms specs (7:48 mark in video) based on Mstar MSD6A838 quad-core ARM Cortex-A53 SoC with 4K M-Genuine Video Engine supporting Motion Estimation/Motion Compensation (MEMC), HDR, color enhance, de-noise, and so on.

It’s unclear whether Mediatek X20 Pro is available now, and we don’t know the price yet, but considering the non-pro version sells for $200, we could probably expect the 4G version to sell between $250 to $300 with the RF baseboard and SIM card adapter board. Some more information is available on the product page.
