[Update: The board featured below was initially announced as Orange Pi Zero Plus, but considering it may have confused people as it is not at all compatible with Orange Pi Zero, it has been renamed to Orange Pi 2G-IoT]
Linaro mentioned Orange Pi i96 board last fall at Linaro Connect US. It was supposed to be a $9.99 board powered by an RDA Micro Cortex A5 processor with 2Gbit RAM and 4Gbit NAND flash on-chip. There has not been any news since then, but Shenzhen Xunlong has apparently gone ahead with an RDA Micro Cortex A5 board since they’ve posted some pictures of Orange Pi Zero Plus (Note: very slow server) with an RDA Micro ARM Cortex A5 processor.

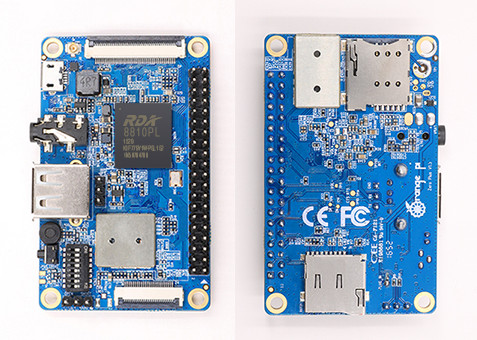

Orange Pi 2G-IoT preliminary specifications:
- SoC – RDA Micro 8810PL ARM Cortex A5 processor @ up to 1.0 GHz with 2Gbit (256 MB) on-chip LPDDR2 RAM, 4Gbit (512 MB) on-chip SLC NAND flash , 256KB L2 cache, Vivante GC860 3D GPU, and GSM/GPRS/EDGE Modem (Download datasheet)
- External Storage – micro SD slot
- Display I/F – LCD connector up to qHD resolution
- Video – Decoding up to 1080p30, encoding up to 1080p30 H.264
- Audio I/F – 3.5mm audio jack, one built-in micorphone?
- Connectivity – Bluetooth and GSM/GPRS/EDGE with SIM card slot
- Camera – MIPI CSI-2 connector for camera sensor up to 2MP
- USB – 1x USB host port, 1x micro USB port (for power?)
- Expansion – 40-pin GPIO header with SPI, I2C, ADC, GPIOs, PWM, etc…
- Misc – 8 selection jumpers, button
- Power Supply – 5V via micro USB port; maybe one pin on header
- Dimensions – ~70 x 44 mm(estimated)
- Certifications – CE and FCC based on PCB silkscreen
We don’t have much more info about the board, but since the processor is used in a few Android phones such as Aqua G2 or Challenger V40LD, so Android 4.4 Kitkat should be available for the board. Linaro, although they might not be involved, also mentioned an Ubuntu Linux for Orange Pi i96 board, so an Ubuntu Linux image is very likely to be provided. If Linaro has been involved in the kernel/software development, then you should expect somewhat OK support, but if they haven’t, I’m expecting a world of pain at the beginning, at least compared to the relatively well community supported Allwinner H3 based Orange Pi boards. If you intend to use the SIM card, you may want to check if your country has any plans to phase out of 2G, as several have already done so, and many others will shutdown 2G networks in the next few years.
The board is scheduled to be launched right after Chinese New Year in the first half of February. We don’t have pricing info, but I’d expect it to costs less than $10 + shipping as it was the price announced for Orange Pi i96 board, and you can get a complete Android RDA8810PL phone for around $25.
