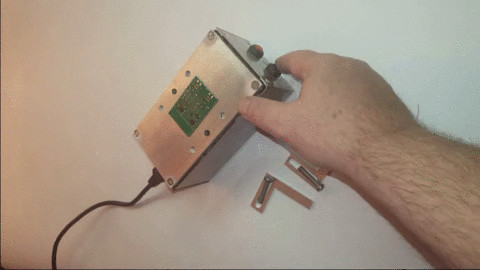

You can solder SMT components to your custom board by hand, but it would be much faster if you could get a reflow tool instead to “bake” your board after placing the components. ReflowR SMT reflowing tool offers just that in a small and affordable form factor.
Some people have tried to use DIY solutions to bake their board, but results may vary. ReflowR has been specifically designed to heat PCB offering constant results. It supports reflow, rework, MSD bake, or rework pre-bake, and follows JEDEC reflow profiles. You can also add a WiFi extension to monitor the tool from your smartphone and set the temperature profile. Two version are available:

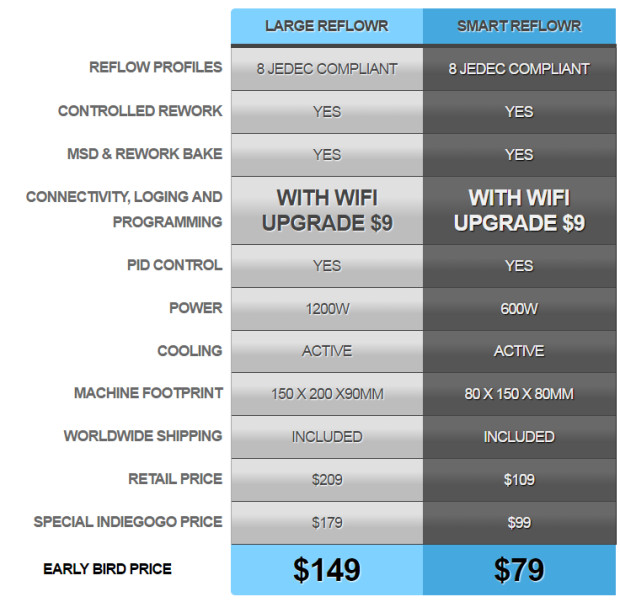

- Smart ReflowR – Compact 600W system for for makers and learners.
- Large ReflowR – Larger 1200W system for professionals
“STEM Inspiration kits” are also offered without a ReflowR kit, but with multiple components, solder paste, a few PCBs, tweezers, and more for people to get started with electronics and SMT reflow soldering. The video below shows how it works, and how you can adjust the components while baking.
The project was successfully funded on Indiegogo last month, but the campaign is now in “In demand” mode, and you can purchase Smart ReflowR for $99, Large ReflowR for $179, and the STEM inspiration kits for $19 and up. Shipping is included in the price, and delivery is scheduled for January 2017.
