A Closer Look at Ingenu RPMA Alternative to LoRa or Sigfox LPWAN Standards & RPMA Development Kit

I’ve recently started to write a bit more about long range LPWAN standards for IoT applications, especially LoRa and Sigfox, as commercial networks are being launched, and relatively low cost hardware platforms are being introduced to the market. There are also other highly expected standards such as Weightless and LTE Cat M that will bring more competition to the market. Ingenu RPMA (Random Phase Multiple Access) is another available standard that’s been in deployment for a while, and based on an earlier comparison of  long range LPWAN standards, it comes with long range, supports up to 384,000 nodes per “sector”, operates in the unlicensed 2.4 GHz ISM band, and offers high combined uplink and downlink bandwidth than competitors. Ingenu recently contacted me and provided some more details and information about their technology and development kit.

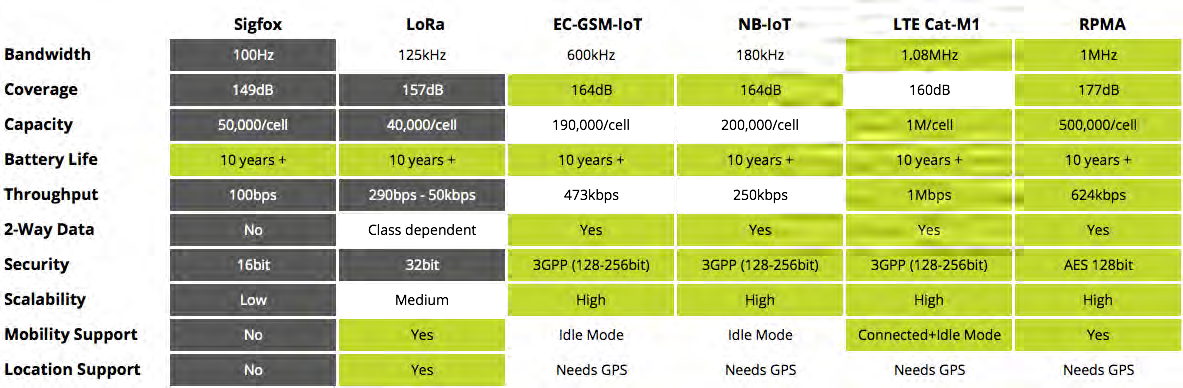

One of the documents includes an “independent analysis completed by ABI Research, Inc.” comparing features of Sigfox, LoRa, EC-GSM-IoT, MB-IoT, LTE Cat-M1,  and RPMA.

All standards can have node powered by a battery for over 10 years, but based on that table RPMA does seems to have some advantages in terms of coverage, capacity, throughput, security level, scalability, and mobility support.

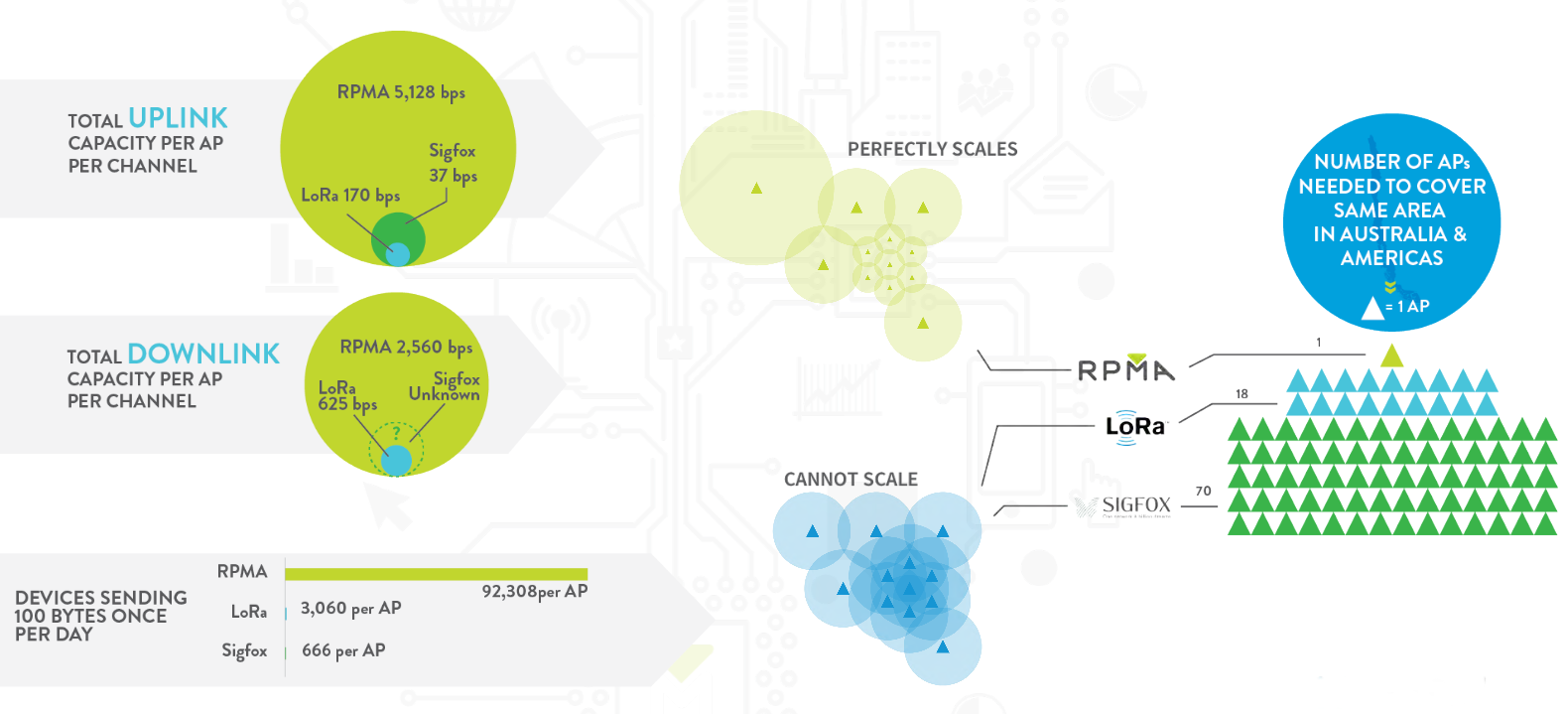

Those charts are extracted from the Ingenu’s marketing documents, so they’ll obviously show RPMA in a positive light. However it does seems that if you have lots of nodes, and bandwidth requirements higher than what can be delivered by LoRa or Sigfox, RPMA appears to be a potentially better solution. The 2.4 GHz band is normally quite busy, so I wonder if there could be some limitations here, and some countries may also have restrictions on the emitted power. RPMA deployments started in 2011, so they already have an installed base on several continents for industrial, agricultural, and security applications, which includes 38 Private Networks as well as the “Machine Network” in North & South America, EMEA, and APAC regions.

Support in the Asia Pacific regions is certainly a plus, as this week a French company wanted to send me their Sigfox & LoRa sensors kits for evaluation, but they had nothing working in South East Asia, so it will be for a little later.

The company can provide RPMA devkit to their customers in order to get started and evaluate the technology.

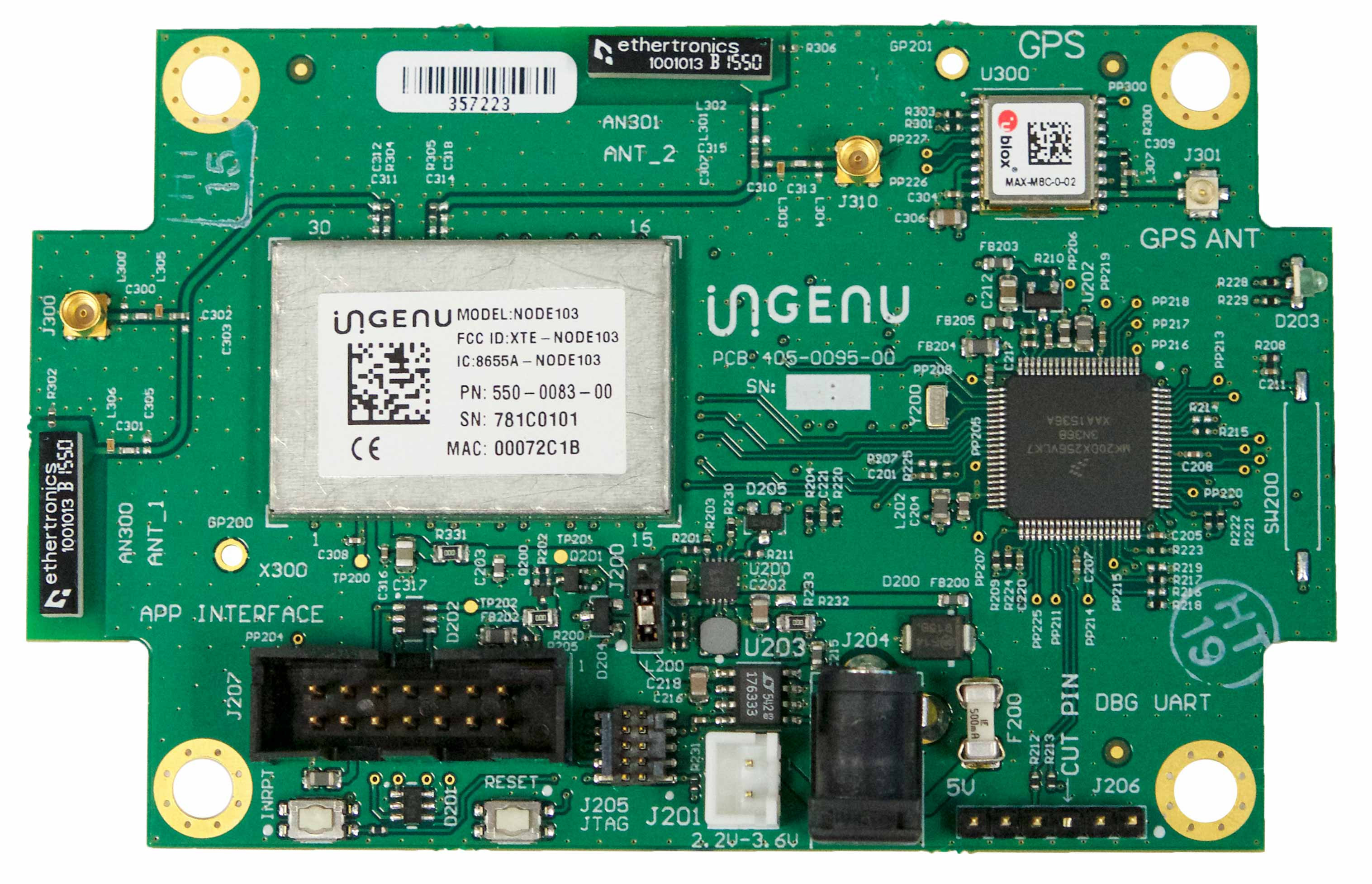

Ingenu RPMA development kit key features and specifications:

• MCU – NXP Kinetis K20 ARM Cortex-M4 MCU @ 50 MHz
• Connectivity
  • nanoNode RPMA radio module (NODE103)
    • Wireless Frequency – 2.4 GHZ ISM
    • Bandwidth – 1 MHz
    • Modulation – Dynamic Direct Sequence Spread Spectrum (D-DSSS)
    • Access Point Capacity – Up to 64,000 nodes in star topology
    • Typical Power – Tx: 800 mW; Rx: 250 mW
  • u-Blox GPS module
• Expansion – Header with analog & digital GPIOs and UART
• Debugging – JTAG header, UART for serial debugging
• Battery Life – Up to 20+ years
• Power Supply – 5V/1A power supply to DC jack (J204), 2.2 to 3.6V DC batteries to J201 header
• Dimensions – 107 x 68 x 13 mm
• Temperature Range – 0°C to 85°C
• Certifications – FCC, IC, ETSI, and others (pending) for some specific countries

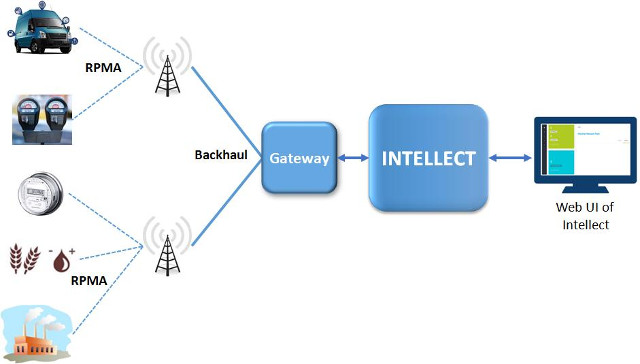

The rACM (reference Application Communication Module) tools are used to control the kit, and since they are written in Python it will work on Windows, Mac OS X or Linux. Communication occurs over a REST API or Advanced Message Queuing Protocol (AMQP) open standard messaging protocol, and devices can be managed through a platform called Intellect. Quick Start Guides are also provided to customers to show how to set up pulse meters, UART, GPIO, and more…

You’d use the devkit with RPMA networks such as the Machine Network. You can check network coverage on Ingenu to find out if it is available in your location. If there’s no network in your location, but a network is expected soon, you can still evaluate RPMA technology by getting an Exploration Kit with two RPMA devkits and a rental RPMA access point. The latter gives some clue about about the use cases for RPMA, as while you can get one or two ~50 Euros LoRa nodes connected it to a LoRaWAN network or setup P2P communication, RPMA apparently requires an access point that expensive enough that it has to be rented. So RPMA is likely most suitable and cost effective for larger scale IoT deployments, and not for smaller or hobbyist’s projects.

You’ll get some more details about the hardware and software, as well as interesting case studies about existing implementations, on the Get Started page, or by directly downloading the Starter Pack with hardware design files, software tools, REST & AMQP source code examples, and documentation.
