Qualcomm launched Snapdragon 410E and 600E processors for the embedded market at the end of September, meaning the processors were easy to source by any company, not matter how small they are, and the company would now offer long term availability often required for embedded systems. Inforce Computing is now leveraging the new Snapdragon 410E processor with their Inforce 6301 micro SoM, and corresponding development kit.

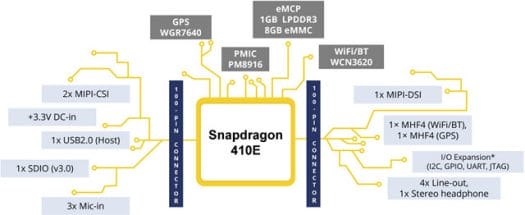

Inforce 6301 micro SoM specifications:
- SoC – Qualcomm Snapdragon 410E (APQ8016 SoC) quad core ARM Cortex A53 processor @ 1.2GHz, Adreno 306 GPU, and Hexagon DSP @ 700MHz
- Memory – 1GB LPDDR3 @ 533MHz (Option: 2GB)
- Storage – 8GB eMMC v4.5 flash (Option up to 64GB) NAND, 1x micro SD card interface with support up to HS200
- Connectivity – Bluetooth 4.1 LE, Wi-Fi dual stream 802.11 b/g/n @ 2.4GHz (WC3620), on-board GPS/GNSS/BeiDou/Galileo (WGR7640)
- Video – H.264/263 playback and capture @1080p; H.265 playback @720p;
- Interfaces via 2x 100-pin board-to-board connectors
- HDMI v1.3a up to 1080p30 and 720p60
- 4-lane MIPI-DSI up to 1080p30 and 720p60
- Audio – 1x stereo headphone, 4x line out, 3x microphone inputs; Hi-Fi Audio with 24bit/192Khz playback support HD 5.1 Audio
- Camera – 2x MIPI CSI: up to 13MP Camera on CSI0 and up to 8MP camera on CSI1
- I2C, GPIO, UART
- SDIO 3.0
- USB 2.0
- JTAG
- Power Supply – +3.3V/5A Input
- Dimensions – 50 x 28 mm
- Temperature Range – -30 to 85 Degrees C (Operating)
- Humidity – 5 to 95% RH non-condensing
- Certifications – RoHS and WEEE compliant
The module can be either pre-loaded with Android Lollipop or Ubuntu/Debian Linux, with board support packages (BSP) provided for development. In order to get started as fast as possible, the company also offers a 60×55 mm carrier board for the module with a micro SD slot, HDMI output, USB 2.0 host ports, and headers with I2C, SPI, UART, GPIOs,…
Inforce 6301 can be purchased for $85 in single quantity with a 10-year availability commitment, while the development kit goes for $185 with 7-year availability. You’ll find more details including software and hardware documentation in the previous links to the store, as well as an overview on Inforce Computing 6301 SoM page.
