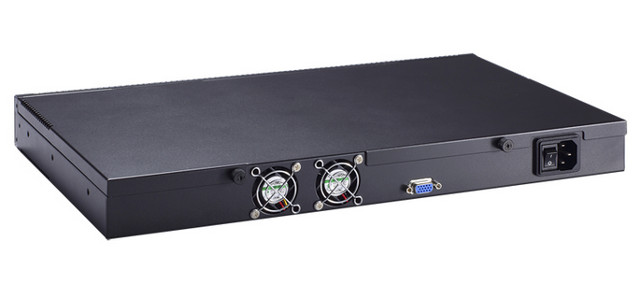

Axiomtek NA343R 1U Rackmount Network Appliance is Powered by an Intel Celeron N3160 Braswell Processor

Many Braswell mini PCs have been launched in the last year, and usually we’d see 1U rack used by processor specifically designed for server such as Intel Xeon or Atom Avoton, but thanks to Axiomtek NA343R , we’ve not got a 1U rackmount server powered by Intel Celeron N3160 processor part of the Braswell family.

Axiomtek NA343R rack server system specifications:

• SoC – Intel Celeron N3160 quad-core processor @ 1.6 GHz / 2.24 GHz (Burst frequency) with Intel HD graphics 400 with 12EU (4W SDP / 6W TDP)
• System Memory – 1x SO-DIMM DDR3L-1600 for up to 8GB RAM
• Storage – 1x CFast, 1x 2.5″ SATA HDD. optional 3.5″ SATA HDD
• Video Output – Optional VGA port
• Connectivity – 6x Gigabit Ethernet via Intel i211 Ethernet controller, one group of LAN bypass function.
• USB – 2x USB 3.0 ports
• Misc – Power switch, status LEDs, 1x RJ45 console port, watchdog timer,two fans
• Power Supply – Open frame 65W
• Operating Temperature Range – 0°C ~ +45°C
• Dimensions –  430 x 250 x 44 mm
• Weight – 7 kg

The server supports Windows 7, WES7, Windows 8/10, WE8S, and Linux distributions. The BIOS is redirected to the console port, and one group of LAN bypass function ensures connectivity in the event of power outage.

The network appliance targets VPN, network bandwidth controller and firewall applications. Pricing is not publicly available, but if you are interested you should be able to get quote via Axiomtek NA343R product page. The company also have another model based on Celeron J1900 (Bay Trail), and some other companies are also providing Braswell and Bay Trail 1U rack systems such as Steatite Embedded and Logic Supply.
