A few weeks after introducing NanoPC-T3 single board computer based on Samsung S5P6818 octa-core Cortex A53 processor, FriendlyARM is now launching a cost-down version called NanoPi M3 for just $35 with 1GB RAM, and booting from a micro SD card.

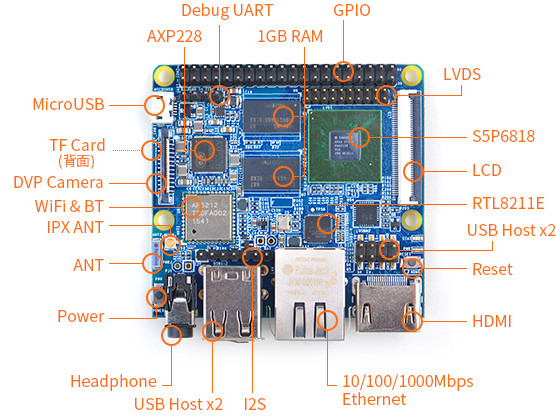

NanoPi M3 board specifications:
- SoC – Samsung S5P6818 octa core Cortex A53 processor @ up to 1.4GHz with Mali-400MP GPU
- System Memory – 1 GB 32-bit DDR3
- Storage – 1x micro SD card slot
- Connectivity – Gigabit Ethernet (RTL8211E), 802.11 b/g/n WiFi and Bluetooth LE 4.0 (Ampak AP6212) with on-board chip antenna and IPX antenna connector
- Video Output / Display I/F – HDMI 1.4a up to 1080p60, LVDS, parallel RGB LCD
- Audio I/O – HDMI, 3.5mm audio jack, 7-pin I2S header
- Camera – 1x DVP interface
- USB – 2x USB 2.0 type A host ports; 1x micro USB 2.0 client port; 2x USB 2.0 host ports via 8-pin header
- Expansions Headers – 40-pin header
- Debugging – 4-pin header for serial console
- Misc – Power & reset buttons; power status LEDs.
- Power Supply – 5V/2A via micro USB port; AXP228 PMIC
- Dimension – 64 x 60 mm (6-layer PCB)
The board supports Android and Debian running on top of Linux 3.4. More technical details can be found in the Wiki. Samsung S5P processors are actually made by Nexell, and not supported at all in mainline Linux, so don’t expect support for a more recent kernel. Arnd Bergmann, one of Linux ARM SoC maintainers, even referred the code to as “awful“:
Source code is available but awful.
…
Specifically, this is a Linux-3.4 kernel that looks more like a Linux-2.6.28 platform port that was forward-ported.
Nevertheless, at $35 plus shipping ($10 in my case), NanoPi-M3 must be the cheapest octa-core board available on the market so far. Visit the product page for more details and/or purchase the board.
Jean-Luc started CNX Software in 2010 as a part-time endeavor, before quitting his job as a software engineering manager, and starting to write daily news, and reviews full time later in 2011.
Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress
a x2 A72 + x2 A53 would be much better imo.
And again, no usb3. Dammit.
Looks like a great dev-board, a shame the kernel isn’t mainline and there will be probably no effort to mainline it. Otherwise for me it has everything I need, except sata.
> Power Supply – 5V/2A via power barrel;
It seems microUSB power and USB hub chip, again.
S5P6818 seems to be one of the very few octa-core A53s where the two clusters are identical. Most A53 octa-cores try to ‘big.LITTLE’ their A53s, which is not particularly beneficial for non-phone purposes.
Strange design. Crappy Micro USB used for DC-IN, all 4 USB ports behind an internal USB hub connected to the one USB 2.0 HSIC port leaving the other USB 2.0 host port unused. No possibility to mount an appropriate heatsink (compare with the bigger sibling NanoPC-T3 please where a rather huge heatsink is mounted — maybe for a reason?) and the cherry on top is an old 32-bit only 3.4.39 kernel the Cortex-A53 cores should run with.
No mainline kernel (support or effort) -> another board to be ignored.
@dvl36
You’re right. Sorry, I did some copy/paste from NanoPC-T3, and missed that difference.
I agree with Aaa, this board is worthless without proper software support. Unless someone is going to get mainline support for the S5P6818, I see no reason to buy this. The only upside to this board is the octa core.
@tkaiser @cnxsoft
Time for a tkaiser guest-post round up of available Asian ARM dev boards – assessed on performance, Linux support, IO, design, build quality (?), suitability for certain roles (NAS, desktop substitute, Kodi box?)
seems that the mali gpu is probably MP4
http://wiki.friendlyarm.com/wiki/images/8/8b/SEC_S5P6818X_Users_Manual_preliminary_Ver_0.00.pdf
page 15 : four PP (pixel processors)
Still makes a Raspberry pi 3 look over priced tat .
Who here ever worked on a specific linux port ?
I didn’t see how to get a 2gb ram version. The buy page shows 60 bucks to get a board, and a case option as well as a heatsink option, but didn’t see the 2gb.
The shopping site needs a bit of attention to make sense to me.
Interesting that this is the samsung chip. I wonder if there is any firmware to liven up the other bits of phone stuff on it, or is this silicon stripped of the phone features? A lot of the other parts I see are featured for tablets which do not support phone options, but this one might.
I wish some more vendors doing the chips would support true GB nics and sata, rather than bridging with USB.
The USB is the only media interface that these vendors have that gets data in and out to answer an earlier question, so the more you put directly on a USB hub on the chip the better. If the hub is outside that adds a layer of delay, and also implies fewer data paths possible concurrently.
I know few of the chips have more than one active USB and have external to the SOC hubs.
Is anyone but Freescale / NXP doing chips with real SATA and nics?
@theguyuk
Well the RPi 3 might seem overprices but you’re getting a lot of support, mainline kernel, open source GPU and so on. With this one you’re getting a kernel no one will bother with in a few months , a binary GPU driver , little support, a small community and so on.
Don’t get me wrong, I do understand what you’re saying and you have a point too but while thinking about this I realized the things I said above… there are certain big advantages that the Pi still have because the other ARM SOC vendors just don’t give a crap and just implement their mobile ARM Linux strategy of snaphot kernel + lots of binary crap drivers , release and forget.
