I reviewed Wintel W8 mini PC powered by an Intel Atom Z3735F last year, although since the model could dual boot Windows 8.1 and Android 4.4 I mostly focused my review on the Android part. There’s now an upgraded model running Windows 10 only, based on Intel Atom x5-Z8300 quad core Cherry Trail processor, and very much the same interfaces except one of the USB 2.0 ports has been upgraded to USB 3.0.

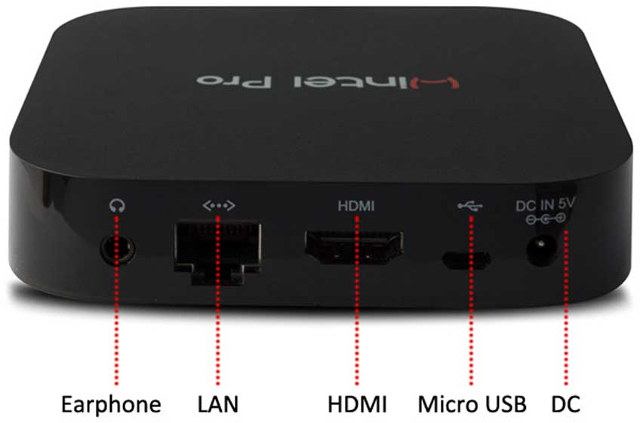

Wintel Pro CX-W8 has very similar same specifications to other Cherry Trail mini PCs available on the market:
- SoC – Intel Atom x5-Z8300 “Cherry Trail” quad core processor @ 1.44 GHz (Bust freq: 1.84 GHz) with Intel Gen8 HD graphics (2W SDP)
- System Memory – 2 GB
- Storage – 32 GB eMMC + micro SD slot
- Video Output – HDMI
- Audio I/O – HDMI, 3.5mm microphone jack
- Connectivity – 10/100M Ethernet, 802.11 b/g/n Wi-Fi, and Bluetooth 4.0 (RTL8723 or AP6234)
- USB – 1x USB 2.0 host port, 1x USB 3.0 port, 1x micro USB port
- Misc – Power button with LED
- Power Supply – 5V/2A
- Dimensions – 9.80 x 9.80 x 2.00 cm
- Weight – 250 grams
The most interesting point of this particular mini PC is the price, as GearBest sells it for $85.68 shipped, and it’s also sold on Banggood and Aliexpress but with a price around $100 [Update: At least one seller offers it for $84.99]. At this price, you can be sure Windows 10 is not activated, and while that could be an issue of you really want to run Windows 10, if you ever planned to run Linux, Android or Chromium OS that’s possibly an asset, provided it’s not confiscated by your customs. You can also find a recent review on AndroidTVBox.eu with some benchmarks, impressions, Kodi testing…, and a rather positive conclusion.
Update: And while I’m at it about good deals on Intel mini PCs: Onda M2 with Intel Celeron J1900, 4GB RAM, and 128GB SSD sells for $189 shipped.
Jean-Luc started CNX Software in 2010 as a part-time endeavor, before quitting his job as a software engineering manager, and starting to write daily news, and reviews full time later in 2011.
Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress
I’m looking for an windows-less Intel mini-pc with VGA output. Can you recommend one?
I plan to use some Kodi distribution on it and I do not want to pay for Windows.
This box looks nice but sadly does not have VGA. I need it for my current installation.
Also I’d like it to be intel because I hope it would better support 800p resolution of my projector. Wouldn’t it?
Geekbuying has it for $80 with coupon code 10WINTEL:
http://www.geekbuying.com/item/Wintel-W8-PRO-Z8300-Windows-10-4K-MINI-PC-2G-32G-802-11b-g-n-LAN-Bluetooth4-0-HDMI-H-265-363000.html
There’s a company called “Wintel”?! Couldn’t they have at least googled the name first? Dang…
Oh, about the activation, my Meegopad T01 that came with an inactivate 8.1, go magically activated when I installed windows 10 on it…
@RK
Gets updates and everything: http://postimg.org/image/i6x1djzyh/
I had debian installed previously and the auto-start kernel. It gets regular updates and I’ve been using it as a desktop since I bought it a year or two ago. Though I only switched back to windows from linux a couple of month ago since I’m mostly using an ARM SBC for as my linux development workstation and desktop nowadays.
Anyhow, I’m saying all of this since they might have Win10 activated. It would seem to me Microsoft just doesn’t care.
@Andrius
Mele has mini PCs with VGA output.
PCG03 Plus: (now it’s being sold at full price – 179$ – so wait for a discount… I think that before Chinese new year its price was 149$)
http://www.aliexpress.com/store/product/Fanless-Intel-Mini-PC-StarCloud-PCG03-Plus-Windows-10-Quad-Core-Cherry-Trail-Atom-Z8300-2GB/715968_32580905881.html
and in these days there is going to be a new “PCG60 plus” model:
http://www.cnx-software.com/2016/01/19/mele-star-cloud-pcg60-plus-cherry-trail-mini-pc-comes-with-hdmi-and-vga-outputs-gigabit-ethernet-and-more/
@cnxsoft: I thought MS is giving Windows (with Bing) for free for these devices (at least when their RAM is not more than 2GB). So you say that in fact the Windows licence costs a few tens of dollars? So it’s rather not free, but at a reduced price?
Does someone here can elaborate on the quality/reliability of the Wintel brand?
@Ron
I understand there are different tiers:
* Tablets smaller than 9″ with 2GB RAM max -> Free (Windows with bing)
* Mini PCs with 2GB RAM – ~$25 (Windows with Bing NTE)
* Others – $85.
And then there are OEM licenses going into the mix where you can get a Windows 10 license for about $20 on any PCs, but I don’t really understand if it is legal or not.
These are just my own understanding of how this works, based on what I’ve read on various websites over the months. I don’t think there’s a page where Microsoft explains it all in simple terms.
@Andrius
Some other options:
http://www.cnx-software.com/2015/03/24/csq-csw9-is-a-200-intel-celeron-j1900-mini-pc-with-an-internal-hard-drive/
http://www.cnx-software.com/2014/03/27/ecs-liva-is-a-complete-sub-200-mini-pc-based-on-intel-bay-trail-m-soc/
http://www.cnx-software.com/2015/03/25/mr-nuc-v3-j1900-is-an-intel-nuc-clone-based-on-celeron-j1900-processor/
http://www.cnx-software.com/2014/12/19/giada-f110d-and-asus-e210-fanless-mini-pcs-feature-intel-bay-trail-celeron-n2807-processor/
http://www.cnx-software.com/2015/04/08/vx2-celeron-j1800-j1900-mini-pcs-with-500gb-hard-drive-sell-for-180-and-up-promo/
http://www.cnx-software.com/2015/01/26/x29-intel-celeron-j1800-j1900-mini-pc-sells-for-125-and-up/ (Likely the cheapest in the list)
@cnxsoft
considering 4k & price, what would be better, J1900 (most of your suggestions) or x5-Z8300?
@shar
In terms of processing power, there’s not that much difference between low cost low power Intel processors, but Celeron J1900 will have better I/Os (e.g. SATA). I’m not quite sure J1900 4K works, but if you plan to use a 4K desktop on these machines, you may be disappointed by the performance, and I recommend staying with 1080p resolution.
how much watt this thing eat?
@Tutanchamount
The processor is 2W SDP, but the complete system itself should consume less than 10W.
I have not done measurements with Atom x5-Z8300 processors, but I did some with Atom Z3735F, which should have similar power consumption, although a little higher. See http://www.cnx-software.com/2015/04/28/intel-atom-z3735f-mini-pc-power-consumption-in-android/
Does it support Remix OS?
For anyone interested: all USB ports are on the same bus (at least that’s how it looks on Linux), including Ethernet adapter (Realtek), WiFi/BT module is on SDIO. Windows is activated and can be reinstalled but… Windows can’t find drivers for HDMI audio and BT/WiFi module. Still GPU works flawlessly on both on Windows and Linux making it a nice alternative for arm based boxes. Power adapter (5v/3A) uses a smaller barrel then the (more or less) standard 5.5/2.1. Arch uefi iso/installer work well (don’t touch uefi shells, not even in the menu), grub uefi works fine but I wasn’t able to launch Ubuntu 15.10 64bit.
I have opened the device to see wether it’s possible to tune up the heat problem. It’s very tricky: There is a 2mm grey Thermal Pad between the cpu and the heat spreader. On the “mainboard”, many other chips and components are a little bit higher than the processer, so there is no way to use thermal paste, because it won’t fill the gap between cpu and heat spreader. In fact, there is one chip that lies so high, that the whole head spreader hasn’t the same distance to the board at all areas! And as it is not a cpu but a chipset heat spreader, it is only connected with two pins to the board. I had to abrade some material from the bottom of the heat spreader in order to have it lieing evenly on the board. So I see two solutions: Using a better thermal pad with higher conductivity or abrade the wohle bottom of the head spreader execpt the middle so that the highest point is where the cpu is and than using thermal paste :-O
One question to the software experts: Whats the combination to enter the bios? I tried del or F2 but didn’t work. I want to make a copy (clonezilla) of my Win10 partition and then delete erverything and install linux (maybe ubuntu or opensuse)
HDMI on Linux now works!!! And there’s also an Openelec image!
http://www.cnx-software.com/2016/04/19/hdmi-audio-in-linux-is-now-working-on-cherry-trail-mini-pcs-openelec-7-0-image-released/
Thank you Pierre-Louis Bossart !!!!!
Sorry to reply to an old thread bit I installed the openelec image you posted and the kodi seems locked I can’t install addons etc did you have the same issues if so did you find a work around?
@Martin
escape key, several times, no continous
@Martin
and take care editing bios parameter, I already bricked one W8; no tv signal
I have found that Geek Buying.com sells at least 3 different versions of the W8 Wintel. I bought 3 item number 363000’s and 1 came with windows 10 activated and 2 were not. I had no trouble activating them and they all updated no problem. The other 2 models are 343918 (dual Boot) with Android and windows and 366248 that is marked CX in front of the W8, I don’t know what the CX means. I was told they are made by different manufacturers and they have 3 different prices within $10.00. I love mine but I can’t find any documentation on how large of a micro-SD card I can get full use out of in this box? Does anyone know for sure? Where can I find this information? Windows 10 takes up almost half of the hard drive 32GB. I am told the other 2 models can also run dual boot if you choose I know they at least take Android, with Windows. They are very fast with Kodi TV program on Windows 10 compared to Android in my experience, time to load program guide is quite noticeable.
@Tom:
Beside the old Baytrail Z3735-based model (w8 without ‘pro’), there are *at least* two different ‘Wintel w8 pro’ devices:
i)
Label on the bottom of the case: WINTEL BOX MODEL CX-W8 Pro
Label on the top of the PCB: INET-T8-REV02 W8 PRO 2015-11-10
Realtek RTL8723BS Wireless LAN 802.11n SDIO Network Adapter
Coaxial wire WiFi/BT antenna
MAC address OUI: 20180e
Computer Brand Name: Insyde CherryTrail
BIOS Manufacturer: INSYDE Corp.
BIOS Version: Mx.WT8.NNNNREN02
BIOS Date: 11/25/2015
The WiFi of this model performs very well: full 54Mbps with a Cisco E4200 in the same room.
ii)
Label on the bottom of the case: WINTEL BOX MODEL W8 Pro (without “CX-“)
Label on the top of the PCB: CYX-T8_V2_0 20151221
Broadcom 802.11n Wireless SDIO Adapter (AMPAK)
Small PCB WiFi/BT antenna
MAC address OUI: C44EAC
Computer Brand Name: N/A CherryTrail
BIOS Manufacturer: N/A.
BIOS Version: YT8.2×64.001
BIOS Date: 01/06/2016
The WiFi of this model performs badly: from 2 to 20Mbps with the same Cisco E4200 in the same room.
In addition, the overall manufacturing quality of the second model, appears to be significantly lower.
A teardown of this specific model is available at https://www.youtube.com/watch?v=awT3pZxVV1Q
There is no way to know in advance if you are buying a cheap “W8 Pro” or a better “CX-W8 Pro”,
anyway both come with 64 bit UEFI and Windows 10. On some boxes, bought from the same vendor, there is a questionable “AutoKMS” that provides some black-magic out-of-the-box…
@gencap
I am trying to find a driver that works for Broadcom 802.11n Wireless SDIO Adapter. I tried all drivers I found on the net, but still no luck.
Can you help me out bro? Thanks
http://www.gearbest.com/tv-box-mini-pc/pp_324845.html
is this the better model (option I) ?
+@Eli Landes
I wonder the same @gencap
Are you saying this also comes with 64-bits BIOS so we can install Linux? 🙂
Hi all ,
been trying to install ubuntu server ( 16.04 / 14.04 ), onboard fast ethernet not detect , are there any work around about this situation ? running well with ubuntu desktop … 🙁
@SAS
I’m not sure why this happens, but one work around would be to install Ubuntu Desktop, then remove the desktop.
@cnxsoft
Will try once more , and trying to reset my router before installation , when same situation happen will reinstall desktop version and competly convert to server version …:(
Just an update on Geek’s Wintel W8 Pro. I ordered 10 more and they were seized by US Customs and Border Patrol. They could not find any illegal aliens so they are now checking all “TV BOXES” as declared on the shipping paperwork from China to US. 6 weeks later I got a 7 page letter from them saying they were seized not detained. The reason given was a trademark violation printed on the bottom of the box that is for Microsoft Windows 10. It is sworn to be an illegal trademark by Microsoft. They give you several options I gave the letter to my attorney. It sounds like I may still be fined some money on this side. The good thing is I paid with PayPal and got my money back. Geek offered to go Dutch on the loss and I said no. They are mad at me and won’t respond to me after I sent them a copy of the letter. The government determined the value to be 83.30 per unit and not a gift as packaged worth $50.00 per case. If you deal with Geek read the fine print, it talks about going Dutch when things go south. Customs said they are checking ALL boxes labeled “TV BOXES” many companies ship them like that. You may want to be more creative if you want them. No more Windows for me. After having trouble with one box with Kaspersky it said there was something bad in the Windows program I called and was told you cant run anti virus with that version of windows. I bought a different one. I believe in anti-virus’s reducing problems. Geek claims if the US sends the boxes back to China I will face shipping fees, importation fees, taxes and duties to the Chinese government. Maybe I can post the 7 page letter or email it to anyone who is thinking of buying these. I don’t know what the posting rules are on this. Delete any part that cant be printed. Just trying to save people time and money and having every package from China now being inspected 100% and taped back up with green US Customs and border patrol tape for routers and keyboards and things like that. This never happened until these 10 were seized. For the record Geek claims this has not happened to anyone else but I know a guy who bought 1 unit from a different reseller and his was also marked “TV BOX” and was seized.
@eli landers:
IMHO, the “I” (first) model has been designed more accurately and its WiFi performs way better than the other.
Gearbest answered my inquiry saying that they’re selling the “good” model (the one with the INET-T8 board).
Anyway, the bottom of the enclosure in their pictures seems to be the other one: the INET-T8 model has four rubber feed hiding the screws, while the “cheap” model has no screws at all and just one little hole. You can open the enclosure with a suction cup.
@fossexplorer:
The 2 models run a 64 bits UEFI which can run _signed_ EFI GRUB flawlessly.
I was able to run a stock “Clonezilla Server” (DRBL Live) by simply choosing the right UEFI device at boot.
Of course, you have to interrupt the default boot sequence. Press ESC (or F2, DEL? Can’t remember now).
I had no problems with the onboard ethernet (its ethusb module is supported) under that distro, but
audio and WiFi were both not working. It would be useful to gather all those patches laying around to build
a kernel with complete hardware support for CX8.
@eli landers:
IMHO, the “I” (first) model has been designed more accurately and its WiFi performs way better than the other.
Gearbest answered my inquiry saying that they’re selling the “good” model (the one with the INET-T8 board).
Anyway, the bottom of the enclosure in their pictures seems to be the other one: the INET-T8 model has four rubber feet hiding the screws, while the “cheap” model has no screws at all and just one little hole. You can open the enclosure with a suction cup.
@fossexplorer:
The 2 models run a 64 bits UEFI which can run _signed_ EFI GRUB flawlessly.
I was able to run a stock “Clonezilla Server” (DRBL Live) by simply choosing the right UEFI device at boot.
Of course, you have to interrupt the default boot sequence. Press ESC (or F2, DEL? Can’t remember now).
I had no problems with the onboard ethernet (its eth to usb module is supported) under that distro, but audio and WiFi were both not working. My only successful attempt to get a working audio was running the latest LibreELEC alpha 7.90.002 whose kernel includes the HDMI audio patch.
It would be useful to gather all those pieces of code laying around to build a kernel with complete hardware support for CX8 Pro.
In the comments section on Gearbest, they state both USB ports are 2.0 🙁
I find it strange.
One USB is 2.0 and the other is 3.0 😉
If you’ll get your Wintel MiniPC, don’t ever turn off “GOP driver” in BIOS setup!
I’ve bricked mine right this way …and now still searching for solution, BIOS reset and backup battery disconnect is not working as usual 🙁
Dear all,
USB 3.0 onboard speed only as usb 2.0 on ubuntu 16.04 , been testing on windows 10 with crystaldisk my enternal ssd could run at full speed up to 470/450 MBps r/w … , are there any chance for ubuntu on usb 3.0 at full speed 🙁
Regard’s
My keyboard is not working can anyone help I bought3 diff kinds
@M
USB keyboard I presume. Did you connect a mouse too? If so, does it work?
Maybe avoiding connecting the USB keyboard to the USB 3.0 port.
Wintel Pro CX-W8 board.
Please I broke one SMD component.
Please help!! What is this smd component. I will replace it, but I don’t know what is it?
Look pictures. Thx.
https://s32.postimg.org/zc3fygd7p/IMG_20160716_162816.jpg
https://s32.postimg.org/bz5efxx45/IMG_20160716_162826.jpg
https://s32.postimg.org/so6ubutph/IMG_20160716_162853.jpg
@Ivo
That’s a passive component. If the color used to be similar to the components on the right in the first picture, then I’d say it’s a capacitor. But which value? I don’t know.
Try to find a component that looks the same, and measure the capacitance or resistance with a multimeter. For an inductance it is a bit more complicated: http://www.wikihow.com/Measure-Inductance
Thanks for replay. I also think that is a capacitor.
I send message to Sunchip. I am waiting to respond.
@kubik256
Did you find a solution? I have the pc with linux on board. I disabled the gop drivers and no more signal from hdmi, but I can reach the machine via ssh, so it is still alive. If i press f2 while booting i’m sure it will go in the bios, so if somebody can guide me as a blind a can pherhaps reset the bios.
@Davide
I read that we have to flash BIOS. So, I order USB programator to flash BIOS on board.
http://www.ebay.com/sch/i.html?_nkw=CH341A+24+25+Series
http://www.ebay.com/sch/i.html?_nkw=SOIC8+SOP8+Flash+Chip+IC+Test+Clip
So, I am waiting items from ebay to come.
But, when I remove heat-sink I broken one component on board.
Now I have a another problem. I don’t know what component is it and which value?
Please If someone can help with identify component on board?
https://uploads.disquscdn.com/images/2ef0308e1b0f843d387cba2c79703e244f05ead8babe1829929679e24b6b7168.jpg
@Davide
No luck for now… I’m searching for some BIOS screenshots coz I also prefer your “blind” way instead of flashing BIOS in programator 😉
If somebody has screenshots of BIOS, please send it here!
Many thanks 😉
Yes. If someone could give us some screenshots of the bios would be really great!
I don’t even remember which key I have used to enter the bios. F2? F11? Del? I don’t know. I remember i firse screen with few options then i touched something and i went in advanced options. Here if i remember we can press F9 to reset to defaults and then F10 to sve and exit. If this is true we must just jave to know the key to enter the bios and whick key we have to press to go to advanced.
@Davide:
@Kubik256:
1) To enter the firmware menues you have to hit ‘ESC’ at powerup (several times);
at this time, if you hit ‘ENTER’ you go straight to Win10 loader (“Continue”).
2) Press CURSOR-DOWN 5 times and press ENTER (Setup Utility);
you land in “Main” tab where you can change language and date/time.
3) Hit CURSOR-RIGHT to show “Advanced” tab (without hitting ‘ENTER’!).
4) Press CURSOR-DOWN to highlight “Video Configuration”, and hit ENTER to show that section.
5) You should have “GOP Driver” settings highlighted, so you could press ‘F5’ or ‘F6’ (Change) to re-enable it;
I didn’t ever try to modify that settings, honestly!
6) Press ‘F10’ to Save and exit.
I’m going to post some screenshots of my CX8 Pro (ampak version) firmware menues, so you will be able to double-check the previous steps.
http://postimg.org/gallery/32rae42ua/
GC
@Davide:
@Kubik256:
A nice shortcut or alternative:
1) ESC, ESC, ESC … ESC at powerup;
2) 5*CURSOR-DOWN + ENTER (Setup Utility)
3) 1*CURSOR-LEFT (without ENTER) (Exit tab)
4) 3*CURSOR-DOWN + ENTER (Load Optimal Defaults)
5) 3*CURSOR-UP + ENTER (Exit saving changes)
I think that the “Optimal Defaults” should have the “GOP Driver” enabled…
GC
A friend just had a mini pc from china taken at customs for trademark violation. “HDMI” THIS TIME, SO NOW THEY ARE TARGETTING anything with a HDMI tademark. This was clearly a mini computer not a tv box.
@gencap
Many many thanks for a great post… I’ve tried it about 10 times, but no luck for now 🙁
Can you please look if there is YES/NO question prompt after you press F10? … and if is YES highlighted by default?
Good advice: Don’t ever try to turn it off!!! I’ve already disassembly whole box, and unlike the traditional PC, there is no BIOS reset jumper and remove CMOS battery and short the pins also not working. So there is absolutely no emergency way to fix critical settings in BIOS 🙁
If you are wondering why I’ve disabled this… I tried to install custom ISO of WMware vSphere hypervisor on this box, but there is some settings in BIOS that is incompatible with vSphere kernel, so install ever failed. I thought that nobody should be so stupid to build PC without CMOS reset… obviously somebody should 😀
Thnak you very much for the help, but…here I have the same situation as @kubik256 …! Can you check if there is some question prompt we have to answer?
Another question…I saw in a some screenshots on the web that pressing F9 will load default (optimal) settings. Is this true?
@Davide, @Kubik256:
Good news!
‘F9’ works as supposed: it loads the Optimal defaults and prompts with ‘YES’ highlighted;
‘F10’ prompts you for “Save and EXIT”; it highlights the ‘YES’ option too.
To wrap up, while in ‘Setup Utility’, ‘F9’+ENTER and ‘F10’+ENTER should be the right recipe.
Could you confirm that, please?
GC
@gencap
I’ve tried many times new steps with F9 and F10, but still no luck 🙁
1) ESC, ESC, ESC … ESC at powerup;
2) 5*CURSOR-DOWN + ENTER (Setup Utility)
3) F9 + ENTER (Load Optimal Defaults)
4) F10 + ENTER (Exit saving changes)
Is there any expert to help me with this post?
http://www.cnx-software.com/2016/03/02/wintel-pro-cx-w8-cherry-trail-mini-pc-sells-for-85/#comment-528962
@Ivo
Hi, I think that there is no help from any expert, because it is almost impossible to measure capacitor value while it is connected in circuit. However these capacitors are usually used as filters, so good idea is to try to replace it by some low capacity… I think it should work and it should be safe to test 😉
What you mean low capacity ?
100uF ?? 10pF ? … ??
@Ivo
Something between 10 – 100 pF can be close 😉
@kubik256
ok. thanks. I will try.
@Ivo
Please !!!!
Can someone take a big good screenshot? I think that the component on board was black.
it seems like this one:
https://www.westfloridacomponents.com/J245APF07/10uF+10V+Ceramic+Chip+SMT+Capacitor+TDK+C3216Y5V1A106ZTJ00N.html
@Ivo
Photos of my WinTel’s board is here: https://goo.gl/photos/d2o25ZDVq8v78ouX8
But I thing it’s very different … have you version with Windows 10? There was some versions with dual boot or with Windows 8 and also with different CPU. Mine has CPU Z8300 and only Windows 10 Home preinstalled 😉
my model is:
http://www.geekbuying.com/item/Wintel-Pro-W8-PRO-Intel-Z8300-Windows-10-4K-MINI-PC-2G-32G-802-11b-g-n-LAN-Bluetooth4-0-HDMI-H-265-363000/
https://s32.postimg.org/ta5ypivud/IMG_20160723_131422.jpg
@kubik256
Same here. Still no luck!
Hi Guys,
Planning to buy this device.
Can any one confirm whether i can install and add an external sound card to this device. I have a Creative Xi Fi pro 5.1 external sound card.
Appreciated.
@Sajad
Yes, USB sound cards should work. I used a $2 one once on similar hardware
According this:
https://upload.wikimedia.org/wikipedia/commons/thumb/3/34/SMT_sizes%2C_based_on_original_by_Zureks.svg/330px-SMT_sizes%2C_based_on_original_by_Zureks.svg.png
Light grey body colour indicates a capacitance which is generally less than 100 pF.
Medium Grey colour indicates a capacitance anywhere from 10 pF to 10 nF.
Light brown colour indicates a capacitance in a range from 1 nF to 100 nF.
Medium brown colour indicates a capacitance in a range from 10 nF to 1 μF.
Dark brown colour indicates a capacitance from 100 nF to 10 μF.
Dark grey colour indicates a capacitance in the μF range, generally 0.5 to 50 μF
full source link:
https://en.wikipedia.org/wiki/Surface-mount_technology
Can someone help me what size and what colour is the broken component? Please!! I want to fix my Wintel CX-W8 PRO.
https://s32.postimg.org/zc3fygd7p/IMG_20160716_162816.jpg
desperately seeking usb 3.0 running at full speed 5Gbps on ubuntu …. 🙁 anyone ???
ps .
just be careful playing with bios setting unless you’re ready with your flash programmer ….:(
@kubik256
Still no luck here
Just inform you.
I recover my WINTEL W8 PRO Z8300 BIOS with USB programmator. Yeah.
Also WINTEL W8 PRO Z8300 works ok without broken capacitor.
@Ivo:
Nice to hear that!
I’m just a little bit curious about your solution: could you explain how did you manage to reflash the firmware?
Hi all – interesting reading above.
I’ve got a CX-W8 Pro and am wondering if there’s an option in the BIOS to resume after power failure. I can’t see anything obvious (and don’t want to brick it my messing with the wrong settings).
On one of my other machines this option is called “Restore on AC Power Loss”.
It’s a very useful feature when you’re using something like this as box to do something – HTPC etc – because of course if power does fail you’re not always around to turn it on again. (And the one I have has a very wobbly EU>UK power adapter and I’ve accidentally knocked it off already twice today.)
Any thoughts please? Thanks.
@gencap
First, I found orginal dump BIOS from Internet. (thx @mtnclk)
https://drive.google.com/file/d/0B6w1p8D0TPFgRl8yQ3ZXQ1ZVSFU/view?usp=sharing
I used this method.
USB Programator
https://youtu.be/5NYe21nFSDI
SOP8 Flash Chip without de-soldering
https://youtu.be/wUWroks_Rd0
My Wintel W8 Pro is showing some hardware issues since a week ago.
I found that it froze while it was downloading Win10 1607 update.
Later, I was able to download the whole set of updates, but the mini PC died again while it was installing the new software.
After the lockup, I wasn’t able to power it on again, even if I disconnected the power plug and reconnected after a few seconds.
Leaving it alone for some minutes, made me able to boot again, but Win10 was up and running just for a few minutes before freezing again…
I tried to investigate the issue by monitoring the SoC temperatures (HWINFO64) but I couldn’t figure out any plausible cause, since the maximum temperature reached was under 50°C.
Today I tried to restore the original image that I created with Clonezilla Live, but the W8 Pro got stuck in a couple of minutes.
I’m going to perform some other tests to point out the faulty hardware: it could be a defective RAM chip or a bad eMMC or simply a poorly applied thermal paste.
Is anyone else experimenting the same troubles? Any advice?
After several stress-tests, I excluded CPU, GPU, RAM and thermal causes and I (probably) found the guilty component(s).
My box is equipped with a FORESEE NCEMBSF9-32G chip, implementing the JEDEC eMMC 5.0 standard.
Digging into the System Event log (evntvwr) resulted in several kernel errors (controller error on \Device\Harddisk1\DR2) preceded by several warnings (on the same device) about a failed paging operation.
In just one occasion, while Win10 was freezing, there was enough time to display a “SDBUS_INTERNAL_ERROR” (my compliments to MS’s efforts to make error messages dumber and dumber).
Googleing with those hints produced a couple of interesting (and authoritative) results which, even if referred to a previous Windows version and a BayTrail rather than CherryTrail SoC, could clarify what’s happened.
Window 8 may stop responding (hang) when multiple abort commands are sent to an embedded storage device:
[1] https://support.microsoft.com/en-us/kb/2792463
VLT7 – eMMC Asyncronous Abort may cause a Hang (page 21):
[2] http://www.intel.com/content/dam/www/public/us/en/documents/specification-updates/atom-Z36xxx-Z37xxx-spec-update.pdf
This couple of clues perfectly match with my scenario, where the system was up and running with a high CPU+eMMC load, due to the intense processing involved by 1607 update. I guess that such situation was plausibly issuing some “eMMC async abort” commands that led to the observed hangs.
Intel suggestested a workaround in [2], and Microsoft released a Hotfix for Windows 8.
In my (our?) case, the SDBUS driver provided with the preinstalled Win10 and – presumably the z8300 SoC, are prone to sudden and unpredictable system failures and complete hardware hang.
+++ RIP +++
My Wintel W8 Pro has become a paperweight. At least, it seems so…
After moving it back to the TV set I’ve got in the kitchen, it refuses to boot and to power on.
Its blue led keeps blinking (it flashes also red for some milliseconds) until I keep pressed the power button for about 10 seconds.
I think that some sort of power spike (damn those cheap PSUs) has messed up the firmware or the device settings.
I’m wondering if there exists any method to reflash the device from the ground up, using an OTG cable and injecting the whole stuff from a PC.
I’ve tried to disconnect the RTC battery and to use another PSU without any success.
I’m not alone: I’ve read around that other people are in the same troubles, so this could be a
faulty designed device. Perhaps, the N^th buy-and-trow-away chinese gadget…
Thank you in advance for any helpful advice.
GC
Firmware for CX-W8 Pro -> http://www.mediafire.com/file/ly5lsdkx2fl9yst/cx-w8.rar
Wintel CX8 Pro: blinking blue-red power led (“BLOD” Blinking Led Of Death) issue status update:
I’ve bought a CH341 kit to try to revive my box: SPES ULTIMA DEA.
After several failed attempts to reflash a firmware dump, I realized that
my SPI flash is defective: the original file and the one read from the
previously programmed chip always differ for a few (~100) bits in
sparse memory locations.
Even the simplest action (chip erase + blank check) gave me the same
response, since the same bits weren’t erased.
I’ve purchased a couple of spare parts on AliExpress for about $2:
https://www.aliexpress.com/item/2pcs-lot-W25Q64FWSSIG-W25Q64FWSIG-25Q64FWSIG-25Q64-64M-BIT-FLASH-8M-X-8-SPI-BUS-SERIAL-EEPROM/32698200774.html).
After the usual 40-50 days, I’m ready to replace the W25Q64FWSIG chip on my mainboard,
but I still need the original firmware (YT8.2×64.001) for my specific model:
– Label on the bottom of the case: WINTEL BOX MODEL W8 Pro (without “CX-“)
– Label on the top of the PCB: CYX-T8_V2_0 20151221
– BIOS Version: YT8.2×64.001
– BIOS Date: 01/06/2016
I’ve got a correct dump (INSYDE Mx.WT8.NNNNREN02) for the other model,
but, being based on different hardware, I think it won’t work properly.
Any help would be appreciated.
TIA,
GC
@gencap
try this one
https://yadi.sk/d/BfUrnTtI38unuB
also try 2 read this https://4pda.ru/forum/index.php?showtopic=762825
