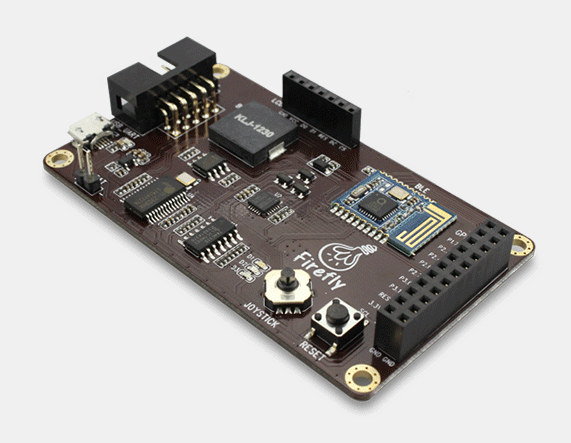

Firefly introduces FireBLE Bluetooth Low Energy Board

So just as today I wrote about XBAND BLE Sensor board, the makers of Firefly-RK3288 also announced their own Bluetooth Low Energy board aptly named FireBLE, and also integrating a 6-axis gyroscope and accelerometer, but instead of being based on Nordic or Cypress, the company went with an NXP BLE chip.

FireBLE board specifications:

• SoC – NXP QN9021 ARM Cortex M0 MCU @ 32MHz with 94KB ROM (protocol stack), 64 KB SRAM, 128KB flash
• Bluetooth – BT 4.0 single mode. Central and peripheral mode with up to 8 simultaneous connections.
• Sensors
  • MPU-6050 3-axis gyroscope and 3-axis accelerometer with an on-board Digital Motion Processor (DMP) capable of processing 9-axis motion fusion algorithms.
  • Battery and temperature sensor
• USB – micro USB port for power and programming
• Expansion – 3 expansion headers with access to SPI, UART, I2C, GPIO, and PWM, as well as OLED display interface.
• Debugging – JTAG, support SWD online simulation on-board USB to serial.

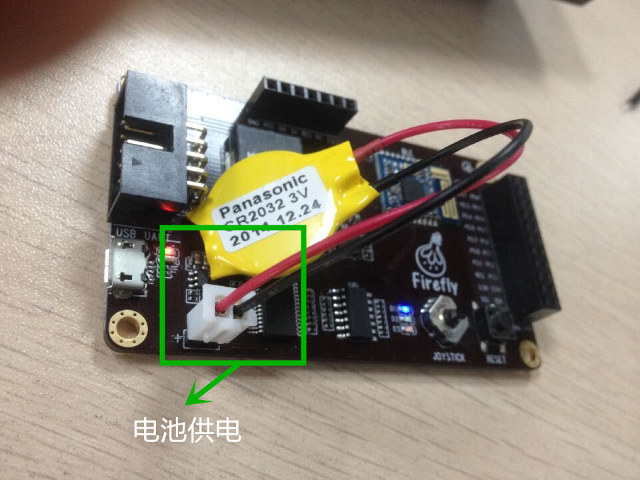

• Misc – Joystick, reset button, battery connector, 3x programmable LED
• Power – 5V via micro USB port
• Power Consumption – NXP MCU: Tx: 8.8 mA Rx: 9.25 mA; deep sleep: 1.8 uA
• Dimensions – 80 x 45.5 mm

It’s much bigger compared to XBAND, but at least it should be easier to power and program thanks to its micro USB connector. The board will support OTA firmware update via a smartphone, and targets various applications such as sport & health, smart home, PC device, smart TV, smart watch, automotive applications, and more. FireBLE SDK, schematics (PDF), CAD files, firmware, drivers, and tools are available in the Download section, and there’s also a Wiki (in construction) with some extra documentation and tutorials.

FireBLE is not available just yet, and price has not been disclosed. The board seems to be the first member of FireSmart family, which could be composed some boards targeting Internet of Things applications. Further details may be found on FireBLE product page.
