Posted on by Jean-Luc Aufranc (CNXSoft) - 20 Comments on Eny M8S and M8C Android Media Players Powered by Amlogic S812 SoC

Eny M8S and M8C Android Media Players Powered by Amlogic S812 SoC

The first Amlogic S812 Android TV box I had seen was Xtreamer Wonder which should start shipping for 99 Euros ($140) by the end of the month, but they’ll have some competition as Eny Technology will soon manufacture M8S and M8C Android media players, also based on the same quad core Cortex A9 processor, with 4K UHD video output and HEVC/H.265 hardware video decoding.

Eny_M8SM8S and M8C have the same technical specifications except that the former comes with 2GB RAM, and the latter with 1GB RAM:

  • SoC – Amlogic S812-H quad core cortex A9r4 @ 2 GHz with octa-core Mali-450MP6 GPU @ 600+ MHz
  • System Memory – 1GB (M8C) or 2 GB (M8S) DDR3
  • Storage – 8GB NAND flash + micro SD card reader
  • Connectivity – 10/100M Ethernet, dual band 802.11 b/g/n Wi-Fi, Bluetooth 4.0
  • Video Output – HDMI 1.4 up to 4K2K @ 30 Hz, AV port
  • Audio Output – HDMI, AV, optical S/PDIF
  • Video Codecs – 4k2k H.264, H.265 UHD, HD MPEG1/2/4, AVC/VC-1, RM/RMVB, Xvid/DivX3/4/5/6, RealVideo8/9/10,
  • Audio Formats/Codecs – MP3, WMA, WAV, OGG, FLAC, APE, AC3, AAC etc… Dolby, TrueHD, DTS, SRS, AC-3
  • USB – 2x USB 2.0 host ports
  • Power Supply – 5V/2A
  • Dimensions – N/A
  • Weight – N/A

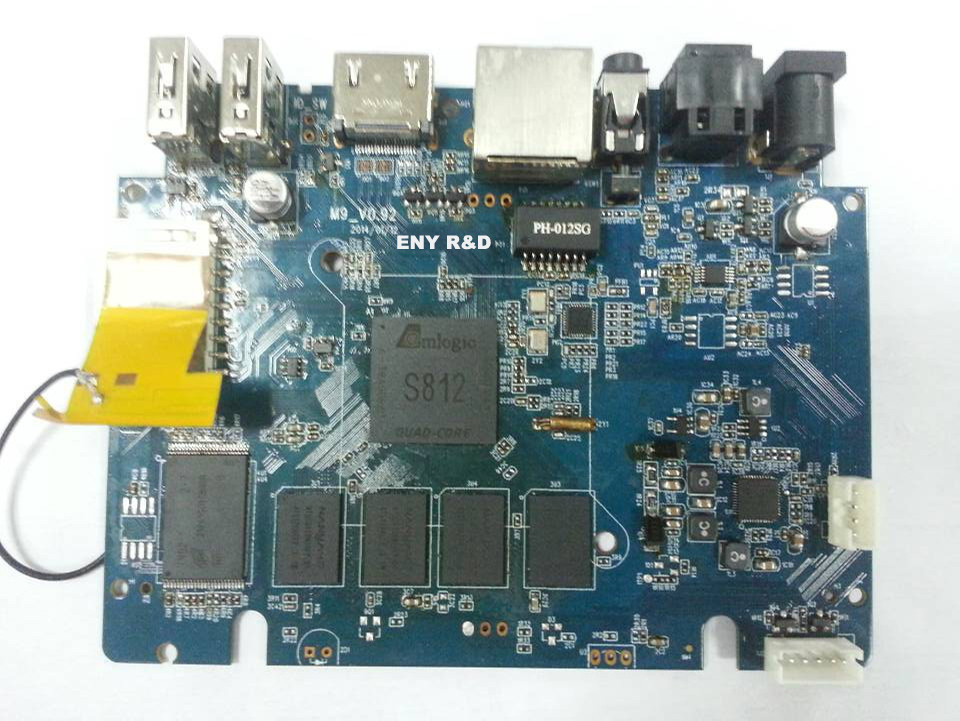

Amlogic_S812_board
Eny “M9” Board (Click to Enlarge)

These Android STBs will run Android 4.4, and come pre-loaded with XBMC/Kodi 14.x, hopefully with H.265 support. Amlogic S812 is supposed to support Gigabit Ethernet, but Amlogic must have problems with their GMAC IP or drivers,m because none of the products based on S805 / S812 feature a Gigabit Ethernet port.

Eny Technology informed me they’ll manufacture a small batch at the end of the month, so hopefully they’ll be up for sale at the retail level in November or December. The company was not ready to release pricing information publicly yet, but the Chinese SoC little fairy told me that Amlogic S805 costs about $5, S802 about $10.5, and S812 about $11.5, with further discounts available in large quantities, so products based on Amlogic S812 based products may not be that much more expensive than Amlogic S802 based products using similar components.

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard

20 Replies to “Eny M8S and M8C Android Media Players Powered by Amlogic S812 SoC”

  1. Superb new, strongly that the test is coming !
    I hope that will motivate them to do a Linux (Buildroot) support.

    Reply

  3. Only 802 and 802-H are supported.
    From the photo, the reference is a M9, it does not appear in the buildroot.
    I got the answer that they will not support for the S805, we’ll see the S812.

    I will send an email to see if the next version of “buildroot” will support the S812.

    Reply

  4. Latest buildroot already supports S812. S812 chip will represent itself as Meson8, and their reference board supported in buildroot is n200. On HEVC support I’m already working, PR on xbmc github is open, still need some cleaning.

    Reply

  5. I hope this information is true, because this is great news !
    The uboot should be this : m8m2_n200_v1 ?

    And gst-plugins-0.11.0-ms should decode the H.265 ?
    GST_STATIC_CAPS (“video/x-xvid; video/x-divx; video/x-h265; video/x-h264; video/mpeg; video/x-msmpeg; video/x-h263; video/x-jpeg; video/x-wmv”)

    Reply

  7. I’ll wait until the update is put online to inspect HEXA the bootloader and confirm if this model is compatible with the latest buildroot. 😉

    Reply

  11. I ran across this link on Aliexpress:

    http://www.aliexpress.com/item/Ultra-HD-Smart-Android-TV-Box-Quad-Core-Cortex-A9-Amlogic-S812-8X-Mali-450-with/32319285501.html

    This box has 2gb RAM and 16gb ROM. They list it as an M8S. When I inquired to the vendor she didn’t even know who the vendor was and said that she would find out. Are you familiar with who manufactures this box. I checked the Eny website and they don’t have a model with 16gb ROM;

    http://www.enybox.com/En/down/html/?7.html

    I don’t exactly like the idea of purchasing a box where there would be no after sales support. If encountering a bubby ROM it is comforting to know the manufacturer is on it.

    Thanks.

    Reply

  15. “M8S and M8C have the same technical specifications except that the former comes with 2GB RAM, and the latter with 1GB RAM” is NOT CORRECT.

    M8S is without camera
    M8C is with camera

    Reply
