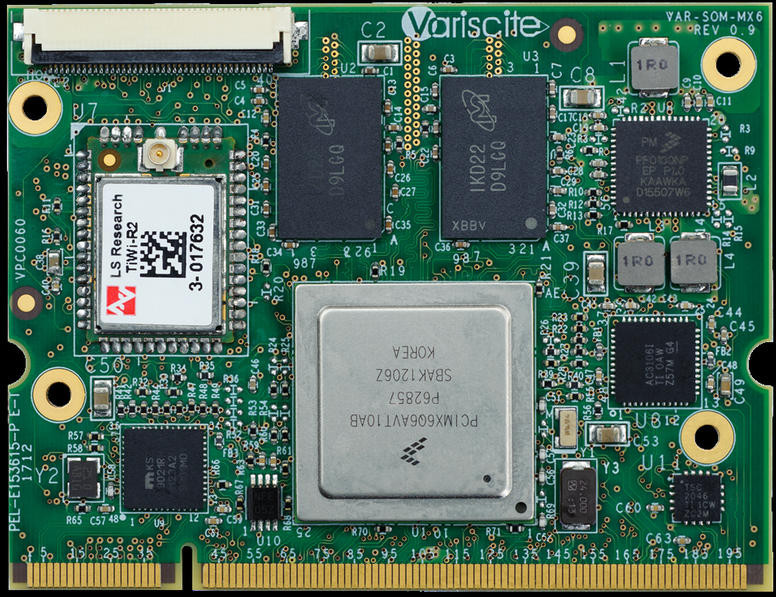

Variscite has unveiled a new series of system on modules powered by Freescale i.MX6 Solo, Dual, DualLite and Quad processors with 512 to 2048 MB DDR3 RAM, and 128 to 1024MB SLC NAND Flash.

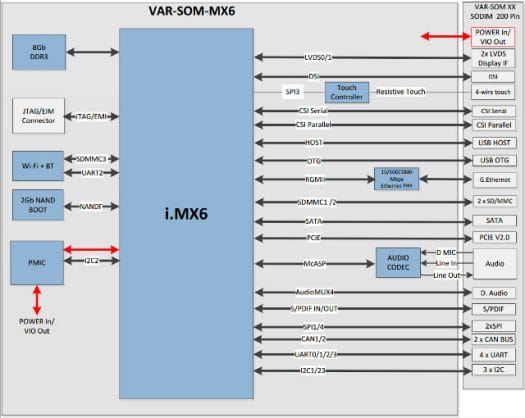

Here are the modules key features:
- SoC – Freescale i.MX 6 series SoC (Single/Dual /Quad ARM® Cortex™-A9 Core, 1.2 Ghz)
- System Memory • Up to 16 Gb DDR3 RAM
- Storage – Up to 8 Gb NAND Flash for storage memory/boot
- Video Output:
- 2 x LVDS display interface
- HDMI V1.4 i nterface
- 1 x MIPI DSI
- Touch panel interface
- Camera – Parallel & serial camera interface (CSI)
- Connectivity
- On-board 10/100/1000 Mbps Ethernet PHY
- WLAN (802.11 b/g/n)
- Bluetooth 2.1 + EDR
- USB – 1 x USB 2.0 host, 1 x OTG
- Audio – Stereo line -In/out, digital & analog microphone, and S/PDIF In/Out
- Other interfaces:
- 2 x SD/MMC
- Serial interfaces ( SPI , I2C, UART, I2S,)
- 2x CAN Bus
- SATA
- PCIE v2.0
- Power – Single 3.3 V power supply
- Dimensions – 67 mm x 51 mm , SO-DIMM Connector
- Temperature ranges – Commercial (0 to 70°C), Extended (-20 to 70°C(, and Industrial (-40 to 85°C).
The company provides Linux kernel 3.0.35, Windows Embedded Compact 7 and Android 4.03 (ICS) for the boards. Datasheets for the SoM and the “custom board” (Carrier board for VAR-SOM-MX6 V1.0), schematics for the carrier board, and 3D and DXF mechanical drawings for the modules are available on Variscite website.
The modules are available now and pricing starts at $59. You can find more information on Variscite VAR-SOM-MX6 page.
Jean-Luc started CNX Software in 2010 as a part-time endeavor, before quitting his job as a software engineering manager, and starting to write daily news, and reviews full time later in 2011.
Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress
Looks interesting. Nice set of I/O capabilities.
but, then again do we have to buy the carrier board for the module itself? Or is it included in the price (which starts from $59)?
I have just sent a request to their sales team for a quote for the same.
Regards,
Kanishk
@Kanishk
For $59, I think you’ll just get the module with Freescale i.MX6 Solo @ 800 Mhz with 512 MB RAM, 128 MB flash, and possibly without Ethernet or Wifi.
@cnxsoft
Yeah, looks so.
Well, if the module & its carrier board with i.MX6 Quad 1.0/1.2ghz, 1GB DDR3 RAM, 1GB NAND comes for less than $150. (ethernet(gigabit or otherwise), Wifi, BT are there on every solo/dual/lite & quad variants of i.MX6 so no worries)
am sooo..buying this! 😀
We are considering to use i.MX6 moduel for our Thin Client design.
Can your send me the quotation as followings?
i.MX6 Dual : ? @1Kpcs(Commertial/Extended)
i.MX6 Dual lite : ? @1Kpcs(Commertial/Extended)
i.MX6 Solo : ?@1Kpcs(Commertial/Extended)
Regards,
Scott Lee
@Scott Lee
You need to contact Variscite. This is just a blog.
Variscite does a good stuff, but after talking with their Russian SMM guy (horrible person, cant take critisism at all, by the way, jAN, if you are reading this – leave your job, you already lost one client for your company) – I encountered many issues with them.
First is obviously zero support for single buyers (like me) plus incredible pricing. $59 is price for mass production unit, guess the price for standalone developers/enthusiasts. I dont clearly remember, this was a year or more ago, but TI devkit (module + motherboard) was around $350 or something. Clearly we have better solutions on the market.
Second problem is “Sources files and build instructions for Linux package can be download from Variscite FTP. Contact email_here for FTP credentials.” (link http://www.variwiki.com/index.php?title=VAR-SOM-MX6_-_Linux_support) – isnt this direct GPL violation? They obviously will not give anyone permission to see how well they did the linux job without purchasing their stuff first. Compare this with, for example, Boundary Devices having just open github repo and ton of users around the world.
I’m not up for wasting money and then having time of headache of fixing the manufacturer linux support if it is broken enough.
P.S.: Sorry for a rant.
@Dmitriy Beykun
Just to comment on the GPL issue. I’ve always understood they need to provide the source if you have the binary (e.g. if you bought a device, you have the binary in the flash). Commercial Linux distributions (e.g. montavista) charge before you can access the services and sources, and this seems legal. Of course, I prefer the way Boundary devices operate, but I don’t think Variscite breaks the GPL. I can’t comment about their customer service however.
@cnxsoft
Thanks for clarification, wanst sure there, sorry for a rant again.
Best value indeed! the VAR-SOM-MX6 CPU: Freescale iMX6 starts at $52.
@Scott, here is their contact info:
Contact
Address:
9, Hamelacha st. Lod, 71520 ISRAEL
Email: info@variscite.com
Phone: +972 (9) 9562910
Fax: +972 (9) 9589477
Website: http://www.variscite.com
The company has now added a an NXP’s i.MX 6QuadPlus processor version of their VAR-SOM-MX6 SoM.
It’s pin-to-pin compatible, and should deliver up to 50% enhanced GPU and DDR performance:
