Most low cost Windows mini PCs based on Intel Bay Trail-T processors ship with 32GB internal storage, but as I found out with MeLE PCG03 mini PC it gets filled pretty quickly. So a few mini PCs have started to increase capacity to 64GB, as was the case with Voyo mini PC, which also included a small battery, but with version 2 of Voyo the company has decided to go with a 32 eMMC combined with a 64GB SSD, and a 4,500 or 8,000 mAh battery.

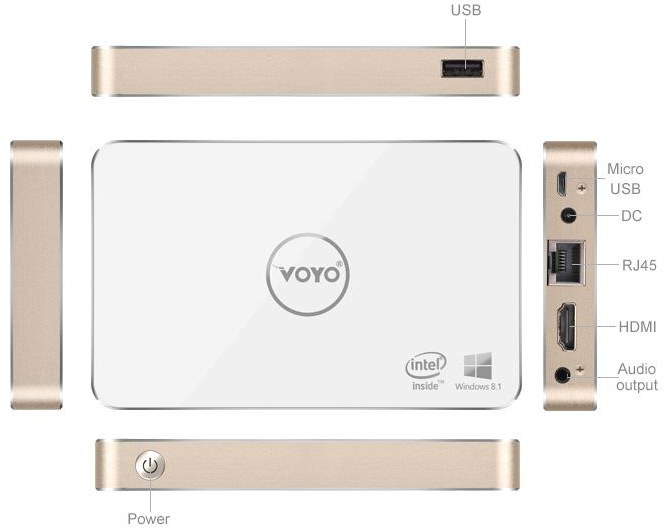

Voyo V2 specifications (Bold highlights show differences with Voyo V1):
- SoC – Intel Atom Z3735F “Bay Trail” quad core processor @ 1.33 GHz (Bust freq: 1.83 GHz) with Intel HD graphics
- System Memory – 2 GB DDR3
- Storage – 32 GB eMMC + optional 64 GB SSD (depends on model)
- Video Output – standard HDMI 1.4b
- Audio Output – HDMI, and 3.5mm audio jack
- Connectivity – Gigabit Ethernet, 802.11 b/g/n Wi-Fi, and Bluetooth 4.0
- USB – 1x USB 2.0 host, 1x micro USB
- Misc – Power Button, power LED
- Battery –
4,500 or 8,000 mAh battery (Depends on model)
- Power Supply – 5V/2A via power barrel
- Dimensions – 13.1 x 8.2 x 1.5 cm (V1: 126 x 126 x 12 mm)
- Weight – 300 grams (V1: 140 grams)
The computer will ship with a power adapter, and a user’s manual. There are two models, but unfortunately with the same name: one version with 64GB SSD and 4,500 mAh battery, and another without SSD and a 8,000 mAh battery. I understand that you might be able to install your own SSD in the latter (TBC). The Windows 8.1 version installed on the device is claimed to be genuine.
Jean-Luc started CNX Software in 2010 as a part-time endeavor, before quitting his job as a software engineering manager, and starting to write daily news, and reviews full time later in 2011.
Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress
there seems to be no mention of how to install internal storage, only that the maximum is 64GB
I have no idea how that should work.
if it were “insert your mSATA”, then this device would even be something i could consider. But i’m pretty sure that isn’t the case here. :-/
Best option Quanta NH6
I don’t quite understand, since it can support SSD, then why eMMC is still there ?
So could they take 1.8″ HDDs? I think i saw 60GB for about $20…
@Dr. Azrael Tod
I’ve asked GeekBuying and they can confirm the 8,000 mAh can also take an SSD (not mention of which kind though):
They are also checking if they can get some user’s manual showing how to add / replace the SSD.
@ijobain
That one will be more powerful, but probably around $300 to $400.
Its not SSD, its SD :))) gotta love scammy chinese 🙂
@rasz_pl
Yes, too tricky altogether. According to the dimensions, one model is square (126 x 126 mm) and the other is rectangular (131 x 82 mm), the pictured rectangular one being more pocketable but, according to the pictures, having no SD or microSD slot. IMHO it also needs at least one more standard USB port.
@rasz_pl
Are you sure? Have you seen a picture of the internals, or do you just think it can’t be done for that price?
@cnxsoft
Yes Im sure. Its a standard Chinese lie, straight in your face with a smile
Z3735F doesnt have PCIE, usb 3.0 nor SATA. All it has is 2x device USB 2.0, SD, SDIO(wifi) and eMMC
So either they are lying about SD card being SSD, or USB 2.0 pendrive being SSD, pick your lie 🙂
also “gigabit ethernet” is is over 480Mbit USB 2.0
@rasz_pl
and dont get me started on 8,000 mAh battery witt those dimensions and weight :)))
@rasz_pl
I guess they’ve simply implemented it over USB 2.0. Saying SD instead of SSD would be a massive lie, and people would notice…
That’s probably 8,000 mAh on the Chinese battery capacity scale… ;), but conversion is usually easy, just divide that number by 2 or 3. :p
@cnxsoft
8 would be closer to the truth, and usb pendrive is no ssd either.
if it were SD, then that 64GB-Limit would make kind of sense too.
so i’d think it’s that.
This unit is trash. It began to update Windows 10, then lost the bootloader, now the USB ports are disabled so there is absolutely NO WAY to input anything. So there’s no way to access the BIOS, or the operating system. I turn it on, it boots to Windows, and shuts down after a few minutes due to no keyboard activity.
